Panasonic CW-A121VR User manual

7.1. Main Unit

7.1.1. Vertical Airflow Direction Vane.

Airflow direction adjustment Up-and-Down.

• The vertical airflow direction vane may

be positioned to deflect the air

upwards,downwards or straight on.

Use the air conditioner under the following conditions:

• Operating temperature range.

Indoor side Outdoor side

D.B.T. W .B.T. D.B.T. W .B.T.

Cooling Maximum Temperature 32°C 23°C 43°C 26°C

Minimum Temperature 21°C 15°C 21°C 15°C

Heating Maximum Temperature 27°C ---- 21°C 15°C

Minimum Temperature 20°C ---- -5°C -6°C

7.1.2. Ventilation Lever.

W hen the slide lever is in the:

• “OPEN”position,the ventilation door is

opened to allow air,smoke and odors to

be expelled from the room.

• “CLOSE”position,the ventilation door is

closed and the air inside the room is

circulated and conditioned.

D.B.T.: DryBulb Temperature

W .B.T.: W et Bulb Temperature

Note: Humiditymayexceed 90% .

− Continuous operation at humidity may create

condensation and result in water drops on the intake

and outlet vanes

7 Operating Instructions

7.1.3. Main Control Knob

7.1.4. Operation Conditions.

CW-A121VR

7.2. How to Operate

Fig. 1

(1) Open the Control Panel Cover.

Fig. 2

(2) Power Supply

Switch off the breaker and set the Main Control Knob to the

OFF position before plugging the power plug into an

electrical outlet.

Fig. 3

(3) Main Control Knob

Set to LOW COOLING or HIGH COOLING and LOW

HEATING or HIGH HEATING as desired. (FAN setting

operates the fan only.)

Caution: If the Main Control Knob is turned off or

changed to a fan setting from a cooling operation

setting,WAIT at least 3 minutes before resetting to

cooling operation.

Fig.4

(4) Thermostat Control Knob.

• If the room temperature is not as desired after a

reasonable period, turn the thermostat control knob

clockwise to make the room cooler or counter clockwise

to make the room warmer.

• When the thermostat control knob is set to 10, moisture

may freeze onto the evaporator fins and prevent

effective cooling. If this happens, turn the main control

knob to FAN and the thermostat control knob counter

clockwise. This will quickly defrost the evaporator fins so

that normal cooling can be resumed.

NOTE: Usually 4-5 is the recommended setting for heating

and 6-7 is the recommended setting for cooling.

Fig. 5

(5) Air Swing Switch.

(Airflow direction adjustment side-to-side)

To obtain a fix airflow direction, set the Air Swing Switch to

“ON” for the vanes to swing from side to side until the

desired flow direction is reached, then switch it to “OFF”.

For continuous side-to-side air circulation, set the Air Swing

Switch to “ON”.

CW-A121VR

8.3.1. Installation Procedures

• Remove the screws from the rear cabinet.

• Slide the chassis out from the cabinet.

• Place cabinet into the installation hole.

8 Installation Instructions

8.1. Choosing the Installation Location

• When installing, use the nearest power outlet. Make sure the power outlet is easy to reach so you can quickly disconnect your

air conditioner in case of emergency.

• Ensure that the air conditioner is well supported, securely fastened, easily reachable and not obstructed.

• Avoid locations with: salty or sulphurous air, draughts, dampness and flammable gas.

• If you install the drainage system, be sure to channel the condensed water to a suitable location

• Covers, obstructions and unsteady support may cause excessive operating noise and vibration.

• The rear end of the air conditioner is splash proof. You need not shield or cover it.

8.2. Preparation for Installation

DIMENSION

• There should not be any obstacles surrounding the unit.

• Prepare an installation hole slightly bigger than the cabinet size.

• Left and right sides of the unit should be at least 15cm away from the wall

8.3. Installation Procedure

CW-A121VR

• Slide the chassis into the cabinet.

• Reinstall the cabinet screws. Secure the cabinet to chassis

by using screws (from rear cabinet).

Depending upon the location of the AC outlet, route the AC

cord to either the left or right side while installing the front grille.

• Place the front grille on the cabinet first. Secure the front

grille to the main chassis using screw provided.

• Attach the air filter to the front grille.

• Slide the front intake grille slightly to the right to reattach the

tabs and then push it down to close tight

CW-A121VR

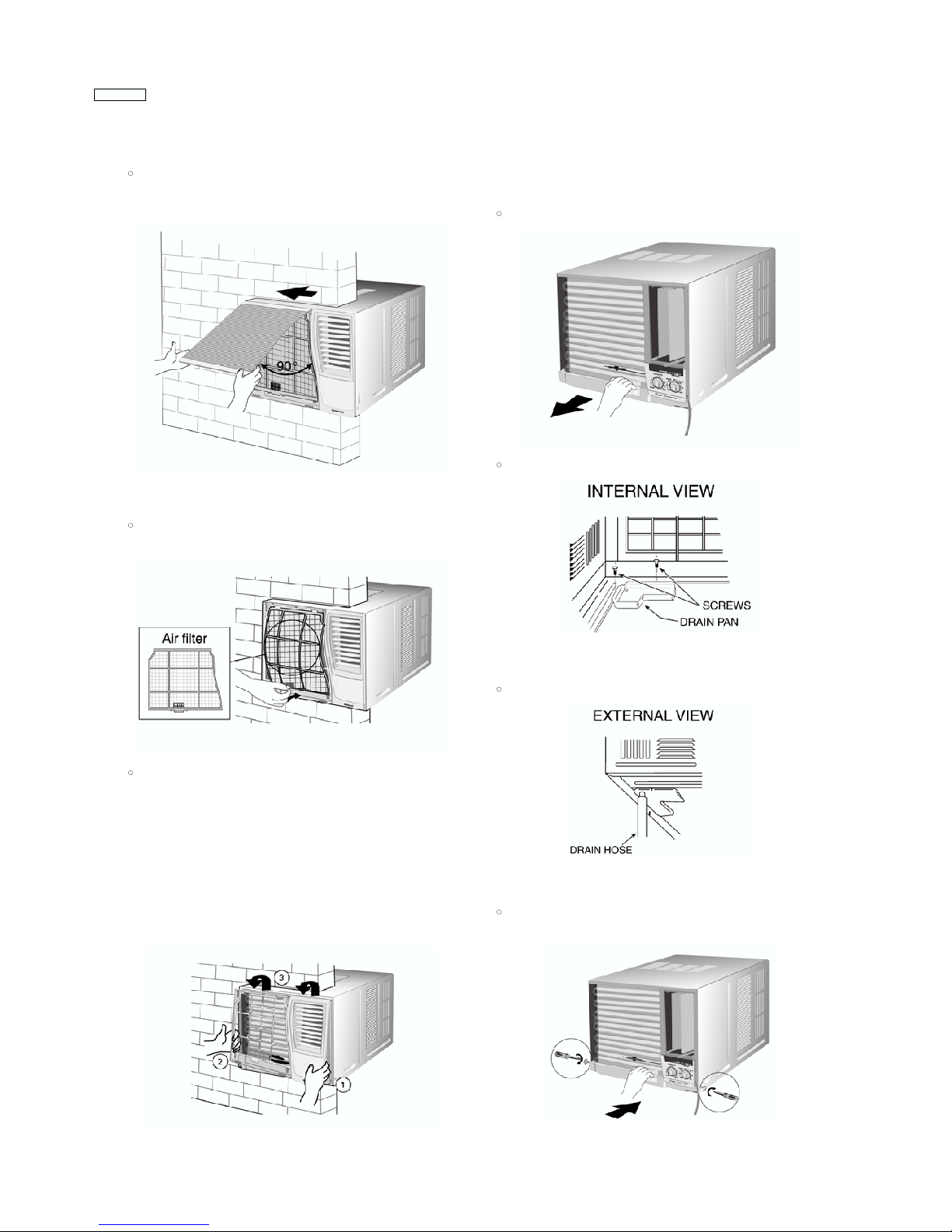

8.3.2. Remove the Front Grille.

• Remove the front intake grille

Pull up the front intake grille about 90° and slide it slightly to

the left to unhook the tabs.

Caution: Do not raise the front intake grille anyhigher than

90°to the unit or damage to the tabs may occur.

• Remove the air filter.

Tilt up and pull out the air filter by holder.

• Remove the front grille.

1. At bottom right side of the front grille, press inward on

cabinet near the power cord, and pull the grille outward

to the right until right tab releases.

2. At bottom left side, push inward on cabinet and pull the

grille outward to the left to release the left tab. Do not

pull the bottom edge toward you more than 7.62cm to

prevent two top tabs from damage.

3. Slide the front grille upwards to free the two top tabs

from slots at the top of the cabinet.

8.3.3. Condensed water drainage

In order to drain off the condensed water, it is recommended

that you install a drain pan using the following procedure.

• Slide the chassis out from the cabinet.

• Install the drain pan.

Install the drain pan at the left corner of the cabinet using 2

screws.

• Connect a drain hose. Fit the drain hose to the drain pan.

NOTE: Drain hose or tubing can be purchased locally to satisfy

your particular needs.

• Slide the chassis back into the cabinet. Reinstall the cabinet

to the chassis by using screws.

CW-A121VR

8.4. Electric Work

• Always use at the rated voltage and with a specific air

conditioning circuit.

• Some installation locations may require the installation of a

short-circuit breaker.

• A 16 Ampere time delay fuse or circuit breaker is required.

• Nominal cross sectional area of power supply wire must be

3 core x 1.0 mm2or above.

• The power supply must be from an independent circuit.

• All electrical installations must be made in accordance with

local wiring and safety regulations wherever applicable.

• There must be a double pole switch with a minimum of 3

mm contact gap in the fixed installation circuit.

• Please engage an authorized dealer or specialist for the

installation work.

8.5. Noise Consideration

• Select an installation location that can support the weight of

the air conditioner and one that will not cause increased

operating noise and vibration.

• Ensure that airflow and noise from the rear side of the unit

(outdoor) when installed do not disturb neighboring

residents.

• Obstacles placed in front of the air outlet on the rear side of

the unit (outdoor), or covers placed over it will cause

excessive noise and deterioration in performance.

8.6. Transferring

• Repositioning or transfer of the air conditioner due to

renovation or moving requires an additional service charge.

Please consult your dealer before moving.

9 Care and Maintenance

Caution:

Always turn off the air conditioner and the main power supply before clean the unit.

Switch off the power supply if the unit is not going to be used for a long period of time.

• Clean the cabinet, front grille with a mild soap or detergent and lukewarm water.

• The front intake grille can be easily removed for cleaning purposes (refer to Remove the front intake grille procedures). Gently

wash it with water and a sponge.

• The filter can be easily cleaned using a vacuum cleaner. Vacuum the front of the filter and then wash the rear with water. If it

is badly soiled, wash with a mild household detergent.

• Do not clean with benzene, thinner, scouring powder or cloth soaked in caustic chemicals.

• If the unit is extremely dirty, heat transfer is less efficient and the unit may not cool effectively. Contact your nearest service

centre for an annual check. (Annual check is not covered under warranty)

• If the air filter becomes clogged with dust, the cooling or heating capacity will drop, and 6% of the electricity used to operate the

air conditioner will be wasted.

NOTE

Do not dry the front panel or the air filter in direct sunlight. (Exposure to direct sunlight may discolor or deform the panel.)

CW-A121VR
