Panasonic CU-SA12CKP User manual

Before using your air-conditioner, please read

this operating instructions carefully and keep

it for future reference. Split Type Room Air Conditioner

OPERATING INSTRUCTIONS

Indoor Unit Model:

CS-SA9CKP

CS-SA12CKP

Outdoor Unit Model:

CU-SA9CKP5

CU-SA12CKP5

ENGLISH ...................... P. 1 ——P. 8

PORTUGUÊS ............... P. 9 ——P. 16

DEUTSCH..................... P. 17 ——P. 24

FRANÇAIS.................... P. 25 ——P. 32

NEDERLAND................ P. 33 ——P. 40

ITALIANO ..................... P. 41 ——P. 48

GREEK ......................... P. 49 ——P. 56

ESPAÑOL ..................... P. 57 ——P. 64

RUSSIAN ...................... P. 65 ——P. 73

MATSUSHITA AIR-CONDITIONING CORP.

XIECUN, ZHONGCUN TOWN, PANYU DISTRICT.

GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA

F563553

F563553/01-08/EN 5/6/02, 10:34 am1

CONTENTS

Safety Precautions ...................................... 1~2

■Installation Precautions

■Operation Precautions

Name of Each Part.......................................2~3

■Indoor Unit

■Outdoor Unit

■Accessories

Basic Operation ........................................... 4~5

Setting the Timer............................................... 5

Care and Maintenance ................................ 5~6

■Cleaning the lndoor Unit and Remote Control

■Cleaning the Air Filter

■Cleaning the Front Panel

■Pre-season lnspection

■When the Air Conditioner is Not Used for an

Extended Period of Time

■Recommended lnspection

Helpful Information........................................... 6

Energy Saving and Operation Hints ...............6

Trouble Shooting ..............................................7

■Normal Operation

■Abnormal Operation

■Call the Dealer lmmediately

Evaluation of the Performance........................ 8

Safety Notes......................................................8

Thank you very much for purchasing Panasonic

Split Type Room Air Conditioner. SAFETY PRECAUTIONS

Before operating, please read the following

“Safety Precautions” carefully.

●To prevent personal injury, injury to others and

property damage, the following instructions must be

followed.

●Incorrect operation due to failure to follow instructions

will cause harm or damage, the seriousness of which

is classified as follow:

Warning

This sign warns of death or serious injury.

Caution

This sign warns of injury or damage to property.

●The instructions to be followed are classified by the

following symbols:

This symbol (with a white background) denotes an

action that is PROHIBITED.

These symbols (with a black background) denote

actions that are COMPULSORY.

■Installation Precautions

Warning

Do not install, relocate or repair the

unit by yourself.

This air conditioner must be earthed.

Improper grounding could cause electric

shock or fire.

Caution

Ensure that the following installation

precautions have been applied before

installing the air conditioner.

■The power socket must be earthed.

Improper grounding may cause current

leakage.

■Ensure that the drainage pipings are

properly connected.

Water leakage could happen due to

improper connection thus cause

inconvenience.

■Do not install the unit in a potentially

explosive atmosphere. Otherwise, fire

or other hazard may occur.

F563553/01-08/EN 5/6/02, 10:34 am2

ENGLISH

Warning

This sign warns of death or serious injury.

■Operation Precautions

●Do not share outlet.

●Do not insert plug to operate the unit. Do not

pull out plug to stop the unit.

●Do not operate with wet hands.

●Do not damage or modify the power cord.

●Do not insert finger or other objects into the

indoor or outdoor units.

●Do not expose directly to cold air for a long

period.

●Plug in properly.

●Use specified power cord.

●If abnormal condition (burnt smell, etc.)

occurs, switch off and unplug the power

supply.

Caution

This sign warns of injury.

●Do not pull the cord to disconnect the plug.

●Do not wash the unit with water.

●Do not use for other purposes such as

preservation.

●Do not use any combustible equipment at

airflow direction.

●Do not sit or place anything on the outdoor unit.

●Switch off the power supply before cleaning.

●Ventilate the room regularly.

●Pay attention as to whether the installation

rack is damaged after long period of usage.

●Switch off the power supply if the unit is not

used for a long period.

NAME OF EACH PART

■Indoor Unit

Front Panel

Air Intake Vent

Power Supply Cord

Air Outlet Vent

Vertical Airflow Direction Louver

Horizontal Airflow Direction Louver

(manually adjusted)

Auto Operation Button

(when the front panel is opened)

Air Filters

Indicator Panel

Auto Operation / Test Run Operation

If the remote control not available, press the

button forAuto Operation. Keeping this button

depressed for more than 5 seconds to start

the Test Run Operation (cooling only), for the

purpose of installation or repairment only.

■Outdoor Unit

Air Intake Vents

Ground Terminal

(Inside cover)

Piping

Connecting Cable

Drain Hose

Air Outlet Vent

■Accessories

●Remote Control

●Two dry-cell batteries.

●POWER : Green

(Operation)

●TIMER: Orange

F563553/01-08/EN 5/6/02, 10:34 am3

NAME OF EACH PART

■Remote Control

Signal Transmitter

Display Panel

Room Temperature Setting Button

Operation Mode Selection Button

OFF-Timer Button

ON-Timer Button

Timer Cancellation Button

Timer Setting Button

Operation Button (OFF/ON)

Fan Speed Selection Button

Airflow Direction Control Button

●Display of air flow direction, changing as follow:

RESET Button

If the display is chaotic or can not be adjusted, use a

pin to gently press this button to reset the remote

control to the original set by manufacturer.

■Remote Control Signal

●Make sure it is not obstructed.

●Maximum distance: 10 m.

●Signal received sound.

One short beep or one long beep.

■Notes for Remote Control

●Direct the remote control towards the signal

receiver of the Indoor Unit.

●Do not drop or throw the remote control.

●Do not leave the remote control in a place subject to

direct sunlight or near heat sources such as radiator.

●Do not get it wet.

■How to Insert the Batteries

1Remove the remote control back cover completely

2Insert the batteries

– Be sure the direction is correct

■About the Batteries

●Can be used for approximately one year.

■Observe the Following When Replacing

the Batteries

1Replace with two new batteries of the same type.

2Do not use rechargeable batteries (Ni-Cd).

3Remove the batteries if the unit is not to be used

for a long period.

■To Start the Operation

●Press operation OFF/ON buton.

●POWER indicator (green) on the indoor unit will

light up.

●To stop, press operation OFF/ON once more.

■Setting Mode

●Press MODE to select:

AUTO – Automatic Operation

HEAT – Heating Operation

COOL – Cooling Operation

DRY – Soft Dry Operation

■Setting Temperature

●Press TEMP to increase or decrease the

temperature.

●The temperature can be set between 16˚C ~ 30˚C.

●Recommended setting temperature:

Heating – 19˚C ~ 23˚C

Cooling – 24˚C ~ 26˚C

Soft Dry – 20˚C ~ 24˚C

■Fan Speed Control

●Press FAN SPEED to select:

AUTO

MED

HIGH

Fan Speed Remote Control

Display

AUTO Fan Speed

Fan Speed

AUTO

F563553/01-08/EN 5/6/02, 10:34 am4

ENGLISH

■Automatic Operation

1Press operation selection MODE button, the

cursor key points to AUTO .

2Press operation OFF/ON button, the operation

lamp of the air conditioner will flash momentarily,

and then lights up.

Notes: 1. During Automatic Operation, the operation

mode will be selected automatically in

accordance with the room temperature.

2. During Automatic Operation, the adjustable

temperature range is ±2°C. By pressing

or button, or will appear in the

remote control display accordingly.

3. During Automatic Operation withAUTO Fan

Speed:

Heating: When the room temperature is low, the fan

will be at low speed. As the room

temperature rising, fan will speed up.

Cooling: Auto Fan Speed will run at a High fan

speed initially. It stops when it reaches the

set temperature. Then, it will start operating

again at Low fan speed. During Cooling and

Soft Dry operations, the fan will start

operating 40 seconds later.

Cooling Operation

Soft Dry Operation

Heating Operation

Intake air temperature 23˚C

20˚C

■Heating Operation

1Press operation selection MODE button, the

cursor key points to HEAT .

2Press operation OFF/ON button, the operation

lamp of the air conditioner will flash momentarily,

and then lights up.

3Press or button to set the room temperature.

Notes:

●Heat is obtained from outdoor air to warm up

the room. When the outdoor ambient air

temperature falls, the heating capacity of the

unit might be reduced.

●Defrosting Operation

Depend on the outdoor temperature, the

operation occasionally stops to melt the frost

on the outdoor unit.

■Cooling Operation

1Press operation selection MODE button, the

cursor key points to COOL .

2Press operation OFF/ON button, the operation

lamp of the air conditioner will light up.

3Press or button to set the room temperature.

Note: When setting the automatic airflow during

Cooling Operation, changes in speed and

movements of louvers, which swing in up and

down manner forms a natural breeze condition.

■Soft Dry Operation

1Press operation selection MODE button, the

cursor key points to DRY .

2Press operation OFF/ON button, the operation

lamp of the air conditioner will light up.

3Press or button to set the room temperature.

Notes: 1. The purposes of Soft Dry Operation : to

maintain the room temperature at the set

temperature, prior to dehumidification.

2. When setting the automatic airflow during Soft

Dry Operation, changes in speed and

movements of louvers, which swing in up and

down manner forms a natural breeze condition.

3. During Soft Dry Operation, the fan will run

at Low fan speed, and on/off operation will

occur occasionally.

Recommendation : Select this mode in the rainy day

or when the humidity is high.

F563553/01-08/EN 5/6/02, 10:34 am5

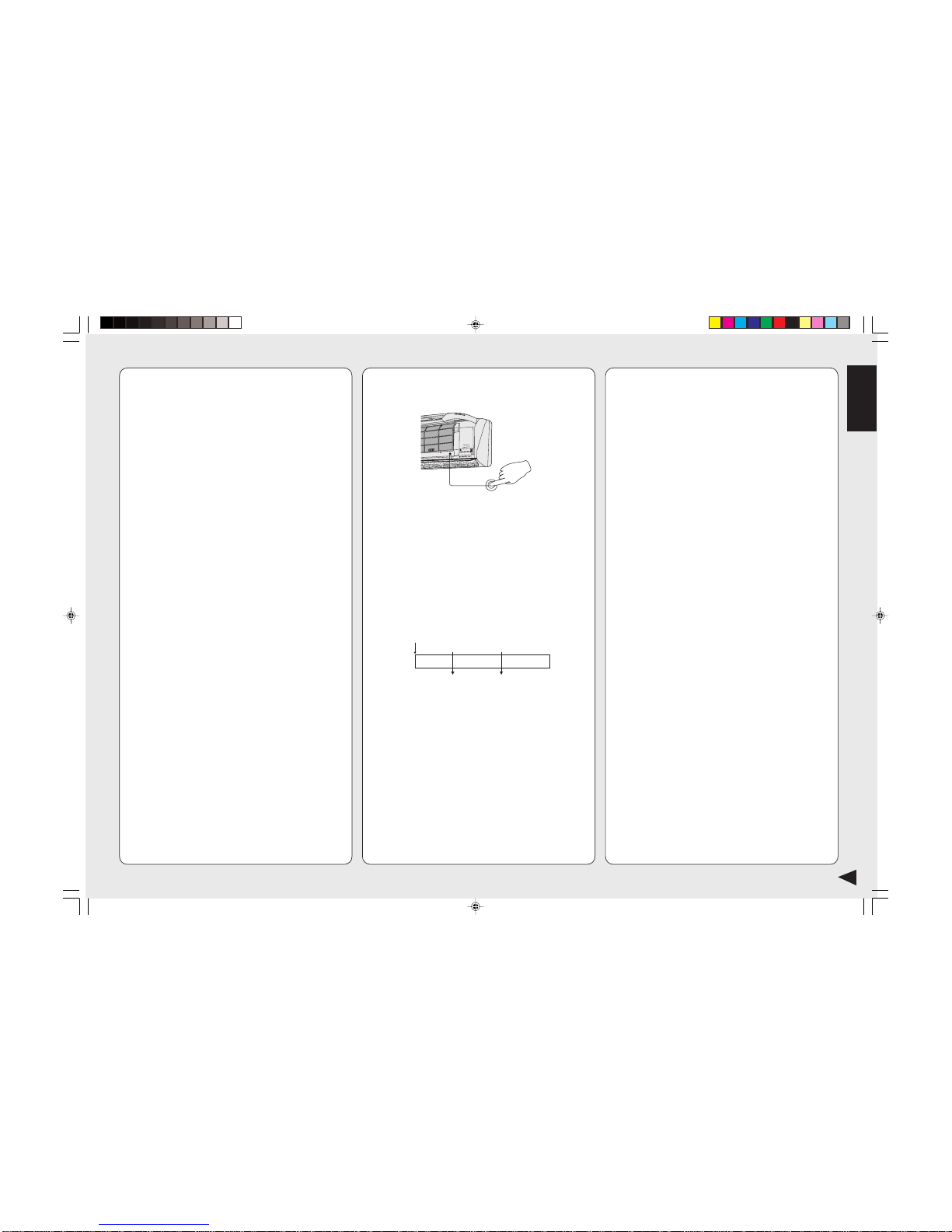

■Setting the Vertical Airflow Direction

●Press AIR SWING button to select.

●The adjustment angles of the airflow direction

louvers for Heating, Cooling and Soft Dry

operations are different.

●Ensure that the angles of the vertical airflow

direction louvers are adjusted by using the remote

control. If it were manually adjusted, the proper

mechanism of the louvers may be affected. If such

a case, turn off the air conditioner temporarily and

then restart the operation.

●During Cooling and Soft Dry operations, please

avoid the vertical airflow direction louvers from

positioning in a downward direction for a long

period. Otherwise, if condensation occured near

the airflow direction louver and air outlet vents, it

may result in water dripping.

●To adjust the horizontal airflow direction, manually

move the Horizontal Airflow Direction Louver.

●After the air conditioner stopped and restarted

immediately, the compressor will not operate within

3 minutes. (For compressor protection purposes.)

Closed

Cooling/Soft Dry

approx. 36˚

Heating

approx. 55˚

*5 adjustment

angles available.

To move the VerticalAir Flow

Direction Louver by hand.

SETTING THE TIMER

■ON-TIMER Operation

To start the air conditioner operation automatically.

●Press ON to set the operation.

●Press ON to increase or decrease the time.

●Then press SET .

●To cancel this operation, press CANCEL .

■OFF-TIMER Operation

To stop the air conditioner operation automatically.

●Press OFF to set the operation.

●Press OFF to increase or decrease the time.

●Then press SET .

●To cancel this operation, press CANCEL .

●The OFF-TIMER can only be set while the

air-conditioner is in operation.

■Timer Mode Operation Details

●The ON-TIMER and OFF-TIMER cannot be set

simultaneously.

●The set time that appears on the remote control

display is actually the remaining set time which will

appear after every hour of operation.

●If you press operation OFF/ON button during the

timer setting operation, timer setting will be

cancelled. (The timer indicator of the Indoor Unit

will go off.)

●When the ON-Timer is set, operation will start

before the actual set time. This is to enable room

temperature reaches the set temperature at the set

time. COOL –15 minutes in advance

HEAT, AUTO –30 minutes in advance

PEE

AIR

WIN

TIMER

CARE AND MAINTENANCE

■Cleaning the Indoor Unit and Remote Control

●Wipe gently with a piece of soft, dry cloth.

●Do not use water hotter than 40˚C or polishing fluid to

clean the unit.

■Cleaning the Air Filter

(Recommendation:- If the unit is operated in a dusty

environment, clean the filters every two weeks,

continuous use of this dirty filters will reduce cooling or

heating efficiency)

1Remove dirt using a vacuum cleaner.

2Wash back of the air filter with water.

3If badly soiled, wash it with soap or a mild household

detergent.

4Let it dry and reinstall it.

*Be sure the “FRONT”mark is facing you.

Damaged air filter.

Consult the nearest authorized dealer.

Part No.: CWD001050.

●Do not use benzene, thinner, scouring powder or

cloth soaked in caustic chemical to clean the unit.

■Cleaning the Front Panel

(Must be removed before washing)

1Raise the front panel higher than the horizontal and

pull to remove it.

2Gently wash with water and a sponge.

●Do not press the front panel too hard when washing.

●When use kitchen cleaning fluid (neutral

detergent), rinse thoroughly.

●Do not dry the front panel under direct sunlight.

3To fix the front panel, raise the front panel

horizontally, match the protruding portion on the

indoor unit to the fulcrum and push into place.

Fulcrum

Front grille pivot

F563553/01-08/EN 5/6/02, 10:34 am6

ENGLISH

■Pre-season Inspection

●Is the discharged air cold/warm?

Operation is normal if 15 minutes after the start of

operation, the difference between the air intake

and outlet vents temperature is:-

Cooling –8˚C or above

Heating –14˚C or above

●Are the air intake or outlet vents of the indoor

or outdoor units obstructed?

●Are the remote control batteries weak?

If the remote control display appears weak, replace

the batteries.

■When the Air Conditioner is Not To Be Used

for an Extended Period of Time

1To dry the internal parts of the indoor unit, operate

the unit for 2 –3 hours using:

Operation mode : cooling

Set temperature : 30˚C

2Turn off the power supply and unplug.

3Remove the remote control batteries.

■Recommended Inspection

●After used over several seasons, the unit will

become dirty and thus decreases the unit's

performance. Depending on the operation

conditions, a dirty unit may produce odour and dust

may pollute dehumidification system. Therefore, a

seasonal inspection is recommended in addition to

regular cleaning. (Consult an authorized dealer).

HELPFUL INFORMATION

■Auto Operation Button

■Automatic Operation

●If the remote control fails to function or has been

misplaced, press the Auto Operation button to start

the Automatic operation.

●The Automatic operation will be activated

immediately once the Auto operation button is

pressed. However, temperature cannot be adjusted

in this operation.

●The power indicator on the indoor unit will blink

until the operation mode is selected automatically.

●To cancel this operation, press this button once more.

■Remote Control Signal Receiving Sound

●To switch off the beep (Signal Receiving Sound),

press the Auto Operation button for 10 seconds

continuously or longer.

●Repeat the above steps if you want to switch on

the Signal Receiving Sound.

■Timer Setting

●When power failure occurs, the timer setting will be

cancelled. Once power is resumed, reset the timer.

■Thunder and Lightning

●This air conditioner is equipped with a built-in

surge protective device. However, in order to

further protect your air conditioner from being

damaged by abnormally strong lightning activity,

you may switch off the main power supply and

unplug from power socket.

AUTO TEST RUN SOUND

5 seconds 10 seconds

1 Beep 2 Beep

ENERGY SAVING AND OPERATION

HINTS

■Setting the Temperature

●Set the temperature higher or lower than the

desired temperature.

Cooling Operation : 1˚C higher

Heating Operation : 2˚C lower

Approximately 10% of electricity can be saved.

■Air Filters

●Clean the air filters every 2 weeks.

●Dirty filters may reduces cooling or heating

efficiency.

■Keep All Doors and Windows Closed

●Otherwise, cooling or heating performance will be

reduced and electricity cost is wasted.

■Outdoor Unit

●Do not block the air outlet vent. Otherwise, it will

lower the cooling or heating performance.

■Avoid Direct Sunlight

●Keep curtains or drapes closed to avoid direct

sunlight during cooling operation.

AUTO

F563553/01-08/EN 5/6/02, 10:34 am7

TROUBLE SHOOTING

■Normal Operation

●Air conditioner has been restarted, but does not

operate for 3 minutes.

●A sound like water flowing can be heard.

●It seems that fog is coming out from the air

conditioner.

●The room has a peculiar odour.

●During Automatic Fan speed, indoor fan stops

occasionally.

●The outdoor unit emits water or steam.

●Operation stops for about 12 minutes during

heating operation (The power indicator blinks).

●During heating operation, indoor fan may run at on

and off conditions.

Is it okay? This is the answer

●This is to protect the air conditioner. Wait until the air

conditioner begins to operate.

●This is the sound of refrigerant flowing inside the air

conditioner.

●Condensation occurs when the airflow from the air

conditioner cools the room.

●This may be a damp smell emitted by the wall, carpet,

furniture or clothing in the room.

●This is to remove smell emitted by the surroundings.

●In COOL/DRY operation, moisture in the air condenses

into water on the cool surface of outdoor unit piping that

causes dripping.

●This is to melt the frost which has accumulated on the

outdoor unit (defrosting operating). This will take no

longer than about 12 minutes. Water drips from the

outdoor unit. Wait until this operation ends. (The power

indicator will light up).

(Frost will accumulates on the outdoor unit when the

outdoor temperature is low and humidity is high.)

●This is to prevent undesired cooling effect during

heating operation.

Is it okay? Please check

●The air conditioner does not operate.

●Air conditioner produces loud noise during

operation.

●The air conditioner does not cool or warm

effectively.

●Has the circuit breaker been tripped?

●Has the power plug been removed from the wall outlet?

●Is the timer being used correctly?

●Is the installation work slanted?

●Is the front grille closed properly?

●Has the temperature been set incorrectly?

●Are the filters dirty?

●Are the intake or outlet vents of the outdoor unit

obstructed?

●Are all windows and doors closed?

■Abnormal Operation

■Call The Dealer Immediately

If the following conditions occur, turn off and unplug

the main power supply, and then call the dealer

immediately.

●Abnormal noise is heard during operation.

●Water or foreign material gets into the remote

control by mistake.

●Water leaks from the indoor unit.

●Switches or buttons do not operate properly.

●The circuit breaker switches off frequently.

●Power supply cord and plug become unusually

warm.

F563553/01-08/EN 5/6/02, 10:34 am8

ENGLISH

EVALUATION OF THE PERFORMANCE

●Operate the unit for 15 minutes or more;

●Measure the temperature of the intake and outlet air;

●The temperature difference is more than 8˚C during

Cooling operation or more than 14°C during Heating

operation.

If the unit fulfils the above conditions, the unit is in normal

operation.

Air intake vent

Thermometer

Air outlet vent

1) This appliance must be earthed.

2) If the supply cord is damaged or need to be replaced, it must be replaced by the manufacturer or its service agent

or a similarly qualified person in order to avoid a hazard.

3) Remove power plug or disconnect from the mains before servicing this appliance.

4) Do not repair by yourself .

In case of malfunction of this appliance, do not repair by yourself.

Contact to the sales dealer or service dealer for a repair.

5) Do not use in an explosive atmosphere.

Do not use this appliance in a potentially explosive atmosphere.

6) Disconnect the power plug (isolation from main power supply).

Disconnect the power plug from the receptacle, or switch off the breaker, or switch off the power, disconnecting

mains plug to isolate the equipment from the main power supply in case of an emergency.

WARNING

DISCONNECT THE MAINS PLUG FROMTHE SUPPLYSOCKET WHEN NOT IN USE , WHERE SUPPLY

CONNECTION IS VIA MAINS PLUG.

Airborne noise :

A-weighted sound pressure level of this appliance is less than 70dB(A) under the JIS C 9612 test conditions.

Maximum cooling operation

1 m from the unit

CAUTION

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code :

Greenand Yellow : Earth

Blue : Neutral

Brown : Live

“Asthe coloursof thewires inthe mainslead ofthis appliancemay notcorrespondwith thecoloured markingsidentifying

the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked by the letter

Eor by safety earth symbol or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with letter Nor coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with letter Lor coloured red.”

Use this air conditioner under the following conditions:

DBT: Dry BulbTemp. Indoor Outdoor

WBT: Wet Bulb Temp. DBT WBT DBT WBT

Maximum Temperature –Cooling 32 23 43 26

(Maximum Temperature –Heating) (30) (–) (24) (18)

Minimum Temperature –Cooling 16 11 16 11

(Minimum Temperature –Heating) (2) (–)(–5) (–6)

Unit in ˚C

F563553/01-08/EN 5/6/02, 10:34 am9

Matsushita Electric Industrial Co.

ite:htt

://ww

.panason

c.co.

F563553

ease remem

er to recor

Model

l N

Deale

Date

chased

Remar

bli

e noter

ormat

ons su

vantes

deu

Date

achat

Nao esque

star os

os se

ntes

odel

mero de seri

mero

e re

resentan

ata

e com

Opmerkin

ver

eet n

et vo

e za

en te noteren

Model

Deale

odef

resentan

e com

Anmerkun

Bitte notieren

ie die fol

anden Daten

Modell

n-Nr

Handler-Nr

Kaufdatu

cor

are

trascr

vere

uent

Cod

ode

Cod

riv

ata

sto

Printed in

hin

06-

o se o

e re

strar

atos s

entes

F563553/01-08/EN 5/6/02, 10:34 am10

This manual suits for next models

Table of contents

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CW-LC181AG Series User manual

Panasonic

Panasonic S-12MU1U6 User manual

Panasonic

Panasonic CS-RE9JKE User manual

Panasonic

Panasonic CS-MKE12NB4U Installation and user guide

Panasonic

Panasonic CS-MVG103KE User manual

Panasonic

Panasonic CS-E12GFEW User manual

Panasonic

Panasonic S-12MU1U6 User manual

Panasonic

Panasonic U-5MX4XPQ User manual

Panasonic

Panasonic CSA24CKPG - SPLIT A/C IN DOOR User manual

Panasonic

Panasonic CS-Z25UD3EAW User manual

Panasonic

Panasonic S-36PN1E5B User manual

Panasonic

Panasonic CW-A120AE User manual

Panasonic

Panasonic CS-K18NKS User manual

Panasonic

Panasonic S-15MF3E5AN User manual

Panasonic

Panasonic CS-S9JKR User manual

Panasonic

Panasonic CS-PW18GKX User manual

Panasonic

Panasonic CZ-06KPU11P User manual

Panasonic

Panasonic SUPER DELUXE CS-XE9DKE User manual

Panasonic

Panasonic CS-F34DB4E5 User manual

Panasonic

Panasonic S-15MY3E User manual

Panasonic

Panasonic CS-YS9MKV-7 User manual

Panasonic

Panasonic S-12MY2U6 User manual

Panasonic

Panasonic CS-A12CTP User manual

Panasonic

Panasonic CS-MKS24NKU Installation and user guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
