Panasonic CS-XE12PKUA Installation and user guide

Split System Submittal Data

Indoor: CS-XE12PKUA Outdoor: CU-XE12PKUA

Wall Mounted Air Conditioners

Approval:

Date:

Construction:

Unit#:

Drawing#:

Job Name:

Location:

Engineer:

Submitted to:

Submitted by:

Reference:

General Data

Power (V/P/Hz) 230/208/1/60

Circuit Ampacity (A) 15

Fuse Size, Max.(A) 20

Compressor DC Twin Rotary

No. Used 1

Output Power (W) 700

Outdoor Unit

Fan Type Propeller

Motor Type DC Motor ( 8 poles )

Output Power (W) 40

Airflow (CFM) 1555

Coil Type Aluminum (Blue Coated)

Fin Type - Pipe Type Corrugated Fin

Rows - F.P.I. 18

Face Area (sq.ft.) 5.99

Indoor Unit

Fan type Cross Flow

No. Speeds 5

RPM (High) 1350

Motor Output (w) 40

CFM (QLo/Lo/Me/Hi/SHi) 170/240/390/530/550

Indoor Sound Rating (Hi) (dB-A) 44

Coil Type Aluminum Fin & Copper Tube

Fin Type - Pipe Type Slit Plate - Inner Rifled

Rows - F.P.I 21

Face Area (sq.ft) 2.45

Drain Connection Size (in.) 3/4

Refrigerant R410A

Lbs. - R410a (Outdoor Unit) 2.54

Control Electronic Expansion Valve

Connection Flare

Line Length, Max (ft.) 66

Lift Difference, Max (ft.) 49

Line Size (in. O.D. Discharge) 1/4”

Line Size (in. O.D. Suction) 1/2”

Dimensions (HxWxD)

Indoor Unit (Crated) (in.) 11-7/8”x37-13/16”x14-3/8”

Indoor Unit (Uncrated) (in.) 11-5/8”x34-9/32”x10-1/16”

Outdoor Unit (Crated (in.) 29-11/32”x41-5/16”x18-1/8”

Outdoor Unit (Uncrated) (in.) 27-3/8”x34-15/32”x12-5/8”

Weight

Net, Indoor (lbs.) 24

Performance Data @ ARI Standard Conditions (230/208V)

Cooling

Total Capacity (BTU/H) 11,500 (2,800-14,000)

Sensible Capacity (BTU/H) 10,120

Latent Capacity (BTU/H) 1,380

SEER 25.5

Dehumidification (Pints/H) 2.3

Amps (A) 4.2/3.8

Power Inputs (W) 800 (150-1,050)

Outdoor Sound Rating (dB-A) 49

Heating

Total Capacity (BTU/H) 13,800 (3,000-23,000) (Max at 5F

12,500)

HSPF 12.0

Amps (A) 5.8/5.2

Power Inputs (W) 1,150 (150-2,100)

Outdoor Sound Rating (dB-A) 49

Features

Wireless Remote Controller Standard

Wired Remote Controller ( CZ-

RD516C )

Optional

Controls Microprocessor

Remote Control LCD Wireless Type

Temperature Control IC Thermostat

Air Louver, Horizontal Manual

Air Louver, Vertical Automatic

Power Failure Automatic Restart Built-In

Self-Diagnosis Built-In

Air Filter Washable, One-touch

Operating Range

Indoor Air Intake Temp

Outdoor Air Intake Temp

Cooling (Max) 90F DB/74F WB 115F DB/79F WB

Cooling (Min) 60F DB/52F WB 0F DB/-F WB

Heating (Max) 86F DB/-F WB 75F DB/64F WB

Heating (Min) 60F DB/-F WB 0F DB/-2.2F WB

Shipping, Indoor (lbs.) 26

Net, Outdoor (lbs.) 97

Shipping, Outdoor (lbs.) 108

Panasonic North America

Air Conditioning Division

1690 Roberts Blvd., NW, Suite 110

Kennesaw, GA 30144

http://www.panasonic.com/aircon

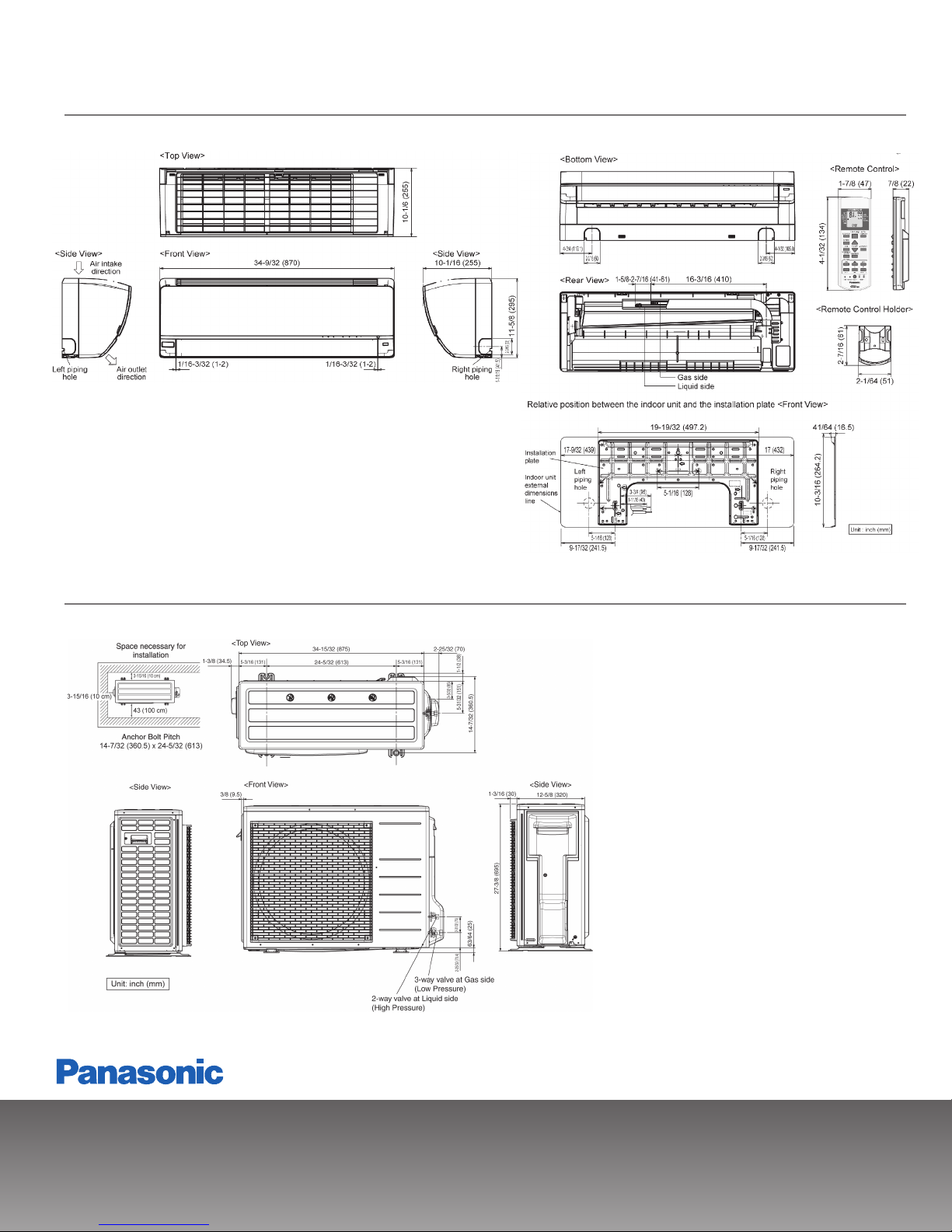

5. Dimensions

5.1 Indoor Unit

Indoor Dimensions

Outdoor Dimensions

5. Dimensions

5.1 Indoor Unit

5.2 Outdoor Unit
