Panasonic CS-ME7DKEG User manual

1 Features 3

2 About Lead Solder (PbF) 4

2.1. DISTINCTION OF PbF P.C. BOARD 4

2.2. CAUTION 4

3 Functions 5

3.1. Wall Type 5

3.2. Duct Type 8

rights reserved. Unauthorized copying and

distribution is a violation of law.

CS-ME7DKEG CS-ME10DD3EG

CS-ME10DTEG CS-E15DB4EW

CS-ME7DKRG CS-ME7DKDG

CS-E9DKEW CS-E9DKRW

CS-E9DKDW CS-E12DKEW

CS-E12DKRW CS-E12DKDW

CS-E15DKEW CS-E15DKRW

CS-E15DKDW CS-E18DKEW

CS-E18DKRW CS-E18DKDW

CS-E15DD3EW CS-E18DD3EW

CS-E15DTEW CS-E18DTEW

CS-E18DB4EW

3.3. Ceiling Floor Type 11

3.4. Mini-Cassette Type 13

4 Product Specifications 15

4.1. Wall Type 15

4.2. Duct Type 16

4.3. Ceiling Floor Type 17

4.4. Mini-Cassette Type 18

Multi Air Conditioner

Please file and use this manual together with the Service Manuals for the following models:

Indoor unit models: CS-ME7CKPG, CS-ME10CKPG, CS-ME12CKPG, CS-ME14CKPG and CS-ME18CKPG;

Outdoor unit models: CU-2E15CBPG, CU-2E18CBPG, CU-3E23CBPG and CU-4E27CBPG (Order No.

RAC0209005C2); Indoor unit models: CS-ME7CB1P, CS-ME10CB1P, CS-ME12CB1P, CS-ME14CB1P, CS-

ME10CD3P and CS-ME14CD3P; Outdoor unit models: CU-3E23CBPG and CU-4E27CBPG (Order No.

RAC0312001A8)

CONTENTS

Page Page

Order No. RAC0503011C2

4.5. Outdoor units: CU-2E15CBPG / CU-2E18CBPG 19

4.6. Outdoor units: CU-3E23CBPG / CU-4E27CBPG 20

5 Dimensions 24

5.1. Wall Type 24

5.2. Duct Type 26

5.3. Ceiling Floor Type 28

5.4. Mini-Cassette Type 29

6 Refrigeration Cycle Diagram 30

6.1. CU-2E15CBPG / CU-2E18CBPG 30

6.2. CU-3E23CBPG / CU-4E27CBPG 31

7 Block Diagram 32

8 Wiring Diagram 33

8.1. Wall Type 33

8.2. Duct Type 34

8.3. Ceiling Floor Type 35

8.4. Mini-Cassette Type 36

9 Operation Details 37

9.1. Wall Type 37

9.2. Duct Type 54

9.3. Ceiling Floor Type 60

9.4. Mini-Cassette Type 74

10 Self Diagnosis Display 88

10.1. Breakdown Self Diagnosis Function (Three Digits

Alphanumeric Code) 88

10.2. Error Code 89

11 Installation Instructions 93

11.1. Wall Type 93

11.2. Duct Type 101

11.3. Ceiling Floor Type 110

11.4. Mini-Cassette Type 116

12 Operating Instructions 125

13 Installation and Servicing Air Conditioner Using R410A 139

13.1. OUTLINE 139

13.2. TOOLS FOR INSTALLING/SERVICING REFRIGERANT

PIPING 140

13.3. REFRIGERANT PIPING WORK 144

13.4. INSTALLATION, TRANSFERRING, SERVICING 147

14 Disassembly of Parts 151

14.1. Wall Type 151

14.2. Duct Type 153

14.3. Ceiling Floor Type 155

14.4. Mini-Cassette Type 156

15 Technical Data 158

15.1. Operation Characteristics 158

16 Electronic Circuit Diagram 164

16.1. Wall Type 164

16.2. Duct Type 171

16.3. Ceiling Floor Type 173

16.4. Mini-Cassette Type 179

17 Exploded View and Replacement Parts List 186

17.1. Wall Type 186

17.2. Duct Type 192

17.3. Ceiling Floor Type 194

17.4. Mini-Cassette Type 196

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

1 Features

•

• •

• Product

−

− −

− A single OUTDOOR unit enable air conditioning of up to two separate rooms for CU-2E15CBPG and CU-2E18CBPG.

−

− −

− A single OUTDOOR unit enable air conditioning of up to three separate rooms for CU-3E23CBPG.

−

− −

− A single OUTDOOR unit enable air conditioning of up to four separate rooms for CU-4E27CBPG.

Remarks for CU-2E15CBPG / CU-2E18CBPG:

1. At least two indoor units must be connected.

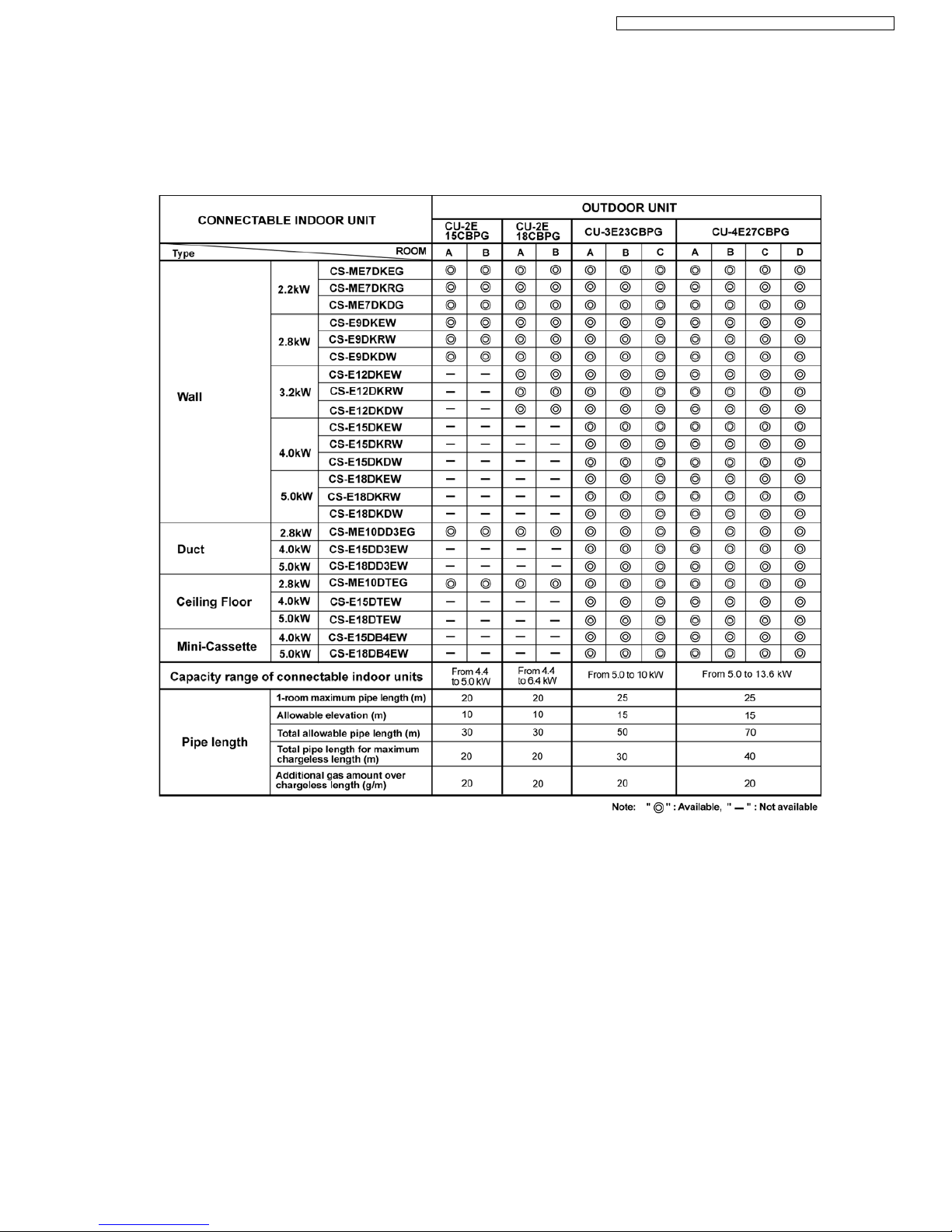

2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable

capacity range of indoor unit. (shown in the above table.)

Example: The below indoor units combination is possible to connect CU-2E15CBPG. (Total nominal capacity of indoor

units is between 4.4 kW and 5.0 kW)

1) Two CS-ME7DKEG only. (Total nominal cooling capacity is 4.4 kW.)

2) One CS-ME7DKEG and one CS-E9DKEW. (Total nominal cooling capacity is 5.0 kW.)

Remarks for CU-3E23CBPG / CU-4E27CBPG:

1. At least two indoor units must be connected.

2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable

capacity range of indoor unit. (shown in the above table.)

Example: The below indoor units combination is possible to connect CU-3E23CBPG. (Total nominal capacity of indoor

units is between 5.0 kW and 10.0 kW)

1) Two CS-ME7DKEG only. (Total nominal cooling capacity is 4.4 kW.)

2) One CS-ME12DKEG. (Total nominal cooling capacity is 9.6 kW.)

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

•

• •

• Serviceability

−

− −

− Self diagnosis

−

− −

− Test Run at both Cooling and Heating rated frequency

•

• •

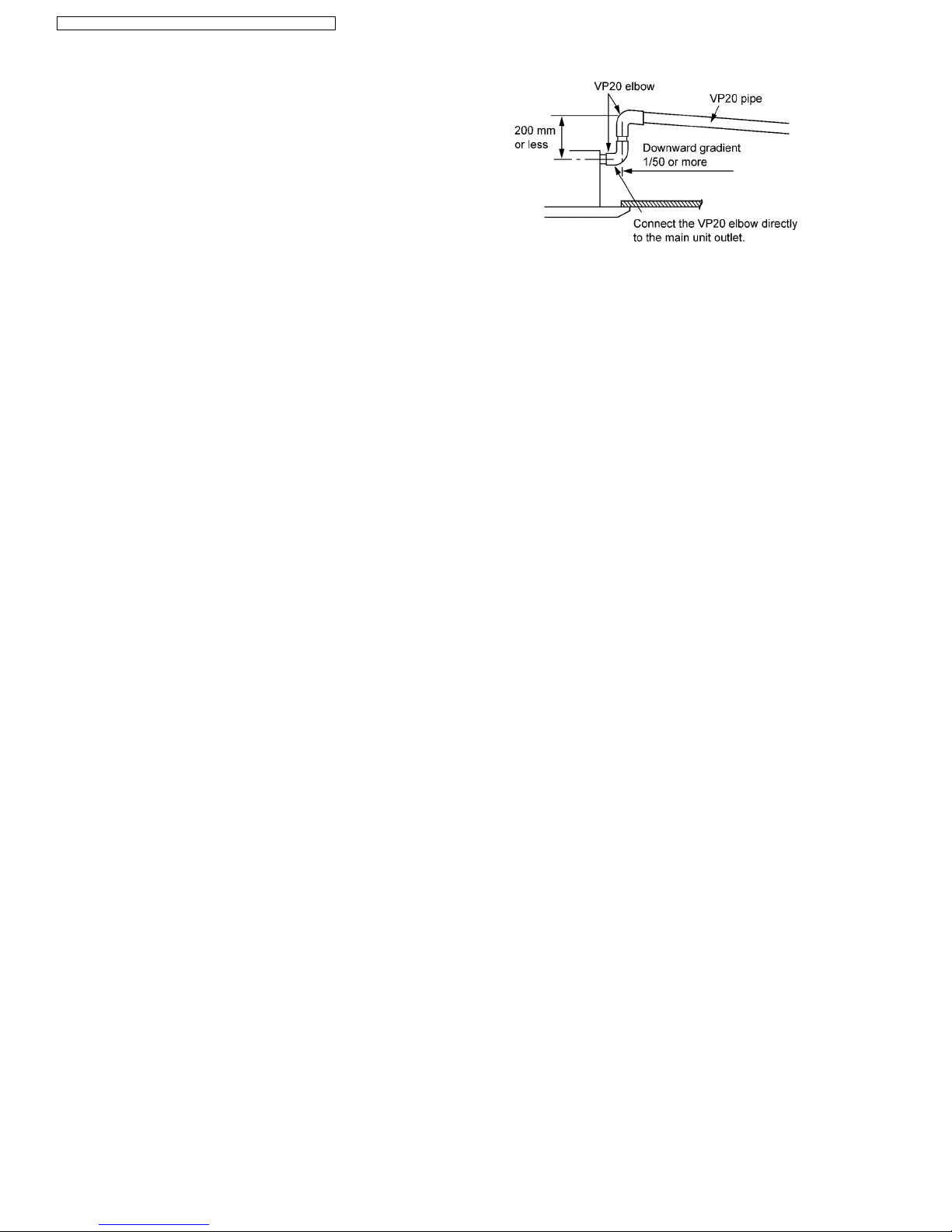

• Built-in drain pump (Cassette and Duct type)

−

− −

− A drain pump is built in.

The pipe can rise to 200m above the drain outlet.

2 About Lead Solder (PbF)

2.1. DISTINCTION OF PbF P.C. BOARD

P.C. Boards (manufactured) using lead free solder will have a PbF stamp on the P.C. Board.

2.2. CAUTION

•

• •

• Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70 °F (30 - 40 °C) higher.

Please use a high temperature solder iron and set it to 700 ± 20 °F (370 ± 10 °C).

•

• •

• Pb free solder will tend to slash when heated too high (about 1100 °F/ 600°C).

If you must use Pb solder, please completely all of the Pb free solder on the pins or solder area before applying Pb solder. If

this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

3 Functions

3.1. Wall Type

3.1.1. Remote Control

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

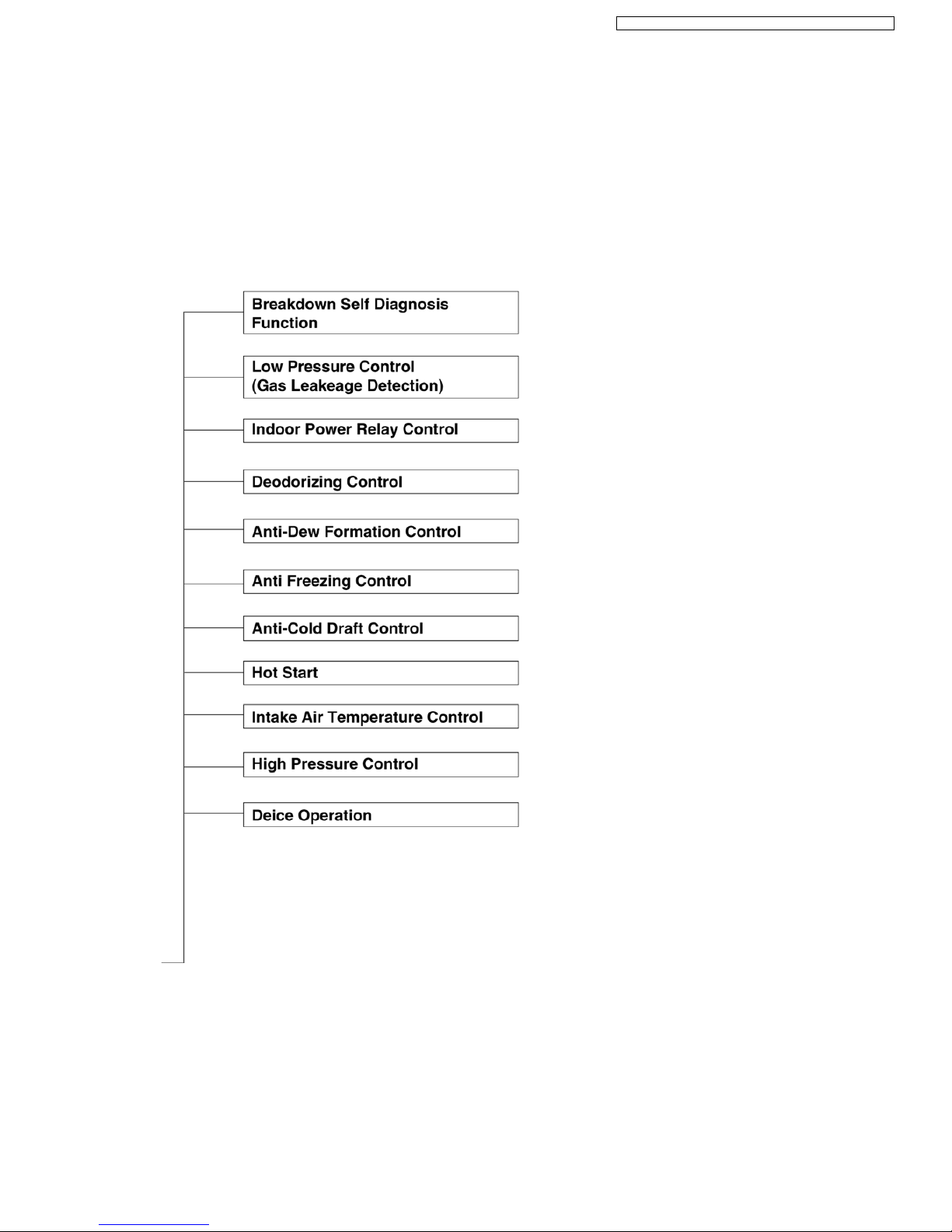

3.1.2. Indoor Unit

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

3.2. Duct Type

3.2.1. Remote Control

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW

3.2.2. Indoor Unit

CS-ME7DKEG CS-ME10DD3EG / CS-ME10DTEG CS-E15DB4EW
