Panasonic CS-C12ATP5 User manual

1 Functions 2

2 Product Specifications 5

3 Dimensions 15

4 Refrigeration Cycle Diagram 17

5 Block Diagram 18

6 Wiring Diagram 19

7 Operation Details 21

8 Operating Instructions 23

9 Installation Instructions 27

and distribution is a violation of law.

CS-C12ATP5 CU-C12ATP5

CS-C18ATP5 CU-C18ATPT5

CS-C24ATP5 CU-C24ATPT5

CS-C18ATP6 CU-C18ATPT6

CS-C24ATP6 CU-C24ATPT6

10 Servicing Information 38

11 Troubleshooting Guide 39

12 Technical Data 41

13 Exploded View 45

14 Replacement Parts List 46

15 Exploded View 47

16 Replacement Parts List 48

17 Electronic Parts List 49

18 Electronic Circuit Diagram 50

Room Air Conditioner

CONTENTS

Page Page

Order No. MAC0112082C0

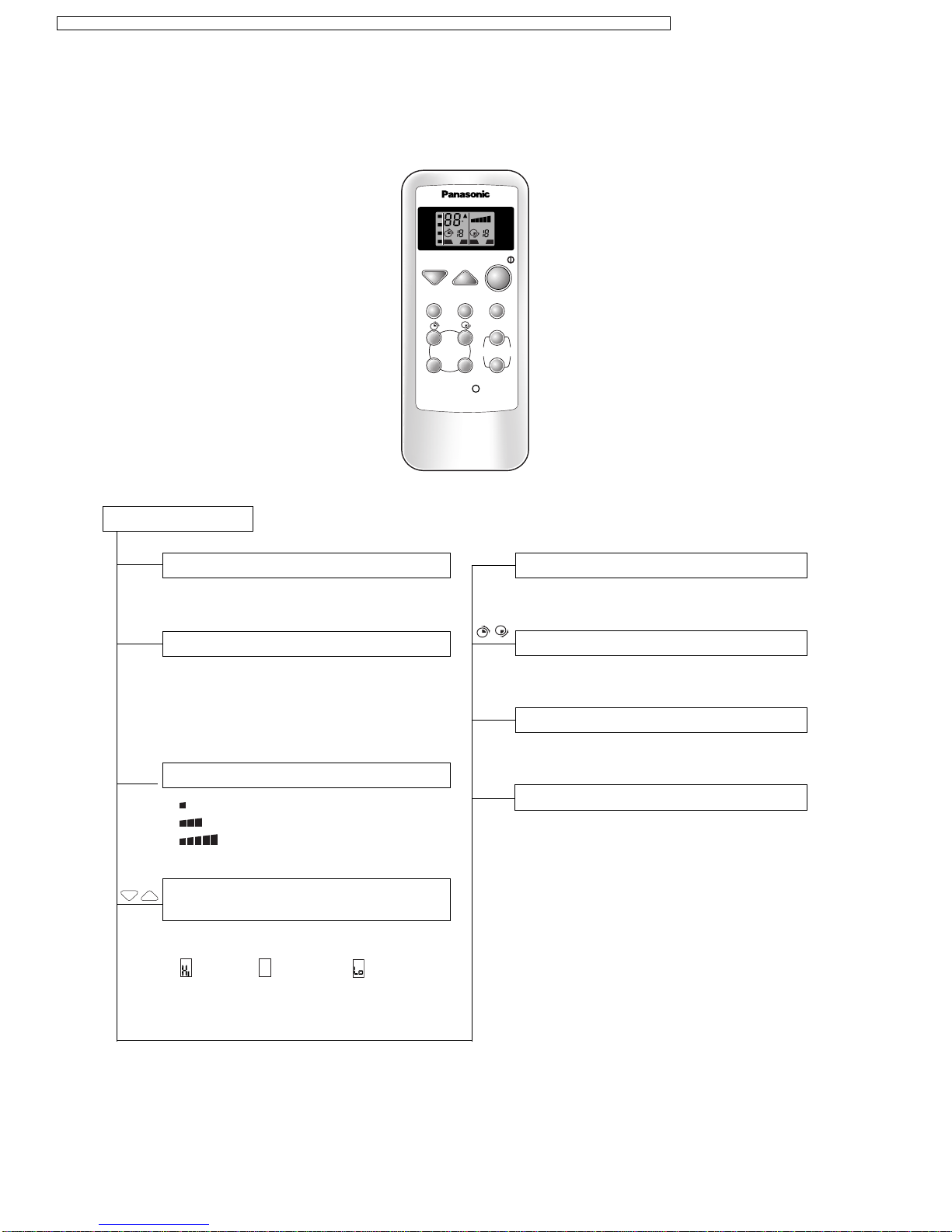

1 Functions

Remote Control Transmitter

Remote Control

Operation START/STOP

Operation Mode Selection

Indoor Fan Speed Selection

Room Temperature Setting / Time

Setting

Sleep Mode Auto-Control

●Starts/Stops when the button is pressed

Timer Operation Selection

●12 hours ON/OFF Dual Timer Setting

Timer Operation Set/Cancel

●Set/Cancel the selected Timer Operation

Airflow Direction Control

●Airflow Direction Manual Control

●Automatic Airflow Direction Control

SET/C

●Temperature Setting (20°C to 30°C)

●

(higher), (standard), (lower)

... Automatic Operation

•AUTO Automatic Operation Mode

•COOL Cooling Operation Mode

•DRY Soft Dry Operation Mode

•FAN Air Circulation Mode

•Low Fan Speed

•Medium Fan Speed

•High Fan Speed

TEMP

SLEEP

AUTO

COOL

FAN

SPEED

OFF/ON

TEMP

MODE SLEEP

FAN SPEED

AUTO

MANUAL

TIMER

AIR SWING

OFF/ON SET/C

RESET

DRY

H H

OFF ON OFF ON

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

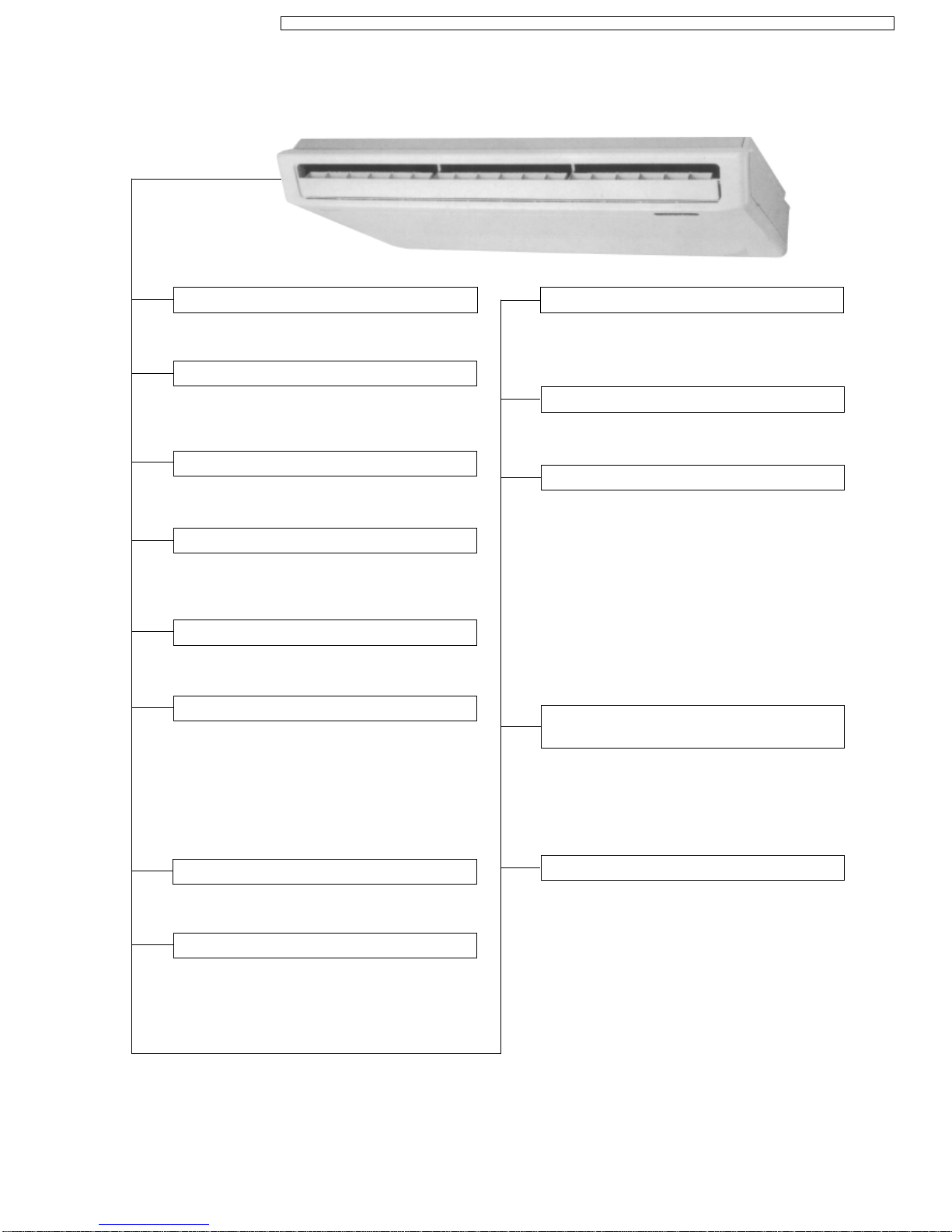

Indoor Unit

Sensing The Room Temperature

●Room Temperature Sensor (thermistor)

Starting Current Control

●Indoor Fan is delayed for 1.6 seconds at the

starting

Time Delay Safety Control

●Restartingisinhibitedforapporox.3minutes

Circuit Protection Control

●30 seconds forced operation of the

compressor

Indoor Fan Speed Control

●High, Med, Low

Operation Indication Lamps (LED)

●

POWER

(green).........Lights up in operation

●

AIR SWING

(red).........Automatic Airflow

Direction in operation

●

TIMER

(orange) ........Timer in operation

●

SLEEP

(orange) ........Sleep Mode Auto in

operation

Soft Dry Operation Mode

●Intermittent operation of Fan at low speed

Room Temperature Control

●Maintainstheroomtemperatureaccordance

with the Setting Temp.

Air Circulation Operation Mode

(Fan only operation)

●Low Fan Speed operation interlocked with

the setting temp.

Automatic Restarting Control

●7 minutes automatic restarting at Cooling,

Soft Dry operation

Sleep Mode Auto Control

●(Can be obtained with Cooling, Soft Dry,

Automatic Operation Mode.)

●TheFanisswitchedtoLowfanspeedandthe

unit will be stopped after 5 hours

●Thesettingtemperaturewillberaisedby1°C

at the starting and by 1°C one hour later

●Whentheroomtemperaturebecomesalevel

ideal for sleep, the operation 20 minutes off

and 10 minutes on will be repeated

●5 minutes automatic restarting is activated

instead of 7 minutes

Anti-freezing Control For The

Evaporator

●Compressor will be stopped when the

Evaporator’s piping temperature is 0°C or

less for three minutes

●Restarting at 12°C or higher (Time Delay

Safety Control has a priority)

Airflow Direction Control

Automatic Airflow Direction Control

●Thelouverautomaticallyswingsupanddown

(Cooling, Soft Dry)

●The louver is set at 30°downward during Air

Circulation Operation

●Thelouverissetathorizontalwhenthefanis

stopped

Airflow Direction Manual Control

●Canbeset withinarangeathorizontal to30°

downward

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

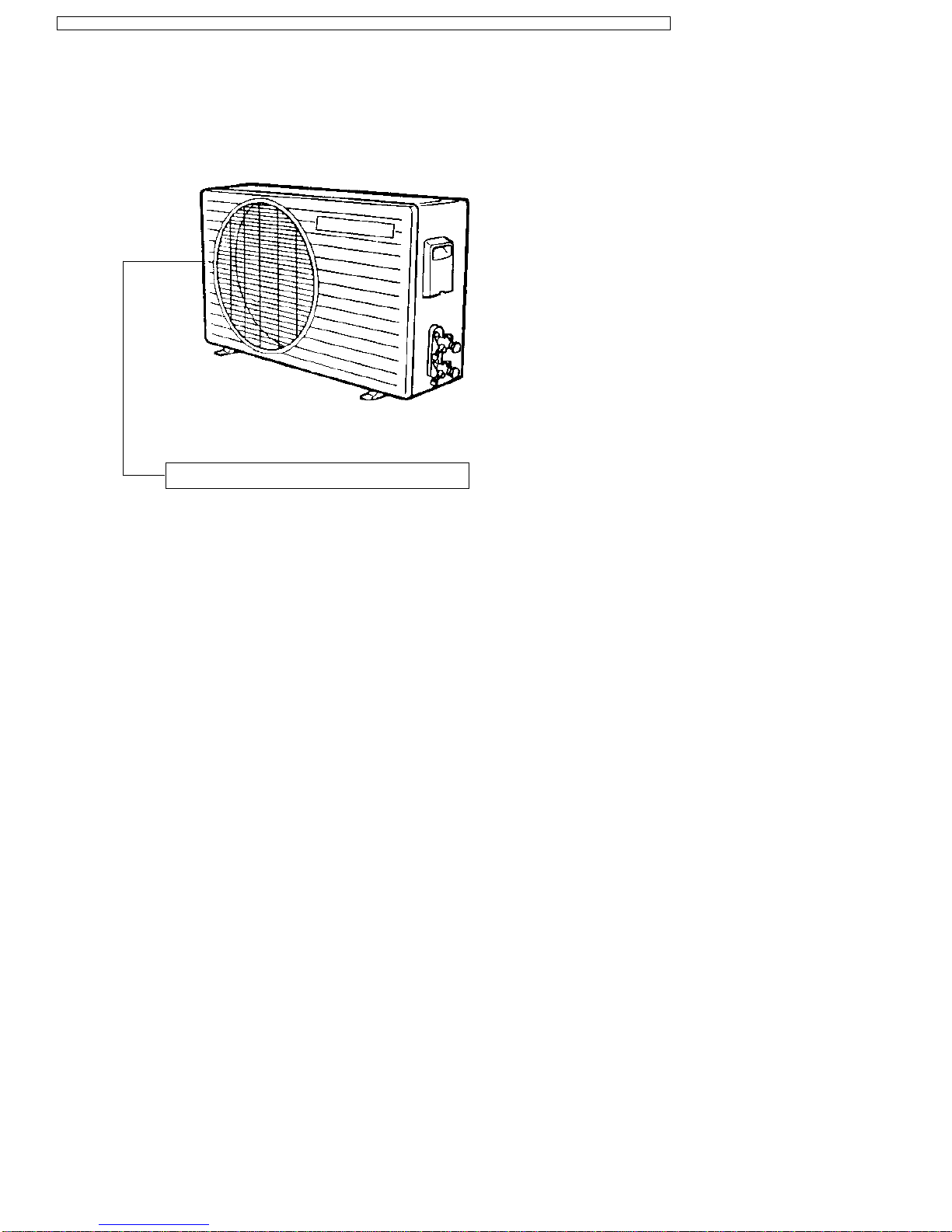

Outdoor Unit

Overload Protector

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

2 Product Specifications

Unit CS-C12ATP5 CU-C12ATP5

Cooling Capacity kW

BTU/h

kcal/h

3.45; 3.45; 3.50

11,700; 11,700; 11,900

2,970; 2,970; 3,050

Moisture Removal l/h

Pint/h 2.0

4.2

Power Source Phase

Cycle

Single

220; 230; 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 8.9 (314) —

Indoor Air (Me) m3/min (cfm) 9.6 (338) —

Indoor Air (Hi) m3/min (cfm) 10.0 (350) —

Noise Level dB (A) High 43; 44; 44

Low 38; 40; 40 High 46; 47; 47

Power Level dB (A) High 57 High 62

Electrical Data Input kW 1.27; 1.28; 1.30

Running Current A6.0; 5.9; 5.8

EER W/W

BTU/hW 2.72; 2.70; 2.69

9.2; 9.2; 9.2

Starting Current A25

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”

L (liquid side) ; 1/4”G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 20 —

Length m0.6 —

Power Cord Length

Number of core-wire m2.3

3 (1.0 mm2)—

—

Dimensions Height inch (mm) 6 - 1/2 (165) 19 - 29/32 (505)

Width inch (mm) 43 - 5/16 (1,100) 30 - 23/32 (780)

Depth inch (mm) 25 - 19/32 (650) 9 - 21/32 (245)

Net Weight lb (kg) 62 (28) 82 (37)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—1,100

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

Unit CS-C12ATP5 CU-C12ATP5

Air Circulation Type SIROCCO Propeller Fan

Material STYLAC 181 AES + Glass Fiber 12%

Motor Type Induction (4-poles) Induction (6-poles)

Input W45.6 58.6

Rated Output W20 20

Fan Speed Low rpm 980 —

Medium rpm 1,055 —

High rpm 1,100 730

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

1×10 2×19

FPI 21 16

Size (W × H × L) mm 900 × 254 × 22 706 × 482 × 44

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(410)

Refrigerant (R-22) g (oz.) —1,000 (35.5)

Thermostat Electronic Control —

Protection Device —Overload Protector

Length mm —625

Capillary Tube Flow Rate l/min —13.5

Inner Diameter mm —1.6

Air Filter Material

Style P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —30 µF, 370VAC

Fan Motor Capacitor µF, VAC 1.2 µF, 450VAC 1.2 µF, 400VAC

• Specifications are subject to change without notice for further improvement.

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

Unit CS-C18ATP5 CU-C18ATPT5

Cooling Capacity kW

Btu/h

kcal/h

5.15; 5.20; 5.30

17,500; 17,700; 18,000

4,430; 4,470; 4,560

Moisture Removal l/h

Pint/h 2.9

6.1

Power Source Phase

Cycle

Single

220; 230; 240

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 10.4 (354) —

Indoor Air (Me) m3/min (cfm) 10.7 (379) —

Indoor Air (Hi) m3/min (cfm) 11.5 (400) —

Noise Level dB (A) High 50; 51; 51

Low 40; 46; 46 High 54; 56; 56

Power Level dB (A) High 64 High 71

Electrical Data Input kW 2.08; 2.10; 2.19

Running Current A10.3; 10.5; 10.7

EER W/W

BTU/hW 2.48; 2.48; 2.42

8.4; 8.4; 8.2

Starting Current A47

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”

L (liquid side) ; 1/4”G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 20 —

Length m0.6 —

Power Cord Length

Number of core-wire m2.3

3 (1.5 mm2)—

—

Dimensions Height inch (mm) 6 - 1/2 (165) 26 - 31/32 (685)

Width inch (mm) 43 - 5/16 (1,100) 31 - 1/2 (800)

Depth inch (mm) 25 - 19/32 (650) 11 - 13/16 (300)

Net Weight lb (kg) 66 (30) 126 (57)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—1,700

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

Unit CS-C18ATP5 CU-C18ATPT5

Air Circulation Type SIROCCO Propeller Fan

Material STYLAC 181 CE10G15 JSR

Motor Type Induction (4-poles) Induction (4-poles)

Input W66.00 136.8 (High)

Rated Output W40 65

Fan Speed Low rpm 1,160 610

Medium rpm 1,250 —

High rpm 1,340 960

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2×10 2×26

FPI 20 14

Size (W ×H×L) mm 900 ×254 ×44 796 ×660 ×44

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(700)

Refrigerant (R-22) g (oz.) —1,550 (54.7)

Thermostat Electronic Control —

Protection Device —Inner Protector

Length mm —625

Capillary Tube Flow Rate l/min —13.5

Inner Diameter mm —1.6

Air Filter Material

Style P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —35 µF, 370VAC

Fan Motor Capacitor µF, VAC 1.2 µF, 450VAC 3.5 µF, 400VAC

• Specifications are subject to change without notice for further improvement.

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

Unit CS-C18ATP6 CU-C18ATPT6

Cooling Capacity kW

Btu/h

kcal/h

5.30

18,100

4,560

Moisture Removal l/h

Pint/h 2.9

6.1

Power Source Phase

Cycle

Single

220

Airflow Method OUTLET

INTAKE

SIDE VIEW TOP VIEW

Air Volume Indoor Air (Lo) m3/min (cfm) 10.4 (354) —

Indoor Air (Me) m3/min (cfm) 10.7 (379) —

Indoor Air (Hi) m3/min (cfm) 11.5 (400) —

Noise Level dB (A) High 50; Low 44 High 52

Electrical Data Input kW 2.07

Running Current A9.6

EER W/W

BTU/hW 2.56

8.7

Starting Current A40

Piping Connection Port

(Flare piping) inch

inch G ; Half Union 1/2”

L ; Half Union 1/4”G ; 3-way valve 1/2”

L ; 2-way valve 1/4”

Pipe Size

(Flare piping) inch

inch G (gas side) ; 1/2”

L (liquid side) ; 1/4”G (gas side) ; 1/2”

L (liquid side) ; 1/4”

Drain

Hose Inner diameter mm 20 —

Length m0.6 —

Power Cord Length

Number of core-wire m2.3

3 (1.5 mm2)—

—

Dimensions Height inch (mm) 6 - 1/2 (165) 26 - 31/32 (685)

Width inch (mm) 43 - 5/16 (1,100) 31 - 1/2 (800)

Depth inch (mm) 25 - 19/32 (650) 11 - 13/16 (300)

Net Weight lb (kg) 66 (30) 121 (55)

Compressor Type —Rotary (1 cylinder)

rolling piston type

Motor Type —Induction (2-poles)

Rated Output W—1,400

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

Unit CS-C18ATP6 CU-C18ATPT6

Air Circulation Type SIROCCO Propeller Fan

Material STYLAC 181 CE10G15 JSR

Motor Type Induction (4-poles) Induction (4-poles)

Input W61.27 93.60 (High)

Rated Output W70 95

Fan Speed Low rpm 1,050 575

Medium rpm 1,125 —

High rpm 1,215 765

Heat Exchanger Description Evaporator Condenser

Tube material Copper Copper

Fin material Aluminium Aluminium

Fin Type Louver Fin Corrugated Fin

Row / Stage (Plate fin configuration, forced draft)

2×10 2×26

FPI 20 14

Size (W ×H×L) mm 900 ×254 ×44 796 ×660 ×44

Refrigerant Control Device —Capillary Tube

Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60

(700)

Refrigerant (R-22) g (oz.) —1,900 (67.1)

Thermostat Electronic Control —

Protection Device —Inner Protector

Length mm —625

Capillary Tube Flow Rate l/min —13.5

Inner Diameter mm —1.6

Air Filter Material

Style P.P.

Honeycomb —

Capacity Control Capillary Tube

Compressor Capacitor µF, VAC —35 µF, 370VAC

Fan Motor Capacitor µF, VAC 1.2 µF, 450VAC 3.5 µF, 400VAC

• Specifications are subject to change without notice for further improvement.

CS-C12ATP5 CU-C12ATP5 / CS-C18ATP5 CU-C18ATPT5 / CS-C24ATP5 CU-C24ATPT5 / CS-C18ATP6 CU-C18ATPT6 / CS-C24ATP6 CU-C24ATPT6

This manual suits for next models

Table of contents

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CU-5E32QBR User manual

Panasonic

Panasonic OCU-CR1000VF8 Operating instructions

Panasonic

Panasonic CU-E18NKUA User manual

Panasonic

Panasonic CU-3RE18SBE User manual

Panasonic

Panasonic CS-E7PKEW User manual

Panasonic

Panasonic CW-C140NU User manual

Panasonic

Panasonic CW-C141NU User manual

Panasonic

Panasonic U-8MF2E8 User manual

Panasonic

Panasonic CU-3E19RBU-5 User manual

Panasonic

Panasonic CU-V7CKP5 User manual

Panasonic

Panasonic CS-E9PKA User manual

Panasonic

Panasonic CU-RE15JKX User manual

Panasonic

Panasonic CS-YS9MKV-7 User manual

Panasonic

Panasonic CS-Z35UFRAW User manual

Panasonic

Panasonic CS-XE9WKUAW User manual

Panasonic

Panasonic CZ-06KPU11P User manual

Panasonic

Panasonic S-TE9HKE User manual

Panasonic

Panasonic CW-XC81YK User manual

Panasonic

Panasonic CU-C18HKD User manual

Panasonic

Panasonic EAIRC-MJ Series User manual

Panasonic

Panasonic S-12MT2U6 User manual

Panasonic

Panasonic CS-S9JKQ User manual

Panasonic

Panasonic S-36PT1E5 User manual

Panasonic

Panasonic CU-KS30NKUA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
