Start Series

Service Manual

M1Intro • M2Effect • M3Hemi • M4XXL • M5Comfort • M6Junior

Table of Contents

1 Preface .............................................................................................................................. 2

2 Safety .............................................................................................................................. 2

3 Required Tools and Maintenance Plan ................................................................................ 3 - 8

Start M1 Intro / M2 Effect....................................................................................... 5

Start M3 Hemi........................................................................................................ 6

Start M4 XXL / M5 Comfort ................................................................................... 7

Start M6 Junior....................................................................................................... 8

4 Settings / Replacement / Retrot............................................................................................. 9

4.A Frame .................................................................................................................... 9

4.B Footrests.............................................................................................................. 11

4.C Seat ..................................................................................................................... 15

4.D Back / Push Handles ........................................................................................... 17

4.E Side Panel............................................................................................................ 19

4.F Caster.................................................................................................................. 21

4.G Rear Wheel.......................................................................................................... 23

4.H Brake / Wheel Lock ............................................................................................. 28

4.S Accessories, Accessory Products ........................................................................ 32

1 Preface

Regular maintenance is important. It increases safety and prolongs the service life of the product.

All Mobility products should be inspected and serviced once a year.

However, if the product is used frequently, or if it is used by growing children or patients with changing clinical

conditions, we recommend readjusting and servicing the product every 6 months.

Use only original spare parts for all service and maintenance.

The service and maintenance described in this manual should be performed by skilled specialists only and not

by the user.

This service and maintenance manual refers to the spare parts catalogs and instructions for use manuals for

the products described. For this reason, it is important to use these documents together.

Use the maintenance plans (check list) as a template for making copies. Retain completed maintenance plans

and provide the customer with a copy.

Instructions for Use Spare Parts Catalog

Start Series 647G324=D/GB 646K84=GB

2 Safety

For all maintenance and repair works, there are a few points you should always observe:

Use appropriate tools (refer to pages 3 & 4).

Wear appropriate clothing, including gloves and safety glasses, if necessary.

Secure the product to prevent it from tipping over or falling off the workbench.

Read the service and maintenance instructions before starting.

Familiarize yourself with the functions of the product. If you are not familiar with the product, read

the instructions for use manual before inspecting the product.

If you do not have an instructions for use manual, you can order one from the manufacturer (see

the overview of all Otto Bock Branches "Otto Bock Worldwide").

Alternatively, you can download documents from our home page at www.ottobock.de or

www.ottobock.com.

Clean or disinfect the product before starting inspection. See the instructions for use manual for

care instructions or specific product inspection information.

Many of the screw fastenings use thread lock or nylock nuts. If you have to undo such screw

fastenings, replace the nut or screw with a new thread lock and/or nut. If new screws or nuts

with thread lock are not available, use a medium-strength liquid thread lock substance (such as

Loctite 241 or Euro Lock A24.20).

3 Required Tools and Maintenance Plan

The following list shows you the tools and auxiliaries required for the service.

Reversible ratchet handle wrench

and sockets, sizes 8 - 24

Torque wrench,

measurement range 5 Nm to 50 Nm

Wrenches,

sizes 8 - 24*

Allen wrenches,

sizes 3 - 6*

Phillips head screwdriver,

size 2

Screwdrivers, blade widths

2.5, 3.5, and 5.5 mm

Hammer, approx. 300 g

Plastic hammer Stanley knife with sickle hooked

blade and standard blade

* Contained in 481C08=ST010 Tool Set

Liquid thread lock "medium strength"Side cutting pliers Pop rivet gun

for rivets up to ø 5 mm

Workbench as well as a vise with

plastic jaws and rubber insert

Hand drill Tire mounting levers*,

inner tube repair kit*

* Contained in 481C08=ST010 Tool Set

Maintenance Plan

for regular service

Start M1 Intro / M2 Effect

- Lightweight Wheelchair -

Customer:

Item Component (group) Inspection (check list)

Serial no.: 1.)

Function / setting

(see 647G324 Instructions for Use)

2.)

Damages /

deformations

3.)

Screw connections

M1 Intro  M2 Effect

4 A Frame - Frame

- Central unit

Frame accessories - Anti-tipper

- Transport wheels (only M2)

- Crutch holder

4 B Footrests - Flip-up mechanism

- Lower leg length setting

- Angle adjustment

4 C Seat - Crossbrace

- Seat upholstery

- Seat cushion

4 D Back / push handle - Back upholstery

- Angle adjustment (M2)

- Fold-down mechanism (M2)

- Push handles

- Back tubes

Back accessories - Side thoracic support (M2) x x

4 E Side panel - Height setting

- Swivel mechanism

4 F Caster - Tires (wear)

- Air pressure (M2)

- Caster journal angle

- Screw connection of the caster

journal bearing

- Running behavior of the wheels

- Swiveling of the wheel forks

4 G Rear wheel - Tires (wear)

- Air pressure (M2)

- Running behavior of the wheels

- Spokes

- Push rings

- Quick-release axles

- Rear wheel adapter

Rear wheel accessories - Drum brakes

- Spoke protectors

4 H Brake / wheel lock - Brake function x x

Brake / wheel lock accessories - Wheel lock lever extension x x

4 S Accessories - Tray

- Lap belt

Do the settings of the

wheelchair comply with the

user's requirements?

Maintenance performed by: on:

Maintenance Plan

for regular service

Start M3 Hemi

- Lightweight Wheelchair -

Customer:

Item Component (group) Inspection (check list)

Serial no.: 1.)

Function / setting

(see 647G324 Instructions for Use)

2.)

Damages /

deformations

3.)

Screw connections

M3 Hemi

4 A Frame - Frame

- Central unit

x x

Frame accessories - Anti-tipper

- Transport wheels

- Crutch holder

4 B Footrests - Flip-up mechanism

- Lower leg length setting

- Angle adjustment

4 C Seat - Crossbrace

- Seat upholstery

- Seat cushion

4 D Back / push handle - Back upholstery

- Back tubes

- Angle adjustment

- Fold-down mechanism

- Push handles

Back accessories - Side thoracic support

- Stabilization bar

4 E Side panel - Height setting

- Swivel mechanism

4 F Caster - Tires (wear)

- Air pressure

- Caster journal angle

- Screw connection of the caster

journal bearing

- Running behavior of the wheels

- Swiveling of the wheel forks

4 G Rear wheel - Tires (wear)

- Air pressure

- Running behavior of the wheels

- Spokes

- Push rings

- Quick-release axles

- Rear wheel adapter

Rear wheel accessories - Drum brakes

- Spoke protectors

- One-arm drive

4 H Brake / wheel lock - Brake function

- One-handed operation

Brake / wheel lock accessories - Wheel lock lever extension x x

4 S Accessories - Tray

- Lap belt

Do the settings of the

wheelchair comply with the

user's requirements?

Maintenance performed by: on:

Maintenance Plan

for regular service

Start M4 XXL/ M5 Comfort

- Lightweight Wheelchair -

Customer:

Item Component (group) Inspection (check list)

Serial no.: 1.)

Function / setting

(see 647G324 Instructions for Use)

2.)

Damages /

deformations

3.)

Screw connections

M4 XXL  M5 Comfort

4 A Frame - Frame

- Central unit

x x

Frame accessories - Anti-tipper

- Transport wheels

- Crutch holder

4 B Footrests - Flip-up mechanism

- Lower leg length setting

- Angle adjustment

4 C Seat - Crossbrace

- Seat upholstery

- Seat cushion

4 D Back / push handle - Back upholstery

- Back tubes

- Angle adjustment (M5)

- Fold-down mechanism (M5)

- Push handles

Back accessories - Side thoracic support (M5)

- Stabilization bar (M4)

4 E Side panel - Height setting

- Swivel mechanism

4 F Caster - Tires (wear)

- Air pressure

- Caster journal angle

- Screw connection of the caster

journal bearing

- Running behavior of the wheels

- Swiveling of the wheel forks

4 G Rear wheel - Tires (wear)

- Air pressure

- Running behavior of the wheels

- Spokes

- Push rings

- Quick-release axles

- Wheel camber (M5)

- Rear wheel adapter

Rear wheel accessories - Drum brake

- Spoke protectors

4 H Brake / wheel lock - Brake function x x

Brake / wheel lock accessories - Wheel lock lever extension x x

4 S Accessories - Tray

- Lap belt

Do the settings of the

wheelchair comply with the

user's requirements?

Maintenance performed by: on:

Maintenance Plan

for regular service

Start M6 Junior

- Lightweight Wheelchair -

Customer:

Item Component (group) Inspection (check list)

Serial no.: 1.)

Function / setting

(see 647G324 Instructions for Use)

2.)

Damages /

deformations

3.)

Screw connections

M6 Junior

4 A Frame - Frame

- Central unit

x x

Frame accessories - Anti-tipper

- Transport wheels

- Crutch holder

4 B Footrests - Flip-up mechanism

- Lower leg length setting

- Angle adjustment

4 C Seat - Crossbrace

- Seat upholstery

- Seat cushion

4 D Back / push handle - Back upholstery

- Back tubes

- Angle adjustment

- Fold-down mechanism

- Push handles

Back accessories - Side thoracic support x x

4 E Side panel - Height setting

- Swivel mechanism

4 F Caster - Tires (wear)

- Caster journal angle

- Screw connection of the caster

journal bearing

- Running behavior of the wheels

- Swiveling of the wheel forks

4 G Rear wheel - Tires (wear)

- Air pressure

- Running behavior of the wheels

- Spokes

- Push rings

- Quick-release axles

- Rear wheel adapter

Rear wheel accessories - Drum brakes

- Spoke protectors

4 H Brake / wheel lock - Brake function x x

Brake / wheel lock accessories - Wheel lock lever extension x x

4 S Accessories - Tray

- Lap belt

Do the settings of the

wheelchair comply with the

user's requirements?

Maintenance performed by: on:

4 Settings / Replacement / Retrofit

Replacing the frames

In order to replace one or both frames, you first have to

remove all component groups and accessories which

are connected to the frame.

- Central unit according to drawing,

- footrests (refer to section 4.B),

- crossbrace (refer to section 4.C),

- back/upholstery/push handles (refer to section 4.D),

- side panels (refer to section 4.E),

casters and caster journal bearings (refer to section 4.F),

- rear wheels and rear wheel adapters (refer to sec

tion 4.G),

- and brakes / wheel locks (refer to section 4.H).

It is advisable to start with disassembling the acces-

sories which are attached to the frame, i.e. anti-tipper,

transport wheels or crutch holder. All parts mounted to

the frame are attached with screws.

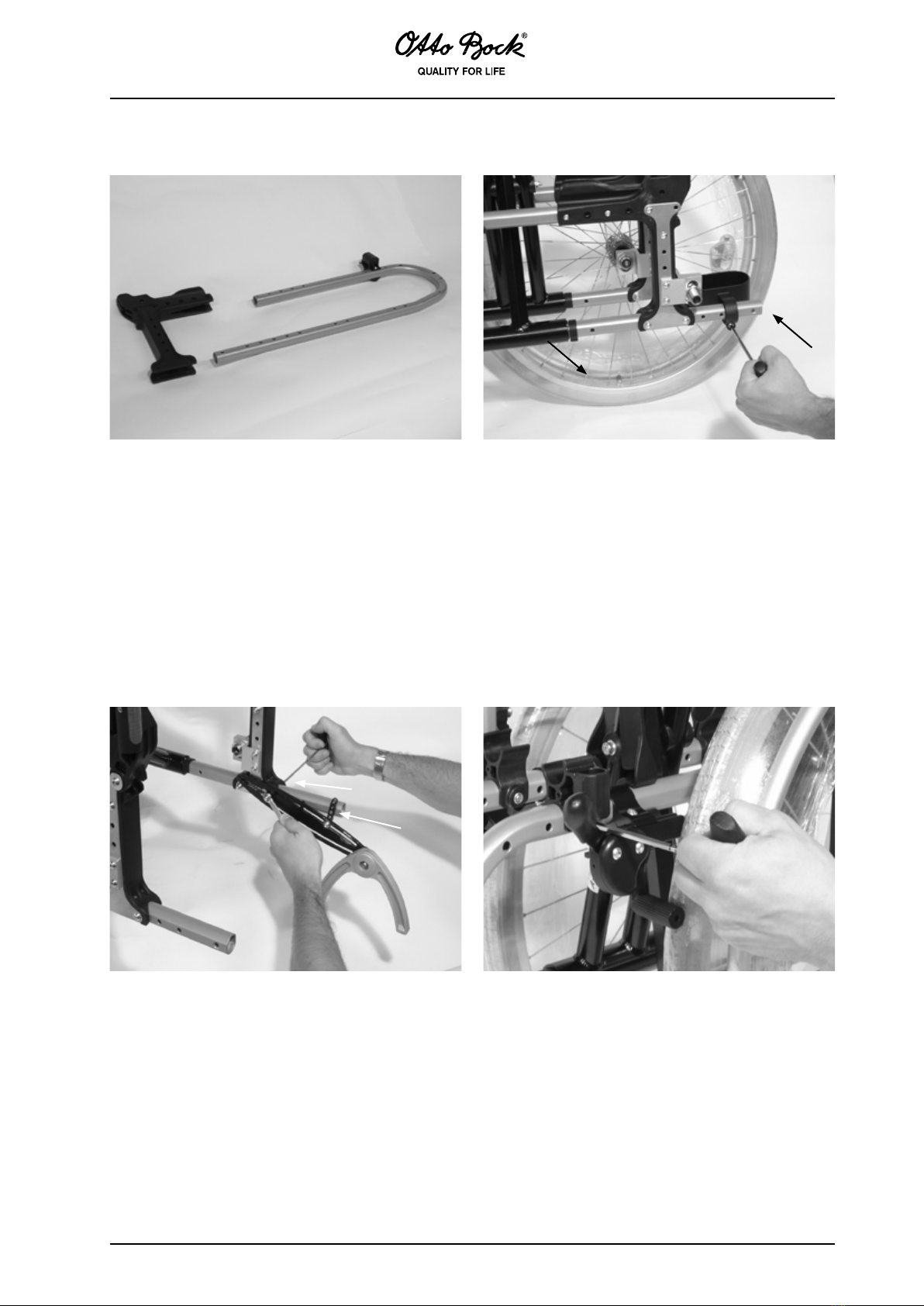

Replacing the cap

There is a cap a the tube end, which can be cut open

when damaged using a blade and pulled off the tube

end. Put the new cap on the tube end (arrowed).

Replacing the support brackets

Swing the side panel to the rear and loosen and remove

the cap screw in the support brackets. Remove the

support brackets from the frame.

For reassembly, please proceed in reverse order.

Use new, self-locking screws.

4.A - Frame

Replacement / Retrot / Setting of the swinging

anti-tipper

Loosen and remove the screw connections (arrowed)

and remove the anti-tipper holder from the frame.

For reassembly, please proceed in reverse order.

Use new, self-locking nuts.

For setting the anti-tipper please observe the information

given in the instructions for use manual.

This manual suits for next models

Table of contents

Other Otto Bock Wheelchair manuals

Otto Bock

Otto Bock Start M2S User manual

Otto Bock

Otto Bock Motus CV User manual

Otto Bock

Otto Bock Motus CV User manual

Otto Bock

Otto Bock Ventus User manual

Otto Bock

Otto Bock C1000 SF User manual

Otto Bock

Otto Bock Start M4 XXL User manual

Otto Bock

Otto Bock 4X205 User manual

Otto Bock

Otto Bock Start M2S User manual

Otto Bock

Otto Bock Avantgarde CV User manual

Otto Bock

Otto Bock BRAVOracer User manual

Otto Bock

Otto Bock Avantgarde T User manual

Otto Bock

Otto Bock Ventus User manual

Otto Bock

Otto Bock Voyager Evo User manual

Otto Bock

Otto Bock Start M4 XXL User manual

Otto Bock

Otto Bock 4F34 User manual

Otto Bock

Otto Bock Start B2 User manual

Otto Bock

Otto Bock B600 User manual

Otto Bock

Otto Bock 440P2-1-7 User manual

Otto Bock

Otto Bock 493U75 User manual

Otto Bock

Otto Bock Xeno User manual

Otto Bock

Otto Bock SKIPPI User manual

Otto Bock

Otto Bock Avantgarde XXL 2 User manual

Otto Bock

Otto Bock Invader 480S26-20000_K User manual

Otto Bock

Otto Bock Kimba neo User manual

Popular Wheelchair manuals by other brands

Invacare

Invacare Action 4NG series user manual

SORG

SORG LoopSORG 802 Instructions for use

Designability

Designability WizzyBug User instruction

Vermeiren

Vermeiren RAPIDO instruction manual

Excel

Excel G5 KIDS 0285 user manual

M. Bartels

M. Bartels SA-3 Operation manual

nino robotics

nino robotics NIno user manual

Vermeiren

Vermeiren Turios installation manual

Invacare

Invacare MK5 EX Service manual

Invacare

Invacare Solara Spree GT Owner's operator and maintenance manual

Nova

Nova TKW-12 user guide

BCW

BCW Advantage manual

You-Q

You-Q Luca Service manual

interco

interco Ortolight Standard Operating guidelines

Nova

Nova 7190L owner's manual

Vermeiren

Vermeiren EZ1 instruction manual

PaceSaver

PaceSaver Scout M-300 owner's manual

Invacare

Invacare TDX 4 Owner's operator and maintenance manual
