Origin Acoustics DIRECTOR D89 User manual

DIRECTOR 8” SERIES SPEAKER MANUAL

DIRECTOR COLLECTION

D83DT/SUR

D81-6 (6 PACK)

D80DT

D80-8 (8 PACK)

D89

D87

D85

D83A

D83

DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES



 

 

 

 

 

 

 

 

 

 

Removal of Speaker from Bayonet Ring 

Installing Bayonet Ring Into Ceiling 

Release of Bayonet Ring from Ceiling 

Connecting the Speaker Wire 

 Installing Speaker Into Bayonet Ring 

 

 

 

 

 

 



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES





           





         



 









DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

*All product specifications are subject to change. Please refer to the dealer portal for the latest information.

MODEL D89 D87 D85

PART SDC80900 SCD80700 SCD80500

   

   

   

   

   

   

   

Mounting Depth   

MODEL D83 D83A D83DT/SUR

PART SDC80300 SCD8030A SCD2T80300

Tweeter   

Midrange   

Woofer   

Frequency Response   

Power RMS   

Power Peak   

Impedance   

Mounting Depth   



SPECIFICATIONS ALL 8'' SERIES

Cutout Diameter 8 ” (222mm)

Speaker Diameter 9 ” (244mm)

Grille Diameter 10” (254mm)

Grille Depth ” (5mm)



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

MODEL D81-6 D80DT D80-8

PART SCD80100 SCD2T80000 SCD80000

Tweeter   

Midrange   

Woofer   

Frequency Response   

Power RMS   

Power Peak   

Impedance   

Mounting Depth   





Speaker Bayonet Ring Grille Template



DIRECTOR COLLECTION

DIRECTOR 10”| 8” & 6” LOUDSPEAKERS

SPECIFICATIONS

Please visit docs.originacoustics.com or scan this QR code using your smart device for the

most up to date safety information and use instructions for this product.

*All warranties and warranty conditions are subject to change. Please

refer to docs.originacoustics.com for the latest information.

ALL 10'' SERIES

10 3/8” (264mm)

11 ” (286mm)

11 ” (299mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

ALL 8'' & 6'' SERIES

8 ” (222mm)

9 ” (244mm)

10” (254mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

OriginAcoustics

ORIG I N®

ACOUS T I C S

111/2in

286mm

113/4in

299mm

61/4in

158mm

103/8in

264mm

OriginAcoustics

ORIG I N®

ACOU S T I C S

10in

254mm

95/8in

244mm

222mm

83/4in

51/4in

133mm

41/8in

105mm

 

D80 & D60 Series

Director Collection

When you have decided on the location for the speaker, trace this template lightly in pencil

where the hole should be. If unsure on whether there may or may not be studs where the

planned speakers are located, use a keyhole or drywall saw to drill a ⅛” hole in the center

of the template, then insert a bent coat hanger through the hole to feel for obstructions.

Cut-Out Template: 8 3/4” (222mm)

www.originacoustics.com

[email protected]

844.674.4461

8:00AM - 5:00PM (PT) Mon - Fri



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIESDIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

4. Product Features

4a. Director Speaker Features

• D85 - 89

• D83-A

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D80-8

• D80DT

• D83 | D81-6

• D83DT/SUR











DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

)



)

)

)

DIRECTOR COLLECTIONTM MANUAL • 8'' SERIESDIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

4. Product Features

4a. Director Speaker Features

• D85 - 89

• D83-A

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D80-8

• D80DT

• D83 | D81-6

• D83DT/SUR

DIRECTOR COLLECTIONTM MANUAL • 8'' SERIESDIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

4. Product Features

4a. Director Speaker Features

• D85 - 89

• D83-A

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D80-8

• D80DT

• D83 | D81-6

• D83DT/SUR

DIRECTOR COLLECTIONTM MANUAL • 8'' SERIESDIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

4. Product Features

4a. Director Speaker Features

• D85 - 89

• D83-A

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D80-8

• D80DT

• D83 | D81-6

• D83DT/SUR







DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D101

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

4b. Bayonet Ring Features

• Drywall Saw

• Speaker Wire

• Pencil

• Wire Stripper

• Measuring Tape

• Drill

• Drill Bit ⅛” (3mm)

• Stiff Wire

• Stud Finder

• Fish Tape

• Spray Paint

• Compressed Air

5. Required Tools

The gauge of wire used can have an impact on the performance of your speakers.

Use a multi-stranded wiring designed for amplifier to speaker connections. Which

gauge to select depends on the length of wire to be used on any particular speaker.

The longer your run is, the larger your wire size must be.

6. Recommended Speaker Wire

Wire Length Wire Gauge

0 -100’ (0 - 30m) 16

50 - 150’ (15 - 45m) 14

Over 100’ (30m) 12

A) BAYONET RING To be inserted within in-ceiling hole

B) METAL RING - LOCK cks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

C) BAYONET RAILS The Zip-KlipsTM Grips are raised & lowered along these rails.

D) ZIP - KLIPTM GRIPS Provide secure grip against drywall. With 2 finger grooves

to pull down and lower. Zip-Klip™ Mounting System (Patent #9591390).

E) RELEASE TABS Press BLACK tabs inwards to release grip and raise Zip-KlipTM.

F) LOCK GROOVES Used to ALIGN & LOCK speaker inside Bayonet Ring.

)

)

)

)



)

)



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D101

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

4b. Bayonet Ring Features

• Drywall Saw

• Speaker Wire

• Pencil

• Wire Stripper

• Measuring Tape

• Drill

• Drill Bit ⅛” (3mm)

• Stiff Wire

• Stud Finder

• Fish Tape

• Spray Paint

• Compressed Air

5. Required Tools

The gauge of wire used can have an impact on the performance of your speakers.

Use a multi-stranded wiring designed for amplifier to speaker connections. Which

gauge to select depends on the length of wire to be used on any particular speaker.

The longer your run is, the larger your wire size must be.

6. Recommended Speaker Wire

Wire Length Wire Gauge

0 -100’ (0 - 30m) 16

50 - 150’ (15 - 45m) 14

Over 100’ (30m) 12

A) BAYONET RING To be inserted within in-ceiling hole

B) METAL RING - LOCK cks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

C) BAYONET RAILS The Zip-KlipsTM Grips are raised & lowered along these rails.

D) ZIP - KLIPTM GRIPS Provide secure grip against drywall. With 2 finger grooves

to pull down and lower. Zip-Klip™ Mounting System (Patent #9591390).

E) RELEASE TABS Press BLACK tabs inwards to release grip and raise Zip-KlipTM.

F) LOCK GROOVES Used to ALIGN & LOCK speaker inside Bayonet Ring.



DIRECTOR COLLECTIONTM MANUAL • 8'' SERIES

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

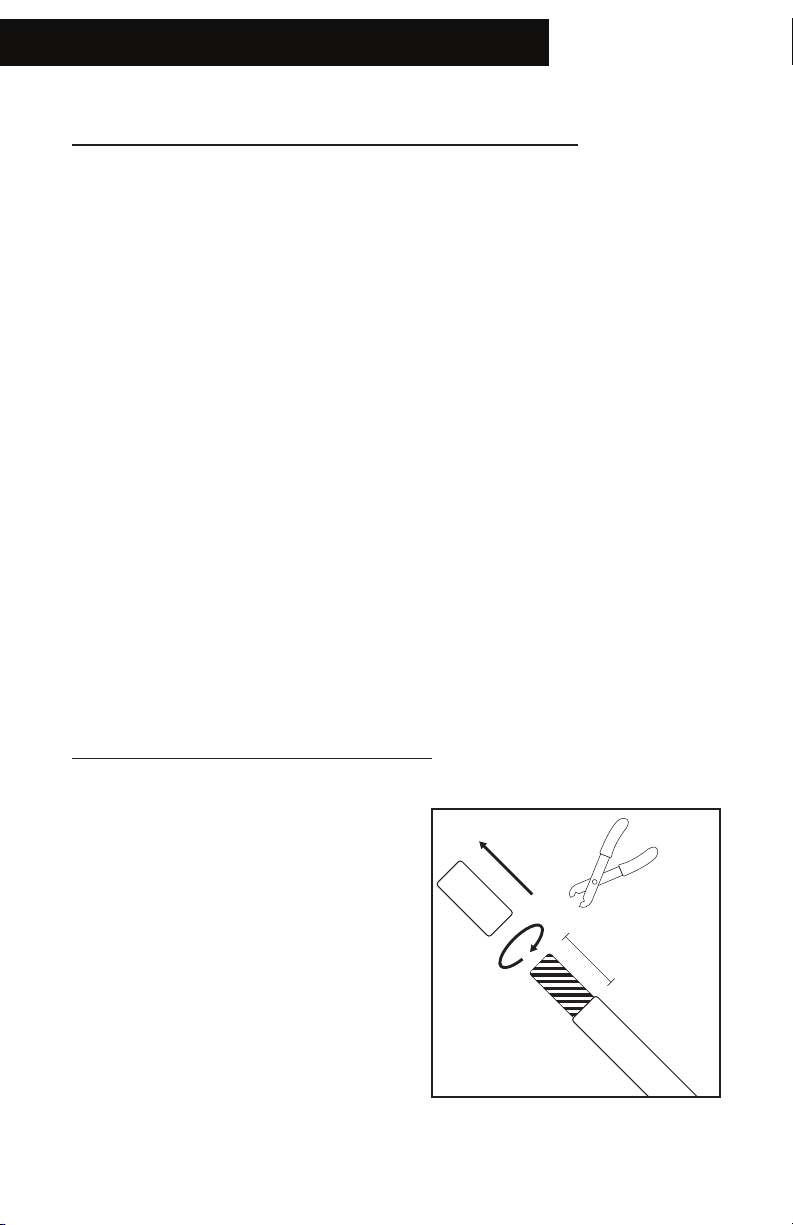

Strip ¼ to ½ inches (6 to 12 mm) of the

insulation o both ends of the wire. To

avoid stray strands, twist them at the

end. Connect the wire to the amplifier,

and make sure the wire connected to

the le speaker output will be routed

to the le speaker, right output to right

speaker, etc.



Use a two conductor wire that allows you to identify one conductor from the oth-

er. This designation may be obvious or as subtle as a ridge on one conductor.

It’s crucial that you keep track of which wire you use for positive (+) and negative

(-). Typically if the wires are colored red and black, the red wire is used for positive

and the black wire is used for negative, but sometimes other colors or patterns are

used. You can choose whichever color of wire you want to be positive and nega-

tive as long as you remain consistent throughout the install.

On both your amplifier and your speaker the connectors will be identified as red

for positive and black for negative. It is very important to look carefully at the

speaker wires and be certain that the same wire that is attached to the positive

connector in the amplifier is attached to the positive connector in the speaker.



0.25 - 0.5”

(6 - 12mm)

Speaker

Wire

Plan how you’ll route the wire to the desired speaker location. There are several

methods for routing the wire, and you may need to combine several of them.



One option is to li up the carpet and

route “tape wire” under the carpet.

• 

The wire can be routed behind the

baseboard by cutting a groove out of

the back of the baseboard, or by buy-

ing special baseboard designed for

concealing wires.

• 

When available, you can route the wire

through an attic or crawlspace.

•

When running wires through a wall, be

sure to avoid all obstacles such as AC

wiring, pipes, and ducts.

•

If these speakers are being installed in a new home during construction, the

installation process will be a bit dierent (although much simpler). For these

situations, it’s recommended you purchase a bracket. Instructions on how

to install the speakers are provided with the bracket, or can be found on our

website. Visit www.originacoustics.com for more information.

• 

This manual suits for next models

Table of contents

Other Origin Acoustics Speakers manuals

Origin Acoustics

Origin Acoustics Director 100 Series User manual

Origin Acoustics

Origin Acoustics D65EX User manual

Origin Acoustics

Origin Acoustics BANG & OLUFSEN Celestial BOC80 Series User manual

Origin Acoustics

Origin Acoustics OUTDOOR OS80B User manual

Origin Acoustics

Origin Acoustics ACOUSTIC LANDSCAPE AS41SAT User manual

Origin Acoustics

Origin Acoustics PROFESSIONAL PP50 PROFESSIONAL PP60 User manual

Origin Acoustics

Origin Acoustics COMPOSER C60 Series User manual

Origin Acoustics

Origin Acoustics PROFESSIONAL PP50 PROFESSIONAL PP60 User manual

Origin Acoustics

Origin Acoustics MOS36K User manual

Origin Acoustics

Origin Acoustics PROFESSIONAL PC80B User manual

Origin Acoustics

Origin Acoustics Seasons Landscape OSUB Series User manual

Origin Acoustics

Origin Acoustics D105EX User manual

Origin Acoustics

Origin Acoustics ThinFit TF 60 Series User manual

Origin Acoustics

Origin Acoustics Director Collection D89 User manual

Origin Acoustics

Origin Acoustics CIW60 Series User manual

Origin Acoustics

Origin Acoustics OS67 User manual

Origin Acoustics

Origin Acoustics BANG & OLUFSEN Celestial BOC60 Series User manual

Origin Acoustics

Origin Acoustics Director D100 Series User manual

Origin Acoustics

Origin Acoustics Composer THTR60 Series User manual

Origin Acoustics

Origin Acoustics DIRECTOR D69 User manual

Origin Acoustics

Origin Acoustics D39 User manual

Origin Acoustics

Origin Acoustics DIRECTOR D69 User manual

Origin Acoustics

Origin Acoustics Composer LCR69 User manual

Origin Acoustics

Origin Acoustics D80 User manual

Popular Speakers manuals by other brands

argon audio

argon audio IE20 quick start

Denon

Denon SC-N7 owner's manual

Gemline

Gemline Ace 3952 user manual

Focal

Focal ON WALL 300 User manua

HEADRUSH

HEADRUSH Maximus HRSP 5024 manual

SoundLogic

SoundLogic BCCS-6/6395 instruction manual

Peavey

Peavey DTH 218 Specification sheet

Avantree

Avantree Pluto Air user guide

Morel

Morel Integra Series INTEGRA OVATION 4 install guide

Oppo

Oppo SONICA quick start guide

Bose

Bose SoundLink Wireless Music System owner's guide

Rocksteady

Rocksteady Stadium owner's manual

Bowers & Wilkins

Bowers & Wilkins 4 owner's manual

Sonance

Sonance SONOS OUTDOOR Series installation manual

Electro-Voice

Electro-Voice EVID FM4.2 Brochure & specs

Pioneer

Pioneer XW-HTD630 manual

Onn

Onn BWA16AA002 Product guide

HP GL313AA - USB Speakers PC Multimedia quick start guide
