Origin Acoustics DIRECTOR D69 User manual

DIRECTOR 6” SERIES SPEAKER MANUAL

DIRECTOR COLLECTION

D69 D65D67 D63

D63DT|SUR D61DT D61-6 (6 PACK) D60-8 (8 PACK)

DIRECTOR COLLECTIONTM MANUAL • D60 SERIES



 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 



DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

















  







DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

MODEL D69 D67 D65

PART SCD60900 SCD60700 SCD60500

Tweeter   

Midrange   

Woofer   

Frequency Response   

Power RMS   

Power Peak   

Impedance   

Mounting Depth 5 1/4” (134mm) 5 1/4” (134mm) 5 1/4” (134mm)



SPECIFICATIONS ALL 6'' SERIES

Cutout Diameter 8 ” (222mm)

Speaker Diameter 9 ” (244mm)

Grille Diameter 10” (254mm)

Grille Depth ” (5mm)

MODEL D63 D63 DT/SUR D61 DT

PART SCD60300 SCD2T60300 SCD2T60100

Tweeter   

Midrange   

Woofer   

Frequency Response   

Power RMS   

Power Peak   

Impedance   

Mounting Depth 3 1/2” (89mm) 3 15/16” (101mm) 4 5/8” (117mm)



DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

*All product specifications are subject to change. Please refer to the dealer portal for the latest information.

MODEL D61-6 D60-8

PART SCD60100 SCD60000

Tweeter  

Midrange  

Woofer  

Frequency Response  

Power RMS  

Power Peak  

Impedance  

Mounting Depth 3 1/2” (89mm) 3 5/8” (92mm)



DIRECTOR COLLECTION

DIRECTOR 10”| 8” & 6” LOUDSPEAKERS

SPECIFICATIONS

Please visit docs.originacoustics.com or scan this QR code using your smart device for the

most up to date safety information and use instructions for this product.

*All warranties and warranty conditions are subject to change. Please

refer to docs.originacoustics.com for the latest information.

ALL 10'' SERIES

10 3/8” (264mm)

11 ” (286mm)

11 ” (299mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

ALL 8'' & 6'' SERIES

8 ” (222mm)

9 ” (244mm)

10” (254mm)

” (5mm)

SPECIFICATIONS

CutoutDiameter

SpeakerDiameter

GrilleDiameter

GrilleDepth

OriginAcoustics

ORIG I N®

ACOUS T I C S

111/2in

286mm

113/4in

299mm

61/4in

158mm

103/8in

264mm

OriginAcoustics

ORIG I N®

ACOU S T I C S

10in

254mm

95/8in

244mm

222mm

83/4in

51/4in

133mm

41/8in

105mm

SPEAKER

Speaker Bayonet Ring Grille Template

D80 & D60 Series

Director Collection

When you have decided on the location for the speaker, trace this template lightly in pencil

where the hole should be. If unsure on whether there may or may not be studs where the

planned speakers are located, use a keyhole or drywall saw to drill a ⅛” hole in the center

of the template, then insert a bent coat hanger through the hole to feel for obstructions.

Cut-Out Template: 8 3/4” (222mm)

www.originacoustics.com

[email protected]

844.674.4461

8:00AM - 5:00PM (PT) Mon - Fri

Speaker Bayonet Ring Grille Template

CUT-OUT TEMPLATEBAYONET RING GRILLE START GUIDE



DIRECTOR COLLECTIONTM MANUAL • D60 SERIES













DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

)



)

)

)







DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D101

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

4b. Bayonet Ring Features

• Drywall Saw

• Speaker Wire

• Pencil

• Wire Stripper

• Measuring Tape

• Drill

• Drill Bit ⅛” (3mm)

• Stiff Wire

• Stud Finder

• Fish Tape

• Spray Paint

• Compressed Air

5. Required Tools

The gauge of wire used can have an impact on the performance of your speakers.

Use a multi-stranded wiring designed for amplifier to speaker connections. Which

gauge to select depends on the length of wire to be used on any particular speaker.

The longer your run is, the larger your wire size must be.

6. Recommended Speaker Wire

Wire Length Wire Gauge

0 -100’ (0 - 30m) 16

50 - 150’ (15 - 45m) 14

Over 100’ (30m) 12

A) BAYONET RING To be inserted within in-ceiling hole

B) METAL RING - LOCK cks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

C) BAYONET RAILS The Zip-KlipsTM Grips are raised & lowered along these rails.

D) ZIP - KLIPTM GRIPS Provide secure grip against drywall. With 2 finger grooves

to pull down and lower. Zip-Klip™ Mounting System (Patent #9591390).

E) RELEASE TABS Press BLACK tabs inwards to release grip and raise Zip-KlipTM.

F) LOCK GROOVES Used to ALIGN & LOCK speaker inside Bayonet Ring.

)

)

)

)



)

)



DIRECTOR COLLECTIONTM MANUAL • D60 SERIES

DIRECTOR COLLECTIONTM MANUAL • 10'' SERIESDIRECTOR COLLECTIONTM MANUAL • 10'' SERIES

A) METAL RING - LOCK Locks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

B) TWEETER

C) MID-RANGE

D) DUAL TWEETER

• D101

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

BZ68 2019

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

4b. Bayonet Ring Features

• Drywall Saw

• Speaker Wire

• Pencil

• Wire Stripper

• Measuring Tape

• Drill

• Drill Bit ⅛” (3mm)

• Stiff Wire

• Stud Finder

• Fish Tape

• Spray Paint

• Compressed Air

5. Required Tools

The gauge of wire used can have an impact on the performance of your speakers.

Use a multi-stranded wiring designed for amplifier to speaker connections. Which

gauge to select depends on the length of wire to be used on any particular speaker.

The longer your run is, the larger your wire size must be.

6. Recommended Speaker Wire

Wire Length Wire Gauge

0 -100’ (0 - 30m) 16

50 - 150’ (15 - 45m) 14

Over 100’ (30m) 12

A) BAYONET RING To be inserted within in-ceiling hole

B) METAL RING - LOCK cks speaker into place inside Bayonet Ring. (Move

outwards from the Bayonet Ring to release speaker. Move inwards to Lock.)

C) BAYONET RAILS The Zip-KlipsTM Grips are raised & lowered along these rails.

D) ZIP - KLIPTM GRIPS Provide secure grip against drywall. With 2 finger grooves

to pull down and lower. Zip-Klip™ Mounting System (Patent #9591390).

E) RELEASE TABS Press BLACK tabs inwards to release grip and raise Zip-KlipTM.

F) LOCK GROOVES Used to ALIGN & LOCK speaker inside Bayonet Ring.



DIRECTOR COLLECTIONTM MANUAL • D60 SERIES





 





























              







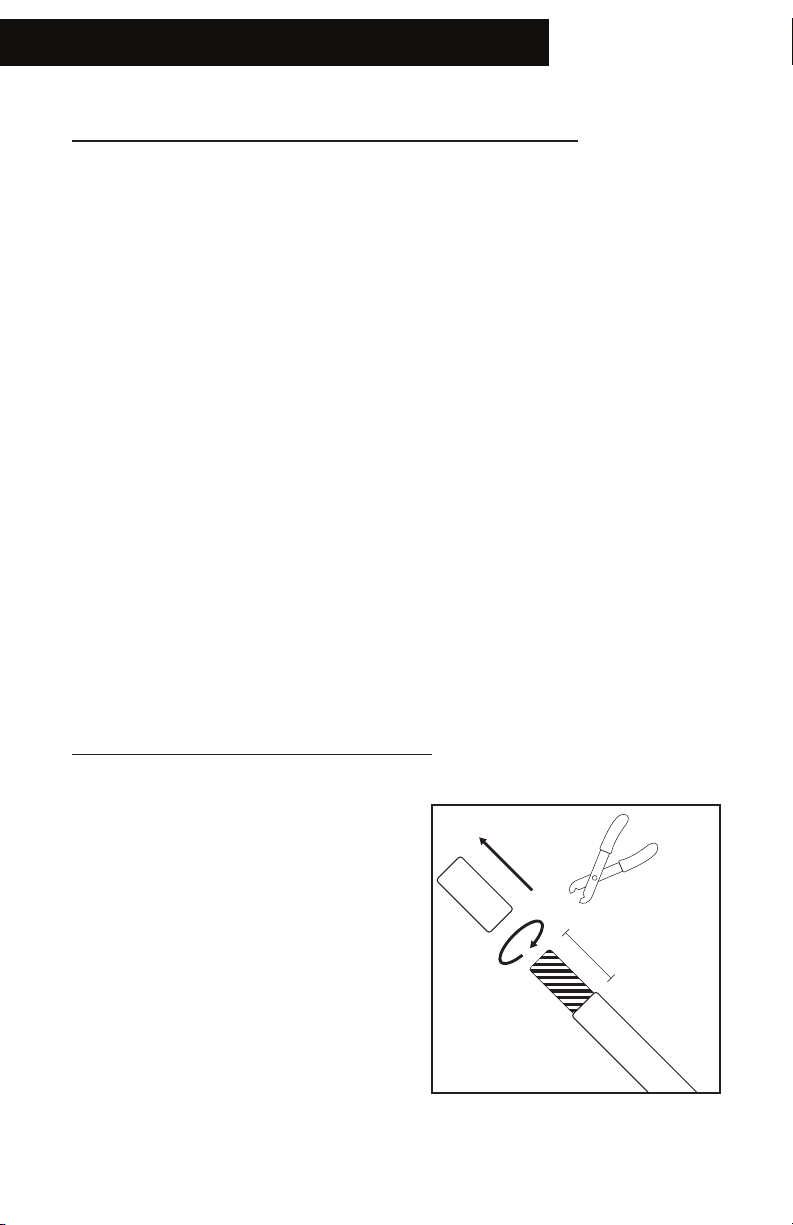

0.25 - 0.5”

(6 - 12mm)

Speaker

Wire
