Oregon Scientific RAR813 User manual

Indoor and Outdoor Thermometer

with Clock

Model: RAR813

USER MANUAL

P/N:300103599-00001-10 REV1.0

Page:1/88

P/N:300103599-00001-10 REV1.0

Page:2/88

Indoor and Outdoor Thermometer with Clock

Model: RAR813

USER MANUAL

CONTENTS

Introduction-----------------------------------------------------------------3

Overview---------------------------------------------------------------------3

Front view----------------------------------------------------------------3

Rear view - battery compartment----------------------------------4

Remote sensor (THN132N)-----------------------------------------4

Getting started-------------------------------------------------------------4

Remote sensor – set up ---------------------------------------------4

Main unit – insert batteries ------------------------------------------5

Main unit – changeable display ------------------------------------5

Sensor data transmission--------------------------------------------6

Manually set clock--------------------------------------------------------6

Temperature ----------------------------------------------------------------6

Ice alert (channel 1 only)---------------------------------------------7

Reset--------------------------------------------------------------------------7

Precautions-----------------------------------------------------------------7

Specications--------------------------------------------------------------8

About Oregon Scientic------------------------------------------------8

EU-Declaration of conformity-----------------------------------------9

FCC & IC statement ------------------------------------------------------9

P/N:300103599-00001-10 REV1.0

Page:3/88

INTRODUCTION

Thank you for selecting our Oregon ScienticTM

wireless thermometer product with remote thermo

sensor. In addition, it is also carried out the changeable

display between indoor and outdoor temperatures.

NOTE

Please keep this manual handy as you use

your new product. It contains practical step-by-step

instructions, as well as technical specications and

warnings you should know about.

OVERVIEW

FRONT VIEW

1. Remote sensor channel and reception indicator

2. Outdoor temperature display

3. MAX / MIN: Maximum/minimum outdoor

temperature value

4. IN: indoor temperature indicator

5. MAX / MIN: Maximum/minimum indoor

temperature value

6. AM / PM

7. : Ice alert indicator

8. MEM: memory button

9. / ICE: decrease value setting / deactivate ice alert

10. : slide area

11. : Ice alert LED light

12. CH / : channel selection / increase value setting /

end auto-toggling

13. MODE: enter setting / conrm setting

14. Displays clock with seconds, clock with weekday

and calendar

15. Indoor temperature display

16. : indicates main unit batteries status

17. °C / °F: select temperature display unit

18. : indicates remote sensor batteries status

19. °C /°F: select temperature display unit

P/N:300103599-00001-10 REV1.0

Page:4/88

REAR VIEW - BATTERY COMPARTMENT

ITEM ID: 283380

MADE IN CHINA

283380

1. °C / °F: Press the button to select the temperature

display unit

2. Battery compartment

3. RESET button

REMOTE SENSOR (THN132N)

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole

5. Channel switch

GETTING STARTED

IMPORTANT

Set up the remote outdoor sensor rst

before setting the main unit.

REMOTE SENSOR – SET UP

The main unit can collect data from up to 3 sensors.

P/N:300103599-00001-10 REV1.0

Page:5/88

To set up the sensor:

1. Open the battery compartment.

2. Insert the battery, matching the polarities.

3. Select a channel then press RESET.

4. Return the battery compartment cover.

5. Place the sensor within 30 m (98 ft) of the main unit

using the table stand or wall mount.

1.5 m (5 ft)

TIP

Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not

more than 1.5 m (5 ft) and which can shield it from direct

sunlight or wet conditions for an accurate reading.

NOTE

• Press RESET after each battery change or

channel selection.

• Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures

below freezing.

MAIN UNIT – INSERT BATTERIES

You need to install batteries before using the main unit.

1. Remove the battery compartment.

2. Insert the batteries, matching the polarities.

3. Press RESET after each battery change.

4. Align the cover at against the battery

compartment, and then slide it upwards until it

clicks into place to lock the cover.

LOCATION MEANING

Indoor temperature

display area Main unit batteries low

Outdoor temperature

display area

Remote sensor(s)

batteries low

MAIN UNIT – CHANGEABLE DISPLAY

You can interchangeably adjust the indoor and

outdoor temperature display area by sweeping the

area on the main unit.

P/N:300103599-00001-10 REV1.0

Page:6/88

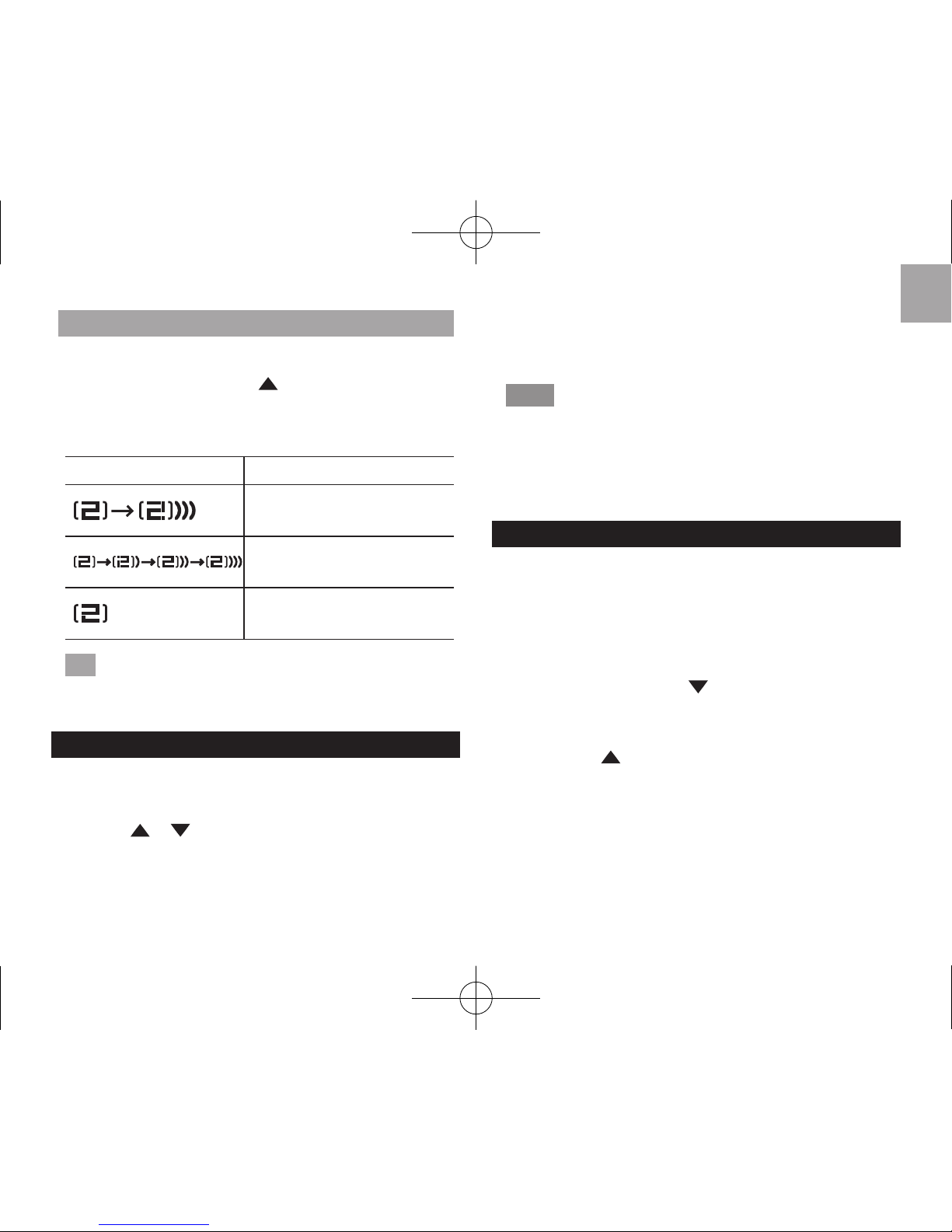

SENSOR DATA TRANSMISSION

To manually search outdoor sensor:

Press and hold MODE and at the same time.

The reception icon of the outdoor temperature shows

the status as follows,

ICON DESCRIPTION

Main unit is searching for

sensor(s).

A channel has been found.

The sensor cannot be found.

TIP

The transmission range may vary depending

on many factors. You may need to experiment with

various locations to get the best results.

MANUALLY SET CLOCK

To set the clock manually:

1. Press and hold MODE.

2. Press or to change the settings. You can press

and hold these buttons to rapidly set the values.

3. Press MODE to conrm.

4. The settings sequence is 12/24 hr format, hour,

minute, year (Y), calendar mode (day (D) – month

(M) / month (M) – day (D)), month, day and

weekday language.

NOTE

The language options are E(English), F

(French), D (German), I (Italy) and S(Spanish).

To select display mode:

Press MODE to choose between clock with seconds,

clock with weekday or calendar.

TEMPERATURE

To select the temperature display unit:

Press the °C / °F button to select the desired unit.

To toggle between each outdoor sensor’s readings:

Press CH repeatedly.

Press and hold MEM and for 2 seconds to initiate

auto-toggling of outdoor channels.

To end press .

To toggle between current, minimum and

maximum records:

Press MEM repeatedly.

To clear the records:

Press and hold MEM.

P/N:300103599-00001-10 REV1.0

Page:7/88

ICE ALERT (CHANNEL 1 ONLY)

If the temperature falls between 2°C to - 3°C (35.6°F

to 26.6°F), the green ice alert LED indicator will

ash every 7 seconds, and will stop ashing once the

temperature is out of this range.

To make the ice alert snooze:

If you see the ice alert LED indicator ashing but

want to snooze the indicator for a while, press / ICE.

The snooze lasts for 30 minutes, and then the LED

indicator starts ashing again. on the screen stops

ashing and becomes steady.

To turn off the ice alert indicator:

Press and hold / ICE. The LED indicator and

on the screen are both off.

ICE ALERT

STATUS

ICON STATUS

on the

screen LED

indicator

On On Flashes in

green

Snooze Flashing Off

Off On Off

RESET

To return to the default settings, use a thin blunt object

to press RESET (in the battery compartment).

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or

corrosive materials.

• Do not scratch hard objects against the LCD

display as this may cause damage.

• Do not tamper with the unit’s internal components.

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and

old batteries.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is

collected separately for special treatment.

• Placement of this product on certain types of

wood may result in damage to its nish for which

we will not be responsible. Consult the furniture

manufacturer’s care instructions for information.

P/N:300103599-00001-10 REV1.0

Page:8/88

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

• Please note that some units are equipped with

a battery safety strip. Remove the strip from the

battery compartment before rst use.

NOTE

The technical specications for this product

and the contents of the user manual are subject to

change without notice.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

Dimension

(L x W x H)

7.5 x 5.1 x 12.2 cm

(2.9 x 2.0 x 4.8 inches)

Weight 130g(4.59oz) without battery

Temperature resolution 0.1°C (0.2°F)

Temperature accuracy

-5°C to 0°C: +/- 2.0°C (+/-3.6°F)

0°C to 40°C: +/- 1.0°C (+/-1.8°F)

40°Cto 50°C:+/- 2.0°C(+/-3.6°F)

Temperature display unit °C / °F

Number of

remote sensors Up to 3 pieces

Indoor temperature cycle 30 seconds

Outdoor temp

reception cycle Approx. every 78 seconds

Ice alert (from CH1) When temperature falls

between 2°C to -3°C

Power 2 x 1.5V AAA (UM4)

batteries

REMOTE UNIT (THN132N)

Dimension

(L x W x H)

5 x 2.8 x 9.6 cm

(0.16 x 0.1 x 0.31 inches)

Weight 50g(1.76oz) without battery

Temperature range

(operation) -20°C to +60.0°C

(-4°F to 140°F)

Temperature resolution 0.1°C (0.2°F)

Temperature accuracy -20°Cto0°C:+/- 2.0°C(+/-3.6°F)

0°C to 40°C: +/- 1.0°C (+/-1.8°F)

40°Cto 60°C:+/- 2.0°C(+/-3.6°F)

RFtransmissionfrequency 433 MHz

RF transmission Range 30 m, line of sights

RF transmission cycle Approx. every 39 seconds

Power 1 x 1.5V AA (UM3) battery

ABOUT OREGON SCIENTIFIC

Visit our website www.oregonscientic.com to learn

more about Oregon Scientic products.

For any enquiry, please contact our Customer

Services at info@oregonscientic.com.

P/N:300103599-00001-10 REV1.0

Page:9/88

Oregon Scientic Global Distribution Limited reserves

the right to interpret and construe any contents, terms

and provisions in this user manual and to amend it, at

its sole discretion at any time without prior notice. To

the extent that there is any inconsistency between the

English version and any other language versions, the

English version shall prevail.

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientic, declares that Indoor and

Outdoor Thermometer with Clock (Model: RAR813)

is in compliance with the essential requirements

and other relevant provisions of Directive 1999/05/

EC. A copy of the signed and dated Declaration of

Conformity is available on request via our Oregon

Scientic Customer Service.

COUNTRIES RTTE APPROVED COMPLIED

All EU countries, Switzerland CH

and Norway N

FCC & IC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) This device must accept any interference

received, including interference that may cause

undesired operation.

WARNING

Changes or modications not expressly

approved by the party responsible for compliance could

void the user's authority to operate the equipment.

NOTE

This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

off and on, the user is encouraged to try to correct

the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and

receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

P/N:300103599-00001-10 REV1.0

Page:10/88

Table of contents

Languages:

Other Oregon Scientific Thermometer manuals

Oregon Scientific

Oregon Scientific RAR681 User manual

Oregon Scientific

Oregon Scientific RAR232 User manual

Oregon Scientific

Oregon Scientific RAR232 User manual

Oregon Scientific

Oregon Scientific MTR101 User manual

Oregon Scientific

Oregon Scientific RAR621 User manual

Oregon Scientific

Oregon Scientific THWR800 User manual

Oregon Scientific

Oregon Scientific THT312 User manual

Oregon Scientific

Oregon Scientific RMR382 User manual

Oregon Scientific

Oregon Scientific RMR683HG User manual

Oregon Scientific

Oregon Scientific EMR899HGN User manual

Oregon Scientific

Oregon Scientific RMR803A User manual

Oregon Scientific

Oregon Scientific RMR682A User manual

Oregon Scientific

Oregon Scientific AW133 User manual

Oregon Scientific

Oregon Scientific MTR102 User manual

Oregon Scientific

Oregon Scientific AW129 User manual

Oregon Scientific

Oregon Scientific SA880SSX User manual

Oregon Scientific

Oregon Scientific RAR188A-BK User manual

Oregon Scientific

Oregon Scientific RMR232PHU User manual

Oregon Scientific

Oregon Scientific MTR102 User manual

Oregon Scientific

Oregon Scientific RMR112A User manual

Oregon Scientific

Oregon Scientific EMS100 User manual

Oregon Scientific

Oregon Scientific SA880SSWR User manual

Oregon Scientific

Oregon Scientific RGR126 User manual

Oregon Scientific

Oregon Scientific THT328 User manual

Popular Thermometer manuals by other brands

Delton

Delton 981A instruction manual

Baker

Baker MM2P instruction manual

Tarmo

Tarmo 320281 manual

Citizen

Citizen CTD 504 instruction manual

TFA

TFA 14.1500 instruction manual

Vive

Vive DMD1010 user manual

Gotemp

Gotemp THB4002 user guide

GREISINGER

GREISINGER G 1202 Quick reference guide

Amprobe

Amprobe TMD-53W user manual

Trotec

Trotec BP10 operating manual

Radiance instruments

Radiance instruments RT616 Series product manual

Eurolec

Eurolec IR151 operating instructions

Scaneo

Scaneo TS42B instruction manual

Sper scientific

Sper scientific 800043 instruction manual

Microlife

Microlife NC 200 Operating instructions manual

Motorola

Motorola MBP69SN General questions

The MeatStick

The MeatStick The MeatStick quick start guide

Hama

Hama TH35-A operating instructions
