Oregon Scientific Rm318p User manual

INTRODUCTION

Congratulations on your purchasing the RM318P RF Pro-

jection Clock. The RM318P is a feature-packed device

which automatically synchronizes its current time and date

when it is brought within an approximate 1500km radius of

the radio signal generated from Frankfurt, Germany

(DCF77).

To facilitate reading time at night, the RM318P comes with

an adjustable projector which can project the time in large,

readable figures on the wall or ceiling in dark. Or you can

use its backlight function for a quick check.

The RM318P is primarily radio-controlled. However, it

allowsyoutoenterdatamanuallywhenitisoffrange.Other

featuresincludefour-languagedisplay,four-stepcrescendo

dual alarms, eight-minute snooze and interchangeable

display modes.

RF PROJECTION CLOCK

Model: RM318P

User’s Instruction

FRONT VIEW

REAR VIEW

TOP VIEW

PROJECTION

ON SWITCH

FOCUS KNOB

PROJECTOR

MAIN FEATURES

RADIO RECEPTION SIGNAL

Indicates the condition of radio reception

[ ] BUTTON

Enables or disables the snooze function when an alarm

goes off or activates the backlight and projector for five

seconds

TWO-LINE DISPLAY

Displays the local time and second time zone in four

selectable modes

ZONE ICON [ ]

Appears when the second time zone is displayed

ALARM ICONS [ ]

Appear when the respective alarm is activated

PROJECTOR

For projecting the current time on the wall or ceiling

FOCUS KNOB

Adjusts the focus of the projector

PROJECTION ON SWITCH

Used with the power adapter to enable extended use of

the projector

BATTERY COMPARTMENT

Accommodates two UM3 or "AA" size batteries for

operation

UP [ ] AND DOWN [ ] BUTTONS

Increases or decreases the value of a setting

[ ] BUTTON

Sets the time for the alarms

[ ] BUTTON

Enables or disables the alarms

[ MODE/SET ] BUTTON

Toggles the display modes and confirms entry while

setting the values for display

BATTERY INSTALLATION

1. Slide open the battery compartment on the back of the

unit.

2. Insert two UM3 or "AA" size batteries.

3. Replace the battery compartment door.

Under normal circumstances, the batteries are good for 1

year. However, the battery life can be reduced vastly by

frequent use of the backlight, projector and snooze func-

tion.

Replace the batteries when Low battery indicator appears

on the the LCD display.

HOW TO USE THE PROJECTOR

1. Keeppressingthe[ ]BUTTON.

The backlight and projector will turn on.

2. Adjust the angle of the projector for a good projection

on the wall or ceiling.

3. Use the FOCUS KNOB to adjust the focus of the

projection.

After the projector is adjusted, to use the projector, simply

press the [ ] BUTTON once. The

projector will come on for five seconds before automati-

cally switching off.

HOW TO USE THE PROJECTOR

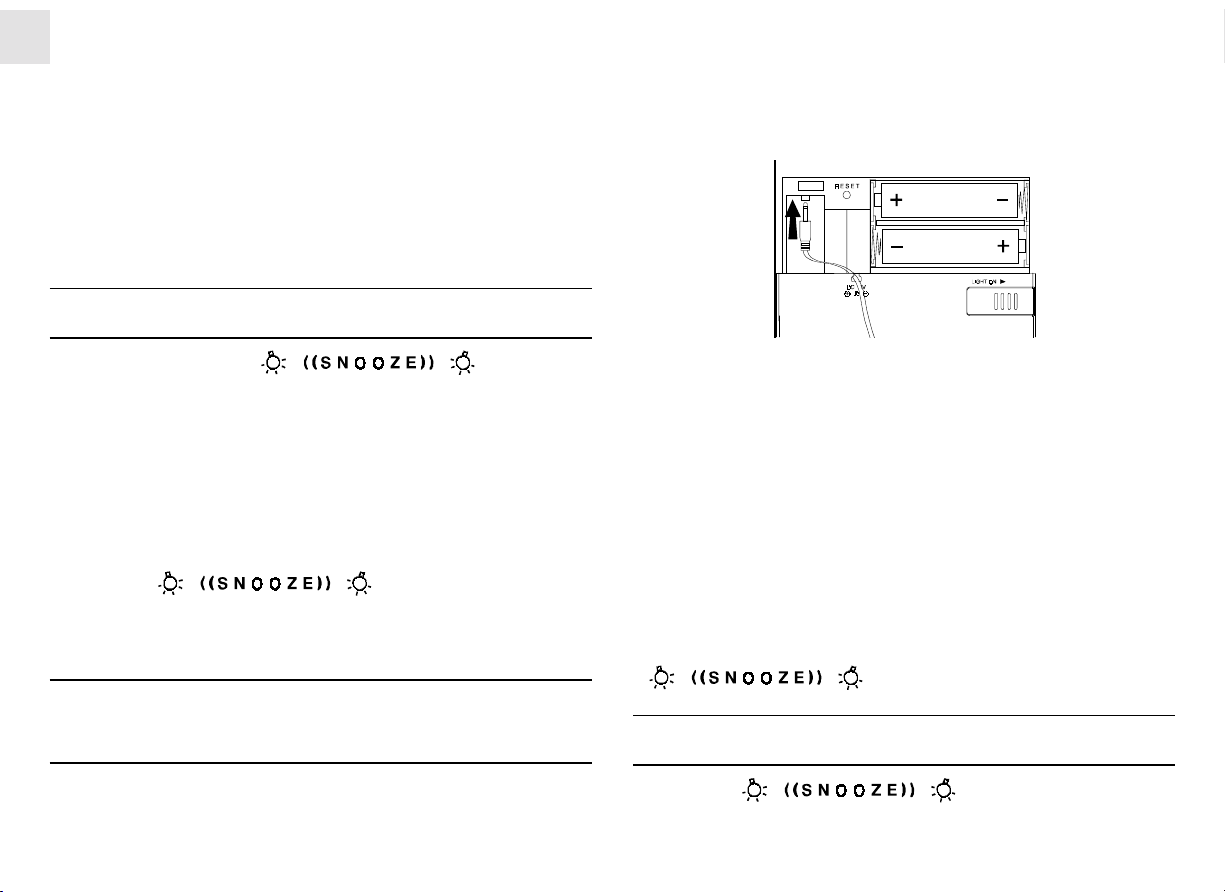

POWER ADAPTER

Your unit comes with a power adapter so you can use the

projector for extended period of time.

To install the adapter :

1. Slide open the battery compartment.

2. Plug the adapter into the adapter socket.

3. Replace the battery compartment door.

4. Making sure the voltage is correct, plug the other end

of the power adapter into a free wall socket.

Once the power adapter is in place, you can select to turn

on the projector for a longer period of time, such as

throughoutthenight,byslidingouttheLIGHTONSWITCH

on the back of the unit. To turn off the projector, slide the

switch back.

Note that this switch can only be used with the power

adapter installed. For momentary projection, use the

[] BUTTON.

HOW TO USE THE BACKLIGHT

Press the [ ] BUTTON once. The

backlight will be turned on for five seconds.

MODE 4. Hour-Minute-Day-of-the-Week (of second

time zone)

---------------------------------------

Day-Month (of second time zone)

Each press on the [MODE] BUTTON will toggle the

display in the above order.

Note that the second line of the display will be replaced by

the alarm time if the [ ] BUTTON is pressed.

ABOUT RADIO RECEPTION - DCF77

The RM318P is designed to automatically synchronize its

clock once it is brought within range of the Frankfurt

DCF77 radio signal. It will scan and adjust every full hour.

WhentheRM318Piswithinrange,itsradio-controlmecha-

nismwilloverride allmanualsettings.Time willstartto run

from 00:00:00 and date, 1-1 (January 1), Monday.

When the unit is receiving radio signal, the RADIO RE-

CEPTION SIGNAL will start to blink. A complete recep-

tiongenerallytakesabout2to10minutes,dependingonthe

strength of the radio signal. After that, the hourly scanning

will only take a few seconds.

When the reception is complete, the RADIO RECEPTION

DISPLAY MODES

The RM318P supports four display modes in the sequence

of :

MODE 1. Hour-Minute-Second (of local time)

------------------------------------------

Day-Month (of local time)

MODE 2. Hour-Minute-Day-of-the-Week(oflocaltime)

-----------------------------------------

Day-Month (of local time)

MODE 3. Hour-Minute-Day-of-the-Week(oflocaltime)

-------------------------------------------

Hour-Minute (of second time zone)

SIGNAL will stop blinking. The strength of the reception

for the last full hour will be indicated.

Unit has received radio signal.

Clock is searching for radio signal but not yet

received. It is recommended that you reposition or

rotate the antenna.

The display time has been manually set and is not

synchronized to the RF signal.

Radio reception is disabled and no signal reception

will be initiated until it is enabled again.

When the antenna symbol blinks, a reception is going

on. A full reception takes approx. 2 to 10 minutes,

depending on the quality of the signal received.

The hourly scanning may take a few seconds only.

No indicator

For better reception, place the clock away from metal

objects and electrical appliances to minimize interference.

If you wish to disable the auto-reception feature, press the

[ ] BUTTON for three seconds. The RADIO RECEP-

TION SIGNAL will disappear. The unit will not respond to

radio signals.

To enable the feature again, press the [ ] BUTTON for

three seconds. The RADIO RECEPTION SIGNAL will

start blinking to initiate reception automatically.

HOW TO SET THE CLOCK

MANUALLY

Toset theclock,hold[MODE/SET] forthreeseconds.The

display will return to MODE 1, with the hour digits

blinking.

Use [ ] or [ ] to select the hour. Keep pressing the

button will increase or decrease the value rapidly.

Press [MODE/SET] to confirm. The minute digits will

blink. Repeat the same procedure to set the minutes, then

the day-of-month, month, display language, day-of-week

and offset for the second time zone.

Note that the time and date are displayed in 24-hour clock

and DAY-MONTH format, respectively. For display lan-

guage,youcanchooseamongEnglish,French,Germanand

Italian--in that order. Day-of-week is the usual sequence of

Monday through Sunday.

For the second time zone, which is indicated by the ZONE

ICON, enter the hour offset and the RM318P will calculate

the second time accordingly.

If there is an item you do not wish to change, simply press

[MODE/SET] to bypass the item.

When you are done, press [MODE/SET] to exit. The

display will return to the mode last chosen.

HOW TO SET AND ARM THE

ALARMS

The RM318P has two alarms, ALARM 1 and ALARM 2.

They can be invoked together or independently.

To set an alarm :

1. Press [ ] once to select ALARM 1 or again to

selectALARM2.Thelastselectedtimeofthealarmwill

be displayed. If you have never set the alarm before, the

time will be displayed as 0:00.

2. Press[ ]forthreeseconds.Thehourdigitswill

blink.

3. Enter the hour using [ ] and [ ] .

4. Press [ ] . The minute digits will blink.

5. Enter the minutes using [ ] and [ ] .

6. Press [ ] to exit. The ALARM ON ICON for

the alarm chosen will be displayed indicating the alarm

set above is now armed.

You can also arm or disarm an alarm by pressing the

[] BUTTON.

When an alarm is armed, it will go off at the set time. The

displaywilllightupfor10secondswiththeALARMICON

flashing.

The four-step crescendo function allows the alarm to start

offgentlyandstepupitsintensityevery20secondsforfour

times. Without interruption, the alarm will go off for a total

of two minutes.

If a second alarm goes off when the first alarm is sounding

off, the first alarm will be disabled automatically.

HOW TO STOP AN ALARM

To stop an alarm, you can use either of the three buttons:

[] , [ ] or [ ].

Pressing [ ] during an alarm will

invoke the SNOOZE FUNCTION, which will stop the

alarm and let it sound off again after eight minutes.

Pressing [ ] will stop the alarm, which is still

armed and will go off at the set time the following day.

If [ ] is pressed instead, the alarm will be stopped

and deactivated all together.

HOW TO RESET THE UNIT

There is a RESET BUTTON embedded into the battery

compartment. It allows you to return all settings to its

factory values, which are 00:00:00 for time and 1-1,

Monday, for date.

To use the RESET BUTTON :

1. Slide open the battery compartment.

2. Use a blunt stylus to press the RESET BUTTON once.

PRECAUTIONS

This unit is engineered to give you years of satisfactory

service if you handle it carefully. Here are a few precau-

tions:

1. Do notimmersetheunit in water.Ifyouspill liquidover

it, dry it immediately with a soft, lint-free cloth.

2. Do not clean the unit with abrasive or corrosive mate-

rials. Theymayscratchtheplasticpartsandcorrodethe

electronic circuit.

3. Do not subject the unit to excessive force, shock, dust,

temperature or humidity, which may result in malfunc-

tion, shorter electronic life span, damaged battery and

distorted parts.

4. Do not tamper with the unit's internal components.

Doing so will invalidate the warranty on the unit and

may cause unnecessary damage. The unit contains no

user-serviceable parts.

5. Onlyusefreshbatteriesasspecifiedintheuser'sinstruc-

tions. Do not mix new and old batteries as the old ones

may leak.

6. Always read the user's instructions thoroughly before

operating the unit.

3. Replace the battery compartment door.

TIME ZONE TABLE

PRODUCT SPECIFICATIONS

Operating Temperature : -5°C to 50°C

Battery Type : 2 piece of UM3 or "AA" Size

1.5V battery

Unit Dimension : 100 x 140 x 40 ( H x W x D )

Unit Weight : 262 g (without battery)

CAUTION

— The content of this manual is subject to change

without further notice.

— Due to printing limitation, the displays shown in

this manual may differ from the actual display.

— The manufacturer and its suppliers held no

responsibility to you or any other person for any

damage expenses, lost profits, or any other

claim arise by using this product.

— The contents of this manual may not be repro-

duced without the permission of the manufac-

turer.

Other manuals for rm318p

Table of contents

Other Oregon Scientific Clock manuals

Oregon Scientific

Oregon Scientific JA200 User manual

Oregon Scientific

Oregon Scientific BAR339PA User manual

Oregon Scientific

Oregon Scientific JM889 User manual

Oregon Scientific

Oregon Scientific RRA320PNX User manual

Oregon Scientific

Oregon Scientific RRM320PU User manual

Oregon Scientific

Oregon Scientific BAR623PA User manual

Oregon Scientific

Oregon Scientific JM828CD User manual

Oregon Scientific

Oregon Scientific BAR332ES User manual

Oregon Scientific

Oregon Scientific PRYSMA B User manual

Oregon Scientific

Oregon Scientific Glaze JW208 User manual

Oregon Scientific

Oregon Scientific RM318PU User manual

Oregon Scientific

Oregon Scientific RGR682 User manual

Oregon Scientific

Oregon Scientific RMR391P User manual

Oregon Scientific

Oregon Scientific RM328P User manual

Oregon Scientific

Oregon Scientific RM822 User manual

Oregon Scientific

Oregon Scientific RM802 User manual

Oregon Scientific

Oregon Scientific CP100 User manual

Oregon Scientific

Oregon Scientific RRM612P User manual

Oregon Scientific

Oregon Scientific RM802 User manual

Oregon Scientific

Oregon Scientific BAR339PA User manual

Oregon Scientific

Oregon Scientific RM832A User manual

Oregon Scientific

Oregon Scientific RAR186 User manual

Oregon Scientific

Oregon Scientific RM826A User manual

Oregon Scientific

Oregon Scientific NR868A-01 User manual

Popular Clock manuals by other brands

Silicon Laboratories

Silicon Laboratories SI5324 manual

Heathkit

Heathkit GC-1005 Assembly manual

Andrew O'Malley

Andrew O'Malley DOTKLOK Assembly instructions

ALGE-Timing

ALGE-Timing ASC3 manual

Bodet

Bodet Profil 960 Installation and operating instructions

Nixie Clock

Nixie Clock Divergence Meter user manual

La Crosse Technology

La Crosse Technology WS-8256-AL user manual

Mini Gadgets

Mini Gadgets MCPro user manual

Casio

Casio TMR-200 user guide

Progetti

Progetti ILTEMPOSTRINGE Directions

BVItech

BVItech BV-101 instruction manual

Progetti

Progetti KALIMERO Directions

La Crosse Technology

La Crosse Technology WT-3141b Quick setup instructions

La Crosse Technology

La Crosse Technology W86531 owner's manual

Sharp

Sharp SPC900 instruction manual

La Crosse Technology

La Crosse Technology 404-50447 quick start guide

Datexx

Datexx DF0063 quick guide

LG LEC-005 owner's manual

Oregon Scientific rm318p User manual

Popular Clock manuals by other brands
