Bodet Profil 960 User manual
Clock
Profil 960
LED illumination
INSTALLATION AND OPERATING INSTRUCTIONS
When receiving goods please chek nothing is broken otherwise make a claim near shipping company.
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : 02 41 71 72 00
Fax : 02 41 71 72 01
www.bodet.com
Réf. : 607092 C
Table of contents
I - INITIAL VERIFICATION ......................3
1.1 Unpacking the clock ...............................3
1.2 Cleaning .....................................3
II - INSTALLATION ..........................4
2.1 Single face clock .................................4
2.2 Double Face clock ................................4
2.2.1. Double Face integrated clock .......................5
2.2.2 Clock on keyboard .............................6
2.4 Setting the antenna ................................6
III - POWER SUPPLY .........................7
3.1. AFNOR/France Inter clock 230V : ........................7
3.2. Independent Quartz clock on mains : ......................8
3.3. Lighting connection ...............................8
IV - OPERATING AND TIME SETTING................9
4.1. Impulses slave clock ...............................9
4.1.1. ½ minute and minute 24V // receiver,...................9
4.1.2. ½ minute and minute serial receiver,...................10
4.2. AFNOR/IRIG-B time signal reception ......................11
4.3. France Inter radio receiver clock ........................11
4.4. Independent Quartz on mains with remote keyboard ..............12
V - TECHNICAL FEATURES .....................13
VI - WHAT TO DO IF...? ...CHECK..................15
2
ENGLISH
I - INITIAL VERIFICATION
Thank you for choosing a BODET clock. This product has been carefully designed for your
satisfaction based on ISO9001 quality requirements. We advise you to read this manual
thoroughly before attempting to manipulate the clock.
Keep this booklet during all the life of your clock, so that you can refer to it each time it is
necessary.
Bodet accepts no responsibility for accidents resulting from any use not conforming
with the above provisions.
Any modification to the product will invalidate the warrantee.
1.1 Unpacking the clock
Unpack with caution and check the contents of the packaging. It must contain :
-the Profil clock,
-for radio synchronised models : the antenna,
-a key to open the casing,
-an antistatic cleaning kit,
-this booklet.
Versions : a label inside the clock specifies what model the clock is :
AFNOR/FI HMS = the clock is a receiver driven by : a master clock that sends
AFNOR NFS-87500A coded time messages or a radio France Inter receiver antenna,
and powered by 240 VAC, with a servo second hand.
AFNOR/FI HM = the clock is a receiver driven by : a master clock that sends AFNOR
NFS-87500A coded time messages or a radio France Inter receiver antenna, and
powered by 240 VAC.
MN 24V = the clock is a receiver driven by a master clock that sends minute impulses
on a parallel line.
REC MN 1V5 = the clock is a receiver driven by a control unit “Remote keyboard” or
radio synchronised control unit “BT radio” that sends minute impulses.
1.2 Cleaning
Use an antistatic product of similar type to the one shipped in the original packaging. Never
use alcohol, acetone or any other solvent liable to damage the casing and glass on your
clock.
3
1.3. Recommandations
LED lights can be hazardous to the eyes.
The LED lighting systems are less energy consuming than other types of lighting and have
lifetimes much longer.
Partly because of the limited nature of the surface emission, LEDs have luminances at
least 1000 times higher than those of a traditional lighting source. The level of direct
radiation from such sources exceeds the level of visual discomfort.
Our clocks are designed so that there is no direct light, and thus no risk. However, it is
recommended to switch off the lighting system before opening the clock for maintenance.
II - INSTALLATION
Select the place where the clock will be installed while making sure that radio reception is
correct for radio synchronisation models.
The radio receiver clock should be installed in a place that is free from electrical interference
(cathode tube, transformers, etc.).
Avoid fixing the clock directly to a metal plate or reinforced concrete wall.
The clock orientation (dial perpendicular to the emitter direction) towards the emitter
enhances the reception.
The best reception conditions are outside buildings or near by a window.
2.1 Single face clock

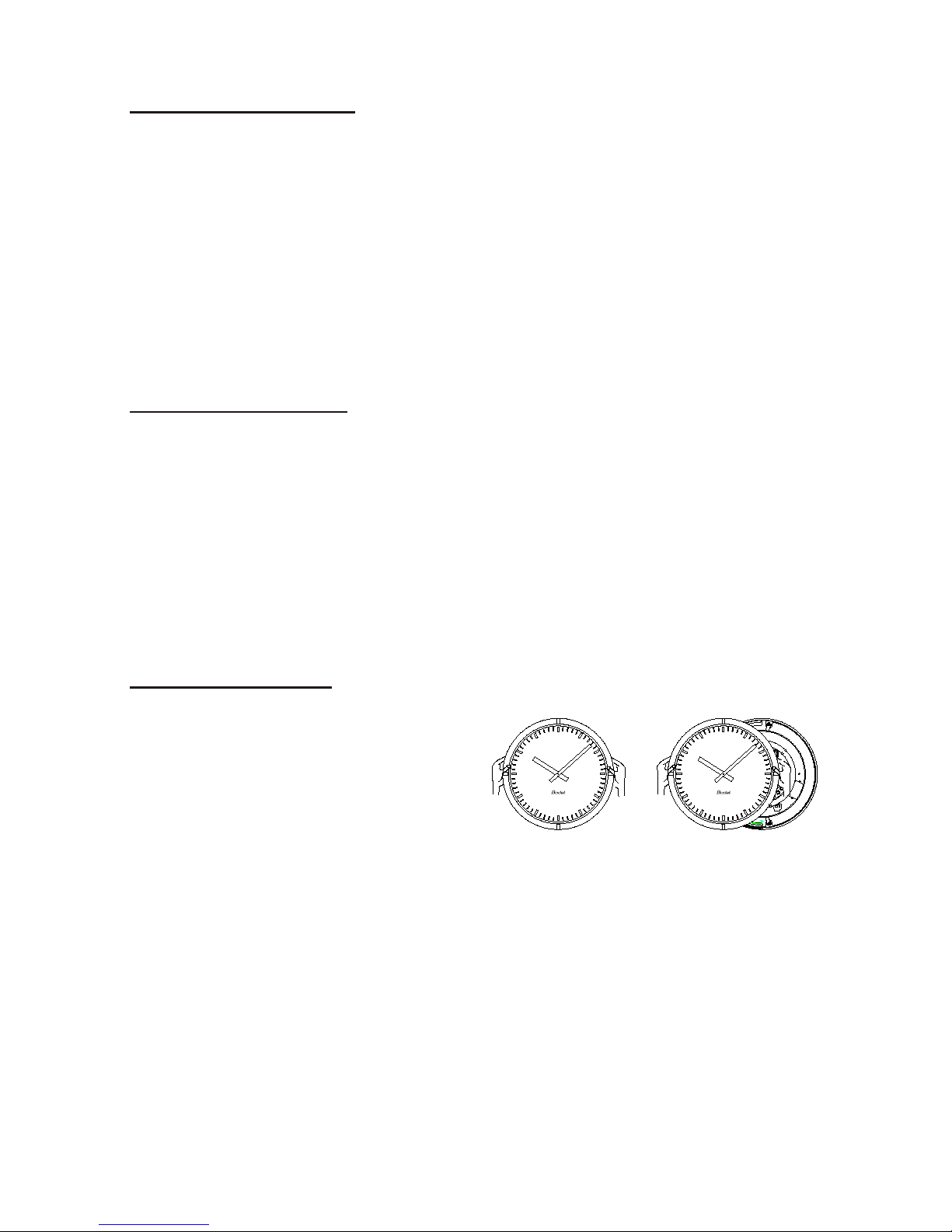

- Open the clock by giving the 2 screws (3) a
quarter turn with the key (1), and then pull the
whole dial towards you (hinge arm opening).
The hinge arm opening system ensures a fast
and secure maintenance of the lighting without
4
9
8
7
10
11
3
4
65
2
12 1
9
5
8
76
4
3
12
10
11
2
1
having to put the front part of the clock on the ground.
- Hang the clock and fix it with
M8 screws (4), without locking it, after you
have put the wires (between Ø7 and Ø10)
through the waterproof pressure joints (5).
- Carry out the various connections (external
supply : see page 8 and connection to time
distribution network : see page 10).
- Lock the clock.
- Power it.
- Reset the time if necessary.
- Close the clock.
2.2 Double Face clock
2 models of double face clocks are available :
- One model with an integrated bracket that includes two back to back dials.
- One model with a hinged arm system that holds two single face clocks.
2.2.1. Double Face integrated clock
Drill the support (wall, pillar, ...) to the
required dimensions and fix the bracket.
- Unscrew by 10 mm the 2 bolts (B) on
each face.
- Remove each face by rotating them
anticlockwise (for receiver clocks, Do
Not forget to disconnect the 2
movements).
- Fix the double sided bracket after you
have put the wires either through the
5
150
70
Ø9
6
B
7
B
L
L
N
N
2
2
1
1
E
E
cl 230V 0.5Acl 230V 0.5A !!
3
1
4
5
Ø440 mm
plate support (6), or through the aperture on the side of the bracket (7).
- Carry out the various connections (external
supply : page 8 and time distribution network :
page 10).
- Power the clock and reset the time if
necessary.
- Place each face on the bracket and rotate
them clockwise to place the clock in its final
position.
- Screw the bolts (B) to lock the clocks in
rotation.
2.2.2 Clock on keyboard
- Drill the support (wall, pillar, ...) to the
required dimensions and then fix the
bracket.
- If necessary, carry out the various
connections (external supply : page 8 and
connection to time distribution network :
page 10).
- Put the wires either through the hinged
arm system (6), or through the hole on the
side of the bracket (7).
- Fix the clock (or clocks) to this keyboard
with the 2 threaded shafts (C).
6
150
70
Ø9
6
C
7
B
2.4 Setting the antenna
For radio synchronised clocks :
The best reception conditions are outside
buildings or near windows.
Positioning the antenna (perpendicular to
the direction of the transmitter) improves
reception.
The antenna must not be placed on a
metal support.
As for any radio system, a building with
metal structures can cause interference
in the reception of the signal.
Computers, television sets and electrical
appliances can also cause interference that disrupt the
reception of the radio message.
- Unlock the antenna from its support.
- Fix the support with the screw supplied and lock the antenna
again.
Beware : in a double face system. So as not to cause
interference between the 2 antennas, the latter must be fixed at
least one metre away from each other.
7
III - POWER SUPPLY
Installation and maintenance of this equipment must be carried out by qualified personnel
only.
Electrical installation must comply with current standard CEI 364. (NF C15-100 in France for
example).
The mains supply for the clocks must include a neutral phase circuit breaker 10A C curb,
rapidly accessible. This circuit breaker must be switched off during maintenance operations.
Note : the power supply wires must be linked near their fixing point.
3.1. AFNOR/France Inter
clock 230V :
- Connect the mains supply 230V
50Hz of the illumination kit to the
terminal (10) : max.1,5 mm2wire
and bare on 5 mm.
The earth wire must be longer than
those of live and neutral.
- Connect mains supply 230 Volt
50 Hz to the supply card terminal
(15).
- Lock the wires with collars.
- Check that the terminal (2) of the battery is properly
connected to this electronic card.
- The electronic card is protected by a resettable fuse.
8
LLNN2211
EEcl 230V 0.5Acl 230V 0.5A !!
10
Ecl 230V 0.5AEcl 230V 0.5A
LLNNN
!!
12
Ecl 230V 0.5AEcl 230V 0.5A
LN
Permanent power
supply 230V
2
15
F
AF
FI
3.2. Independent Quartz clock on mains :
Single Face.
–Connect mains supply (230VAC) to the terminal (20) of the
power supply unit (ref.933006).
–Connect the impulses line between the terminal (22) of the
power supply unit and the terminal (2) of the clock.
The time base is protected by a 0,2AT / 250V fuse (21).
Double Face.
–Connect mains supply (230VAC) to the
terminal (20) of the power supply unit.
–Connect the impulses ligne between the
terminal (22) of the power supply unit
and the terminal (10) of the clock.
–Check that the dip switch (23), on the
card of the time setting box, is in “DF”
position.
3.3. Lighting connection
A 10 A fuse or circuit breaker for the
lighting power supply should be
installed and switched off prior to any
maintenance in the clock.
This circuit breaker must be
switched off during maintenance
operations.
–Connect lighting supply 230V + earth
(0,10A) on the terminal (2), the earth
wire must be longer than the other
ones.
–Nota : the power supply wires should be assembled together near their connecting terminal.
9
22
20
21 23
10
N
12
LN
Impulses
10
N
12
LN
Lighting
230V + earth
IV - OPERATING AND TIME SETTING
NOTA : to respect the security rules, the time distribution network must be be SELV-type.
- The impulses wires should be assembled together near their connecting terminal.
4.1. Impulses slave clock
A time distribution network emits only impulses, so that it is necessary to set the clock at
the time of this network.
To add a clock on a network, it is necessary to stop this network and to set on time the clock.
To set on time the clock, turn the control knob (7 or 8).
4.1.1. ½ minute and minute 24V // receiver,
- Connect the time distribution network to terminals 1
and 2 on the terminal strip (3).
Nota : in some clocks (double
face, waterproof, ...), an
intermediate terminal allows
to connect impulses ligne
easily.
Leave works 2 minutes.
- If the clock, or one of the clocks in case of a double side
mounting, is one minute (or ½ minute according to the
movement type) late : stop the emitter, reverse the
connection on terminal (3) and put the clock forward 2
minutes (or 1 minute), then restart the emitter.
In fact, the same impulse is either positive or negative
according to the way to connect and the initial position of
the movement, it will take or not the first impulse.
10
321
3
7
22
11
NN
LL
Impulses
88
Synchronous
second hand
movement
Other manuals for Profil 960
3
Table of contents
Other Bodet Clock manuals
Bodet
Bodet Profil 960 Series User manual
Bodet
Bodet Cristalys Date User manual
Bodet
Bodet Style 5 Seconde User manual
Bodet
Bodet Style 5 Seconde User manual
Bodet
Bodet Profil 960 User manual
Bodet
Bodet Cristalys 14 User manual
Bodet
Bodet Profil 930 User manual
Bodet
Bodet BTX6015 User manual
Bodet
Bodet Profil 750 User manual
Bodet
Bodet Style 5S Hospital NTP User manual
Bodet
Bodet Sigma Mod Instructions and recipes
Bodet
Bodet Style 5 Seconde User manual
Bodet
Bodet Profil 960 User manual
Bodet
Bodet Profil 730 User manual
Bodet
Bodet Profil 730 Hospital User manual
Bodet
Bodet Profil 930 User manual
Bodet
Bodet Cristalys Ellipse User manual
Bodet
Bodet Profil 930 User manual
Bodet
Bodet Cristalys Ellipse User manual
Bodet
Bodet 5 Seconde User manual
