INTRODUCTION

Thank you for selecting the Oregon ScientificTM Wireless

Thermo Clock (RAR601). This device bundles alarm

clock and temperature monitoring features into a single

tool you can use from the convenience of your home.

In this box, you will find:

•Main unit

•Remote sensor

Keep this manual handy as you use your new product.

It contains practical step-by-step instructions, as well

as technical specifications and warnings you should

know.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about other Oregon Scientific products such as

digital cameras, hand-held organizers, health and fitness

gear, and projection clocks. The website also includes

contact information for our customer service department,

in case you need to reach us.

RAR601 lab test R2 1/17/04, 4:47 PM2

PRODUCT OVERVIEW

FRONT VIEW

1. Outdoor Temperature Area : Readings, sensor

battery and reception status

2. Indoor Temperature Area : Readings and main

unit battery status.

3. Clock / Alarm Area : Time, day of week, month,

date, alarm

4. : Press to increase setting

5. : Press to decrease setting

6MODE : Press to change display / settings

7. MEM : Press to view current or max / min

temperature readings

8. ((.)) : Press to view alarm settings, activate alarm

MODE

MEM

RAR601 lab test R2 1/17/04, 4:47 PM3

BACK VIEW

1. Wall mount

2. Battery compartment

3. °C / °F switch

4. RESET hole

5. Table stand

RAR601 lab test R2 1/17/04, 4:47 PM4

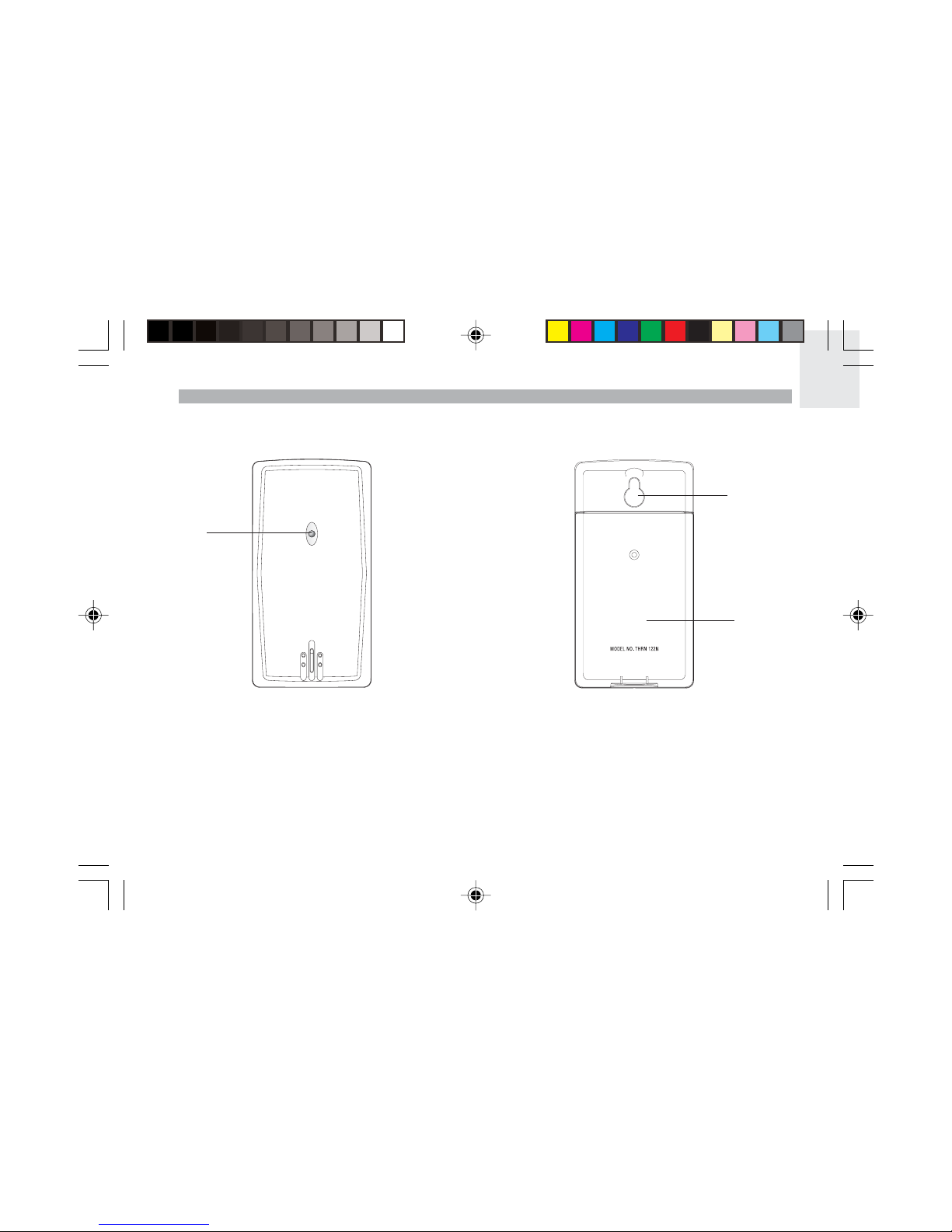

REMOTE SENSOR

1. LED Status indicator 1. Wall mount hole

2. Battery compartment

3. Battery compartment cover

2, 3

RAR601 lab test R2 1/17/04, 4:47 PM5

CHANGE SETTINGS

1. Press and hold MODE for 2 seconds to enter setting

mode.

2. Press UP or DOWN to change settings.

3. Press MODE to confirm.

TABLE STAND OR WALL MOUNT

Insert the stand on the back of the product, or mount it

on a wall with a nail.

GETTING STARTED

BATTERIES

Batteries are not supplied with this product. You will need

to purchase 2 x UM-4 (AAA) 1.5V alkaline batteries for

the main unit, and 2 x UM-3 (AA) 1.5V alkaline batteries

for the remote sensor.

Insert batteries before first use, matching the polarity as

shown in the battery compartment. For best results,

install batteries in the remote sensor before the main

unit. Press RESET after each battery change.

Do not use rechargeable batteries.

NOTE

shows when batteries are low.

UNIT LOCATION

Main Indoor Temperature Area

Remote Outdoor Temperature Area.

REMOTE SENSOR

This product is shipped with a Sensor that collects

temperature readings. Only one sensor can be used with

this product.

RAR601 lab test R2 1/17/04, 4:47 PM6

SETUP SENSOR

1. Open the remote sensor battery compartment with

a small Phillips screwdriver.

2. Insert the batteries, matching the polarity as shown

in the battery compartment.

3. Place the sensor near the main unit. Press RESET

on the main unit to initiate signal sending between

the sensor and the main unit. The reception icon

on the main unit will blink for approximately

3 minutes while it is searching for the sensor. (Refer

to the Sensor Data Transmission section for more

information.)

4. Close the remote sensor battery compartment.

5. Secure the sensor in the desired location using the

wall mount or table stand.

For best results:

•Insert the batteries before you mount the sensor.

•Place the sensor out of direct sunlight and

moisture.

•Do not place the sensor more than 30 meters

(98 feet) from the main (indoor) unit.

•Position the sensor so that it faces the main

(indoor) unit, minimizing obstructions such as

doors, walls, and furniture.

•Place the sensor in a location with a clear view

to the sky, away from metallic or electronic

objects.

•Position the sensor close to the main unit

during cold winter months as below-freezing

temperatures may affect battery performance and

signal transmission.

You may need to experiment with various locations to

get the best results.

DATA TRANSMISSION

Data is sent from the sensor(s) every 78 seconds.

The reception icon shown in the Outdoor

Temperature Area shows the status.

RAR601 lab test R2 1/17/04, 4:47 PM7

SEARCH FOR SENSOR

To search for the sensor, press and hold UP and DOWN

for 2 seconds.

If the sensor is still not found, check the

batteries, obstructions, and remote unit location.

Signals from household devices such as

doorbells, electronic garage doors, and home security

systems may cause temporary reception failure. This is

normal and does not affect general product performance.

The reception will resume once the interference ends.

--- shows

ICON DESCRIPTION

Main unit is searching for

sensor.

Sensor signal is steady.

The sensor cannot be

found. Search for the

sensor or check batteries.

CLOCK

This product has two displays: Clock with day of week

in English, Spanish, French, Italian, or German, and

Calendar display with date and month.

SET CLOCK

1. Press and hold MODE for 2 seconds. The Clock

Area will blink.

2. Select the hour format (12 or 24 hour), hour, minute,

year, month, day, and language. Press UP or

DOWN to change the setting. Press MODE to

confirm.

The language options are (D) German,

(E) English, (F) French, (I) Italian, and (S) Spanish.

SWITCH CLOCK DISPLAY

Press MODE to toggle between Clock and Calendar

display.

NOTE

RAR601 lab test R2 1/17/04, 4:47 PM8

ACTIVATE ALARM

Press ((.)) to activate or deactivate the Alarm. shows

in the Alarm Area when the Alarm is activated.

ALARM

This product is equipped with a 2-minute crescendo

alarm.

VIEW ALARM SETTINGS

Press ((.)). The Alarm Time and On/Off status will show

in the Clock Area.

SET ALARM

1. Press ((.)) to switch to Alarm display.

2. Press and hold ((.)) again for 2 seconds. The Alarm

settings will blink.

3. Select the hour and minute. Press UP or DOWN to

change settings. Press ((.)) to confirm.

TEMPERATURE

This product can display current, maximum, and

minimum temperature readings collected by the

main unit (indoor) and remote sensor (outdoor).

Outdoor temperature data is collected by the remote

sensor and displayed every 78 seconds.

SELECT TEMPERATURE UNIT

Press the °C / °F button to switch between temperature

units. The button is located in the battery compartment.

MINIMUM / MAXIMUM RECORDS

Press MEM to toggle between current, maximum (MAX)

and minimum (MIN) records.

To clear the records, press and hold MEM for 2 seconds.

A beep will sound to confirm that the memory has been

cleared.

RAR601 lab test R2 1/17/04, 4:47 PM9
