Oregon Scientific RMR613HGA User manual

Wireless Thermo-Hygro Clock

Model : RMR613HGA

User Manual

RMR613HGA lab test cover R21/8/04, 7:02 PM1

CONTENTS

Contents ................................................................... 1

Introduction .............................................................. 2

About Oregon Scientific .......................................... 2

Product Overview .................................................... 3

Front View .............................................................. 3

Back View .............................................................. 4

Remote Sensor (THGR122NX) ............................. 5

Getting Started ......................................................... 6

Batteries ................................................................. 6

Change Settings .................................................... 6

Table Stand ............................................................ 6

Remote Sensor (THGR122NX) ................................ 6

Setup Sensor ......................................................... 6

Data Transmission ................................................. 7

Search for Sensor .................................................. 8

Clock ......................................................................... 8

Turn Atomic Clock ON/OFF ................................... 9

Set Clock ............................................................... 9

Switch Clock Display ............................................. 9

Alarms ....................................................................... 9

View Alarm Settings ............................................... 9

Set Alarm ............................................................... 9

Activate Alarm ...................................................... 10

Silence Alarm ....................................................... 10

Temperature and Humidity .................................... 10

Select Temperature Unit ...................................... 10

Select Sensor Channel ........................................ 10

Minimum / Maximum Records ............................. 11

Comfort Zone ....................................................... 11

Reset System ......................................................... 11

Safety and Care ...................................................... 12

Warnings ................................................................. 12

Troubleshooting ..................................................... 12

Specifications ......................................................... 13

Main Unit Dimensions .......................................... 13

Remote Sensor Dimensions ................................ 13

Temperature ......................................................... 13

Relative Humidity ................................................. 13

Remote Sensor (THGR122NX) ........................... 13

Clock .................................................................... 13

Power ................................................................... 14

FCC Statement ....................................................... 14

RMR613HGA lab test R2 1/17/04, 5:00 PM1

INTRODUCTION

Thank you for selecting the Oregon ScientificTM Wireless

Thermo-Hygro Clock (RMR613HGA). This device

bundles precise time keeping, dual alarm, and

temperature and humidity monitoring features into a

single tool you can use from the convenience of your

home.

In this box, you will find:

•Main unit

•Remote sensor (THGR122NX)

Keep this manual handy as you use your new product.

It contains practical step-by-step instructions, as well

as technical specifications and warnings you should

know.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about other Oregon Scientific products such as

digital cameras, hand-held organizers, health and fitness

gear, and projection clocks. The website also includes

contact information for our customer service department,

in case you need to reach us.

RMR613HGA lab test R2 1/17/04, 5:00 PM2

PRODUCT OVERVIEW

FRONT VIEW

1. Clock / Alarm Area: Date, time, dual alarm; and

Atomic Clock reception status

2. Temperature Area: Readings; sensor channel

number; remote unit reception and battery status

3. Humidity / Comfort Zone Area: Readings, comfort

zone and battery status.

4. Channel button: switch remote sensor

5. Alarm button: view alarm status; set alarm

4 5

RMR613HGA lab test R2 1/17/04, 5:00 PM3

BACK VIEW

1. MEM: view current, maximum, and minimum

temperature / humidity readings

2. DOWN: decrease setting / deactivate radio-

controlled clock / activate or deactivate alarm

3. UP: increase setting / activate radio-controlled clock /

activate or deactivate alarm

4. MODE: change display / settings

5. Battery compartment

6. °C / °F switch

7. RESET hole

5, 6, 7

RMR613HGA lab test R2 1/17/04, 5:00 PM4

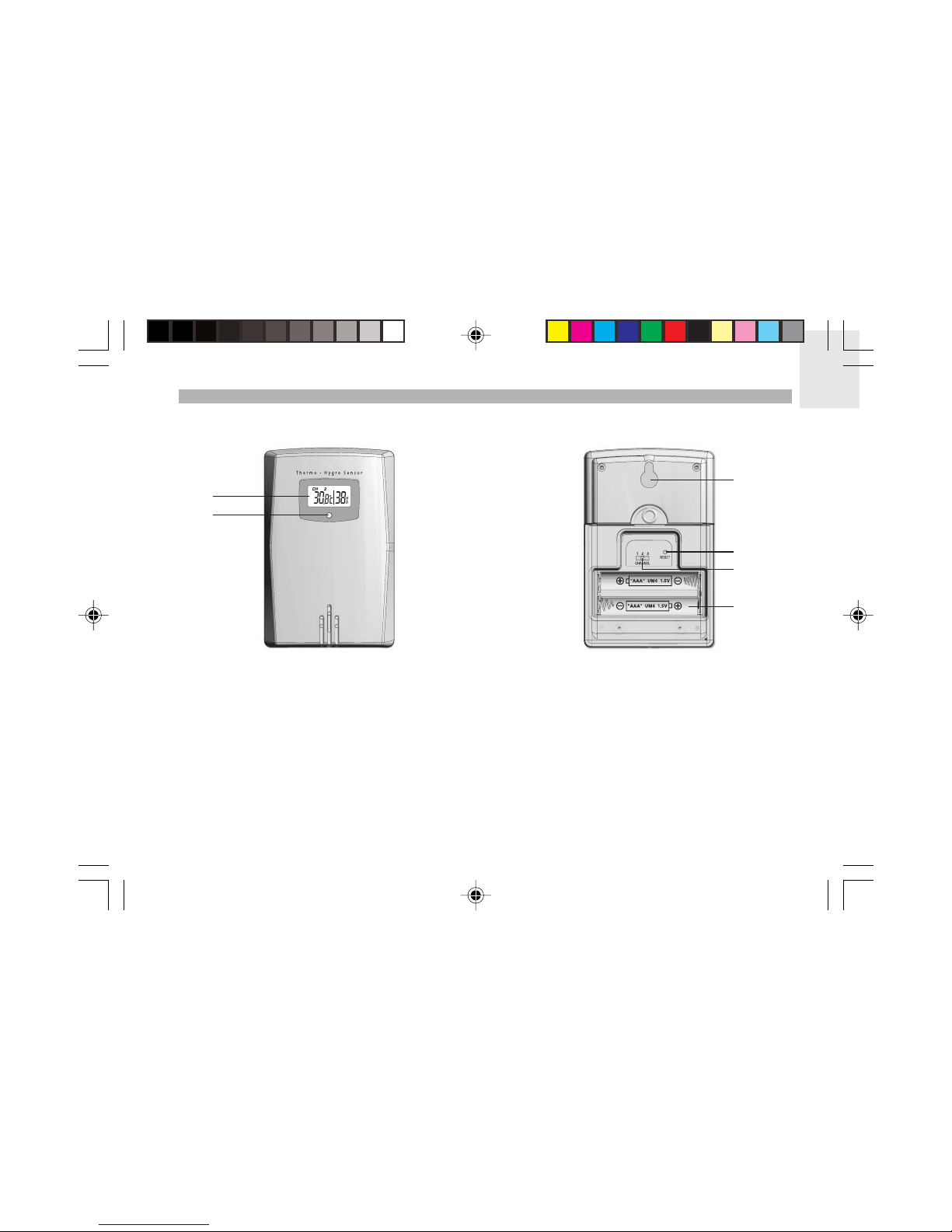

REMOTE SENSOR (THGR122NX)

1. LCD display

2. LED Status indicator

1. Wall mount hole

2. RESET

3. Channel number (1 - 3)

4. Battery compartment

(Battery compartment cover not shown)

RMR613HGA lab test R2 1/17/04, 5:00 PM5

CHANGE SETTINGS

1. Press and hold MODE for 2 seconds to enter setting

mode.

2. Press UP or DOWN to change settings.

3. Press MODE to confirm.

REMOTE SENSOR (THGR122NX)

This product is shipped with a THGR122NX Thermo/

Hygro Sensor that collects Temperature and Humidity

data. Data can be collected from up to 3 sensors.

Additional sensors sold separately.

SETUP SENSOR

Open the remote sensor battery compartment with a

small Phillips screwdriver.

GETTING STARTED

BATTERIES

Batteries are not supplied with this product. You will need

to purchase 2 x UM-3 (AA) 1.5V alkaline batteries for

the main unit, and 2 x UM-4 (AAA) 1.5V alkaline batteries

for the remote sensor.

Insert the batteries before first use, matching the polarity

as shown in the battery compartment. For best results,

install batteries in the remote sensor before the main

unit. Press RESET after each battery change.

Do not use rechargeable batteries.

NOTE

UNIT LOCATION

MainTemperature Area when

the INDOOR temperature

is shown.

Remote Temperature Area when the

OUTDOOR temperature is

shown.

shows when batteries are low.

RMR613HGA lab test R2 1/17/04, 5:00 PM6

3. Place the sensor near the main unit. Press RESET

on the sensor to initiate signal sending between the

sensor and the main unit. The reception icon on

the main unit will blink for approximately 3 minutes

while it is searching for the sensor. (Refer to the

Search for Sensor section for more information.)

4. Close the remote sensor battery compartment.

5. Secure the sensor in the desired location using the

wall mount or table stand.

1. Insert the batteries, matching the polarity as shown

in the battery compartment.

2. Set the channel. The switch is located in the battery

compartment.

SWITCH OPTION

Channel Channel 1 - 3. If you are using

more than one sensor, select a

different channel for each sensor.

For best results:

•Insert the batteries and select the channel and

temperature unit before you mount the sensor.

•Place the sensor out of direct sunlight and

moisture.

•Do not place the sensor more than 30 meters

(98 feet) from the main (indoor) unit.

•Position the sensor so that it faces the main

(indoor) unit, minimizing obstructions such as

doors, walls, and furniture.

•Place the sensor in a location with a clear view

to the sky, away from metallic or electronic

objects.

•Position the sensor close to the main unit during

cold winter months as below-freezing

temperatures may affect battery performance

and signal transmission.

You may need to experiment with various locations to

get the best results.

DATA TRANSMISSION

Data is sent from the sensor(s) every 40 seconds.

The reception icon shown in the Temperature and

Humidity Areas show the status.

RMR613HGA lab test R2 1/17/04, 5:00 PM7

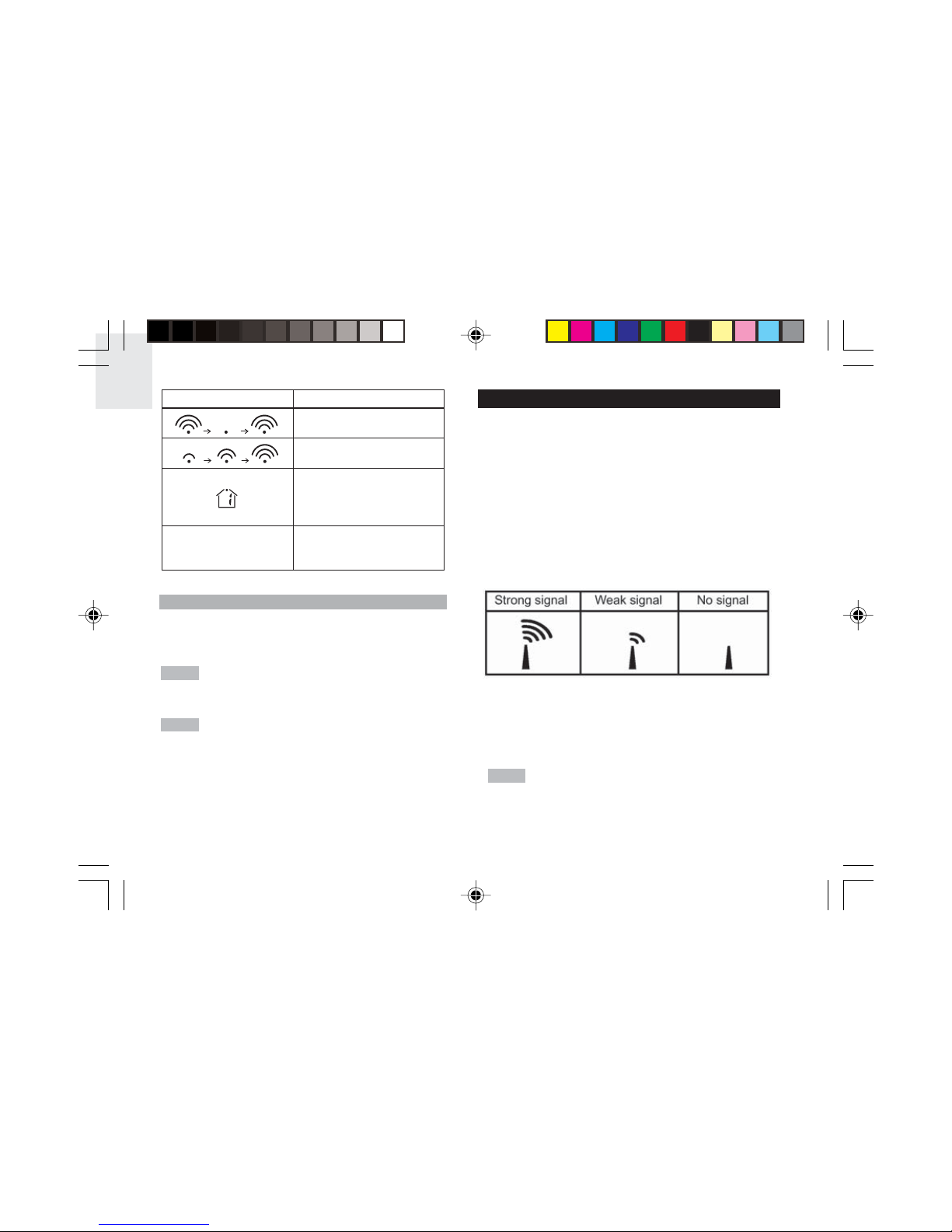

SEARCH FOR SENSOR

To search for a sensor, press and hold MEM and

CHANNEL for 2 seconds.

If the sensor is still not found, check the

batteries, obstructions, and remote unit location.

Signals from household devices such as

doorbells, electronic garage doors, and home security

systems may cause temporary reception failure. This is

normal and does not affect general product performance.

The reception will resume once the interference ends.

NOTE

--- shows in Temp

/ Humidity Areas

ICON DESCRIPTION

Main unit is searching for

sensors.

At least 1 channel has

been found.

Channel 1 is selected

(number will change

depending on the sensor

you select)

The selected sensor cannot

be found. Search for the

sensor or check batteries.

NOTE

CLOCK

This product can track the date and time for up to

2 locations (Clock with Offset Hour). The US Atomic

Clock in Boulder, Colorado automatically updates this

information unless you disable the feature. The signals

are collected by the main unit when it is within 1500 km

(932 miles) of a signal.

Initial reception takes 2 - 10 minutes, and is initiated

when you first setup the unit, and whenever you press

RESET. Once complete, the reception icon will stop

blinking. The icon is shown in the Clock Area.

To force a manual search for Atomic Clock signals, press

and hold UP for 2 seconds. If no signal is found, check

the batteries.

If the Atomic Clock signal is received and the

hour is incorrect, use the "hour offset" feature to adjust

it to to the right value. Please see "SET CLOCK" on

pg. 9 for instructions.

NOTE

RMR613HGA lab test R2 1/17/04, 5:00 PM8

TURN ATOMIC CLOCK ON/OFF

Perform this step if you cannot receive Atomic Clock

signals. Press and hold DOWN for 2 seconds. Then,

manually set the clock following the “Set Clock”

instructions (below).

SET CLOCK

You only need to do this if you have disabled the Atomic

Clock feature (for example, if you are too far from or

cannot receive a signal).

1. Press and hold MODE for 2 seconds. The Clock

Area will blink.

2. Select the offset hour, 12 / 24 hour format, hour,

minute, year, month, day, and language. Press UP

or DOWN to change the setting. Press MODE to

confirm.

The language options are (E) English,

(F) French, (D) German, (I) Italian, and (S) Spanish.

The signal icon indicates that the Atomic Clock

feature is ON. No icon means that it is OFF

SWITCH CLOCK DISPLAY

Press MODE to toggle between Clock with Seconds,

Clock with Weekday and Calendar, and Clock with Offset

Hour display.

ALARMS

This product has 2 alarms: a Single Alarm and a Weekday

Alarm. The Single Alarm can be set to go off at a specific

time for a one-time event (for example, if you are napping

on Saturday). The Weekday Alarm will sound at the same

time Monday - Friday (but not on weekends).

VIEW ALARM SETTINGS

Press ALARM to display the Alarm settings you wish to

view: Weekday Wor Single S.

SET ALARM

1. Press ALARM to display the type of Alarm you wish

to set: Weekday or Single.

2. Press and hold ALARM for 2 seconds. The Alarm

settings will blink.

3. Select the hour and minute. Press UP or DOWN to

change settings. Press ALARM to confirm.

NOTE

RMR613HGA lab test R2 1/17/04, 5:00 PM9

Table of contents

Other Oregon Scientific Clock manuals

Oregon Scientific

Oregon Scientific RRM902 User manual

Oregon Scientific

Oregon Scientific RM912TCN User manual

Oregon Scientific

Oregon Scientific RRM320P User manual

Oregon Scientific

Oregon Scientific RM602 User manual

Oregon Scientific

Oregon Scientific Slim Projection Clock RA368P User manual

Oregon Scientific

Oregon Scientific RM802 User manual

Oregon Scientific

Oregon Scientific RM913TCN User manual

Oregon Scientific

Oregon Scientific SKT338N User manual

Oregon Scientific

Oregon Scientific RM328P User manual

Oregon Scientific

Oregon Scientific BAR623PA User manual

Oregon Scientific

Oregon Scientific RM336PES User manual

Oregon Scientific

Oregon Scientific RM813P User manual

Oregon Scientific

Oregon Scientific PRYSMA B User manual

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... User manual

Oregon Scientific

Oregon Scientific RM928 User manual

Oregon Scientific

Oregon Scientific BC100U User manual

Oregon Scientific

Oregon Scientific MSR939A-01 User manual

Oregon Scientific

Oregon Scientific RM338SP User manual

Oregon Scientific

Oregon Scientific WS902 User manual

Oregon Scientific

Oregon Scientific 983U User manual

Oregon Scientific

Oregon Scientific BAR223P User manual

Oregon Scientific

Oregon Scientific TW369 User manual

Oregon Scientific

Oregon Scientific RM868PA User manual

Oregon Scientific

Oregon Scientific RGR682 User manual

Popular Clock manuals by other brands

Silicon Laboratories

Silicon Laboratories SI5324 manual

Heathkit

Heathkit GC-1005 Assembly manual

Andrew O'Malley

Andrew O'Malley DOTKLOK Assembly instructions

ALGE-Timing

ALGE-Timing ASC3 manual

Bodet

Bodet Profil 960 Installation and operating instructions

Nixie Clock

Nixie Clock Divergence Meter user manual

La Crosse Technology

La Crosse Technology WS-8256-AL user manual

Mini Gadgets

Mini Gadgets MCPro user manual

Casio

Casio TMR-200 user guide

Progetti

Progetti ILTEMPOSTRINGE Directions

BVItech

BVItech BV-101 instruction manual

Progetti

Progetti KALIMERO Directions

La Crosse Technology

La Crosse Technology WT-3141b Quick setup instructions

La Crosse Technology

La Crosse Technology W86531 owner's manual

Sharp

Sharp SPC900 instruction manual

La Crosse Technology

La Crosse Technology 404-50447 quick start guide

Datexx

Datexx DF0063 quick guide

LG LEC-005 owner's manual
