Omega ECHO TOUCH Quick start guide
Table
Of
Contents -
:~~~t,~
"",,$, "
Installing &Programming
The
ECHO
System 3
Overview
Of
The
Controller 4
The
ECHO-TOUCH
Status Screen 5
Using The
ECHO-TOUCH
Controller 6
First time use &controller setup 6
Language selection 6
Controlling
your
system 7
Mutli-Car Operation &Vehicle Profiles 12
Multi-car operation 12
Programming the vehicle
name
12
Selecting car1
or
car2 13
Selecting the vehicle image 13
Programming
The
Controller Options 14
Selecting button beep, melody, &vibrate modes 14
Clock &time options
overview
15
Setting the time &date 15
Setting the time format (12
or
24 Hour) 16
Setting the alarm clock 16
Demo mode 17
LCD screen display options
overview
17
Setting the screen on time 18
Setting the screen brightness 18
Other Controller Functions 18
Viewing the alarm trigger history 18
Power
off mode 19
•Parking timer &remote start timer. 19
The ECHO-TOUCH communicates with awindow-mounted base unit which
is plugged directly into the host security system module. The window-mount
antenna should
be
mounted directly to the interior glass by utilizing the attached
adhesive pad (clean the glass before adhering) for the best performance. The
receiver/transmitter also contains alternative Status Lights and aValet Switch.
these may
be
used, or the original items may
be
retained.
NOTE: It
is
recommended
to
fully
charge the
controller
before use.
•
Host
Omega
Security
System Control
Module
--~
Step 2Plug
in
and route the Echo
transmitter/receiver unit wiring harness.
Using the adhesive tape, mount the Echo
transmitter/receiver onto an interior glass
(carefully clean the surface).
-
(configurations vary)
Step 1 \ Echo Base
Locate &Transmitter/
Remove the \Receiver Unit
security system's \
Echo port
jumper
\
connector (it has a \
Red wire loop). \
\\\\
{!JJ\
~
Step 3Program the Echo controller and the
\\
original 1-way transmitters into the security system
(see the system's guide for instructions).
Overview Of The Controller
'~
1)
Antenna: Sends commands to the
system and receives confirmations for
2-way functions,
2) Touch Screen LCD: Displays all
controller function buttons as well as the
status
of
your system.
3)
Home Button: This wakes up the
controller when the screen is off and
returns you back to the status screen.
4) Charger Port: This
is
where you plug
in
the charger to recharge the control-
ler's battery.
5)
Keychain Loop: Use this loop to
attach the controller to your keychain.
II

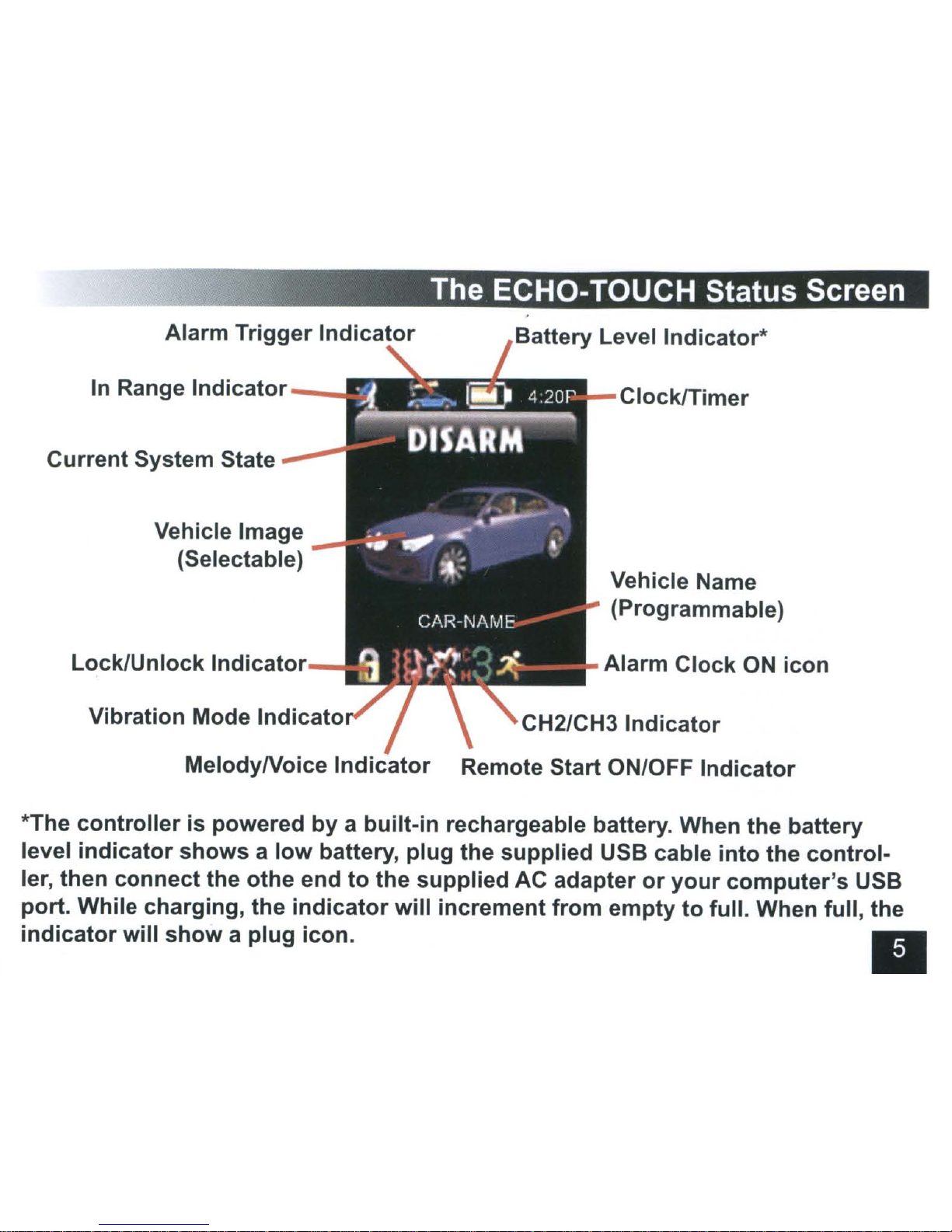

·The ECHO·TOUCH Status Screen
,
Alarm
Trigger
Indicator
In Range
Indicator
__
Current System State
--
Vehicle Image
(Selectable)
Lock/Unlock
Indicator_
Vibration Mode Indicato
MelodyNoice
Indicator
Battery Level
Indicator*
Clock/Timer
Vehicle Name
(Programmable)
Alarm
Clock
ON
icon
CH2/CH3
Indicator
Remote Start ON/OFF
Indicator
*The
controller
is
powered
by
a
built-in
rechargeable battery. When the battery
level
indicator
shows
a
low
battery,
plug
the
supplied
USB cable
into
the
control-
ler, then
connect
the
othe
end
to
the
supplied
AC adapter
or
your
computer's
USB
port. While charging, the
indicator
will
increment
from
empty
to
full. When fUll, the
indicator
will
show
a
plug
icon.
II
Using The ECHO·TOUCH
Controller
:'>
FIRST TIME USE &CONTROLLER SETUP
Before the controller will function properly, it must be matched to the type of
system you have. The ECHO-TOUCH is compatible with many different sys-
tems so please follow these steps to configure it for yours:
1) Press the HOME button to turn on the controller.
2) Tap the screen to see the control icons
3) Press the UP
ARROW
once until you see SCREEN
6(pictured to the right).
4) Press the SYSTEM TYPE button
5)
Select one of the following options:
Alarm
System
Only: Use this setting for systems with-
out abuilt-in remote start option.
GEN 1
Remote
Start: Use this setting if you press
LOCK+UNLOCK to activate your remote starter.
GEN 2
Remote
Start: Use this setting ifyou press the
"III"
button or asingle dedicated "START" button to
activate your remote starter.
6) Press the "FOLDER" button to save the setting.
LANGUAGE
SELECTION
Go to SCREEN 6and choose: American flag =ENGLISH
•Spanish flag =SPANISH
SCREEN 6
Using The ECHO-TOUCH
Controller
(cont'd)
CONTROLLING
YOUR
SYSTEM
SCREEN 1:
To
access, press the HOME button and tap the screen.
LOCK:
Press and release the "LOCK" icon.
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE LOCK/ARM ANIMATION
AND VOICE ALERT.
NOTE: PRESSING
LOCK
TWICE IN 5SECONDS
STARTS THE PARKING TIMER. THE
CLOCK
WILL
CHANGE TO 0:00 AND START COUNTING
IN
MIN-
UTES &HOURS.
UNLOCK:
Press and release the "UNLOCK" icon.
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE UNLOCK/DISARM ANIMA-
TION AND VOICE ALERT.
II
Using The ECHO-TOUCH Controller (cont'd)
TRUNK RELEASE /CHANNEL
2:
Press the and hold the ''TRUNK'' icon for 3
seconds.
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE
TRUNK
RELEASE ANIMA-
TION AND VOICE ALERT
II
START (GEN 1/GEN 2REMOTE START}: Press and release the
u*"
icon us-
ing the same method as with the original controller (i.e., 1or 2presses, etc).
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE REMOTE START ANIMA-
TION, AND PLAY THE REMOTE START ON/OFF VOICE
ALERT.
•THE CLOCK WILL CHANGE TO 0:00 TO STARTTHE
REMOTE START TIMER. IT WILL TIME
HOW
LONG
THE ENGINE RUNS
IN
MINUTES &HOURS.
;-
Using The ECHO-TOUCH Controller (cont'd)
CHANNEL 3(ALARM ONLY}: Press and release
the"
*"
icon using the same
method as with the original controller (i.e., 1or 2presses, etc).
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE CHANNEL 3ANIMATION
AND VOICE ALERT.
SCREEN 2:
To
access, press the HOME button, tap the screen, press the down
arrow once.
CHANNEL 3(GEN 1/GEN 2REM START}: Press and release the "CH3" icon
using the same method as with the original controller (i.e., 1or 2presses, etc).
•YOUR SYSTEM SHOULD REACT THE SAME AS
WITH YOUR ORIGINAL CONTROLLER.
•UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, IT WILL PLAY THE CHANNEL 3ANIMATION
AND VOICE ALERT.
II
Using The ECHO-TOUCH
Controller
(cont'd)
CHANNEL 4(IF EQUIPPED): Press and release the "CH4" icon using the
same method as with your original controller (i.e., 1or 2presses, etc).
•YOUR SYSTEM SHOULD REACT THE SAME
AS
WITH YOUR ORIGINAL CONTROLLER.
----.,,-.. NOTE: THE
"CH3"
ICON WILL NOT BE VISIBLE
WHEN THE CONTROLLER IS SET FOR
"ALARM
ONLY" UNDER THE "SYSTEM TYPE" SETTING.
CHANNEL 5(IF EQUIPPED): Press and release the "CH5" icon using the
same method as with your original controller (i.e., 1or 2presses, etc).
II
•YOUR SYSTEM SHOULD REACT THE SAME
AS
WITH YOUR ORIGINAL CONTROLLER.
NOTE: THE
"CH3"
ICON WILL NOT BE VISIBLE
WHEN THE CONTROLLER
IS
SET FOR
"ALARM
ONLY" UNDER THE "SYSTEM TYPE" SETTING.
