41876101TH Rev. 1 1 / 113

2001-03-30 Rev.1

OKIPAGE 14i/14ex/14e

LED Page Printer

Technical Reference

ODA/OEL/INT

41876101TH Rev. 1 2 /

Rev.No. Date No.

Corrected items

Page Description of change Person in

change

History of Revision

1 2001-03-30 Issue

41876101TH Rev. 1 3 / 113

CONTENTS

1. CIRCUIT DIAGRAM.................................................................................... 4

2. COMPONENT PARTS LIST ..................................................................... 57

41876101TH Rev. 1 3 /

41876101TH Rev. 1 4 /

1. CIRCUIT DIAGRAM

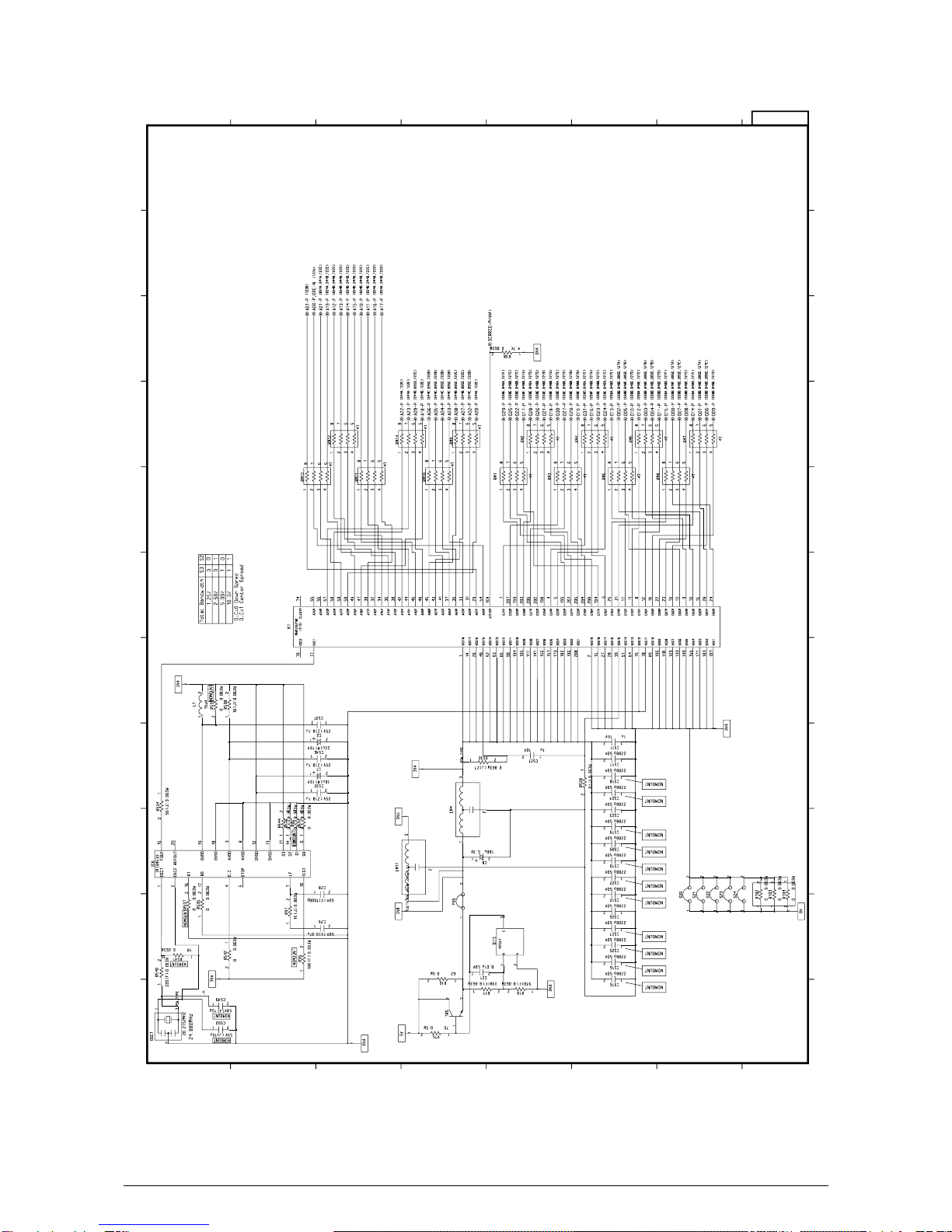

Figure 1-1(1/13~13/13)Main Control Board (M7G OP14e) (41478601)

Figure 1-2(1/13~13/13)Main Control Board (M7E OP14i/OP14ex) (41249202, 41249201)

Figure 1-3(1/1) Operator Panel Board (OLCC-3-PCB, Rev.1) (4YA4130-1001G3)

Figure 1-4(1/4~4/4) Power Supply Board (HV1) (41228501)

Figure 1-5(1/1) High Capacity Second (TQSB-2-PCB, Rev.1) (4YA4046-1651G2)

Paper Feeder Board

Figure 1-6(1/2~2/2) Multi Purpose Feeder (OLEV-PCB, Rev.4) (4YA4121-1014G11)

Board

Figure 1-7(1/4~4/4) Memory Expansion (MM7-PCB) (41353301)

Board

Figure 1-8(1/6~6/6) Network interface (MN8) (41352601)

Board

Figure 1-9(1/6~6/6) RS-232C interface (SIF) (41353901)

Board

Figure 1-10(1/1) Flash SIMM(4MB) (FSL-PCB, Rev.1) (40405419)

Figure 1-11(1/1) Flash SIMM(8MB) (FSL-2-PCB, Rev.1) (40405420)

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 5 /

PRE-ASSIGNMENT

P=2.54mm

Figure 1-1 Main Control Board (M7G OP14e) (1/13)

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 6 /

Figure 1-1 Main Control Board (M7G OP14e) (2/13)

PRE-ASSIGNMENT

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 7 /

Figure 1-1 Main Control Board (M7G OP14e) (3/13)

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 8 /

Figure 1-1 Main Control Board (M7G OP14e) (4/13)

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 9 /

Figure 1-1 Main Control Board (M7G OP14e) (5/13)

PRE-ASSIGNMENT

PRE-ASSIGNMENT

123456789XY

1

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

234567 8 9XY

41876101TH Rev. 1 10 /

Figure 1-1 Main Control Board (M7G OP14e) (6/13)
