Oki ES3640eMFP User manual

ES3640e MFP

Technician’s Installation Guide

Configuration A

with High Capacity Feeder

With optional Finisher:

Configuration B

with Second Tray and Cabinet

ES3640e MFP


ES3640e

MFP

01_Finis


ES3640e MFP


Do not begin installation

of this device

before reading

this entire Installation Guide.

Important safety warnings

follow.

ES3640e MFP Warning Icon.jpg

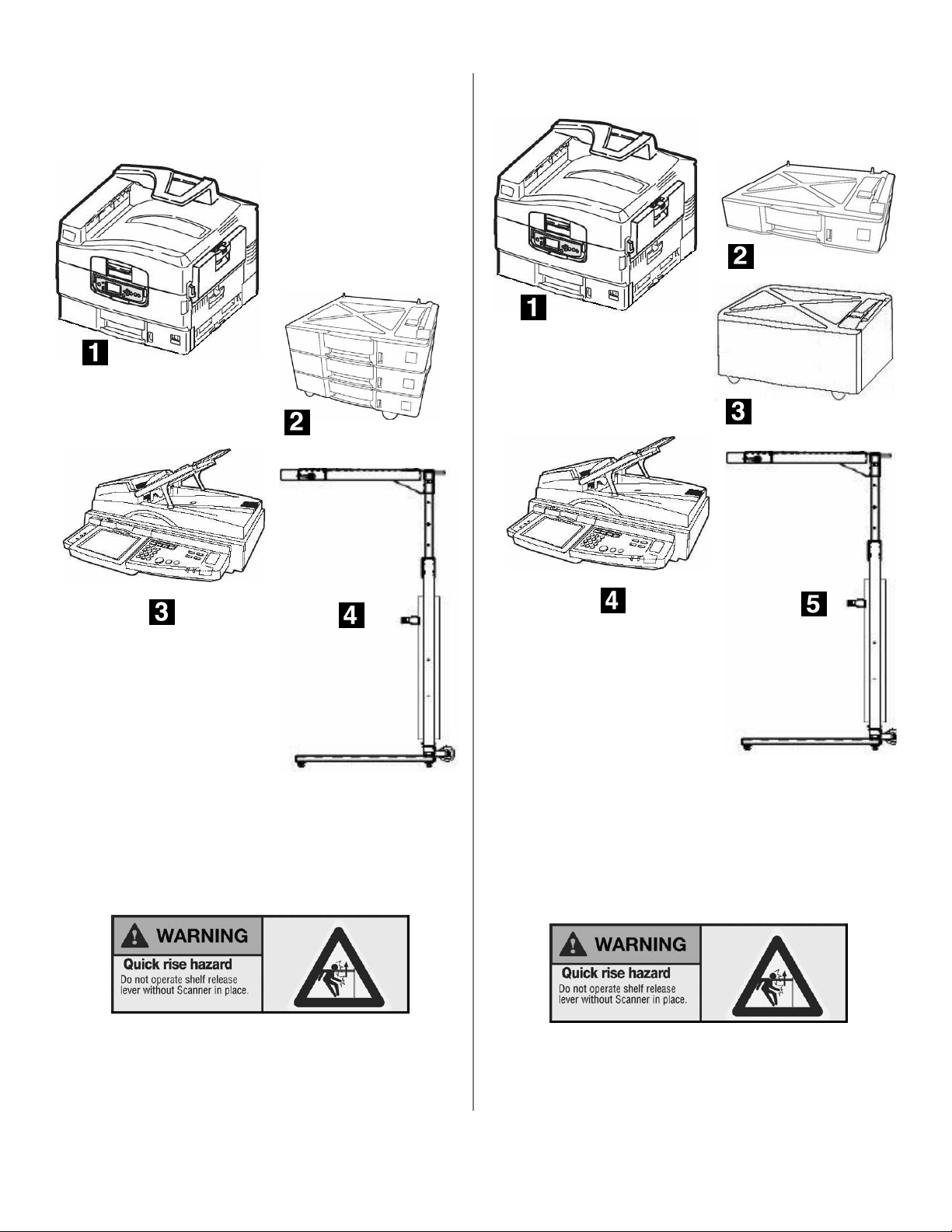

Overview

Configuration A

ES3640e MFP Configuration A is shipped in four units:

Printer

High-capacity Feeder

Scanner

Stand

See page 11 for more information.

Configuration B

ES3640e MFP Configuration B is shipped in five units:

Printer

Second Paper Tray

Cabinet

Scanner

Stand

See page 11 for more information.

ES3640e MFP 05.jpg

ES3640e MFP 07.jpg

ES3640e MFP 06.jpg

ES3640e MFP 02.jpg

ES3640e MFP 89a.jpg

ES3640e MFP 05.jpg

ES3640e MFP 06.jpg

ES3640e MFP 02.jpg

ES3640e MFP 04.jpg

ES3640e MFP 11.jpg

ES3640e MFP 89a.jpg

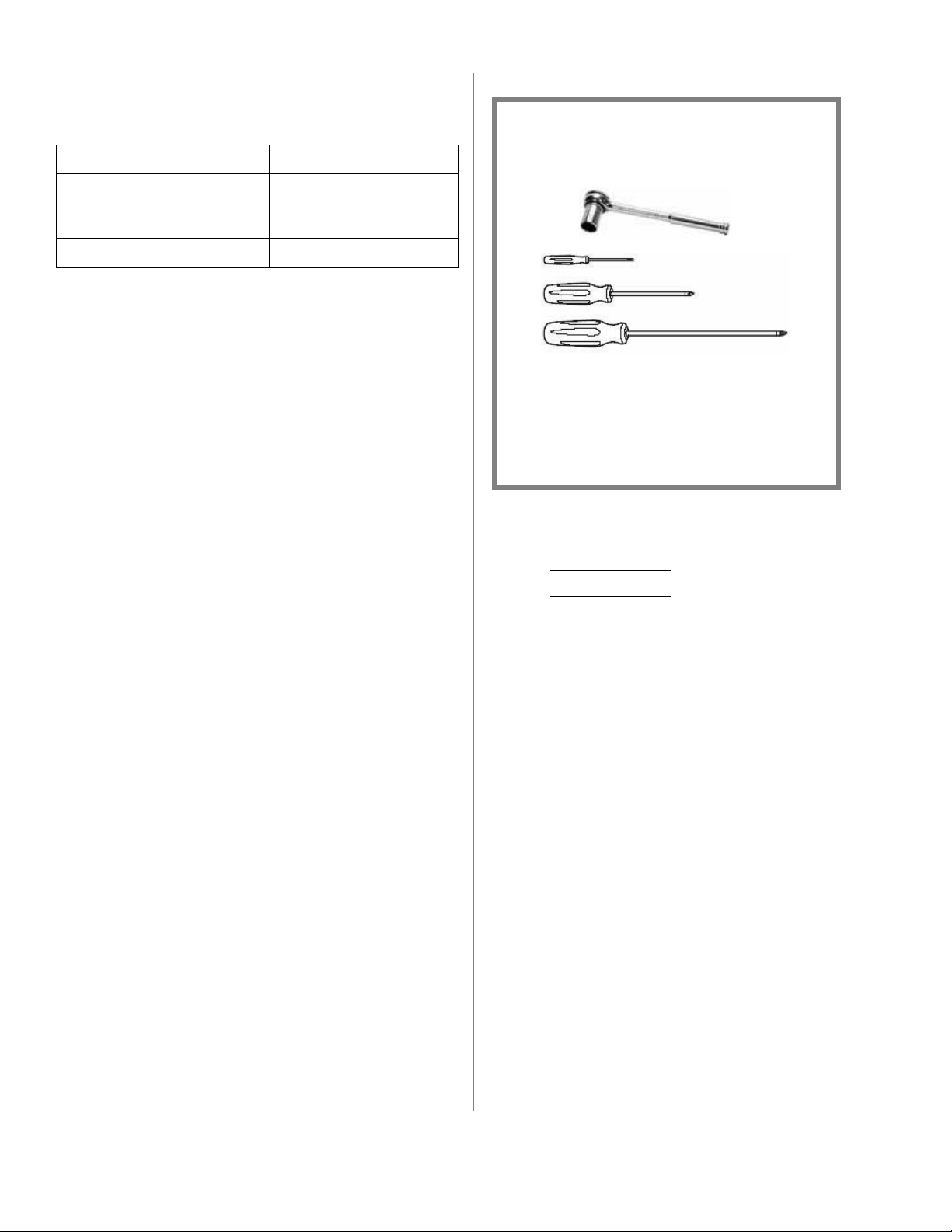

Basic Requirements

Space

Electrical:

Voltage: 110-127 VAC, 60 Hz

Power consumption, Operating:

•1,500 W maximum

•750 W typical

Environmental:

Temperature: 50-90°F

Humidity: 20-80% RH

Assembly

Assembly involves the following steps:



Install the printer on its Support:

•Configuration A: High Capacity Feeder

•Configuration B: Cabinet/Second Paper Tray



Prepare the printer.



Assemble the stand.



Mount the scanner on the Stand and Secure it to

the Shelf.



Make the Scanner Connections



Attach the Printer to the stand.



Finish the Installation.



Connect to the Network

Minimum Height

72 inches (1.83 m)

Minimum Width

•standard

• with optional finisher

78 inches (1.98 m)

109 inches (2.77 m)

Minimum Depth

73 inches (1.85 m)

NOTE

You will need the following tools to

assemble the unit:

• 14 mm socket wrench

• Standard tip screwdriver

• Small Phillips tip screwdriver

• Larger Phillips tip screwdriver

Socket

Wrenchj


Step 1 Install the Printer on its

Support.

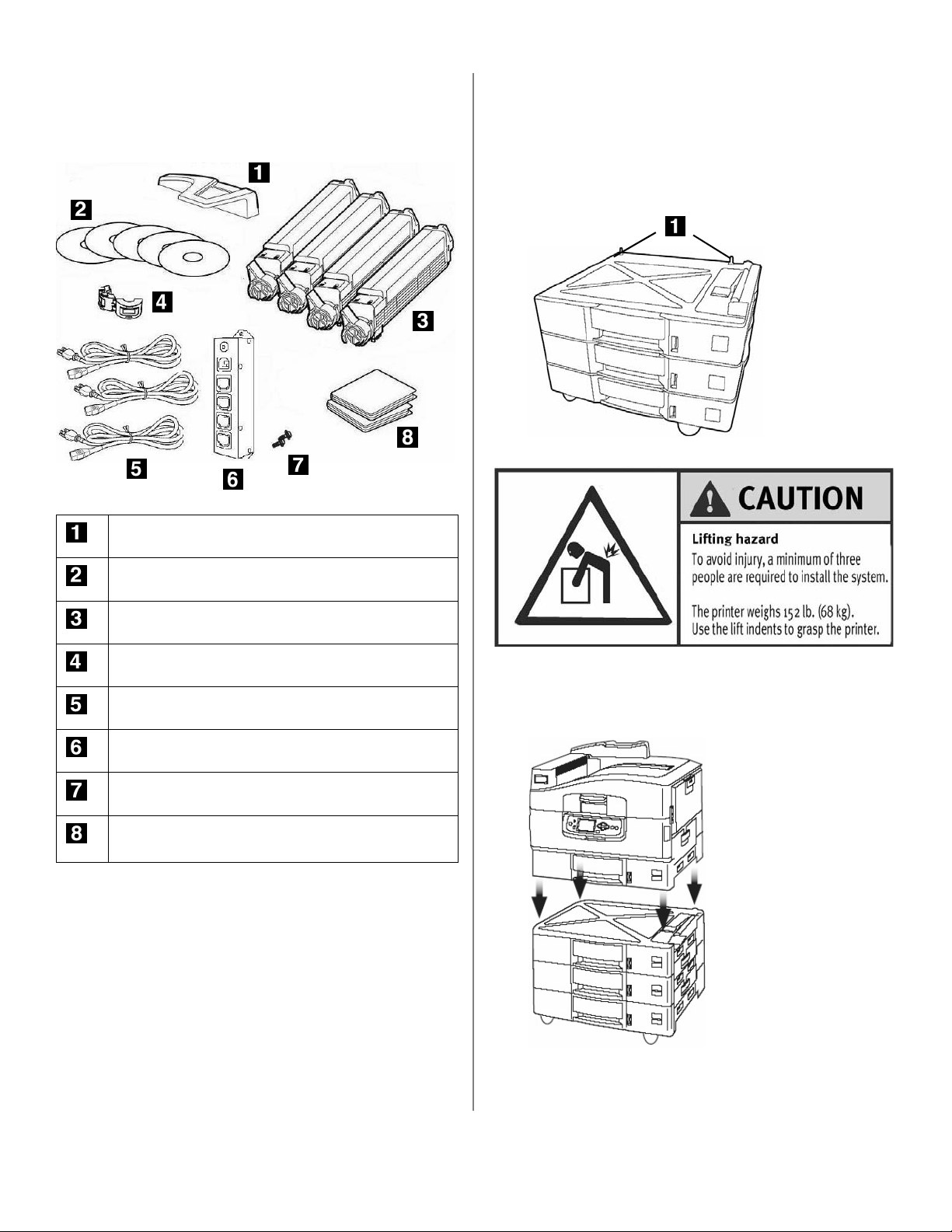

Configuration A: High Capacity Feeder

1. Unpack the High Capacity Feeder (HCF) and

remove any external shipping tape/restraints.

2. Unpack the printer and remove any external

shipping tape.

3. Note the location of the pins (

) on the HCF:

4. Lift the printer onto the HCF, aligning the holes on

the bottom of the printer with the pins on the

HCF.

5. Go to “Step 2 Prepare the Printer” on page 7.

Accessories in Printer Box

Paper Catcher

CDs

Toner Cartridges

Ferrite Core for Network Connection

3 Power Cables (printer, scanner , main)

Power Strip

2 Screws for securing Power Strip to Stand

4 Light Shield Bags (for temporary storage of

drums when outside printer)

ES3640e MFP 101.jpg

ES3640e MFP 07.jpg

Caution Hurt Back

ES3640e MFP 15.jpg

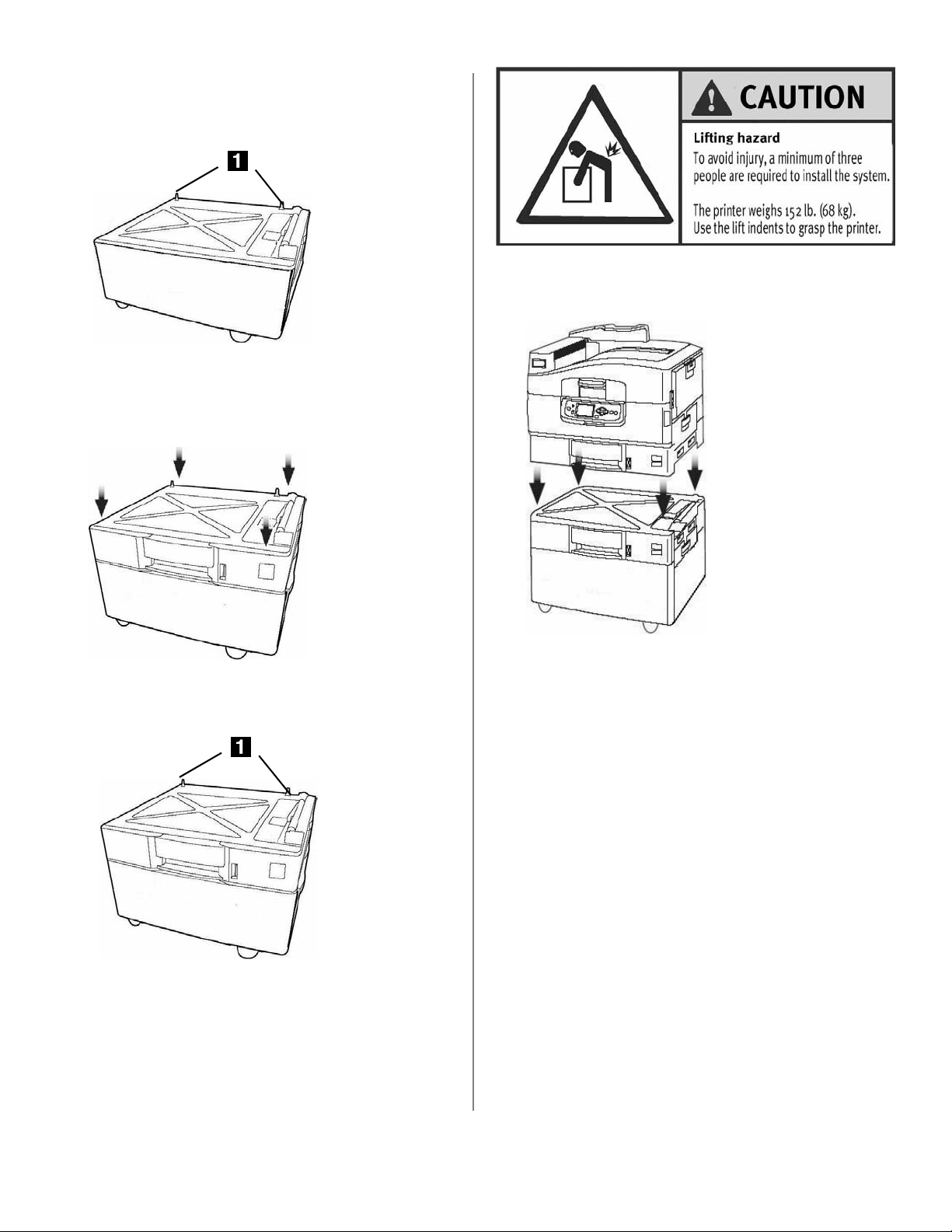

Configuration B: Cabinet/Second Tray

1. Unpack the printer cabinet and remove any

packing materials. Note the location of the pins

(

2. Unpack the second paper tray and remove any

packing materials.

3. Place the second paper tray on the cabinet

aligning the pins with the sockets.

4. Unpack the printer and remove any shipping tape.

5. Note the location of the pins (1) on the tray.

6. Align the printer with the second paper tray, then

lower the printer onto the tray/cabinet..

ES3640e MFP


ES3640e MFP


ES3640e MFP


Caution Hurt Back Icon.jpg

ES3640e MFP

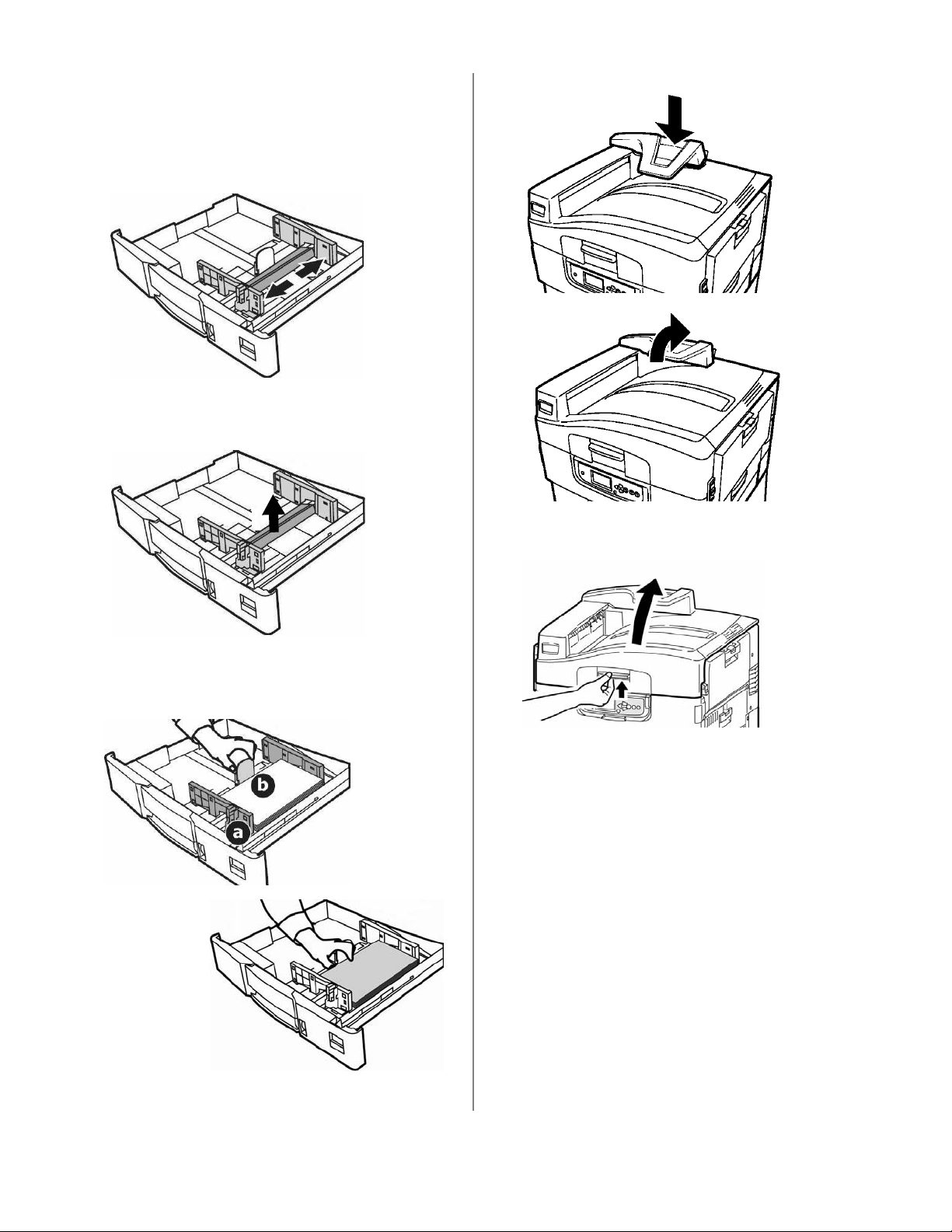

Step 2 Prepare the Printer.

1. Load paper in the trays.

a. Pull out the tray.

b. Squeeze the release on the paper guides and

move them apart.

c. Remove the brightly colored shipping

restraint.

d. Set the guides (a, b) for the paper size and

load paper. Note: The default is letter size,

long edge feed.

e. Close the tray.

2. Snap the Paper Catcher into the top of the printer.

3. Open the printer cover.

ES3640e

MFP


ES3640e

MFP


ES3640e MFP


ES3640e MFP


ES3640e MFP


ES3640e MFP


open_top_cover_f

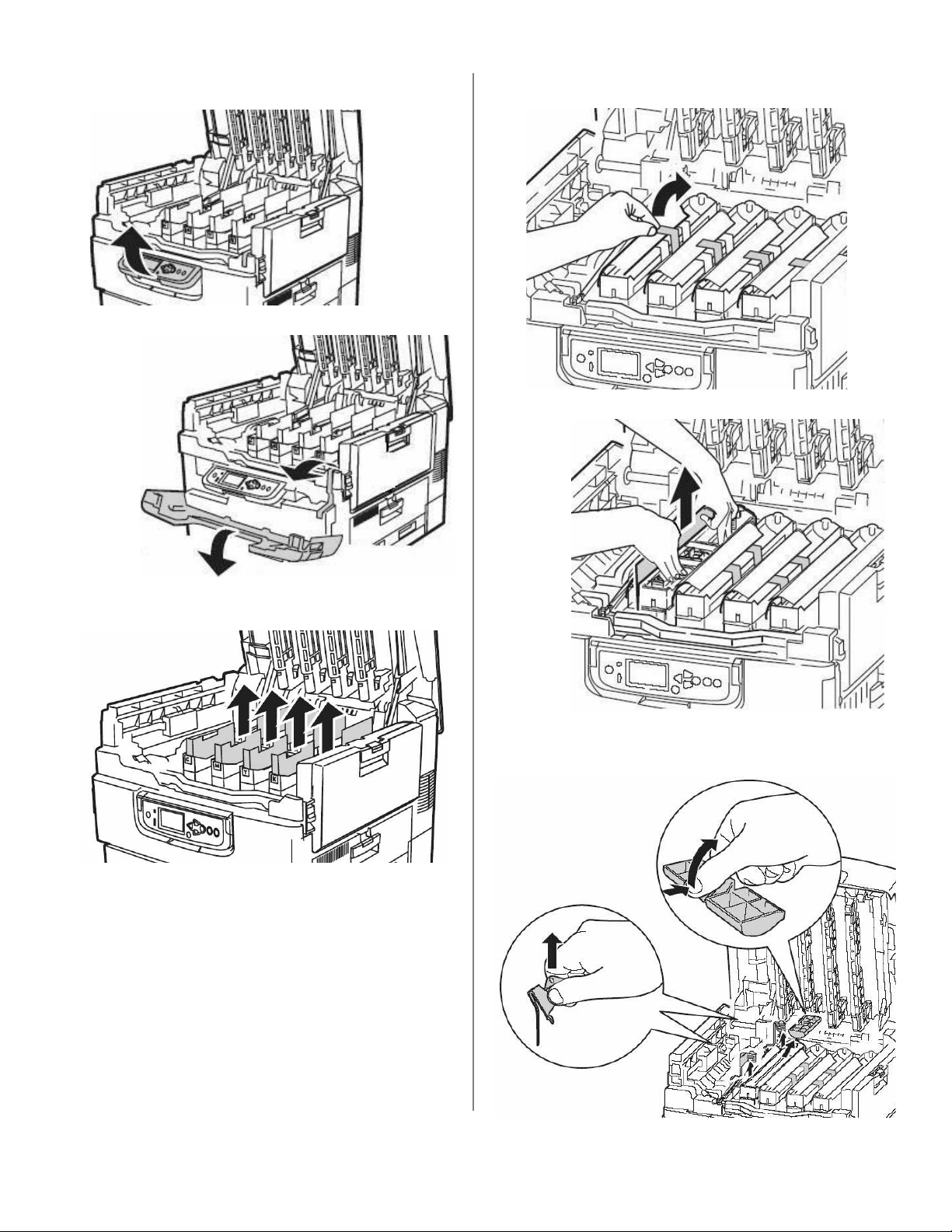

4. Lift the operator panel, open the front cover and

remove the shipping tape. Close the front cover.

5. Remove the colored image drum packing pieces.

6. For each drum, remove the tape and the

protective sheets.

7. Remove locks and seals for each drum.

ES3640e

MFP 16.jpg

ES3640e

MFP


ES3640e MFP 19.jpg

ES36

40e

MFP

20.jp

ES3640e MFP 21.jpg

ES3640e MFP 22.jpg

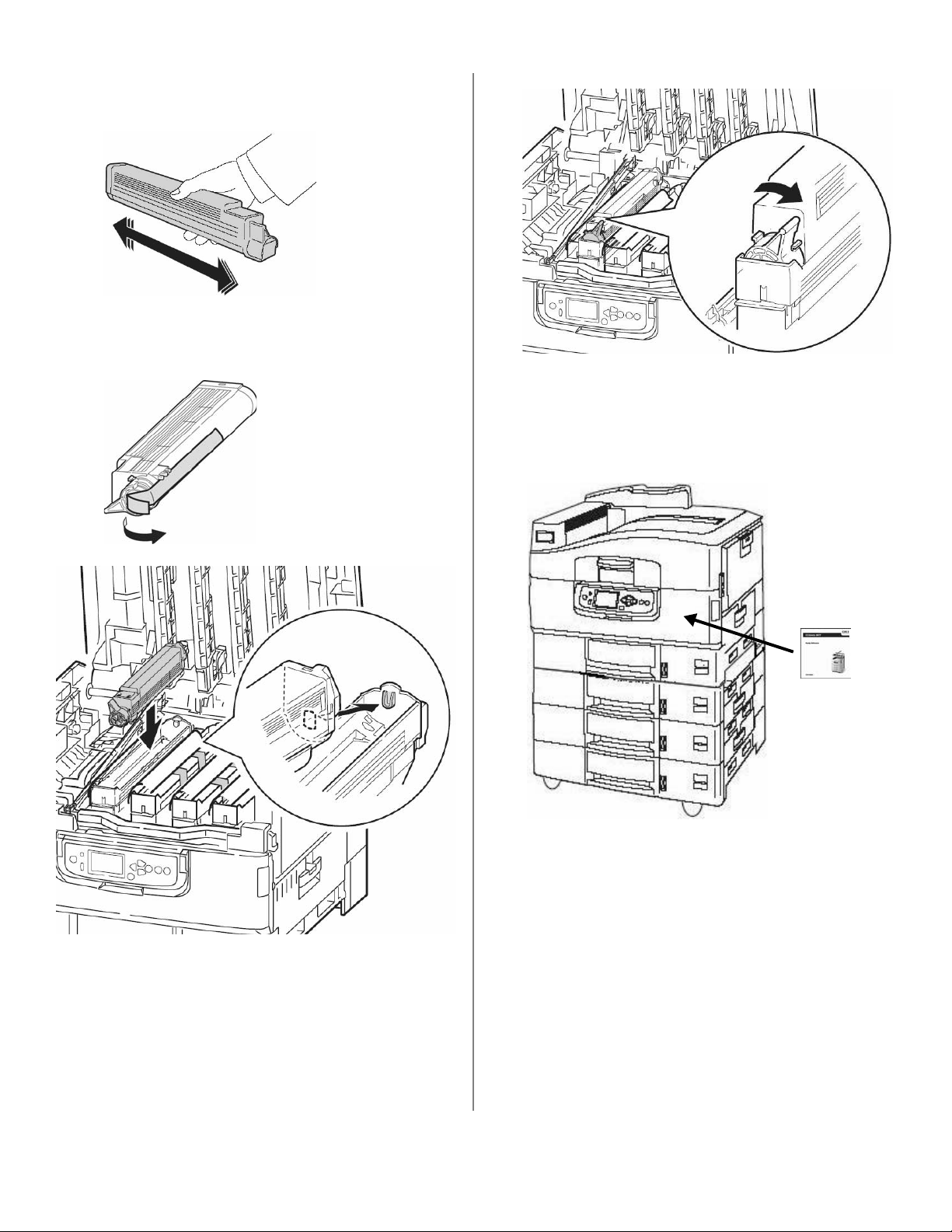

8. For each color toner cartridge:

a. Shake the toner cartridge from side to side

to distribute toner.

b. Remove sealing tape and insert the cartridge

into the corresponding color drum in the

printer.

c. Lock the toner cartridge with the lever.

9. Close the top cover.

10. Remove the backing from the strip on the back of

the Handy Reference Guide and apply the guide

to the printer.

ES3640e MFP 23.jpg

ES3640e MFP 24.jpg

ES3640e MFP 25.jpg

ES3640e MFP 26.jpg

ES3640e MFP


HandyRef_Co


Step 3 Assemble the Stand.

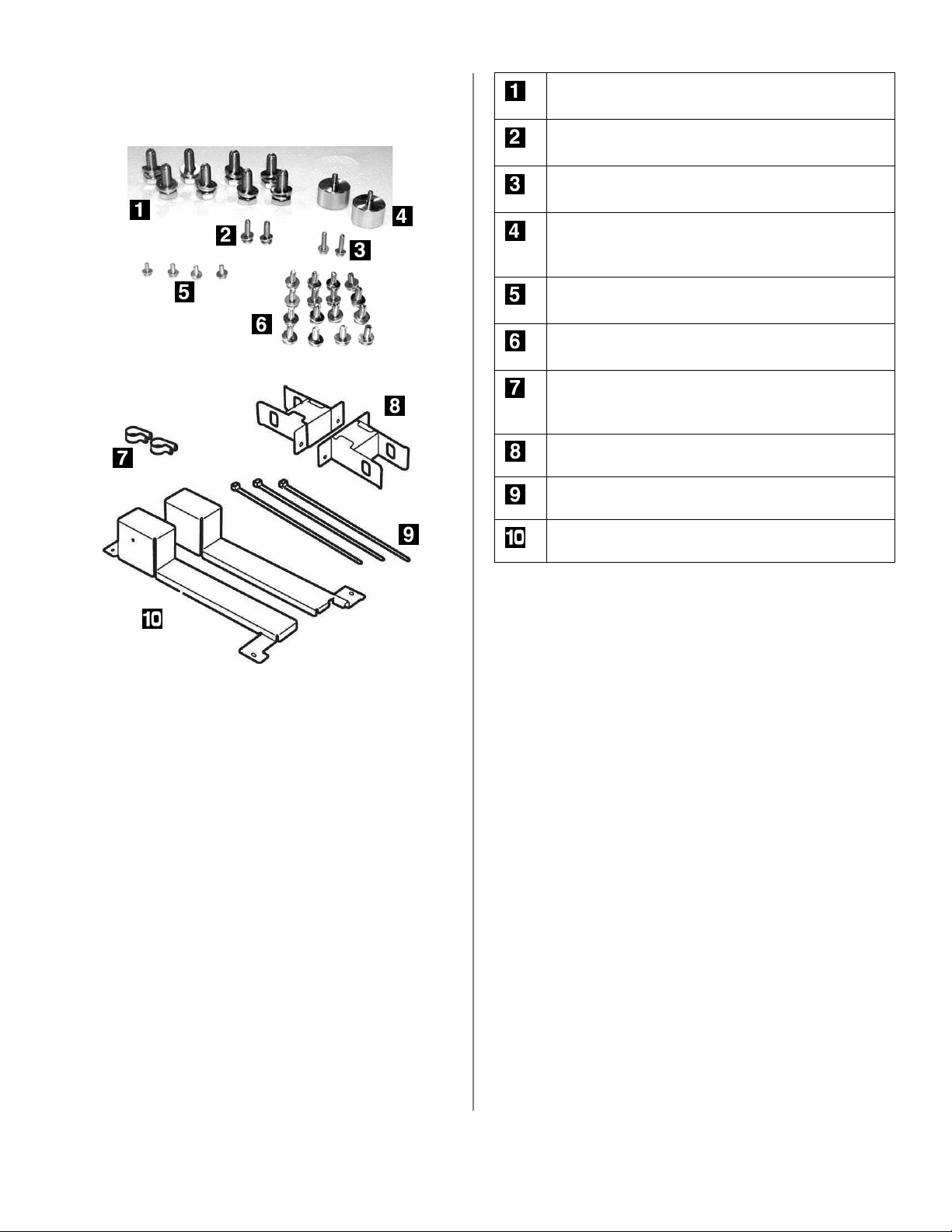

Accessories in the Stand Box

ES3640e MFP 99.jpg

ES3640e MFP 13a.jpg

8 Leg Bolts with Lock Washers and Flat

Washers for Stand Legs

2 Screws with Lock Washers and Flat Washers

for Bottom of Printer Brackets

2 Screws with Lock Washers and Flat Washers

for Plate Lock Mechanism

2 Screws with Lock Washers and Flat Washers

for attaching the Printer to the Bumper

Brackets

4 Small Screws with Lock Washers and Flat

Washers for Top of Printer Brackets

16 Medium Screws with Lock Washers and Flat

Washers

2 Cable Clips for attaching DCD cable (see

“Accessories in Scanner Box”“Accessories in

Scanner Box” on page 15) to the stand.

2 Bumper Brackets

3 Tie Wraps (to secure cabling)

2 Printer Brackets
