OCZ REVODRIVE User manual

to change prices, products, or specifications without notice.

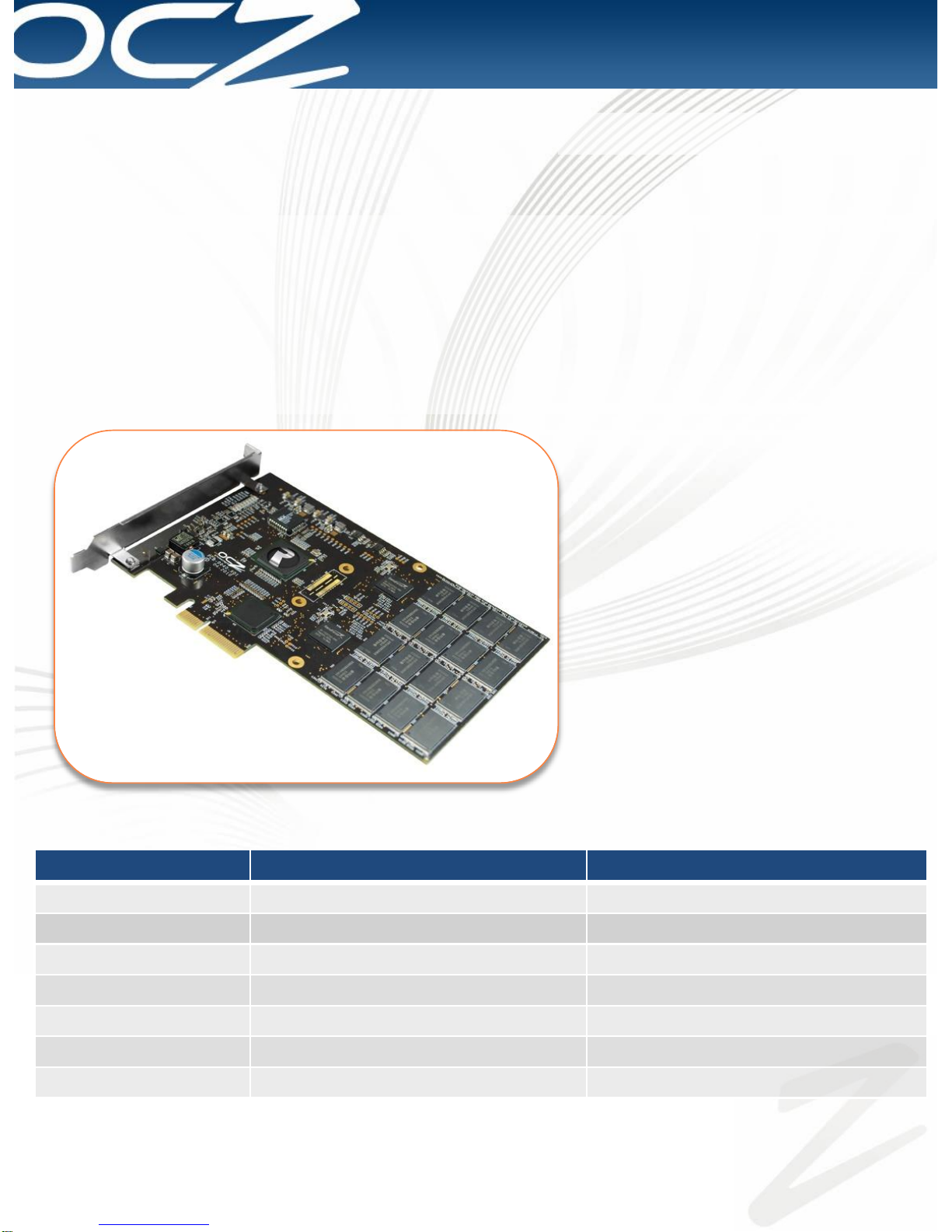

O C Z R e v o D r i v e S e r i e s

P C I - E x p r e s s x 4 S o l i d - S t a t e D r i v e

The OCZ RevoDrive makes fast, faster with an innovative performance design that pushes the envelope in solid

state technology and leaves hard drives in the dust. Moving beyond the bottleneck of the SATA interface, the

RevoDrive features a PCIe interface to deliver superior performance. Designed for high-performance gaming PCs

and workstations, the RevoDrive dominates thanks to the unique capability to run both Windows and your

essential applications and games. With speeds up to 540MBps and 75,000 IOPS, this bootable PCI-Express

SSD not only provides a more responsive PC experience, but promotes cooler, quieter, and more energy

efficient conditions compared to traditional mechanical hard drives. The RevoDrive can accommodate a wide

range of computing environments such as video-editing and other multi-media creation and management, all

while providing the superior durability and reliability of SSDs.

D e s i g n & T e c h n o l o g y :

A p p l i c a t i o n s :

Workstation PCs

Desktop PCs

PCIe SSD for High-Performance Consumer Applications

Part Numbers

UPC

RevoDrive 50GB

OCZSSDPX-1RVD0050

842024018360

RevoDrive 80GB

OCZSSDPX-1RVD0080

842024019732

RevoDrive 120GB

OCZSSDPX-1RVD0120

842024018377

RevoDrive 180GB

OCZSSDPX-1RVD0180

842024019749

RevoDrive 240GB

OCZSSDPX-1RVD0240

842024018384

RevoDrive 360GB

OCZSSDPX-1RVD0360

842024019756

RevoDrive 480GB

OCZSSDPX-1RVD0480

842024019763

to change prices, products, or specifications without notice.

RevoDrive 50 –80GB

RevoDrive 120 –480GB

P E R F O R M A N C E

Max Read¹

up to 540 MB/s

Max Write¹

up to 450 MB/s

up to 480 MB/s

Sustained Write²

up to 350 MB/s

up to 400 MB/s

4KB Random Write³

70,000 IOPS

75,000 IOPS

Seek Time

0.1 ms

P H Y S I C A L

Usable Capacities (IDEMA)

50GB, 80GB, 120GB, 180GB, 240GB, 360GB, 480GB

NAND Components

Multi-Level Cell (MLC)

Interface

PCI-Express Gen. 1

Form Factor

PCI-Express x4 slot

Controller

2 x SandForce 1222

Dimensions (L x W x H)

181.07 x 21.59 x 125.08 mm

Weight

106g (may vary slightly depending on capacity)

E N V I R O N M E N T A L

Power Consumption

Idle: 3 Watts Active: 8 Watts

Operating Temperature

0°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Shock Resistance

1500G

Certifications

RoHS, CE, FCC

R E L I A B I L I T Y

MTBF

2 million hours

ECC Recovery

Up to 24 bytes correctable per 512-byte sector

C O M P A T I B I L I T Y

PCI-Express

Fully compliant with the PCIe Electromechanical Specification Rev. 1.1, and with the PCI-

Express Base Specification Rev. 1.1

Operating System

Windows XP 32/64 Bit; Windows Vista 32/64 Bit; Windows 7 32/64 Bit

Power Requirements

A D D I T I O N A L F E A T U R E S

Performance Optimization

Onboard RAID 0

System Integration

Bootable

Service & Support

3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support

¹ Maximum Sequential Speeds are determined using ATTO

² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB

³ Small file I/O performance is measured using Iometer 2008, Queue Depth 32, 4KB Aligned

S p e c i f i c a t i o n s :

O C Z R e v o D r i v e S e r i e s

P C I - E x p r e s s x 4 S o l i d - S t a t e D r i v e

to change prices, products, or specifications without notice.

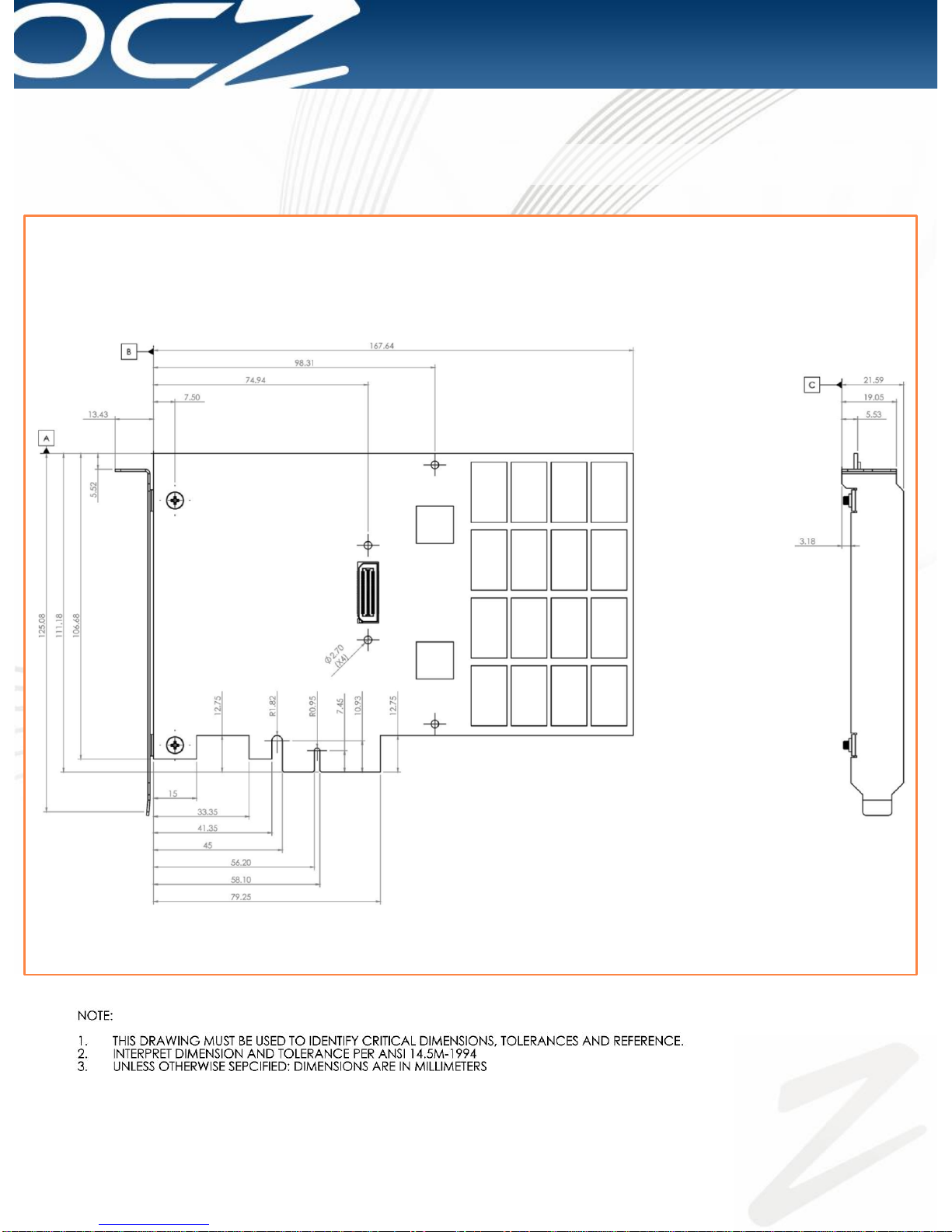

M e c h a n i c a l S p e c i f i c a t i o n s :

O C Z R e v o D r i v e S e r i e s

P C I - E x p r e s s x 4 S o l i d - S t a t e D r i v e

This manual suits for next models
