OCZ ENYO User manual
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
The innovative OCZ Enyo USB 3.0 Portable SSD offers an array for state-of-the-art features including,
5Gb/s transfer rate, ultra-portable design, superior power management, and lower CPU utilization. With the
unparalleled performance and durability of flash-based storage, the chic Enyo USB 3.0 drive far surpasses
enthusiast external HDDs and is ideal for consumers demanding leading-edge technology for a multitude of
digital files including HD video, graphics, and music. OCZ makes storage even faster with speeds ten times
faster than USB 2.0, while also being backwards-compatible with legacy ports.
D e s i g n & T e c h n o l o g y :
A p p l i c a t i o n s :
Desktop PCs
Notebooks
Portable OS drive
Part Numbers
UPC
Enyo 64GB
OCZSSDU3-1ENY64G
842024017455
Enyo 128GB
OCZSSDU3-1ENY128G
842024017462
Enyo 256GB
OCZSSDU3-1ENY256G
842024017479
O C Z E n y o S e r i e s
U S B 3 . 0 P o r t a b l e S o l i d - S t a t e D r i v e
K e y F e a t u r e s :
Super Speed USB 3.0
MLC Flash
64MB onboard cache
Anodized Aluminum Housing
Slim & Sleek Design
260 MB/s Read
200 MB/s Write
Backwards compatible with
legacy USB ports (2.0)
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.
Enyo 64GB
Enyo 128GB
Enyo 256GB
P E R F O R M A N C E
Max Read¹
up to 225MB/s
up to 260MB/s
up to 260MB/s
Max Write¹
up to 135MB/s
up to 200MB/s
up to 200MB/s
Sustained Write²
up to 40MB/s
up to 150MB/s
up to 150MB/s
Seek Time
0.1 ms
0.1 ms
0.1 ms
P H Y S I C A L
Usable Capacities (IDEMA)
64GB, 128GB, 256GB
NAND Components
Multi-Level Cell (MLC)
Interface
USB 3.0 Micro B Connector (Included: 3' White USB 3.0 [A to Micro B] Cable)
Form Factor
Custom design, see mechanical information
Controller
Indilinx Barefoot
Cache
64MB
Dimensions (W x D x H)
56 x 120 x 10 mm
Weight
75g (may vary slightly depending on capacity)
E N V I R O N M E N T A L
Power Consumption
Idle: 1.1 Watts Typical: 1.9 Watts Max: 2.4 Watts
Operating Temperature
0°C ~ +70°C
Storage Temperature
-45°C ~ +85°C
Shock Resistance
1500G
Certifications
Meets the requirements of EU RoHS Compliance Directives, FCC, CE
R E L I A B I L I T Y
MTBF
1 million hours
Reliability
BCH: 8 or 12 bits/sector for 128 Bytes spare and 16 bits/sector for 128 Bytes spare
size read
Product Health Monitoring
Self-Monitoring, Analysis and Reporting Technology (SMART)
C O M P A T I B I L I T Y
Universal Serial Bus (USB) 3.0
Fully compliant with USB specification revision 2.0 and 3.0 USB Attached SCSI Protocol
(USAP) Super Speed, High Speed, and Full Speed Bi-directional non-blocking
architecture
Operating System
Windows XP 32-Bit and 64-Bit; Windows Vista 32-Bit & 64 Bit; Windows 7 32-Bit and
64-Bit; Linux
Power Requirements
Powered from USB 3.0 interface; No external power required
A D D I T I O N A L F E A T U R E S
Performance Optimization
Idle time garbage collection
Service & Support
3-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support
Note: Performance numbers require drivers www.ocztechnology.com/drivers/Enyo_USB_3.0_SSD/
¹ Maximum Sequential Speeds are determined using ATTO
² Sustained transfer rate is measured using Iometer 2008, Queue Depth 32, 128KB
S p e c i f i c a t i o n s :
O C Z E n y o S e r i e s
U S B 3 . 0 P o r t a b l e S o l i d - S t a t e D r i v e
©2010 OCZ Technology Group, Inc. OCZ reserves the right
to change prices, products, or specifications without notice.

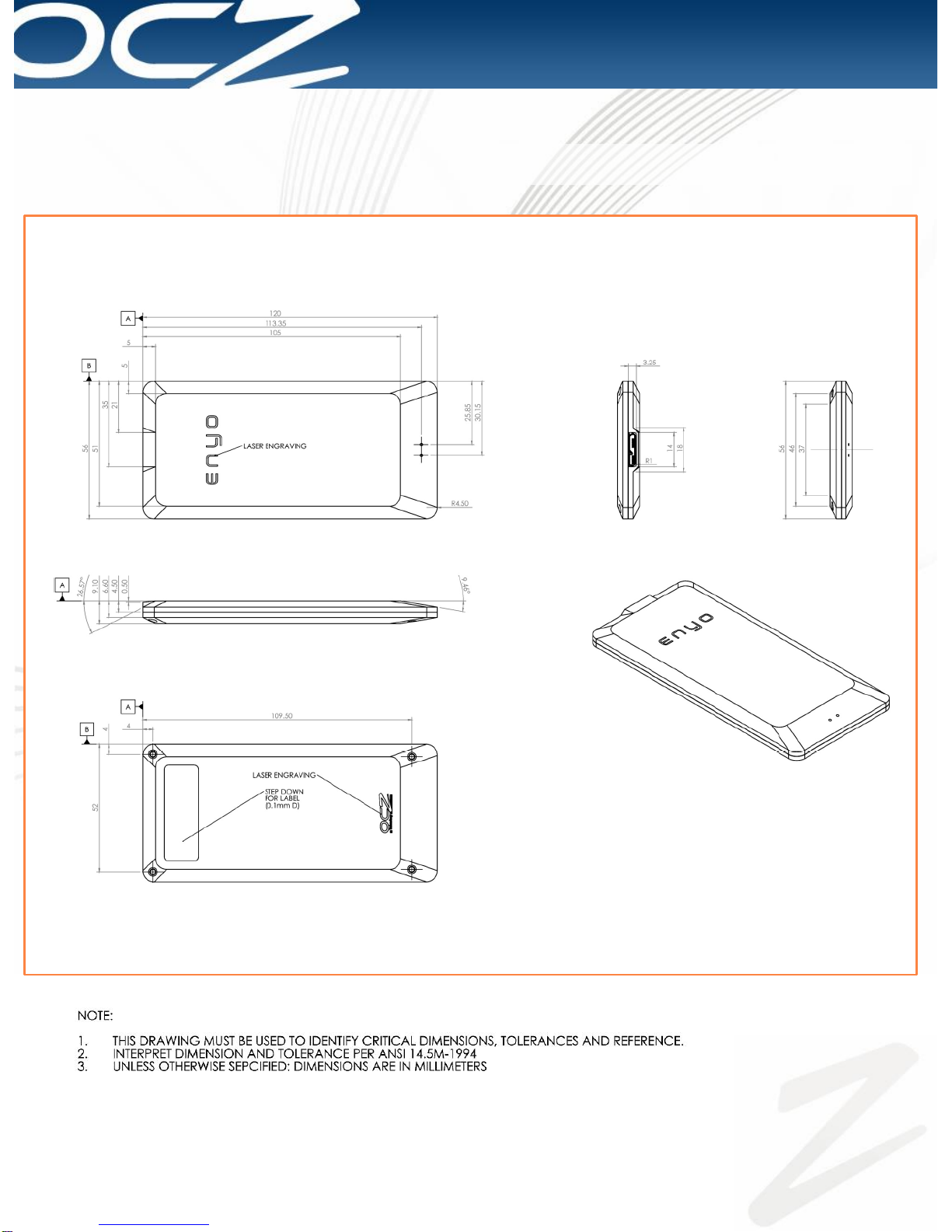

M e c h a n i c a l S p e c i f i c a t i o n s :
O C Z E n y o S e r i e s
U S B 3 . 0 P o r t a b l e S o l i d - S t a t e D r i v e
