1 Introduction

The NXP analog product development boards provide an easy-to-use platform for

evaluating NXP products. The boards support a range of analog, mixed-signal, and

power solutions. They incorporate monolithic integrated circuits and system-in-package

devices that use proven, high-volume technology. NXP products offer longer battery life,

a smaller form factor, reduced component counts, lower cost, and improved performance

in powering state-of-the-art systems.

This page guides the user through the process of setting up and using the MC33665A

serial peripheral interface (SPI) evaluation board (EVB).

1.1 Kit contents

The FRDM665SPIEVB kit includes:

•MC33665A SPI EVB, SPI to four transformer physical layer (TPL) interface EVB

•Two TPL daisy chain cables; two-wire twisted-pair daisy chain interface cable

•Quick Start Guide

1.2 Additional hardware

In addition to the kit contents, the following hardware is necessary or beneficial:

•External dual power supply 10 V to 18 V/2 A (optional)

•EVBs of battery cell controller (BCC) devices from NXP

•S32K344EVB-Q172 evaluation and development board for S32K344 from NXP

•14-cell battery pack or a battery emulator, such as BATT-14CEMULATOR

2 Getting to know the hardware

2.1 Board overview

The FRDM665SPIEVB serves as a hardware evaluation tool in support of the MC33665A

device of NXP. The MC33665A is a gateway router that can route TPL messages from

a microcontroller to four different TPL ports. It is designed for use in both automotive

and industrial applications. The device can route both TPL2 and TPL3 messages.

FRDM665SPIEVB is an ideal board for rapid prototyping of MC33665A for SPI interface

to MCU.

FRDM665SPIEVB supports an SPI for both requests (REQ) and responses (RSP).

Differential communication to daisy chain devices can be established with four different

ports.

2.2 Board features

The main features of FRDM665SPIEVB are:

•Request SPI

•Response SPI

•Onboard analog termination for daisy chain communication to BCC devices

•Configurable VIO voltage

•Configurable VDD5V from internal and external supply

User manual Rev. 1 — 18 May 2022

4 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

•DIP switch for configuring the SPI of MC33665A to operate with or without crystals

•Reset switch for the device and board

•LED display for the status of power

•Connectors to interface directly with S32K344EVB launchpad

•Connectors for external interface to general-purpose input/output (GPIO) and I2C-bus

2.3 Block diagram

aaa-044811

REQUEST

SPI

VDDIO

CFG0, CFG1

ID0 to ID3

DIP switch

3V3LDO

J13 J8

SW1

RESPONSE

SPI

TPL

PORT 0

LDO

MC33665A

POWER MANAGEMENT

GPIO, CONFIG AND

STATUS PINS

ORT

RES SPI

TPL

PORT 1

TPL

PORT 2

TPL

PORT 3

reset

switch

PORT 3

VBAT

KL30/

12 V/T30

VDD5V

VREG

VDDC/VDDD

VDD5V

VREG

EXT5V

5V_S32K

VIO_S32K

external interface

for GPIO and

status signals

Figure 1. FRDM665SPIEVB block diagram

2.4 Board description

The FRDM665SPIEVB allows the user to prototype and test all functions of the

MC33665A gateway router.

It can be stacked directly on the S32K344EVB. Different modes of SPI communication

can be established with MC33665A from K1 to K6 connectors. The FRDM665SPIEVB

can be supplied with 12 V at J6 connector or it can be powered directly from

S32K344EVB or EXT5V at J11. VDDC and VDDD can be selected by bridging one of the

positons in jumper J8 (Table 7) to select the 5 V. Bridging options jumper at J13 (Table 8)

makes it possible to select the VIO voltage of 3.3 V or 5 V or VIO of S32K344EVB.

S32K344EVB can be supplied with USB connection when connected to a PC.

SPI interface to external controller boards can be done with J7 for REQ SPI and J16

for RSP SPI. Do note to check the VIO of external controller board to be same as VIO

selected with jumper J13. Single SPI or dual SPI modes can be selected by using

jumpers at J14. Populating all jumpers at J14 enables single SPI mode and depopulates

User manual Rev. 1 — 18 May 2022

5 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

jumpers at J14 for dual SPI mode. SW2 DIP switch can be used to select the CFG and

ID configuration for MC33665A. BCC devices can be connected to daisy chain ports 0 to

3 via connectors J5, J12, J17, and J18.

Connector J1 gives the option to access the GPIO and I2C-bus pins of MC33665A.

Contact the NXP engineering team for using TPL autowake function in

FRDM665SPIEVB.

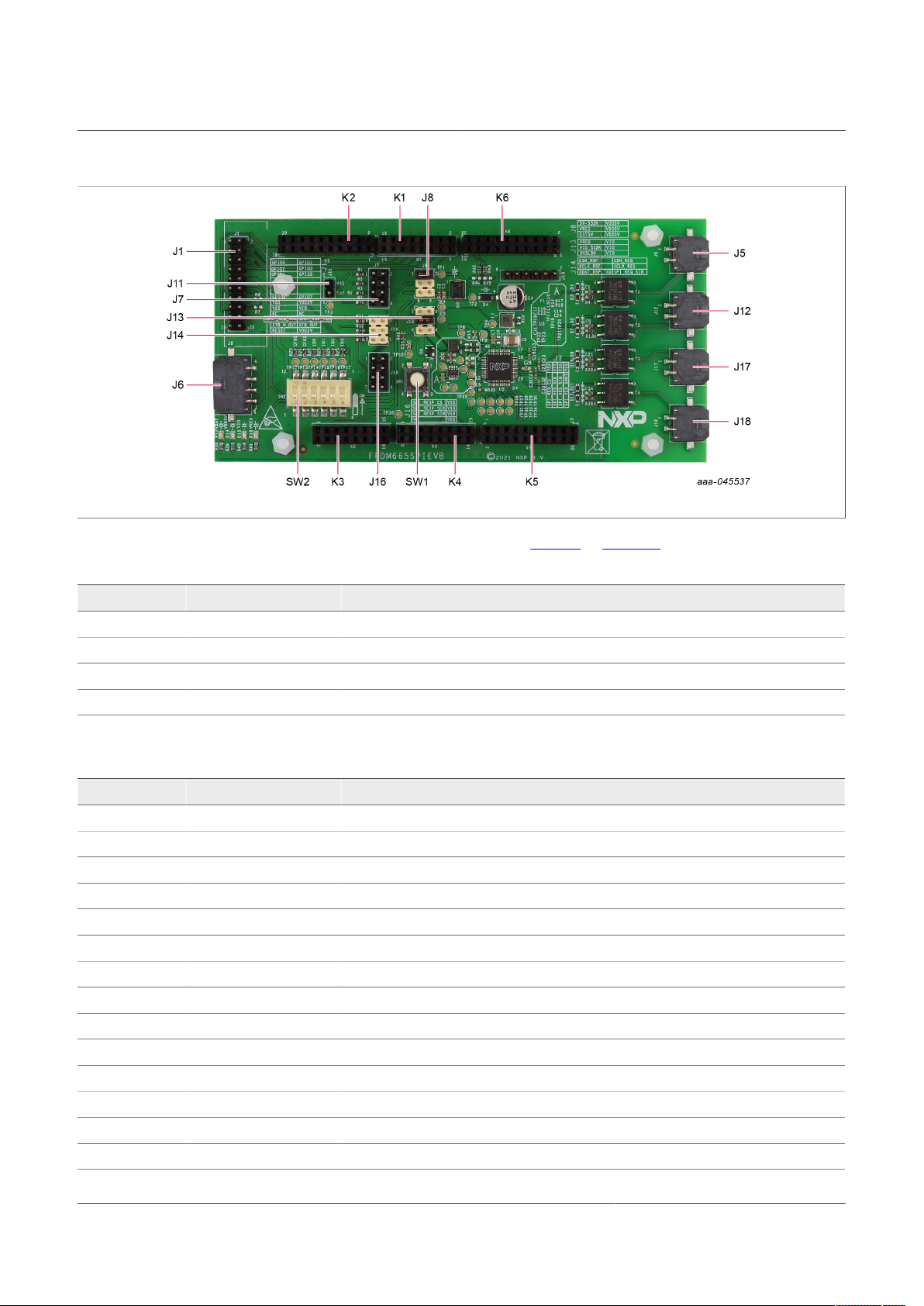

Figure 2. SPI EVB description

Power configuration of the board can be reflected by LEDs populated on board. LEDs

glow on board reflects the right power interface connected to FRDM665SPIEVB.

LED VBAT 12 V External 5 V S32K344EVB

D13 - red X - -

D14 - green X X X

D15 - green X X X

D16 - red X - -

Table 1. Power status LEDs

2.5 Connectors

FRDM665SPIEVB has multiple connectors for interfacing to MCU, internal GPIO, and

external BCC devices.

User manual Rev. 1 — 18 May 2022

6 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Figure 3. FRDM665SPIEVB connectors

Pin configuration of connectors is shown in Table 2 to Table 15.

Pin number Connection Description

1 VBAT connection to 12 V

2 - not connected

3 - not connected

4 GND ground connection for MC33665A and interface boards

Table 2. Power connector - J6

Pin number Connection Description

1 GPIO0 interface to GPIO0 or INT0 for MC33665A

2 GPIO1 interface to GPIO1 or INT1 for MC33665A

3 GPIO2 interface to GPIO2 or INT2 for MC33665A

4 GPIO3 interface to GPIO3 or INT3 for MC33665A

5 GPIO4 interface to GPIO4 or I2C-bus in MC33665A

6 GPIO5 interface to GPIO5 or I2C-bus in MC33665A

7 GPIO6 interface to GPIO6 or SYNC in MC33665A

8 GPIO7 interface to GPIO7 or HOLD in MC33665A

9 VSS/GND ground

10 VDD5V 5 V supply line

11 VSS/GND ground

12 VIO VIO interface for MC33665A

13 - not connected

14 - not connected

Table 3. GPIO and interface - J1

User manual Rev. 1 — 18 May 2022

7 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Pin number Connection Description

15 NC-SDAT_RSP_TXD connect R6 to interface SDAT_RSP_TXD of MC33665A

16 NC-SDAT_REQ_RXD connect R7 to interface SDAT_REQ_RXD of MC33665A

17 STB_N_OUT inverted standby signal from MC33665A

18 STB_OUT standby signal from MC33665A

19 RESET reset signal for MC33665A

20 VDD5V 5 V supply line

Table 3. GPIO and interface - J1...continued

Pin number Connection Description

1 SPI_RESP_CS chip select for response SPI

2 GND ground

3 SPI_RESP_CLK clock interface for response SPI

4 GND ground

5 SPI_RESP_SIN response TXD of MC33665A

6 GND ground

7 - not connected

8 GND ground

Table 4. Response SPI - J16

Pin number Connection Description

1 SPI_REQ_CS chip select for request SPI

2 GND ground

3 SPI_REQ_SCK clock interface for request SPI

4 GND ground

5 SPI_REQ_SIN response TXD of MC33665A; interfaced to MC33665A by shorting jumper pin 1

and pin 2 in J14

6 GND ground

7 SPI_REQ_SOUT request RXD of MC33665A

8 GND ground

Table 5. Request SPI - J7

Pin number Connection Description

1 EXT5V external 5 V supply

2 VSS/GND ground

Table 6. External 5 V - J11

User manual Rev. 1 — 18 May 2022

8 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Pin number Connection Description

1-2 5V-S32K344EVB connection of 5 V from S32K344EVB to MC33665A SPI EVB; functional only

when FRDM665SPIEVB is used with S32K344 stackable EVB

3-4 VREG 5 V generated by VREG is connected to VDD5V. Note: It needs an external

12 V connection to VBAT with J6.

5-6 EXT5V external 5 V supply connected to J11 is selected for EXT5V

Table 7. VDD5V jumper - J8

Pin number Connection Description

1-2 VREG connects constant 5 V generated by VREG to VDDIO/VIO of MC33665A

3-4 VIO-S32K connects VIO preselected in S32K344EVB to MC33665A

5-6 3V3LDO connects constant 3.3 V generated by low dropout (LDO) to VDDIO/VIO of

MC33665A

Table 8. VIO jumper - J13

Pin number Connection Description

1-2 SDAT_RSP_TXD bridge SDAT_RSP_TXD for single SPI mode

3-4 SCLK_RSP bridge SCLK_RSP with SCLK_REQ for single SPI mode

5-6 CSN_RSP bridge CSN_RSP with CSN_REQ for single SPI mode

Table 9. Single SPI jumper - J14

Pin number Connection Description

1 HOLD interface to MC33665A GPIO7

3 SYNC interface to MC33665A GPIO6

5 GPIO5 interface to MC33665A GPIO5

7 GPIO4 interface to MC33665A GPIO4

9 GPIO3 interface to MC33665A GPIO3

11 GPIO2 interface to MC33665A GPIO2

13 GPIO1 interface to MC33665A GPIO1

15 GPIO0 interface to MC33665A GPIO0

Other - not connected

Table 10. S32K344EVB connector - K1

Pin number Connection Description

1 STB_OUT interface to MC33665A standby signal STB_OUT

5 CSN_RSP interface to MC33665A CSN_RSP

7 SDAT_REQ_RXD interface to MC33665A request RXD

Table 11. S32K344EVB connector - K2

User manual Rev. 1 — 18 May 2022

9 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Pin number Connection Description

9 SDAT_RSP_TXD interface to MC33665A response TXD

11 SCLK_RSP interface to MC33665A response clock

17 RESET interface to MC33665A RESET signal

19 WAKE_IN interface to MC33665A WAKE_IN signal

Other - not connected

Table 11. S32K344EVB connector - K2...continued

Pin number Connection Description

3 VIO-S32K preselected VIO from S32K344EVB

9 5V-S32K 5 V power rail from S32K344EVB

11 VSS ground

13 VSS ground

Other - not connected

Table 12. S32K344EVB connector - K3

Pin number Connection Description

7 SCLK_REQ request clock signal to MC33665A

13 SDAT_REQ_RXD request RXD signal to MC33665A

15 CSN_REQ request CSN to MC33665A

Other - not connected

Table 13. S32K344EVB connector - K4

Pin number Connection Description

12 VSS ground

Other - not connected

Table 14. S32K344EVB connector - K5

Pin number Connection Description

5 SDAT_RSP_TXD response signal from MC33665A

•Must disable pin of S32K344 in SPI mode

•Only functional for universal asynchronous receiver transmitter (UART) EVB

7 SDAT_REQ_RXD request signal to MC33665A

•Must disable pin of S32K344

•Only functional for UART EVB

12 VSS ground

Other - not connected

Table 15. S32K344EVB connector - K6

User manual Rev. 1 — 18 May 2022

10 / 16

Other manuals for FRDM665SPIEVB

This manual suits for next models

Table of contents

Other NXP Semiconductors Computer Hardware manuals

NXP Semiconductors

NXP Semiconductors S32G-VNP-EVB3 User manual

NXP Semiconductors

NXP Semiconductors OM15080-QN9090 User manual

NXP Semiconductors

NXP Semiconductors i.MX RT1170 Installation and operating instructions

NXP Semiconductors

NXP Semiconductors MCIMX8QM-CPU User manual

NXP Semiconductors

NXP Semiconductors PN7150 User manual

NXP Semiconductors

NXP Semiconductors TWR-K60F120M User manual

NXP Semiconductors

NXP Semiconductors NavQPlus 8MPNAVQ-8G-G User manual

NXP Semiconductors

NXP Semiconductors SABRE i.MX 6 Series Assembly instructions

NXP Semiconductors

NXP Semiconductors UM10856 User manual

NXP Semiconductors

NXP Semiconductors LX2160ARDBGSG User manual

NXP Semiconductors

NXP Semiconductors i.MX 6SoloX SABRE-SDB User manual

NXP Semiconductors

NXP Semiconductors LPC288 Series User manual

NXP Semiconductors

NXP Semiconductors QSG ADC1x13D+ECP3 DB User manual

NXP Semiconductors

NXP Semiconductors Freescale TWR-S12G240 User manual

NXP Semiconductors

NXP Semiconductors QorIQ LS1012A User manual

NXP Semiconductors

NXP Semiconductors MR-CANHUBK344 Instructions for use

NXP Semiconductors

NXP Semiconductors KTTWR17510EVBUG User manual

NXP Semiconductors

NXP Semiconductors TWR-P1025 User manual

NXP Semiconductors

NXP Semiconductors i.MX 8M Mini LPDDR4 EVK User manual

NXP Semiconductors

NXP Semiconductors MCF5272 ColdFire User manual

NXP Semiconductors

NXP Semiconductors RD710 User manual

NXP Semiconductors

NXP Semiconductors QorIQ LS1028A User manual

NXP Semiconductors

NXP Semiconductors MCU-Link Pro User manual

NXP Semiconductors

NXP Semiconductors i.MX 8MDQLQ User manual

Popular Computer Hardware manuals by other brands

EMC2

EMC2 VNX Series Hardware Information Guide

Panasonic

Panasonic DV0PM20105 Operation manual

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 user manual

Gigabyte

Gigabyte B660M DS3H AX DDR4 user manual

Raidon

Raidon iT2300 Quick installation guide

National Instruments

National Instruments PXI-8186 user manual

Hauppauge

Hauppauge WinTV-HVR-2250 Quick installation guide

Kontron

Kontron CP6002 user guide

Manhattan

Manhattan 702843 user manual

Aphex

Aphex 230 instruction manual

AMD

AMD Phenom II Product data sheet

Intel

Intel NUC 12 Pro user guide

dbx

dbx Zone Pro 1260 user manual

Galaxy

Galaxy GHDX2-2430S-24F4D Installation and hardware reference manual

Intel

Intel AXXRMFBU4 Quick installation user's guide

Kontron

Kontron DIMM-PC/MD product manual

ST X-NUCLEO-SAFEA1B How to use

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 installation manual
