Nvent T43 User manual

Rev. I P/N 10-1008-145

T-SERIES

Air Conditioner

t43 Model

INSTRUCTION MANUAL

- 2 -

IMPORTANT NOTICE

• These instructions were authored in English. Instructions published in languages other than English have been

translated from the authored language.

• These air conditioners are intended to be used by properly trained customers in industrial, communications and

agricultural environments.

• Operating sound level is below 70 dBA.

Disconnect the power source from

the air conditioner before servicing.

WARNING

TABLE OF CONTENTS

Warranty and Return Policy.............................................................................................................................................................2

IMPORTANT NOTICE .......................................................................................................................................................................2

RECEIVING THE AIR CONDITIONER...............................................................................................................................................3

HANDLING AND TESTING THE AIR CONDITIONER......................................................................................................................3

INSTALLATION INSTRUCTIONS .....................................................................................................................................................4

Design Data.....................................................................................................................................................................................................4

DIMENSIONAL DRAWINGS .............................................................................................................................................................4

MOUNTING CUTOUT DIMENSIONS ...............................................................................................................................................5

MOUNTING GASKET KIT.................................................................................................................................................................6

Components List ............................................................................................................................................................................................7

Wiring Diagram and Schematic ......................................................................................................................................................8

Generic Wire Diagram (actual unit options may vary) .........................................................................................................................8

Generic Schematic For 1-Phase Models (actual unit options may vary)...........................................................................................9

Generic Wire Diagram For 3-Phase Models (actual unit options may vary)......................................................................................9

TEMPERATURE CONTROL ........................................................................................................................................................... 10

Units With Heat .............................................................................................................................................................................................10

PRINCIPLES OF OPERATION ....................................................................................................................................................... 10

MAINTENANCE............................................................................................................................................................................. 10

Compressor...................................................................................................................................................................................................10

Inlet Air Filter .................................................................................................................................................................................................10

How To Remove, Clean or Install a New Inlet Air Filter .............................................................................................................................11

Condenser and Evaporator Air Movers.......................................................................................................................................................11

Refrigerant Loss............................................................................................................................................................................................11

TROUBLE SHOOTING ................................................................................................................................................................... 12

Basic Air Conditioning Trouble Shooting Check List.................................................................................................................................12

Symptoms and Possible Causes:................................................................................................................................................................13

NOTE: Some of the information in this manual may not apply if a special unit was ordered. If

additional drawings for a special unit are necessary, they have been inserted. Contact nVent

Equipment Protection if further information is required.

WARRANTY AND RETURN POLICY

https://hoffman.nvent.com/en/hoffman/warranty-information

89056284 - 3 -

RECEIVING THE AIR CONDITIONER

Inspect the air conditioner. Check for concealed damage that may have occurred during shipment. Look for dents,

scratches, loose assemblies, evidence of oil, etc. Damage evident upon receipt should be noted on the freight bill.

Damage should be brought to the attention of the delivering carrier -- NOT to nVent Equipment Protection -- within

15 days of delivery. Save the carton and packing material and request an inspection. Then le a claim with the

delivering carrier.

nVent Equipment Protection cannot accept responsibility for freight damages; however, we will assist you in any

way possible.

HANDLING AND TESTING THE AIR CONDITIONER

If the air conditioner has been in a horizontal position, be certain it is placed in an upright, vertical or mounting

position for a minimum of ve (5) minutes before operating.

Do not attempt to operate the air conditioner while it is horizontal

or on its side, back or front. The refrigeration compressor is lled

with lubricating oil. This will cause permanent damage to the air

conditioner and also voids the warranty.

CAUTION

TEST FOR FUNCTIONALITY BEFORE MOUNTING THE AIR CONDITIONER TO THE ENCLOSURE.

Refer to the nameplate for proper electrical current requirements, and then connect the power cord to a properly

grounded power supply. Minimum circuit ampacity should be at least 125% of the amperage shown in the

design data section for the appropriate model. No other equipment should be connected to this circuit to prevent

overloading.

Operate the air conditioner for ve (5) to ten (10) minutes. No excessive noise or vibration should be evident

during this run period. The condenser blower (ambient air), the evaporator impeller (enclosure air), and the

compressor should be running.

Condenser air temperatures should be warmer than normal room temperatures within a few minutes. The

compressor is provided with automatic reset thermal overload protection. This thermoswitch is located and

mounted inside the plastic enclosure clipped to the compressor. The switch operates when the compressor

overheats due to clogged or dirty inlet air lter or if ambient air temperatures exceed nameplate rating or if

enclosure dissipated heat loads exceed the rated capacity of the air conditioner. The thermal overload switch

will actuate and stop compressor operation. The blowers will continue to operate and the compressor will restart

after it has cooled to within the thermal overload cut-in temperature setting.

- 4 -

INSTALLATION INSTRUCTIONS

1. Inspect the air conditioner and verify correct functionality before mounting the air conditioner. See

HANDLING AND TESTING THE AIR CONDITIONER on page 3.

2. Using the cutout dimensions, See MOUNTING CUTOUT DIMENSIONS on page 5 in this manual,

prepare the air “IN” and air “OUT” openings, and mounting bolt hole pattern for the enclosure.

3. Using the gasket kit provided, install gaskets to air conditioner. See MOUNTING GASKET KIT on

page 6 for proper location.

4. Mount air conditioner on enclosure using mounting bolts and screws provided. “EZ” mount tabs

can be used to hold unit on enclosure while mounting in place. Allow unit to remain upright for a

minimum of ve (5) minutes before starting. Caution! Air conditioner must be in upright position

during operation.

5. When routing the drain tube, caution should be taken to keep it from kinking or being elevated

above the exit point of the air conditioner. The drain tube must be on a continuous downward

slope. A slight elevation of the tube could result in secondary trap. FAILURE TO FOLLOW THESE

INSTRUCTIONS COULD RESULT IN OVERFLOWING OF THE CONDENSATE DRAIN PAN.

6. Refer to top of nameplate for electrical requirements. Connect the power cord to a properly

grounded power supply. Use of an extension cord is not recommended. Electrical circuit should be

fused with slow blow or HACR circuit breaker.

DESIGN DATA

Model Voltage Hz Full Load

Amps Phase BTU/Hr @ Max

Amb Temp Max Amb Temp

°F/°C Shipping

Weight lb./kg

T430616GXXX 115 50/60 8.6 16310/6680 131/55 125/57

T430626GXXX 230 50/60 3.8 16520/6770 131/55 125/57

T430816GXXX 115 50/60 10.4/11.2 17900/8600 131/55 125/57

T430826GXXX 230 50/60 5.2/5.4 17400/8200 131/55 125/57

T431016GXXX 115 50/60 16/20 19670/10290 131/55 125/57

T431026GXXX 230 50/60 9.0 110040/10670 131/55 125/57

T431046G4XX 400/460 50/60 3.4/3.0 310100/10500 131/55 140/64

XXX will be replaced with a three-digit number designating all desired options. Consult the factory for specic model numbers.

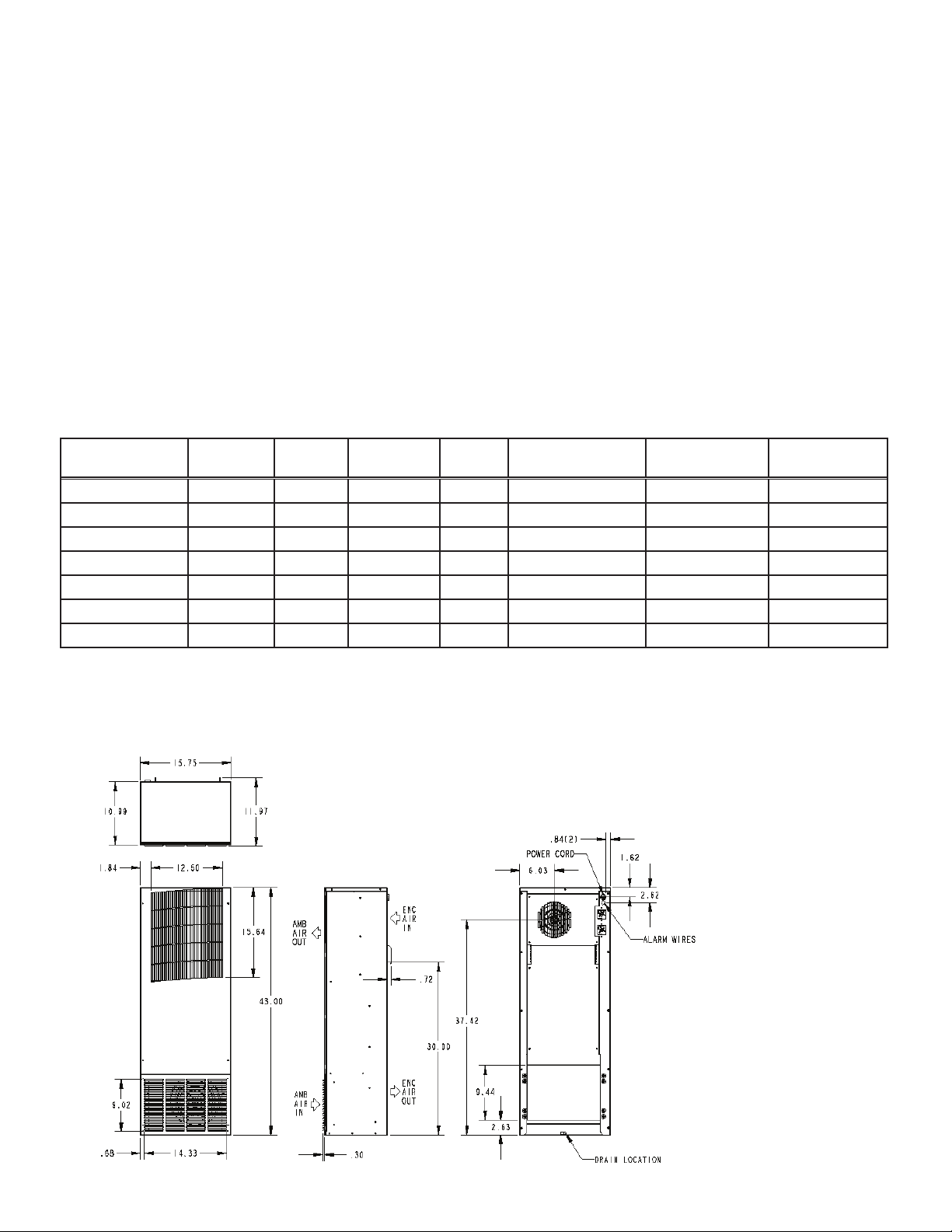

DIMENSIONAL DRAWINGS

6K BTU

89056284 - 5 -

8-10K BTU

MOUNTING CUTOUT DIMENSIONS

External Cutout Internal Cutout

- 6 -

MOUNTING GASKET KIT

89056284 - 7 -

COMPONENTS LIST

Part Description Part Number (115 Volt)

6000 BTU 8000 BTU 10000 BTU

Capacitor, Compressor, Start 10-1032-05 10-1032-08 10-1032-32

Capacitor, Compressor, Run S-6173 52-6032-01 52-6032-06

Capacitor, Impeller, Condenser 52-6084-01 52-6084-01 52-6031-03

Capacitor, Impeller, Evaporator 52-6084-01 52-6084-01 52-6084-01

Coil, Condenser 45-6051-00 45-6051-00 45-6051-00

Coil, Evaporator 43-6025-00 43-6025-00 43-6025-00

Compressor, RKA 10-1016-86 10-1016-85 10-1016-88

Filter, Air, Reusable 89057617 89057617 89057617

Filter/Dryer 52-6028-00 52-6028-00 52-6028-00

Freeze Stat 10-1033-29 10-1033-29 10-1033-29

Head Pressure Control Switch 52-6104-26 52-6104-26 52-6104-26

Impeller, Condenser 10-1091-123 10-1091-123 10-1091-89

Impeller, Evaporator 10-1091-123 10-1091-123 10-1091-123

Relay, Compressor Start 10-1042-20 10-1042-07 10-1042-17

Service Cord 52-6035-143 52-6035-143 52-6035-85

Thermal Expansion Valve 99-0540-39 (cap tube) 10-1040-37 10-1040-38

Thermal Overload, Compressor TTC=8300MRAL19 OR

TI=MRA4761-114 TTC=8300MRAL22

OR TI=MRA4760-114 Internal

Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 10-1061-16

Part Description Part Number (230 Volt) 460V 3-Phase

6000 BTU 8000 BTU 10000 BTU 10000 BTU

Capacitor, CompressNor, Start 10-1032-14 10-1032-08 10-1032-08 N/A

Capacitor, Compressor, Run S-6173 S-6173 52-6032-01 N/A

Capacitor, Impeller, Condenser 52-6084-02 52-6084-02 52-6084-05 52-6032-20

Capacitor, Impeller, Evaporator 52-6084-02 52-6084-02 52-6084-02 52-6032-44

Coil, Condenser 45-6051-00 45-6051-00 45-6051-00 45-6051-00

Coil, Evaporator 43-6025-00 45-6050-00 45-6050-00 45-6050-00

Compressor, RKA 10-1026-109 10-1026-108 10-1026-107 10-1024-113

Filter, Air, Reusable 89057617 89057617 89057617 89057617

Filter/Dryer 52-6028-00 52-6028-00 52-6028-00 52-6028-00

Freeze Stat 10-1033-29 10-1033-29 10-1033-29 87097855

Head Pressure Control Switch 52-6104-26 52-6104-26 52-6104-26 52-6104-26

Impeller, Condenser 10-1091-124 10-1091-124 10-1091-90 10-1091-90

Impeller, Evaporator 10-1091-124 10-1091-124 10-1091-124 10-1091-124

Relay, Compressor Start 10-1042-21 10-1042-08 10-1042-17 N/A

Service Cord 52-6035-32 52-6035-32 52-6035-32 N/A

Thermal Expansion Valve 99-0540-39 (cap tube) 10-1040-37 10-1040-38 10-1040-31

Thermal Overload, Compressor TTC=8300MRAL20

TI=MRA4765-114

TTC=8300MRAL23

TI=MRA1706-114

TTC=8300MRAL30

TI=MRA4764-114 10-1007-79

Thermostat, SPST, 55-100F 10-1061-16 10-1061-16 10-1061-16 10-1061-16

Relay, Phase Monitor N/A N/A N/A 87097986

Relay, Overload N/A N/A N/A 87078326

Contactor, 3-Pole N/A N/A N/A 89102057

Relay, 24 VAC N/A N/A N/A 10-1005-36

- 8 -

WIRING DIAGRAM AND SCHEMATIC

GENERIC WIRE DIAGRAM (ACTUAL UNIT OPTIONS MAY VARY)

%#2

%1/2«470

1.



I:F#%

K7>#

D76$

4>=%

K7>$'

5A?BD7EEAD

$.-5+.

D76#*

$.-5+.

:736

:73F7D

5A?B:FD

4>=/$%"H!I:F/##'H

D76$

K7>#

4>=+

E7DH;575AD6 4>=4D@

I:F4>G

9D@9D@!K7>

F:7D?AEF3F

8D77L7

BD7EEGD7

5A@FDA>

;?B7>>7D

3?4;7@F

$.-

$40

$.7

$.-

9*6

9D@(

$40

4>=*

?3>8

$.7

;'.

4'&

EI;F5:

56#46

%#2

4>=(*

4'.#;

56#46

AD9((

I:F('

K7>()







##'H/#'?86

$%"H/#'?86

$.-5+.

5AA>;@9

F:7D?AEF3F

:73F;@9

F:7D?AEF3F

K7>$'

4>=#"

4>=)%

4D@)#

4>=+%

4D@)#

%#2

470

4D@)

$%"H/$?86

##'H/#"?86

4>=&

I:F+$

I:F+"

I:F+#

4>G)"

>;?;F

EI;F5:7E

3GFA

E;>#(

?3@>

4>=!

$.-5+.

I:F)$

I:F$&

I:F#%

4>G)'

4>=)&

4>=+

4>=)&

4>=(*

I:F)$

4>G)"

4>=''

##'H/#"?86

$%"H/$?86

470

%#2

4>=#"

$.7

$.-

$40

9D@(

7@5>AEGD7

;?B7>>7D

4D@'&

$40

$.-

$.7

4>=)%

4>=/$%"H!I:F/##'H

4>=)(

4>G))

ABB

EGBB

88006097

(

89056284 - 9 -

GENERIC SCHEMATIC FOR 1-PHASE MODELS (ACTUAL UNIT OPTIONS MAY VARY)

GENERIC WIRE DIAGRAM FOR 3-PHASE MODELS (ACTUAL UNIT OPTIONS MAY VARY)

- 10 -

TEMPERATURE CONTROL

The electromechanical thermostat is factory preset to 75 F/24 C. To change the temperature setting, remove the

nylon plug (if applicable) from the back face of the unit. Use a standard screwdriver to adjust thermostat. For cooler

temperatures turn clockwise, for warmer temperatures turn counterclockwise. The set point of the thermostat equals

the off temperature. The on temperature is 10 F/5 C above the set point.

UNITS WITH HEAT

The heating thermostat is factory preset to 55 F/13 C. The set point for the heating thermostat equals the on

temperature. The off temperature is 10 F/5 C above the set point.

PRINCIPLES OF OPERATION

If electrical power to the air conditioner is interrupted and reapplied immediately, (within 3 to 5 seconds), the compressor

may not restart due to the high back pressure of the compressor. It takes a minimum of one (1) minute after shut-down

for the compressor suction and discharge pressures to equalize in order for the air conditioner to restart.

Operating the air conditioner below the minimum ambient temperature or above the maximum ambient temperatures

indicated on the nameplate voids all warranties.

It is recommended that the warranty section of this manual be read in order to familiarize yourself with parameters of

restricted operation.

The moisture that the enclosure air can contain is limited. If moisture ows from the drain tube continuously this can

only mean that ambient air is entering the enclosure. Be aware that frequent opening of the enclosure’s door admits

humid air, which the air conditioner must then dehumidify.

MAINTENANCE

COMPRESSOR

The compressor requires no maintenance. It is hermetically sealed, properly lubricated at the factory and should

provide years of satisfactory operating service.

Should the refrigerant charge be lost, recharging ports (access ttings) on the suction and discharge sides of the

compressor are provided for recharging and/or checking suction and discharge pressures.

Under no circumstances should the access tting covers be loosened, removed or tampered with.

Breaking of seals on compressor access ttings during warranty period will void warranty on hermetic system.

Recharging ports are provided for the ease and convenience of reputable refrigeration repair service personnel for

recharging the air conditioner.

INLET AIR FILTER

Proper maintenance of the inlet air lter, located behind the front cover, will assure normal operation of the air

conditioner. If lter maintenance is delayed or ignored, the maximum ambient temperatures under which the unit is

designed to operate will be decreased.

If the compressor’s operating temperature increases above designed conditions due to a dirty or clogged lter (or

plugged condenser coil), the air conditioner’s compressor will stop operating due to actuation of the thermal overload

cut-out switch located on the compressor housing. As soon as the compressor temperature has dropped to within

the switch’s cut-in setting, the compressor will restart automatically. However the above condition will continue to

take place until the lter or coil has been cleaned. It is recommended that power to the air conditioner be interrupted

intentionally when abnormally high compressor operating temperature causes automatic shut-down of the unit. The

above described shut-down is symptomatic of a clogged or dirty lter, thus causing a reduction in cooling air ow

across the surface of the compressor and condenser coil.

Do not run the air conditioner for extended periods of time with the lter removed. Particles of dust, lint, etc., can plug

the ns of the condenser coil which will give the same reaction as a plugged lter. The condenser coil is not visible

through the lter opening, so protect it with a lter.

Continued operation under the above conditions can and will damage and shorten compressor life. The air conditioner

is available with an easily removable inlet lter to facilitate necessary cleaning. There should be no reason to neglect

this necessary maintenance.

This manual suits for next models

Table of contents

Other nvent Air Conditioner manuals

nvent

nvent T62 User manual

nvent

nvent SPECTRACOOL N16 User manual

nvent

nvent SPECTRACOOL NHZ36 Series User manual

nvent

nvent Spectracool N28 User manual

nvent

nvent SPECTRACOOL G57 Series User manual

nvent

nvent SPECTRACOOL NHZ28 User manual

nvent

nvent SPECTRACOOL N43 User manual

nvent

nvent T Series User manual

nvent

nvent SPECTRACOOL G521216G Series User manual

nvent

nvent SpectraCool G52 460V User manual

nvent

nvent SPECTRACOOL G57 User manual

nvent

nvent SPECTRACOOL G28 User manual

nvent

nvent SpectraCool G520846G Series User manual

nvent

nvent SPECTRACOOL N36 Series User manual

nvent

nvent SPECTRACOOL NHZ36 Series User manual

nvent

nvent T50 Series User manual

nvent

nvent SpectraCool SLIM Fit S0603X6G Series User manual

nvent

nvent SPECTRACOOL Slim Fit S060316G031 User manual

nvent

nvent V Series User manual

nvent

nvent SpectraCool G280648G Series User manual

nvent

nvent PROAIR CR43WC User manual

nvent

nvent SPECTRACOOL N36 User manual

nvent

nvent LOBOY LB16-1026-G Series User manual

nvent

nvent SPECTRACOOL G28 Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

nvent T43 User manual

Popular Air Conditioner manuals by other brands
