Nuvico NC-2M-MPOV12 User manual

QUICK INSTALLATION GUIDE

NC-2M-MPOV12

Please read this guide thoroughly before use and keep it handy for future reference.

“Nuvico surveillance equipment is designed to be installed and served only by a

trained, state-licensed professional installer”

12x Full-HD Mini-PTZ

NETWORK CAMERA

1. Description

The network camera supports the network service for a sensor image with progressive scan, which

can be monitored on a real-time screen regardless of distances and locations. By using its

dedicated program, many users are able to have an access to the network camera at once or a

single user can monitor various network cameras at the same time. It also enables users to play,

store and retrieve a monitoring image by using a PC. All the settings and real-time monitoring

screens are also provided through an access to the web.

The network camera is fully featured for security surveillance and remote monitoring needs. It is

based on the DSP compression chip, and makes it available on the network as real-time, full frame

rate Motion JPEG and H.264 video streams.

1.1 Components

The camera is designed with compact, small size, hard dome camera housing. The housing is

constructed of aluminum, steel and plastic. The housing is designed to be mounted on a wall or a

ceiling. The housing meets the Protection Classification IP66 standards for dust and moisture

resistance.

* Dome Camera 1

* Installation Guide/CD 1

* Template Sheet 1

* Mounting Bracket 1

* Safety Lanyard 1

* Accessory Kit 1

1) Mounting screws (PH6 x 35.0) (4)

2) Plastic anchors (4)

3) O-Rings (4)

4) Torx wrench (1)

* Accessory Connector 1

1) 3-pin terminal block (1)

2) 6-pin terminal block (1)

1.2 Key Features

Brilliant video quality

The network camera offers the highly efficient H.264 video compression, which drastically

reduces bandwidth and storage requirements without compromising image quality. Motion

JPEG is also supported for increased flexibility.

Triple Streams

The network camera can deliver triple video streams simultaneously at full frame rate in all

resolutions up to 1920 x 1080 using Motion JPEG and H.264. This means that several video

streams can be configured with different compression formats, resolutions and frame rates for

different needs.

Image setting adjustment

The network camera also enables users to adjust image settings such as contrast, brightness

and saturation to improve images before encoding takes place.

Intelligent video capabilities

The network camera includes intelligent capabilities such as enhanced video motion detection.

The network camera’s external inputs and outputs can be connected to devices such as

sensors and relays, enabling the system to react to alarms and activate lights or open/close

doors.

Improved Security

The network camera logs all user access, and lists currently connected users. Also, its full

frame rate video can be provided over HTTPS.

PoE (Power over Ethernet)

This network camera can be powered through PoE, which simplifies installation since only one

cable is needed for carrying power, as well as video controls.

ONVIF Certificate

This is a global interface standard that makes it easier for end users, integrators, consultants,

and manufacturers to take advantage of the possibilities offered by network video technology.

ONVIF enables interoperability between different vendor products, increased flexibility,

reduced cost, and future-proof systems.

2. Installation

2.1 Installation

The dome camera is for use in surface or pendent mounting applications, and the mounting

member must be capable of supporting loads of up to 3.5 lb (1.6 kg). (Pendent mounting must use

pendent mount accessory.)

The dome camera’s mounting bracket should be attached to a structural object, such as hard wood,

wall stud or ceiling rafter that supports the weight of the dome camera.

CAUTION: A silicone rubber sealant must be applied to seal the housing to secure

waterproofing.

2.1.1 Locking Dome Camera

A. Make screw holes on the ceiling using the supplied mounting Template Sheet (Figure A).

B. Fix the Mounting Bracket to the ceiling using supplied Anchors (4x) and Mounting Screws (4x)

(Figure B).

C. Hook up the Safety Lanyard to the Safety Lanyard Hook of the Mounting Bracket (Figure C).

D. Align the locking tab on the bracket and the locking slot on the base of the dome (Figure D).

E. Turn the dome to the counterclockwise about 10 degree to the locked position (Figure E).

CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting

screws "A" on the base of the dome camera to best match the mounting

bracket locked position. Unscrew the locking screw on the side of the dome's

base and fit the tab of the mounting bracket into the locking slot. Screws "A"

should not be too tight or too loose when the dome is in the locked position.

After setting the proper positions of screws "A" remove the mounting bracket

and install it to the proper surface. If it is too difficult to lock the dome in

position after the mounting bracket has been installed readjust the screws "A"

by unscrewing them a small amount and try to install dome camera again.

2.2 Basic Configuration of Camera System

No.

Connector

Wire Color

Description

3-pin terminal block

RED

24VAC or 12VDC+

WHITE

24VAC or 12VDC-

6-pin terminal block

PINK

GND

GRAY

ALARM INPUT

BROWN

GND

YELLOW

ALARM OUTPUT

GREEN

RS485+

BLUE

RS485-

RJ-45

BLACK

Ethernet, RJ-45 port compatible with

10/100Mbps having PoE functionality.

STEREO

GRAY

AUDIO OUTPUT

STEREO

BLACK

AUDIO INPUT

The camera must be installed by qualified service personnel in accordance with all local and

federal electrical and building codes.

AC+

AC-

AC+

AC-

FGND

(Rx+)

(Rx-)

Rx(Tx)+

Rx(Tx)-

GND

2.3 Connections

Connecting the Network

Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-over

cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

Connecting Alarms

- AI (Alarm Input)

You can use external devices to signal the camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm Input) and G (Ground) connectors.

- G (Ground)

NOTE: All the connectors marked G or GND are common.

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

- AO (Alarm Output)

The camera can activate external devices such as buzzers or lights. Connect the device to

the AO (Alarm Output) and G (Ground) connectors.

Connecting to the RS485

The camera can be controlled remotely by an external device or control system, such as a

control keyboard, using RS485 half-duplex serial communications signals.

Connecting the Power

Connect power of 12VDC or 24VAC 1.5A for the camera.

When using a 12VDC adapter, connect the positive (+) pole to the ‘+’ position and

the negative (-) pole to the ‘-’ position.

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

- Be careful not to reverse the polarity when you connect the power cable.

- You can also use a router featuring PoE (Power over Ethernet) to supply power to the

camera.

- If PoE and 12VDC are both applied, this camera will get supplied with power from PoE.

- 24VAC is recommended to use for the camera power for stable operation with heater kit.

If using PoE, the heater will not operate at all.

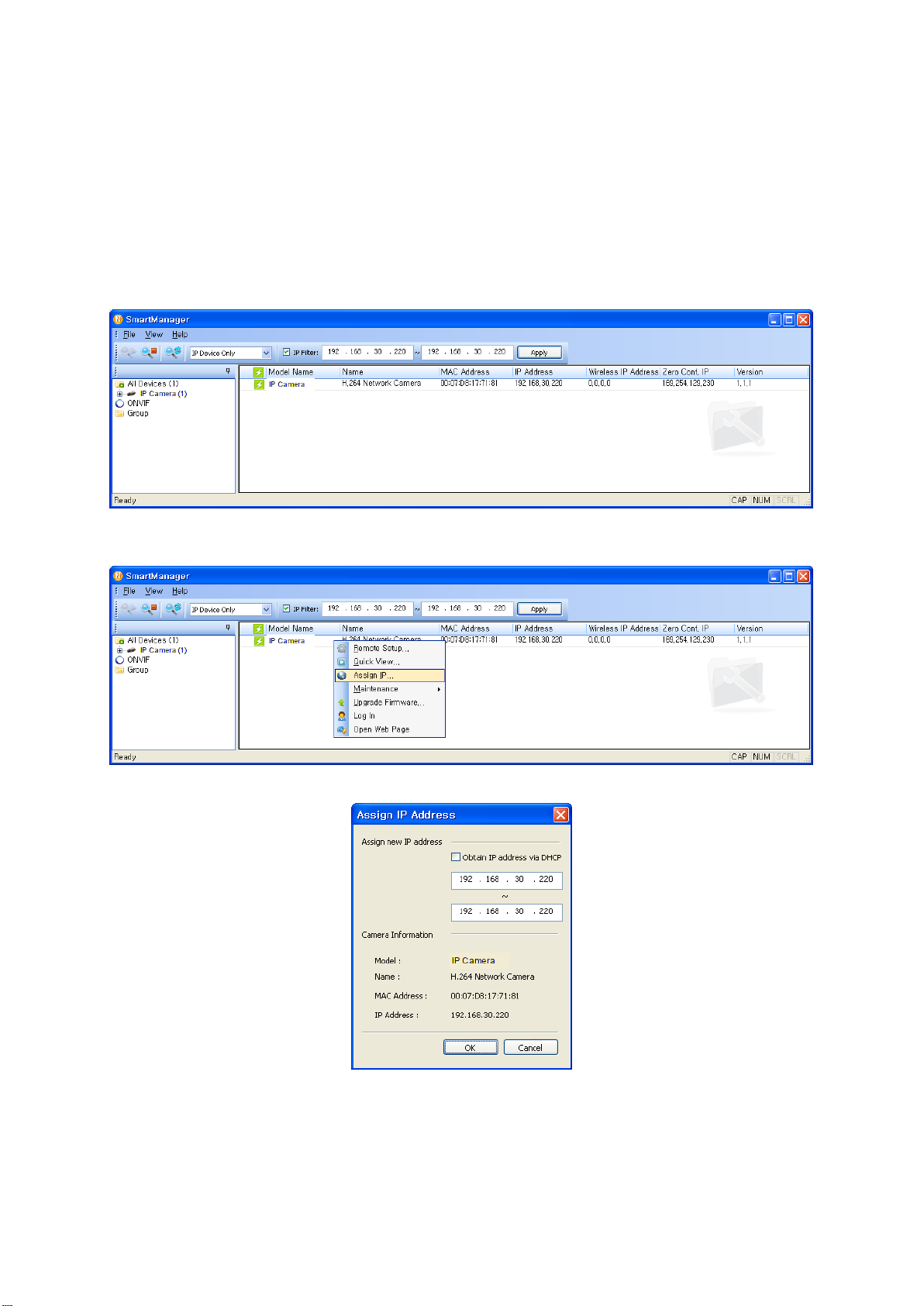

2.4 Network Connection & IP assignment

The camera supports the operation through the network. When a camera is first connected to the

network, it is necessary to allocate an IP address to the device with the “SmartManager” utility on

the CD. (Default IP 192.168.30.220)

1) Connect the network camera/device to the network and power up.

2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager). The main

window will display, and after a short while any network devices connected to the network will

be displayed in the list.

3) Select the camera on the list and click right button of the mouse. You can see the pop-up

menu as below.

4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.

NOTE: For more information, refer to the SmartManager User’s Manual.

3. Operation

The network camera can be used with Windows® operating system and browsers. The

recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera™ and Google®

Chrome® with Windows.

NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX

controls.

3.1 Access from a browser

1) Start a browser (Internet Explorer).

2) Enter the IP address or host name of the network camera in the Location/Address field of your

browser.

3) You can see a starting page. Click Live View or Setup to enter web page.

4) The network camera’s Live View page appears in your browser.
