Novus NVIP-5VE-4501 User manual

Quick start guide

NVIP-5VE-4501

NVIP-5VE-4501 Quick start guide version 1.0

SAFEGUARDS AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as an element of a professional CCTV system used for supervision and control, is not

intended for self-installation in households by people without specialist knowledge.

Exclusion of liability in case of damage data on disks or other devices or media:

The manufacturer is not liable in the event of damage or loss of data contained on disks or other

devices or media during the operation of the Product.

Obligation to consult with the Manufacturer before performing an activity not provided for in

the operating manual or other documents:

Before performing an action that is not provided for in the Product manual, other documents attached to

the Product or does not result from the normal purpose of the Product, please contact the Manufacturer

under the pain of excluding the Producer's liability for the consequences of such an action.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonization of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes)

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE) (OJ L

197, 24.7.2012, p. 38–71, with changes)

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes)

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

NVIP-5VE-4501 Quick start guide version 1.0

SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN NECESSARY CONDITION OF PROPER USE OF

THE DEVICE. PLEASE READ IT BEFORE INSTALLING AND OPERATING THE DEVICE.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

8. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

9. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest full

manual

NVIP-5VE-4501 Quick start guide version 1.0

FOREWORD INFORMATION

1. TECHNICAL SPECIFICATION


Image Sensor 5 MPX CMOS sensor 1/2.7” SmartSens

Number of Eecve Pixels 2880 (H) x 1620 (V)

Min. Illuminaon 0.03 lx/F1.2 - color mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shuer (DSS) up to 1/5 s

Wide Dynamic Range (WDR) yes (double scan sensor), 120dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type xed focal, f=2.8 mm/F1.6

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Delay 1 ~ 36 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 2880 x 1620, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080

(Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA)

Frame Rate 30 fps for each resoluon

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.264+, H.265, H.265+/G.711

Number of Simultaneous Connecons max. 10

Bandwidth 60 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP,

RTP, UPnP, SNMP, SMTP, P2P, HTML5

ONVIF Protocol Support Prole S/G

Camera Conguraon from Internet Explorer browser

languages: Polish, English, Russian, and others

Compable Soware NMS

Mobile applicaons RxCamView (iPhone, Android)

NVIP-5VE-4501 Quick start guide version 1.0

FOREWORD INFORMATION

1.1. Camera dimensions (in millimeters)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Moon Detecon yes

Audio Detecon yes

Video Content Analysis (VCA)

abandoned object, object disappearance, line cross, zone

entrance, zone exit, mul loiter, cross counng, heat map,

queue length detecon, objects disnguishing

Image Processing 180˚ image rotaon, vercal ip, horizontal ip

Prealarm/Postalarm up to 5 s/up to 30 s

System Reacon to Alarm Events e-mail with aachment, saving le on FTP server, saving le

on SD card, saving in the cloud storage

Restoring default sengs via web browser, using reset buon

IR LED

LED Number 2

Range 30 m

Smart IR yes (hardware support)

INTERFACES

Audio Input/Output built-in microphone

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) 100 (Ф) x 90 (H)

Weight 0.43 kg

Degree of Protecon IP 66 (details in the user’s manual on page 7)

Enclosure vandalproof aluminium, white

Power Supply PoE, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 2 W, 4 W (IR on)

Operang Temperature -30°C ~ 55°C

Humidity max. 95%, relave (non-condensing)

NVIP-5VE-4501 Quick start guide version 1.0

Caution:

If the device was brought from a room with a lower temperature, wait until it reaches the

temperature of the room in which it is to work. Do not switch the device immediately after

bringing from a cooler place. The condensation of water vapor can cause short circuits and

consequently damage the device.

2. START-UP AND INITIAL CONFIGURATION

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

2.1. Description of the camera's electrical connectors

1. 12VDC camera power socket

2. 100 Mb/s Ethernet port (hermetic RJ-45 socket)

2.2. Connecting ethernet cable

To maintain hermeticity network cable connection, follow the instructions below:

1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)

2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the

socket (c)

3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push

in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.

4. Tighten up to the stop nut (b)

Caution:

The 12VDC power connector is not hermetic. The user should seal them on his own.

START-UP AND INITIAL CONFIGURATION

NVIP-5VE-4501 Quick start guide version 1.0

2.3. "Two way power" function

The camera is equipped with the "Two way power" function. When the camera is connected to the PoE

switch, 12VDC is available in the 12V camera power socket. This allows user to power the receiver

with low power consumption, e.g. a microphone, from the camera power socket.

2.4. Camera mounting

To mount a camera please follow the instructions below:

• Remove the retaining ring (A) by turning it counter-clockwise

• Remove the camera cover (B), remove the camera from the base

• Put the bracket to the wall in a desired mounting place (with cable hole). Taking the bracket’s

base screw holes as a pattern, mark future drilling holes for screws.

• Drill holes in accordance with previously done markings and base hole placement.

• Mount the camera base using the supplied plugs and screws.

• Connect the camera cables, put camera on the base, attach the cover (B) and pre-tighten the

retaining ring (A)

• Adjust camera position.

• Tighten to the stop retaining ring (A)

Caution:

Please note that the wall or ceiling must have enough strength to support the camera.

Caution:

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the interior of the camera by connecting

cables. Connection cables protection through i.e. sealing up is the responsibility of the camera

installer. The manufacturer is not liable for any damages to the camera caused as a result of

failing in performing that activity by installer, which also means that camera damaged in that

way is not subject to warranty repairs.

START-UP AND INITIAL CONFIGURATION

The maximum power consumption of the device using the “Two way power” function is 3W.

NVIP-5VE-4501 Quick start guide version 1.0

2.5. Starting the camera

To start the camera, connect the Ethernet cable to the RJ45 network socket of the IP camera, and the

other end to the network switch. As a power source, it is possible to use an external stabilized power

supply with parameters that meet the requirements of the camera or PoE network switch.

The recommended method of starting and configuring the IP camera is to connect it to a PC or laptop

in a dedicated network switch to which no other devices are connected. In case of power supply from

an external power supply, it is enough to use any network switch or a cable connected directly to the

computer. For network configuration data (IP address, gateway, netmask etc.), please contact the

administrator of the network in which the device is to work.

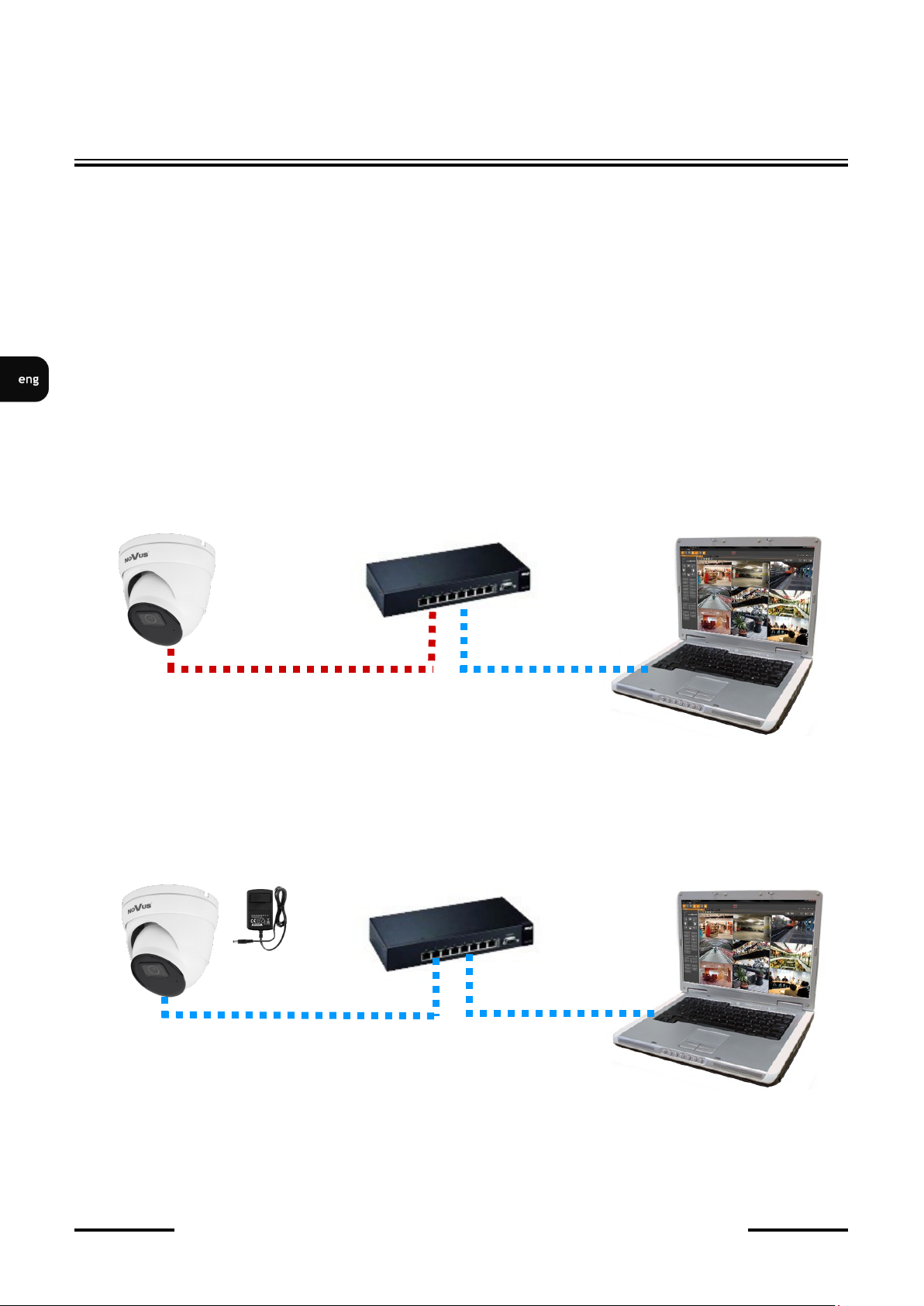

• Connection using network switch with PoE support

• Connection using external power supply and network switch

START-UP AND INITIAL CONFIGURATION

PCIP camera

Power and data transmission Data transmission

PoE network switch

IP camera

Data transmission Data transmission

Network switch PC

NVIP-5VE-4501 Quick start guide version 1.0

• Connection using the camera's external power supply and an Ethernet crossover cable

2.6. Parameter configuration using a web browser

The default network settings for camera are:

1. IP address= 192.168.1.200

2. Network mask - 255.255.255.0

3. Gateway - 192.168.1.1

4. User name - root

5. Password - pass

Knowing the camera’s IP address you need to appropriately set PC IP address, so the two devices can

operate in one network subnet ( e.g. for IP 192.168.1.1, appropriate address for the camera ranges from

192.168.1.2 to 192.168.1.254, for example 192.168.1.60). It is not allowed to set the same addresses for

camera and PC computer

You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera

yourself or select DHCP mode (DHCP server is required in this method in target network) by using

web browser or by NMS software. When you use DHCP server check IP address lease and its linking

with camera MAC address to avoid changing or losing IP address during device operation or network/

DHCP server breakdown. You have to remember to use a new camera IP address after changing

network parameters.

After network setting configuration has been done, the camera can be connected to a target network.

START-UP AND INITIAL CONFIGURATION

PCIP camera

Data transmission - Ethernet crossover cable

NVIP-5VE-4501 Quick start guide version 1.0

START-UP AND INITIAL CONFIGURATION

2.7. Security recommendations for network architecture and configuration

WARNING!

Below are shown security recommendations for network architecture and configuration

of CCTV systems that are connected to the Internet to reduce the risk

of unauthorized interference with the system by a third party.

1. Absolutely change the default passwords and user names (if the device gives this possibility) of

all applied network devices (recorders, cameras, routers, network switches, etc.) to the

severely complexity password. Use lowercase and uppercase letters, numbers, and special characters

if there is such possibility.

2. Depending on the available functionality in the order to restrict access to the used network devices at

the administrator account level, it is recommended to configure the users accounts accordingly.

3. Do not use DMZ function (Demilitarized zone) in your router. Using that function you open the

access to recorder system from the Internet on all ports, which gives possibility for an unauthorized

interference with the system.

Instead of DMZ use port forwarding redirect only the ports which are necessary for the performance

of the connection (detailed information about ports of communication in different models of recorders,

cameras, etc. can be found in the operating instructions).

4. Use routers with firewall function and make sure it is enabled and properly configured.

5. It is recommended to change the default network communication port numbers of used devices

if there is such possibility.

6. If used network devices has aUPnP feature and it is not used, turn it off.

7. If used network devices has aP2P feature and it is not used, turn it off.

8. If used network devices support HTTPS protocol for connection, it is recommended to use it.

9. If used network devices support IP filtering for authorized connections function, it is recommended

to use it.

10. If used recorder has two network interfaces it is recommended to use both of them to physically

separate network for cameras and network for Internet connection. The only device in the system,

accessible from Internet will be recorder - there will be no physically access directly to any camera.

Table of contents

Languages:

Other Novus Security Camera manuals

Novus

Novus NVAHD-1DN3101V/IR-1 User manual

Novus

Novus NVIP-4VE-6502M/F User manual

Novus

Novus NVIP-3DN7000C-1P User manual

Novus

Novus NVIP-5VE-6202M-II User manual

Novus

Novus NVIP-5V-6402/F User manual

Novus

Novus NVIP-5H-6522M/F User manual

Novus

Novus NVC-601D/IR User manual

Novus

Novus NVAHD-1DN5101H/IR-1 User manual

Novus

Novus NVIP-2V-4202 User manual

Novus

Novus NVIP-6DN5060V/IRH-2P User manual

Novus

Novus NVIP-4DN3515V/IR-1P User manual

Novus

Novus NVIP-5DN3512V/IR-1P User manual

Novus

Novus NVIP-1DN3000V/IR-1P-II User manual

Novus

Novus NVIP-4H-6702M/FWLAD User manual

Novus

Novus NVIP-2VE-6401 User manual

Novus

Novus NVIP-2H-6511/F User manual

Novus

Novus NVIP-2VE-6601-II User manual

Novus

Novus NVIP-6DN5022H/IRH-1P User manual

Novus

Novus NVIP-4DN3513H/IR-1P User manual

Novus

Novus NVAHD-2DN3201MH/IR-1-II User manual

Novus

Novus 6000 Series User manual

Novus

Novus NVAHD-2DN3202MH/IR-1-II User manual

Novus

Novus NVIP-2Q-4201/PIR/W User manual

Novus

Novus NVIP-6DN5021H/IRH-1P User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
