NordicTrack T9ci NTL09908.0 User manual

www.nordJctrack.com

Model No. NTL09908.0

Serial No.

Write the serial number in the space

above for reference.

Serial

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete cus-

tomer satisfaction. If you have

questions, or if parts are missing,

DO NOT CONTACT THE STORE;

please contact Customer Care.

iMPORTANT: You must note the

product model number and ser-

ial number (see the drawing

above) before contacting us:

CALL TOLL-FREE:

1-888-825-2588

Mon.-Fri. 6 a.m.-6 p.m. MT

Sat. 8 a.m.-4 p.m. MT

ON THE WEB:

www.nordictrackservice.com

USER'S

AUAL

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................ 13

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 27

TROUBLESHOOTING ...................................................................... 29

EXERCISE GUIDELINES ................................................................... 32

PART LIST ............................................................................... 34

EXPLODED DRAWING ..................................................................... 36

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY ............................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the

warning decals, If a decal is missing or il-

legible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal

in the location shown. Note: The decals

may not be shown at actual size.

KEEPHANDSANDFEETAWAY

FROMTHISAREAWHILETHE

TREADMILLISINOPERATION.

Protect yourself and

others from risk of serious

injury. Read the user's

manual and :

•Stand only oil the

sde tails when

,Hold handrails to

prevent lalling, and

always wear the

safety clip whle

operating treadmill,

•Stop ifyou (eel rant,

di_y, or short of

breath,

•Fully engage storage

latch before tead-

m_ll _s moved or

stored

•Reduce incl _e to ts

lowest level before

folding treadmill Me

storage posit_on

: Nh__fe'eal°°n'_°raround tfeadm II,

•Remove key when

not inuse,

,Keep clothing,

beIt,_v_Y1 °m_q2ving

........... •Never t_y to adjust

or fix the belt while

it JsmovLng.

_ "Nways wear

aihletic shoes while

operating treadmill,

NordicTrack is a registered trademark of ICON IP, Inc.

iMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary NordicTrack ®

T9CI treadmill. The T9CI treadmill offers a selection of

features designed to make your workouts at home

more enjoyable and effective. And when you're not ex-

ercising, the unique treadmill can be folded up, requir-

ing less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Accessory Tray

Handrail

Console

Fan

Pulse Sensor

Key/Clip

Walking Belt

Reset/Off

Breaker

Foot Rail

-- Power Cord

Wheel

Platform Cushion

Idler Roller

Adjustment Bolts

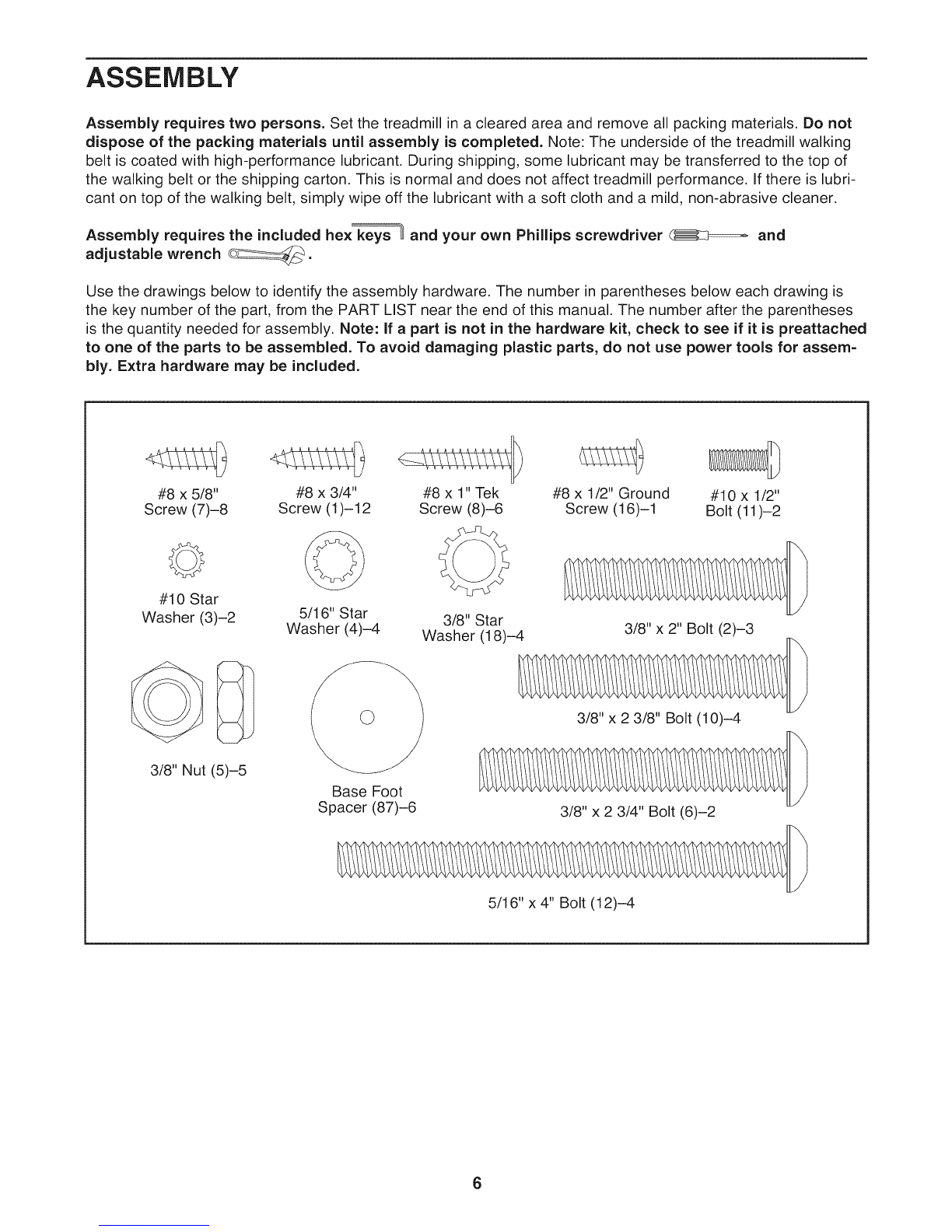

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials, Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance, If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex k _ys and your own Phillips screwdriver _ and

adjustable wrench _.

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached

to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-

bly. Extra hardware may be included.

#8 x 5/8" #8 x 1" Tek #8 x 1/2" Ground #10 x 1/2"

Screw (7)-8 Screw (8)-6 Screw (16)-1 Bolt (11)-2

#10 Star

Washer (3)-2

3/8" Nut (5)-5

#8 x 3/4"

Screw (1)-12

5/16" Star 3/8" Star

Washer (4)-4 Washer (18)-4

Base Foot

Spacer (87)-6

3/8" x 2" Bolt (2)-3

3/8" x 2 3/8" Bolt (10)-4

3/8" x 2 3/4" Bolt (6)-2

5/16" x 4" Bolt (12)-4

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its side as shown. Partially

fold the Frame (54) so the treadmill is more sta-

ble. Do not fully fold the Frame until the

treadmill is completely assembled.

Attach six Base Feet (88) and six Base Foot

Spacers (87) to the Base (85) and the Extension

Legs (90) in the locations shown with six #8 x 1"

Tek Screws (8). Do not overtighten the Tek

Screws. 54

,Attach a Wheel (92) to an Extension Leg (90)

with a 3/8" x 2 3/4" Bolt (6) and a 3/8" Nut (5).

Do not overtighten the Nut; the Wheel must

turn freely.

.Identify the Right Upright (112), which is marked

with a sticker. Have a second person hold the

Right Upright near the Base (85) as shown.

Slide the Right Base Cover (119) onto the end

of the Right Upright.

See the inset drawing. Tie the wire tie in the

Right Upright (112) securely around the end of

the Wire Harness (79). Then, pull the other end

of the wire tie until the Wire Harness is routed

completely through the Right Upright.

3Wire

Tie

112

119

.Hold the Right Upright (112) against the Base

(85), with the bend in the Right Upright posi-

tioned as shown. Be careful not to pinch the

Wire Harness (79).

Attach the Right Upright (112) to the Base (85)

with two 3/8" x 2 3/8" Bolts (10) and two 3/8"

Star Washers (18); do not fully tighten the

Bolts yet.

Bend

112 79

.Slide the Right Base Cover (119) over the Base

(85). Attach the Right Base Cover with three #8

x 3/4" Screws (1). Do not overtighten the

Screws.

119

.With the help of a second person, carefully tip

the treadmill onto its side as shown, Partially

fold the Frame (54) so the treadmill is more sta-

ble, Do not fully fold the Frame until the

treadmill is completely assembled.

Hold the Left Upright (111) against the Base

(85), with the bend in the Left Upright positioned

as shown, Slide the Left Base Cover (118) onto

the end of the Left Upright.

Attach the Left Upright (111) to the Base (85)

with two 3/8" x 2 3/8" Bolts (10) and two 3/8"

Star Washers (18); do not fully tighten the

Bolts yet.

Attach a Wheel (92) to an Extension Leg (90)

with a 3/8" x 2 3/4" Bolt (6) and a 3/8" Nut (5).

Do not overtighten the Nut; the Wheel must

turn freely.

118 Bend

111

.Slide the Left Base Cover (118) over the Base

(85). Attach the Left Base Cover with three #8 x

3/4" Screws (1). Do not overtighten the

Screws.

With the help of a second person, tip the tread-

mill so that the Base (85) is flat on the floor. 1

118

.Set the console assembly face down on a soft

surface to avoid scratching the console assem-

bly.

Identify the Left Accessory Tray (93) and the

Right Accessory Tray (94), which are marked

with an "L" and an "R" on the bottom.

Attach the Left and Right Accessory Trays (93,

94) to the console assembly with eight #8 x 5/8"

Screws (7). Do not overtighten the Screws.

Console

Assembly

.Hold the Right Handrail (107), which is labeled

with a sticker, near the console assembly. Insert

the console wire into the hole in the side of the

Right Handrail.

Attach the Console Ground Wire (102) to the

bracket on the Right Handrail (107) with the #8 x

1/2" Ground Screw (16).

Set the Handrails (106, 107) on the console as-

sembly. Start four #8 x 3/4" Screws (1) into the

Handrail; do not fully tighten the Screws yet.

Be careful not to pinch the console wire.

107 1

Console

Assembly

Console

Wire

10. Partially tighten two #8 x 3/4" Screws (1)into

the Left and Right Handrails (106, 107); do not

fully tighten the Screws yet.

Tighten two #10 x 1/2" Bolts (11) with two #10

Star Washers (3) into the Left and Right

Handrails (106, 107).

See assembly steps 9 and 10. Tighten the six

#8 x 3/4" Screws (1). Do not overtighten the

Screws.

Console

Assembly

106

11-__.

3-----$ 107
