NordicTrack NTEL59010 User manual

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. NTEL59010

Serial No. _

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

direct assistance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.–Fri., 6 a.m.–6 p.m. MST

Visit our website at

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

NordicTrack®is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users of the elliptical crosstrainer

are adequately informed of all precautions.

3. The elliptical crosstrainer is intended for

in-home use only. Do not use the elliptical

crosstrainer in any commercial, rental, or

institutional setting.

4. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

5. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the elliptical crosstrainer at all times.

7. The elliptical crosstrainer should not be used

by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothing when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

9. Always hold the handlebar or the upper

body arms when mounting, dismounting, or

using the elliptical crosstrainer.

10. Keep your back straight when using the ellip-

tical crosstrainer. Do not arch your back.

11. If you feel pain or dizziness at any time

while exercising, stop immediately and

begin cooling down.

12. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

13. When you stop exercising, allow the pedals

to slowly come to a complete stop. The ellip-

tical crosstrainer does not have a free

wheel; the pedals will continue to move until

the flywheel stops.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new NordicTrack®

CXT 910 elliptical crosstrainer. The CXT 910 is an

incredibly smooth exerciser that moves your feet in a

natural elliptical path, minimizing the impact on your

knees and ankles. And the unique CXT 910 features

adjustable resistance and incline to help you get the

most from your exercise. Welcome to a whole new

world of natural, elliptical-motion exercise from

NordicTrack.

For your benefit, read this manual carefully before

you use the elliptical crosstrainer. If you have addi-

tional questions, please call our Customer Service

Department toll-free at 1-888-825-2588, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

note the product model number and serial number

before calling. The model number is NTEL59010. The

serial number can be found on a decal attached to the

elliptical crosstrainer (see the front cover of this man-

ual for the location of the decal).

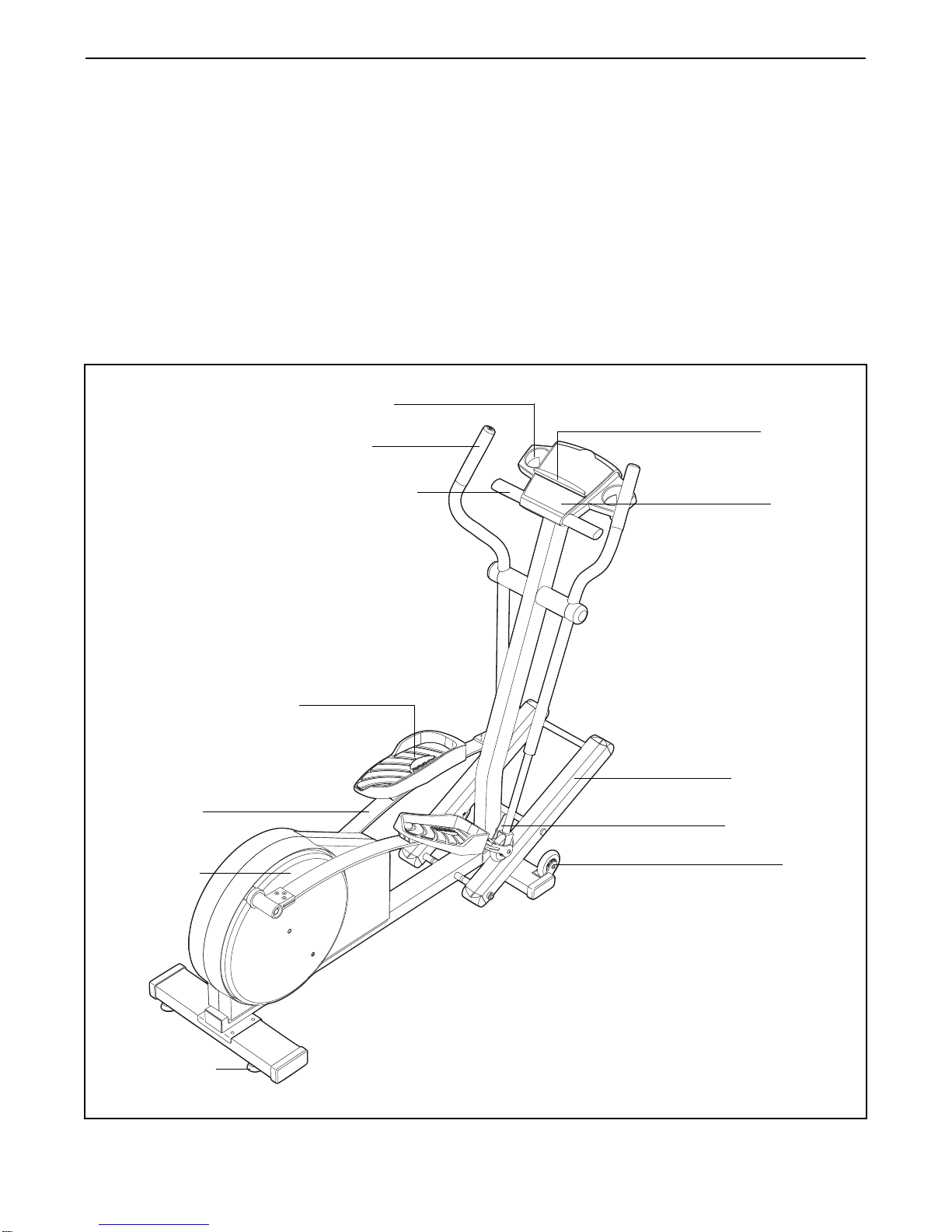

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Upper Body Arm

Water Bottle Holder*

*No water bottle is included

Handgrip Pulse Sensor

FRONT

BACK

RIGHT SIDE

Spring Arm

Pedal Disk

Leveling Foot

Wheel

Pedal

Bookrack

Console

Incline Bracket

Incline Frame

ASSEMBLY

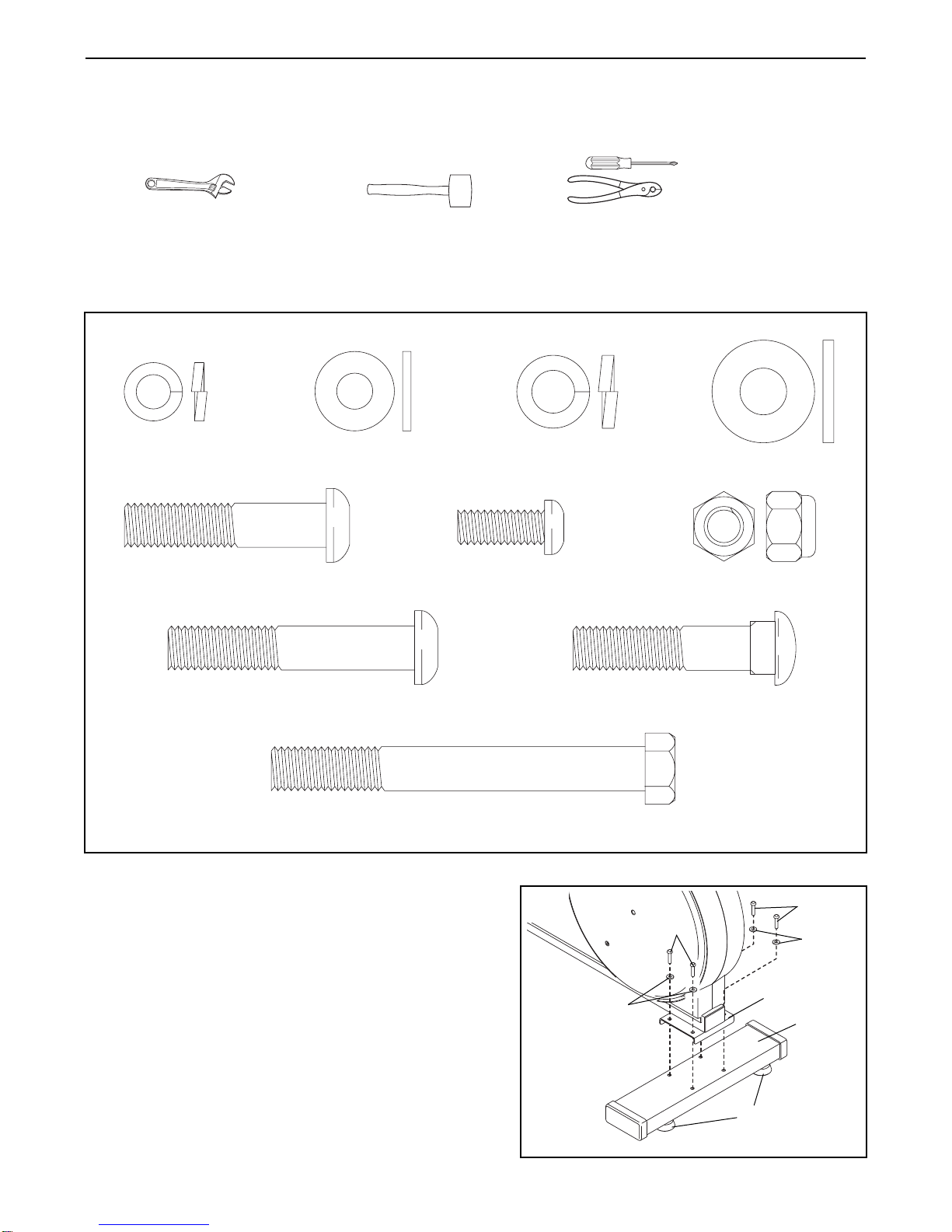

Assembly requires two people. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

wrench , a rubber mallet , and pliers .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been

pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

1. Identify the Rear Stabilizer (94), which has two Leveling

Feet (99) threaded into it. Turn the Rear Stabilizer so

the Leveling Feet are closest to the rear of the Frame

(1) as shown. Attach the Rear Stabilizer to the Frame

with the four M10 x 56mm Button Screws (60) and four

M10 Split Washers (22). 22 1

60 22

M10 Nylon Locknut (26)–5

M8 x 19mm Screw (30)–2

M10 x 85mm Bolt (25)–1

M8 Split

Washer (58)–2 M8 Washer (33)–2 M10 Split

Washer (22)–8 M10 Washer (63)–2

M10 x 43mm Button Screw (97)–4

M10 x 56mm Button Screw (60)–4 M10 x 33mm Carriage Bolt (61)–2

V-shaped Groove

Grease

1Tubes

Tubes

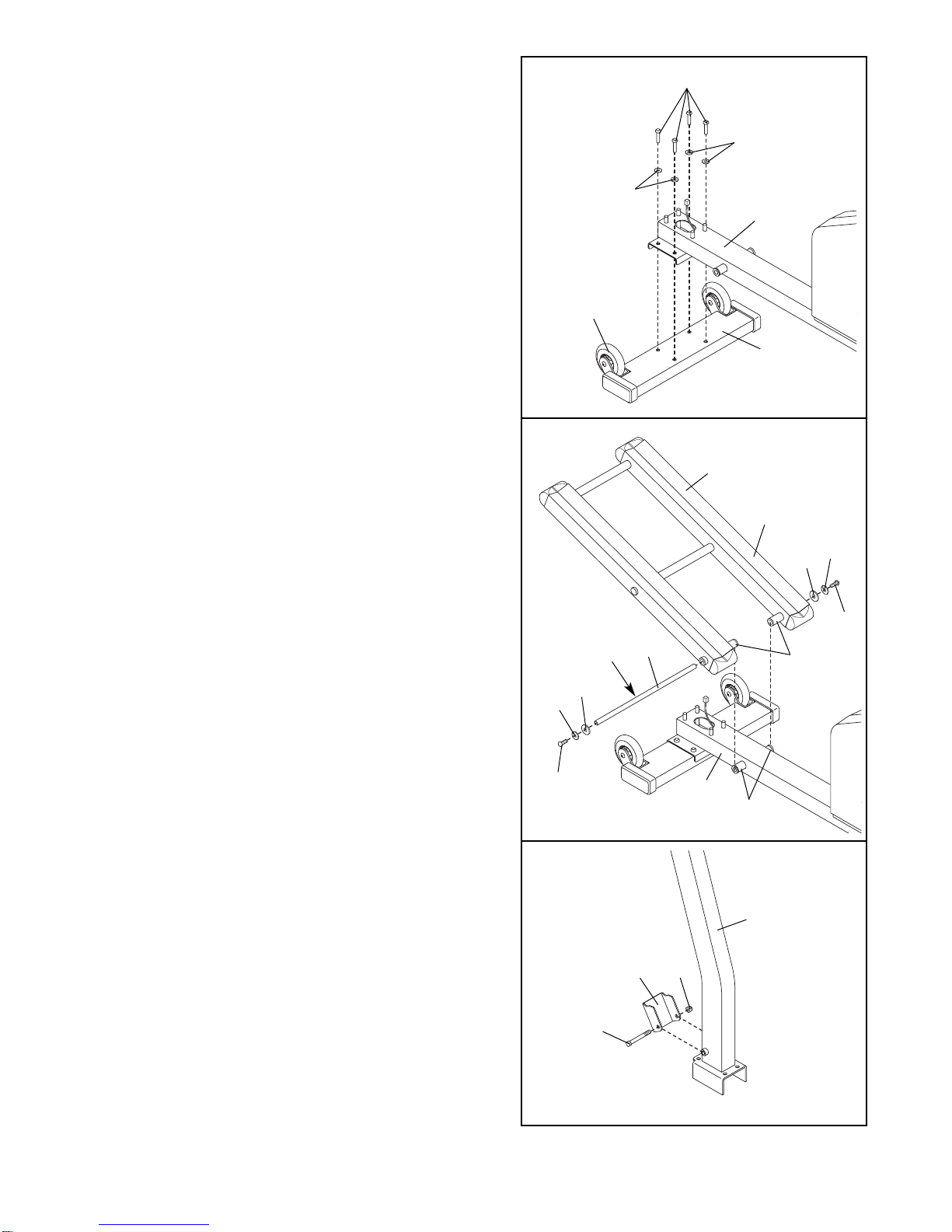

3. Slide an M8 Split Washer (58) and an M8 Washer (33)

onto an M8 x 19mm Screw (30). Tighten the Screw

into one end of the Incline Axle (29). Next, apply a

small amount of the included grease to the Incline

Axle.

Align the indicated tubes on the Incline Frame (5) with

the tubes on the Frame (1). Make sure that the

Incline Frame is turned so the V-shaped grooves

are on top. Insert the Incline Axle (29) through the

Incline Frame and the Frame. Note: It may be helpful

to tap the Incline Axle with a rubber mallet to insert it.

Slide an M8 Split Washer (58) and an M8 Washer (33)

onto the other M8 x 19mm Screw (30). Tighten the

Screw into the open end of the Incline Axle (29).

4. Attach the Incline Bracket (24) to the lower end of the

Upright (2) with the M10 x 85mm Bolt (25) and an M10

Nylon Locknut (26). Do not overtighten the Nylon

Locknut; the Incline Bracket must be able to pivot

easily.

2. Attach the Front Stabilizer (90) to the Frame (1) with

the four M10 x 43mm Button Screws (97) and four

M10 Split Washers (22). Make sure that the Front

Stabilizer is turned so the Wheels (45) are not

touching the floor.

22 1

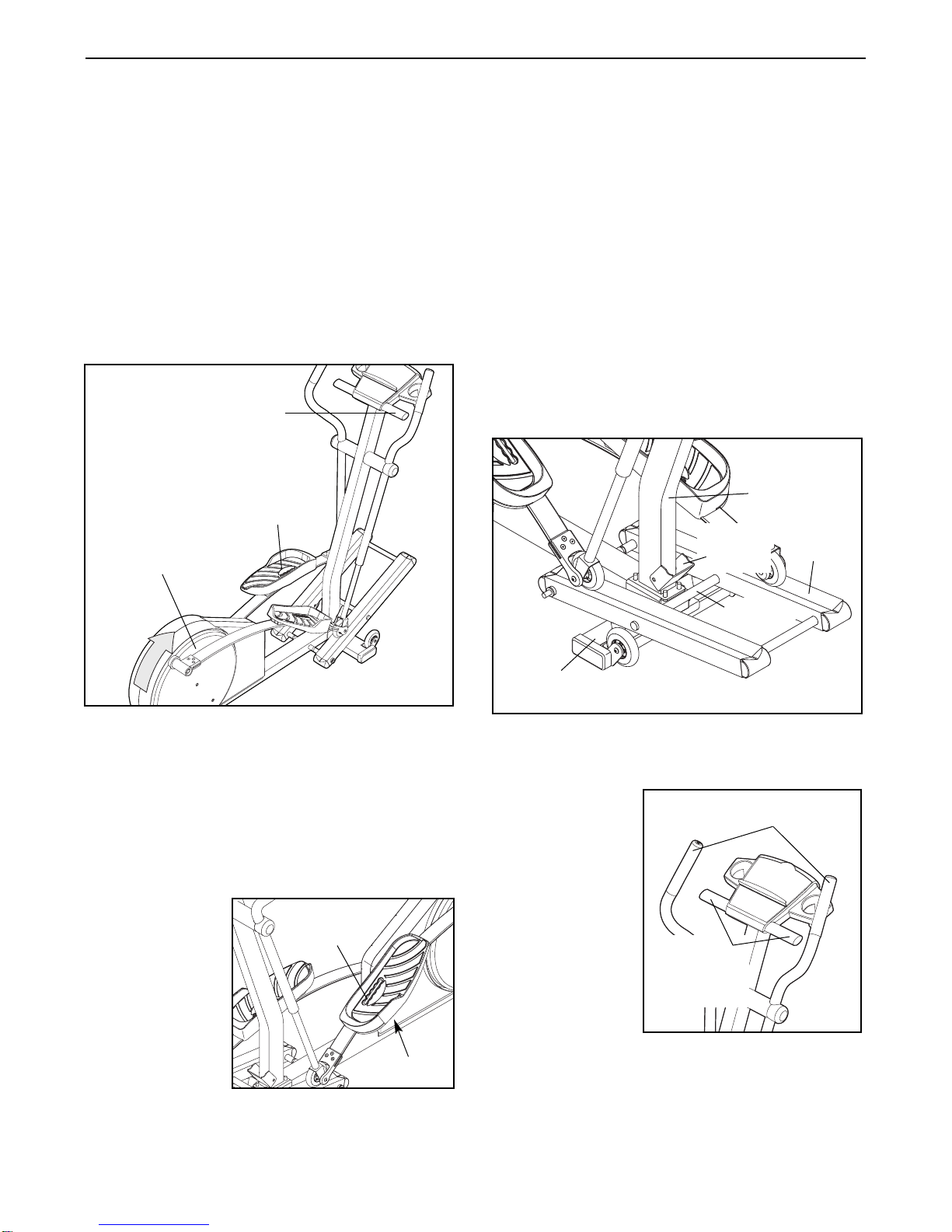

7. Identify the Left Pedal (41). Attach the Left Pedal to

the Left Spring Arm (3) with an M10 x 33mm Carriage

Bolt (61), an M10 Washer (63), and an Adjustment

Knob (77) as shown. Note: The Left Pedal can be

attached in any of five positions (see HOW TO

ADJUST THE PEDALS on page 9).

Attach the Right Pedal (not shown) in the same way.

Make sure that both Pedals are in the same position.

61 41

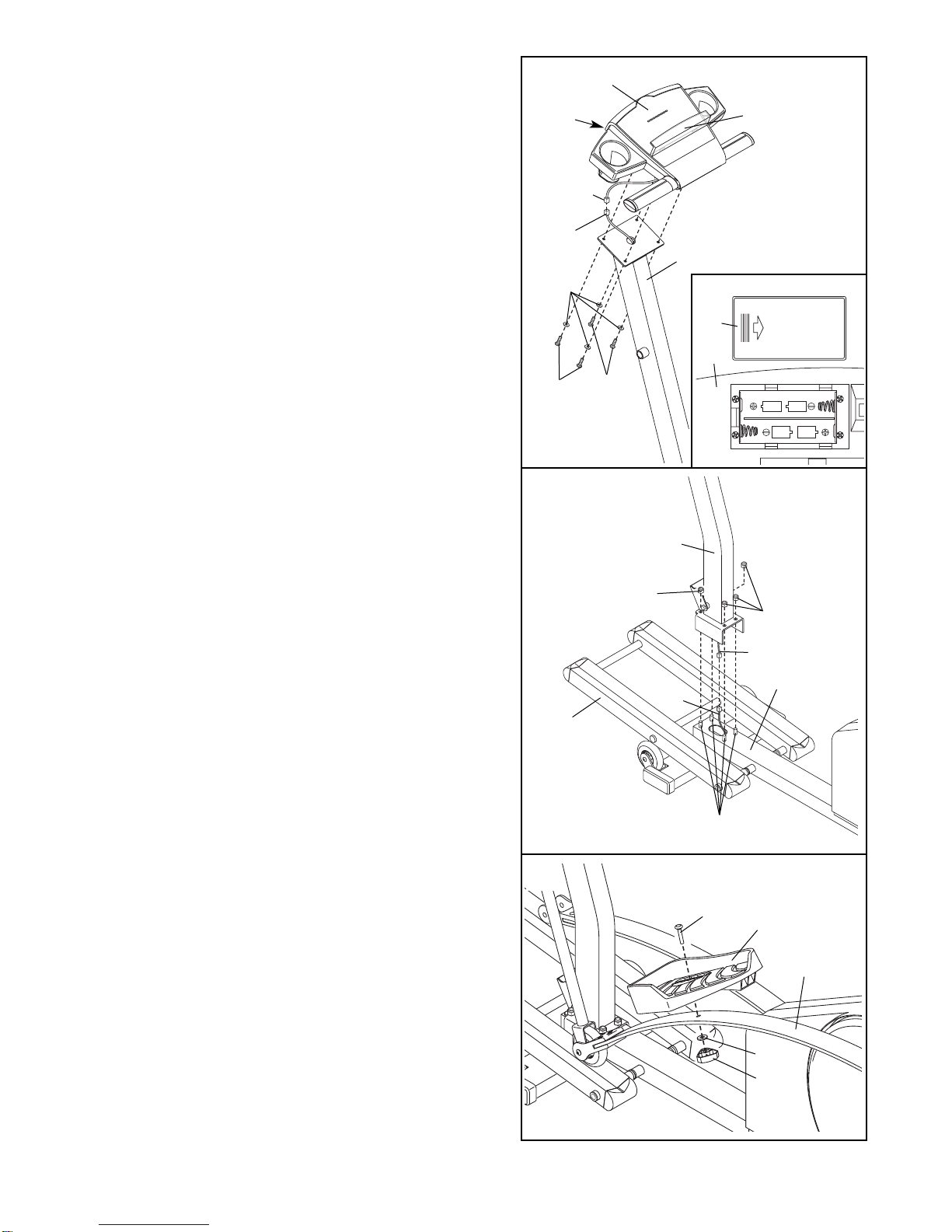

6. Remove the four M10 Nylon Locknuts (26) from the

welded bolts on the front of the Frame (1).

While a second person holds the Upright (2) near the

Frame (1), connect the Extension Wire Harness (51) to

the Wire Harness (85).

Align the four holes in the bracket at the bottom of the

Upright (2) with the welded bolts on the Frame (1).

Lower the Upright, feeding all slack Extension Wire

Harness (51) and Wire Harness (85) into the

Upright, until the welded bolts are inserted into the

bracket. Do not allow the Wire Harnesses to be

pinched.

Lift the front of the Incline Frame (5). Tighten the four

M10 Nylon Locknuts (26) onto the welded bolts on the

Frame (1).

Welded Bolts

Wire

Harness

35 35

Bookrack

5. The Console (87) requires four “D” batteries (not

included). Alkaline batteries are recommended. To

install batteries, turn the Console face down and

remove the Battery Cover (84), as shown in the inset

drawing. Insert four batteries into the Console. Make

sure that the negative ends of the batteries

(marked “—”) are facing the springs in the

Console. Then, reattach the Battery Cover.

Connect the console wire harness to the Extension

Wire Harness (51).

Attach the Console (87) to the Upright (2) with the four

Console Screws (35) and the four Console Washers

(93) packaged with the Console. Be careful to avoid

pinching the wires.

Snap the bookrack onto the Console (87) in the indi-

cated location.

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed.

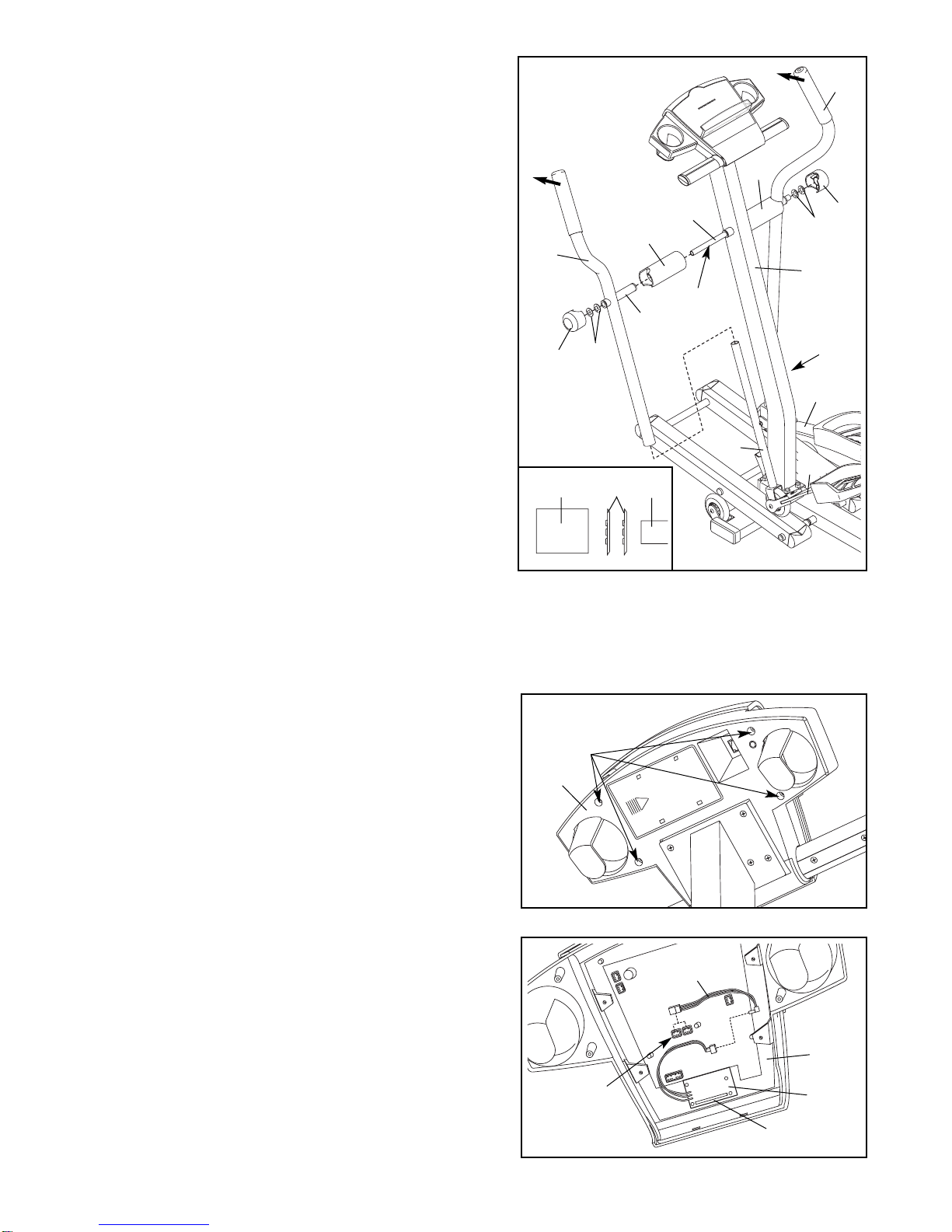

8. Apply a small amount of the included Teflon®lubricant

to a paper towel. Rub a thin film of the lubricant onto

the Chrome Tubes (21) on the Left and Right Spring

Arms (3, 4). Next, slide the Left Upper Body Arm (7),

which is marked with a sticker, onto the Chrome Tube

on the Left Spring Arm. Slide the Right Upper Body

Arm (75) onto the Chrome Tube on the Right Spring

Arm. Make sure that the Upper Body Arms are on

the correct sides—the upper ends should bend in

the direction shown by the arrows. Next, slide an

Axle Cover (74) onto the post on each Upper Body Arm.

Apply grease to the Arm Axle (19). Insert the Arm Axle

into the right Axle Cover (74) and the Right Upper Body

Arm (75). Next, insert the Arm Axle into the Upright (2)

until the left end of the Arm Axle is flush with the left

side of the Upright. Then, insert the Arm Axle into the

left Axle Cover (74) and the Left Upper Body Arm (7).

Center the Arm Axle (19). Using the included pedal

tool, tap two Push Nuts (15) about 1/8” onto each end

of the Arm Axle. Make sure that the Push Nuts are

turned as shown in the inset drawing. (Note: It may be

helpful if another person holds a block of wood against

one end of the Arm Axle while you tap Push Nuts onto

the other end.) Then, press an Axle Cap (34) onto each

end of the Arm Axle.

Post

Grease

Pedal Tool 15 19

INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR

If you purchase the optional chest pulse sensor (refer to

page 20), follow the steps below to install the receiver and

the short jumper wire included with the chest pulse sensor.

Note: The included long jumper wire is not needed.

1. Remove the four indicated screws from the back of the

Console (87). Lift off the front of the Console.

2. Peel the paper off the adhesive pad on the back of the

receiver (A). Orient the receiver exactly as shown, and

press it onto the Console (87) in the indicated location.

Connect the short jumper wire (B) to the wire on the

receiver (A). Plug the other end of the short jumper wire

into either of the indicated jacks on the Console (87).

Refer to step 1 above. Reattach the front of the

Console (87) with the four screws. Make sure that no

wires are pinched.

Jacks

Screws

Cylinder

HOW TO USE THE ELLIPTICAL CROSSTRAINER

EXERCISING ON THE ELLIPTICAL CROSSTRAINER

To mount the elliptical crosstrainer, hold the handgrip

pulse sensor and step onto the pedal that is in the

lowest position. Next, step onto the other pedal. Push

the pedals until they begin to move with a continuous

motion. Note: The pedal disks can turn in either

direction. It is recommended that you turn the

pedal disks in the direction shown by the arrow

below; however, to give variety to your exercise,

you may turn the pedal disks in the opposite

direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. The elliptical

crosstrainer does not have a free wheel; the ped-

als will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

HOW TO ADJUST THE PEDALS

The motion of the

pedals is deter-

mined by their

position on the

spring arms.

Their are five dif-

ferent pedal posi-

tions. To adjust

the pedals, first

loosen the knob

beneath each

pedal. Slide the pedals forward or backward to the

desired position, and then retighten the knobs. Make

sure that both pedals are in the same position.

INCLINE ADJUSTMENT

To further adjust the intensity of your exercise, the

incline frame can be raised or lowered. To raise the

incline frame, position the spring arms side by side.

Lift the end of the incline frame until the crossbar is

on top of the incline bracket. Make sure that the

crossbar is resting securely on top of the incline

bracket. To lower the incline frame, lift the incline

frame slightly, push the incline bracket toward the

upright, and then lower the incline frame onto the sta-

bilizer.

HOW TO USE THE UPPER BODY ARMS

The upper body

arms are designed

to add upper-body

exercise to your

workouts. As you

exercise, push

and pull the upper

body arms in

order to work your

arms, back, and

shoulders. To

exercise only your

lower body, hold

the handgrip pulse

sensor as you

exercise.

Pedal

Pedal Disk

Handgrip

Pulse Sensor

Upper Body Arms

Handgrip

Pulse

Sensor

Stabilizer

Pedal

Knob

Incline

Frame

Upright

Incline

Bracket

Crossbar

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to make your workouts more enjoyable and

effective. When the manual mode of the console is

selected, the resistance of the elliptical crosstrainer

can be changed with a touch of a button. As you exer-

cise, the console will provide continuous exercise

feedback. You can even measure your heart rate using

the handgrip pulse sensor. (For information about an

optional chest pulse sensor, refer to page 20.)

The console also offers four preset workout programs.

Each program automatically changes the resistance of

the elliptical crosstrainer and prompts you to increase

or decrease your pace as it guides you through an

effective workout.

In addition, the console features two heart rate work-

out programs that automatically change the resistance

of the elliptical crosstrainer and prompt you to vary

your pace to keep your heart rate near a target heart

rate as you exercise.

The console also features new iFIT.com interactive

technology. IFIT.com technology is like having a per-

sonal trainer right in your home. Using a stereo audio

cable (available at electronics stores), you can connect

the elliptical crosstrainer to your home stereo, portable

stereo, or computer and play special iFIT.com CD pro-

grams (CDs are available separately). IFIT.com CD

programs automatically control the resistance of the

elliptical crosstrainer and prompt you to vary your pace

as a personal trainer coaches you through every step

of your workout. High-energy music provides added

motivation. Each CD features two programs designed

by certified personal trainers.

In addition, you can connect the elliptical crosstrainer

to your VCR and TV and play iFIT.com video programs

(videocassettes are available separately). Video pro-

grams offer the same benefits as iFIT.com CD pro-

grams, but add the excitement of working out with a

class and an instructor.

With the elliptical crosstrainer connected to your com-

puter, you can also go to our new Web site at

www.iFIT.com and access audio programs and video

programs directly from the internet.

For information about the availability of iFIT.com

CDs or videocassettes, please send an e-mail to

ellipticalworkouts@iFIT.com, and we’ll notify you

as soon as iFIT.com CDs and videocassettes are

available. Or, call toll-free 1-800-884-0620.

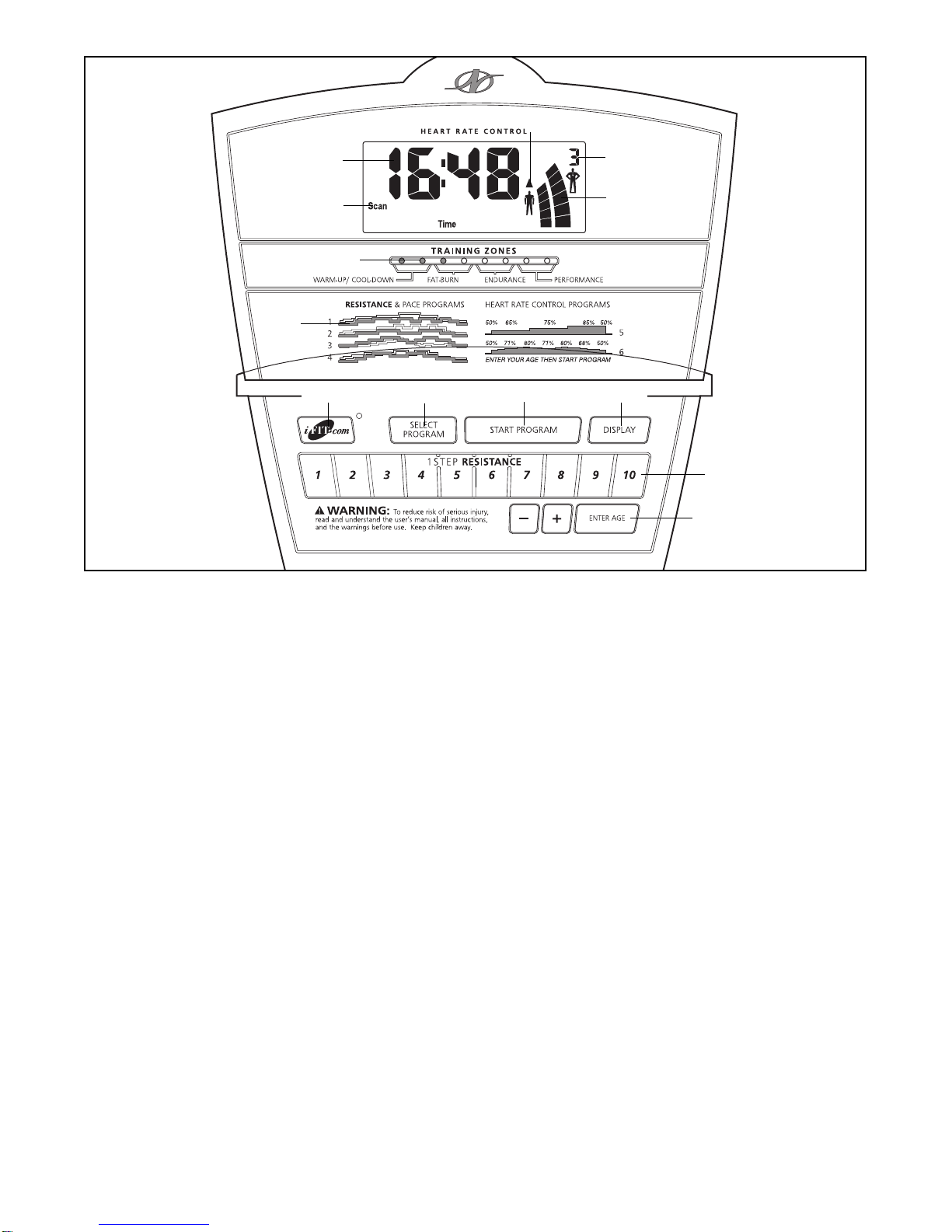

CONSOLE DIAGRAM

Note: If there is

a sheet of clear

plastic on the

face of the con-

sole, remove it.

This manual suits for next models

Table of contents

Other NordicTrack Elliptical Trainer manuals

NordicTrack

NordicTrack E 12.2 Elliptical Operating and maintenance manual

NordicTrack

NordicTrack NTCW90907.0 User manual

NordicTrack

NordicTrack 1300 Elliptical User guide

NordicTrack

NordicTrack E7.0 Elliptical Quick start guide

NordicTrack

NordicTrack E 5.5 Elliptical User manual

NordicTrack

NordicTrack A.C.T. Commercial Pro User manual

NordicTrack

NordicTrack NTEL05011.4 User manual

NordicTrack

NordicTrack Audiostrider 800 Elliptical User manual

NordicTrack

NordicTrack E 11.6 Elliptical User manual

NordicTrack

NordicTrack E4.0 Elliptical User manual

NordicTrack

NordicTrack E4.0 Elliptical User manual

NordicTrack

NordicTrack E4.1 Elliptical User manual

NordicTrack

NordicTrack E 9.2 Elliptical Manual

NordicTrack

NordicTrack E4.2 Elliptical User manual

NordicTrack

NordicTrack CXT 990 User manual

NordicTrack

NordicTrack NTEL12911 User manual

NordicTrack

NordicTrack NTEL05900 User manual

NordicTrack

NordicTrack E7.0 Elliptical User guide

NordicTrack

NordicTrack NTEVEL08990 User manual

NordicTrack

NordicTrack SpaceSaver Plus User manual

NordicTrack

NordicTrack E 9.5 User manual

NordicTrack

NordicTrack 910 Elliptical User manual

NordicTrack

NordicTrack 9600 El Trainerelliptical User manual

NordicTrack

NordicTrack A.C.T. NTCW90907.1 User manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual

Reebok

Reebok 1000 Zx Elliptical Manuel de l'utilisateur
