Nokia HS-53W User manual

Nokia Wireless Headset (HS-53W)

User Guide

DECLARATION OF CONFORMITY

We, NOKIA CORPORATION declare under our sole responsibility that the product HS-53W is

in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of

the Declaration of Conformity can be found at http://www.nokia.com/phones/

declaration_of_conformity/

The crossed-out wheeled bin means that within the European Union the product must be taken

to separate collection at the product end-of-life. Do not dispose of these products as unsorted

municipal waste.

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form

without the prior written permission of Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and

company names mentioned herein may be trademarks or tradenames of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and

improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of

any kind, either express or implied, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or

contents of this document. Nokia reserves the right to revise this document or withdraw it at any time

without prior notice.

The availability of particular products may vary by region. Please check with the Nokia dealer nearest to

you.

Unauthorized changes or modifications to this device may void the user's authority to operate the

equipment.

Export Controls

This device may contain commodities, technology or software subject to export laws and regulations from

the US and other countries. Diversion contrary to law is prohibited.

9246862/Issue 1 EN

Contents

1. Introduction...................................................................................................... 5

Bluetooth wireless technology ............................................................................................................... 5

2. Get started ........................................................................................................ 6

Overview........................................................................................................................................................ 6

Chargers and batteries.............................................................................................................................. 7

Charge the battery ..................................................................................................................................... 7

Switch the headset on or off .................................................................................................................. 8

Pair the headset with a compatible phone......................................................................................... 9

Disconnect the headset......................................................................................................................... 9

Reconnect the headset........................................................................................................................ 10

3. Basic use......................................................................................................... 11

Wear the headset on either ear............................................................................................................ 11

Adjust the earphone volume ................................................................................................................. 11

Call handling.............................................................................................................................................. 11

Make a call.............................................................................................................................................. 11

Answer a call.......................................................................................................................................... 12

End a call................................................................................................................................................. 12

Mute or unmute the microphone..................................................................................................... 12

Switch the call between phone and headset................................................................................ 13

Use the headset with several phones ................................................................................................. 13

Reset the headset..................................................................................................................................... 13

Troubleshooting ........................................................................................................................................ 14

4. Battery information....................................................................................... 15

Care and maintenance ...................................................................................... 16

1. Introduction

The Nokia Wireless Headset (HS-53W) can be used with compatible phones that

support Bluetooth wireless technology. This allows you the freedom to make and

receive calls while on the move or in the office.

Read this user guide carefully before using the headset. Read also the user guide

for your phone, which provides important safety and maintenance information.

Keep the headset out of reach of small children.

■Bluetooth wireless technology

Bluetooth wireless technology allows you to connect compatible communication

devices without cables. A Bluetooth connection does not require that the phone

and the headset be in line of sight, but both devices should be within 10 meters

(30 feet) of each other. Connections may be subject to interference from

obstructions, such as walls, or other electronic devices.

The headset is compliant with the Bluetooth Specification 1.2 supporting the

following profiles: Headset Profile 1.1 and Hands-free Profile 1.0. Check with the

manufacturers of other devices to determine their compatibility with this device.

There may be restrictions on using Bluetooth technology in some locations. Check

with your local authorities or service provider.

2. Get started

■Overview

The headset contains the following parts:

• Power/call key (1)

• Indicator light (2)

• Microphone (3)

• Volume down key (4)

• Volume up key (5)

• Earloop (6)

• Earphone (7)

• Charger connector (8)

Before you can start to use the headset, you must charge the battery, and pair the

headset with a compatible phone.

Note: Parts of the headset are magnetic. Metallic materials may be attracted to

the headset. Do not place credit cards or other magnetic storage media near the

headset, because information stored on them may be erased.

■Chargers and batteries

Check the model number of any charger before using it with this device. The Nokia Wireless

Headset (HS-53W) is intended for use with the ACP-12 and LCH-12 chargers.

Warning: Use only batteries and chargers approved by Nokia for use with this

particular enhancement. The use of any other types may invalidate any approval

or warranty, and may be dangerous.

For availability of approved enhancements, please check with your dealer. When you

disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.

■Charge the battery

The headset has an internal, nonremovable, rechargeable battery. Do not attempt

to remove the battery from the device, as you may damage the device.

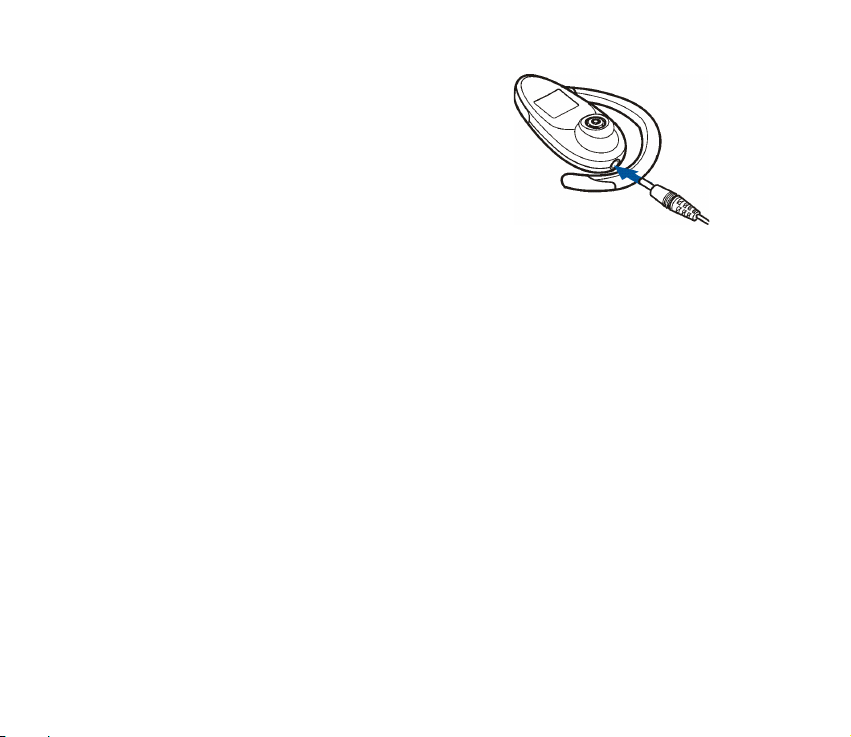

1. Connect the charger cable to the headset.

2. Connect the ACP-12 charger to a wall outlet or

the LCH-12 charger to the accessory power

outlet of your car. The red indicator light is

displayed during charging. Charging the

battery fully takes about 2 hours.

3. When the battery is fully charged, the red

indicator light is dimmed. Disconnect the

charger from the wall outlet or the accessory power outlet and the headset.

When you disconnect the power cord of the charger, grasp and pull the plug,

not the cord.

The fully charged battery has power for up to 10 hours of talktime or up to 250

hours of standby time. However, the talk and standby times may vary when used

with different mobile phones, products that use a Bluetooth connection, usage

settings, usage styles, and environments.

When the battery is running out of power, the headset beeps, and the red

indicator light flashes every 5 seconds. Charge the battery.

■Switch the headset on or off

To switch on, press and hold the power/call key. The headset beeps, and the blue

indicator light starts to flash.

To switch off, press and hold the power/call key. The headset beeps, and the red

indicator light is displayed briefly.

■Pair the headset with a compatible phone

1. Switch on your phone and the headset.

2. Activate the Bluetooth feature on the phone. See the user guide of your phone

for instructions.

3. Press and hold the volume up key and the volume down key simultaneously.

The blue and red indicator lights start to flash alternately. When you release

the two keys, the headset is ready to be paired.

4. Set the phone to search for Bluetooth devices. See the user guide of your

phone for instructions.

5. Select the headset (Nokia HS-53W) from the list of found devices.

6. Enter the passcode 0000 to pair and connect the headset to your phone. In

some phones you may need to make the connection separately after pairing.

See the user guide of your phone for details. You only need to pair the headset

with your phone once.

7. When the headset is connected to the phone and ready for use, the headset

beeps, and the blue indicator light flashes every 3 seconds. The headset

appears in the phone menu where you can view the currently paired Bluetooth

devices.

Disconnect the headset

To disconnect the paired headset from your phone (for example, to connect the

phone to another Bluetooth device), switch off the headset, or disconnect the

headset in the Bluetooth menu of your phone.

You do not need to delete the pairing with the headset to disconnect it.

Reconnect the headset

To connect the paired headset to your phone, switch on the headset, or make the

connection in the Bluetooth menu of your phone.

You can set your phone to connect with the headset automatically when the

headset is switched on. To do this in Nokia phones, change your paired device

settings in the Bluetooth menu.
