Nexstar NXBT S130 User manual

NXBT S130

Thank you for choosing our Bluetooth handsfree products. Please read this NXBT S130

User Manual before you use this handsfree speaker. Novomax Inc. (hereinafter referred

to as “The company”) reserves its rights to make any changes and improvements to the

product described in this document without prior notice.

Declaration:

Without written permission from original manufacturer, reproduction, transfer, distribution

or storage of part or all of the contents in this document in any form is prohibited.

Notice .

Please make sure your mobile phone supports Bluetooth profiles and network operator

supports the functions described in this manual, otherwise the relative functions cannot

be realized on this handsfree device.

Safety:

zUse the charger and accessories that come with package. The company is not

responsible for any losses caused by using other chargers or accessories.

zCaution: risk of explosion if battery is replaced by an incorrect type.

zCheck the laws and regulations on the use of mobile phones and handsfree

equipment in the areas where you drive. Always give full attention to driving and

pull off the road and park before making or answering a call if driving conditions

require.

zDo not allow children to play with your Bluetooth handsfree speaker since it

NXBT S130

contains small parts that could become detached and create a choking hazard.

zThis device contains a Li-polymer battery. Please keep it away from fire anytime

(including discarding the device) or the battery may explode.

zThe handsfree Speaker, especially the embedded battery must be properly

disposed or recycled. Contact your local recycling centers for disposal methods.

Certification and Safety Approvals

This product has been tested and found to comply with Bluetooth BQB

requirements, part 15 of FCC rules, R&TTE Directive（99/5/EC）of CE marked

requirements, and approval on Bluetooth models of China Wireless

Communications Committee.

Warning: Users should not make changes on or modify the device in any way.

Changes or modifications without being expressly approved by the party

responsible for compliance could void the user’s authority to operate the device.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

NXBT S130

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna;

-Increase the separation between the equipment and receiver;

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected;

-Consult the dealer or an experienced radio/ TV technician for help.

NXBT S130

RF exposure warning:

This equipment must be installed and operated in accordance with provided

instructions and the antenna(s) used for this transmitter must be installed to

provide a separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter. End-

users and installers must be provided with antenna installation instructions and

transmitter operating conditions for satisfying RF exposure compliance.

CE command：

ETSI EN 301 489-1 V1.6.1(2005-09);

ETSI EN 301 489-17 V1.2.1(2002-08);

ETSI EN 300 328 V1.7.1(2006-10);

IEC 60950-1:2001,EN 60950-1:2001+A11:2004

NXBT S130

Contents：

1. INTRODUCTION................................................................................................................................. 7

1.1 BLUETOOTH TECHNOLOGY............................................................................................................... 7

1.2 BLUETOOTH HANDSFREE SPEAKER.................................................................................................. 7

1.3 PRODUCT FEATURES....................................................................................................................... 8

1.4 PACKAGE CONTENTS....................................................................................................................... 9

1.5 OVERVIEW ...................................................................................................................................... 9

2. USING YOUR HANDSFREE ............................................................................................................11

2.1 BATTERY CHARGING AND USAGE ................................................................................................... 11

2.1.1 Battery Charging............................................................................................................... 11

2.1.2 Battery Information........................................................................................................... 12

2.2 MOUNTING YOUR HANDSFREE........................................................................................................ 13

2.3 TURN ON/OFF HANDSFREE............................................................................................................ 14

2.4 PAIRING/CONNECTING YOUR HANDSFREE WITH BLUETOOTH EQUIPMENT......................................... 14

2.4.1 Pairing your Handsfree with Bluetooth Handset .............................................................. 14

2.4.2 Disconnecting your Handsfree with Bluetooth Equipment............................................... 16

2.4.3 Connecting your Handsfree with Bluetooth Equipment.................................................... 16

2.4.4 Delete Paired Records ..................................................................................................... 17

2.5 CALL FUNCTIONS .......................................................................................................................... 17

2.5.1 Basic Call Operations....................................................................................................... 17

2.5.2 Transferring Calls to/from your Handset .......................................................................... 18

2.5.3 Advanced Call Functions.................................................................................................. 18

3. QUICK USER GUIDE........................................................................................................................ 20

3.1 LED INDICATOR PATTERNS............................................................................................................ 20

3.2 QUICK USER GUIDE....................................................................................................................... 20

4. MAINTENANCE................................................................................................................................ 26

5. IMPORTANT MESSAGES AND FREQUENTLY ASKED QUESTIONS ......................................... 27

Manuel d’utilisation Français …………………………………………………………………………..29

NXBT S130

1. Introduction

1.1 Bluetooth Technology

Bluetooth is an internationally standardized technology supporting short distance wireless

communications. Any two Bluetooth-compatible equipments, such as mobile phone,

PDA、PC, headset, mouse, keyboard, printer, etc. can wirelessly communicate with each

other via Bluetooth connection.

Though line-of-sight is not required, Bluetooth connections could be subject to

interferences from obstructions such as walls, human bodies, and other electronic

devices. In addition, due to variations on product implementation, it is likely that Bluetooth

equipments from different manufactures have interoperability issues. In that case, you

may consult with manufactures to check product compatibility.

Note that, there could be some restrictions imposing on using Bluetooth devices in some

countries. Please check with your local authorities.

1.2 Bluetooth Handsfree Speaker

This Bluetooth handsfree speaker is a specially designed product bringing not only

convenience but also safety by allowing car drivers to make and receive calls without

holding a mobile phone. It provides a clean wireless audio connection with your Bluetooth

mobile phone and PDA. Mobile phones that are not Bluetooth-enable also support this

handsfree set through AV adaptors.

NXBT S130

In addition to vehicle environment applications, this portable equipment, supported by an

internal rechargeable Li-ion battery, can also be used in office environment as normal

handsfree equipment to make/receive/conference phone calls.

1.3 Product Features

zBluetooth v 2.1＋EDR compliant, and data rate up to 2Mbps

zClass II, operating range up to 10 meters (33 feet)

zCompatible with most Bluetooth-enabled devices such as cellular phones, PDAs,

and computers for voice communication

zSupport up to 8 handset pairing info simultaneously

zBest-in-class voice quality ensured by cutting-edge noise suppression and echo

cancellation techniques

zLoud audio output and supreme audio effect, allowing crystal-clear conversations

within a noisy car environment

zUltra-low cost with two omni-directional microphone solution

zCutting-edge DSP solution for superior AEC and full-duplex performance

zVoice dialing and user friendly operation keys ideal for car drivers to make/receive

calls

zSupport Call Waiting and Conference functions

zBetter portability with internal rechargeable Li-Polymer battery

zLow power consumption, up to 6 hours talk time and 600 hours standby time with

the internal battery

zEasy-to-mount with Sun visor clip

NXBT S130

1.4 Package Contents

zNXBT S130

z12/24V Car Charger Set（or 100－240V AC/DC Traveling Charger

Set，Optional）

zUser Manual

1.5 Overview

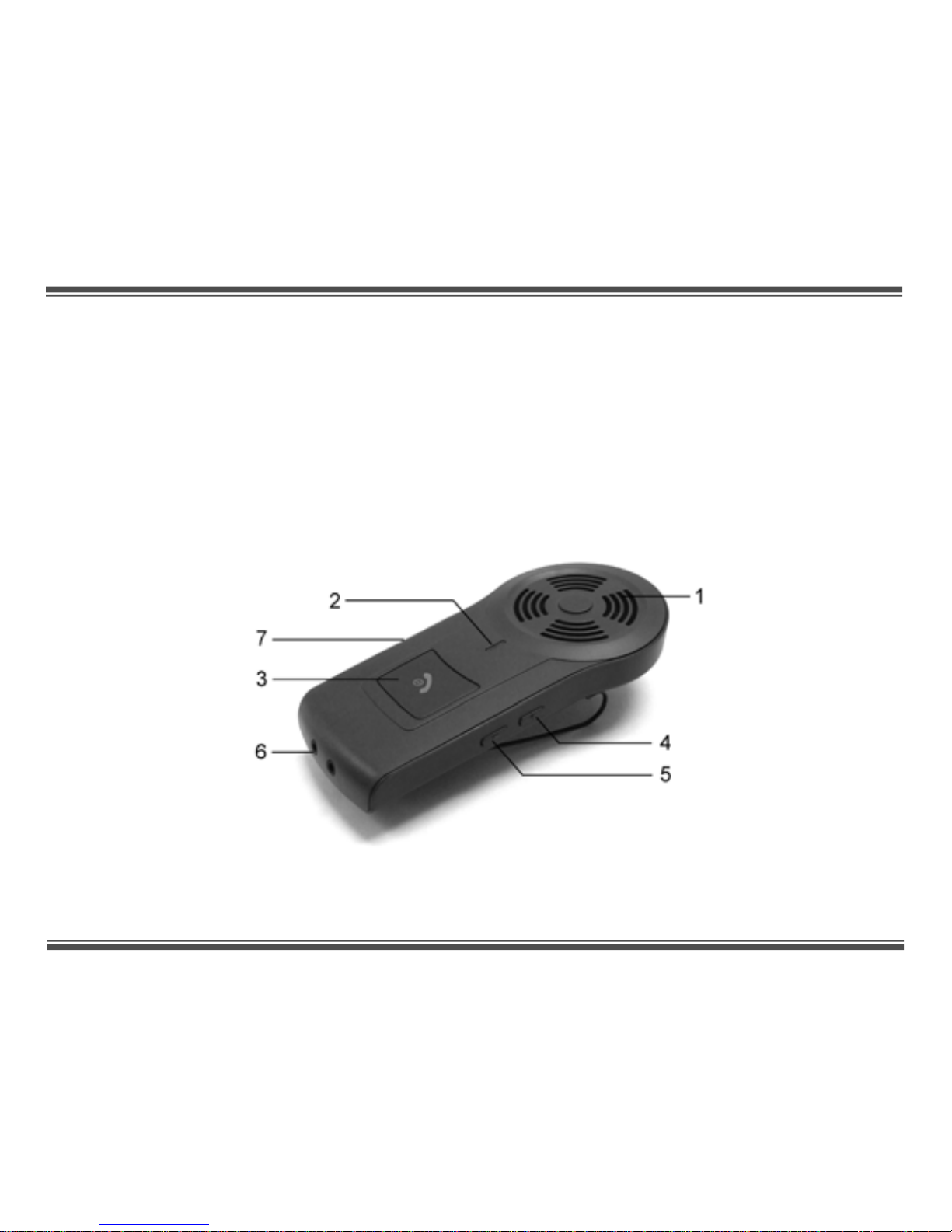

Figure 1 Overview
