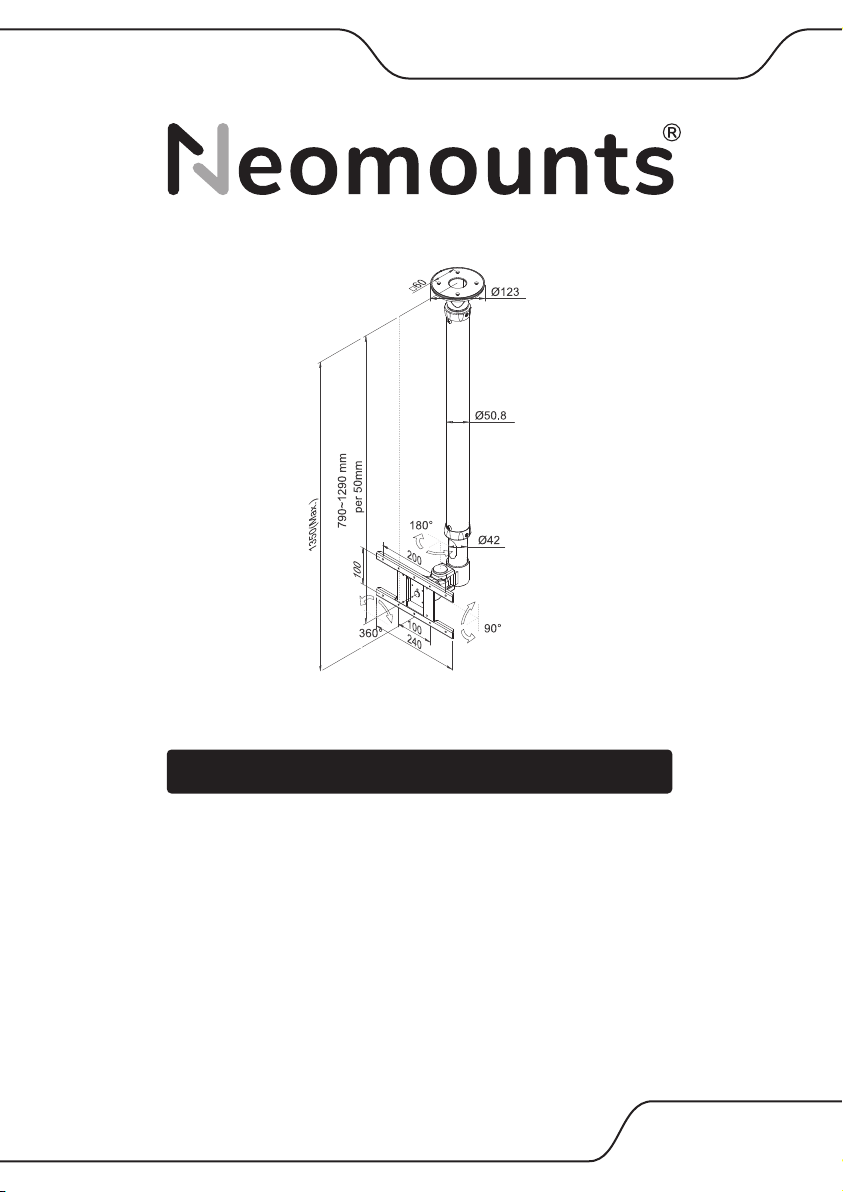

NeoMounts FPMA-C100WHITE User manual

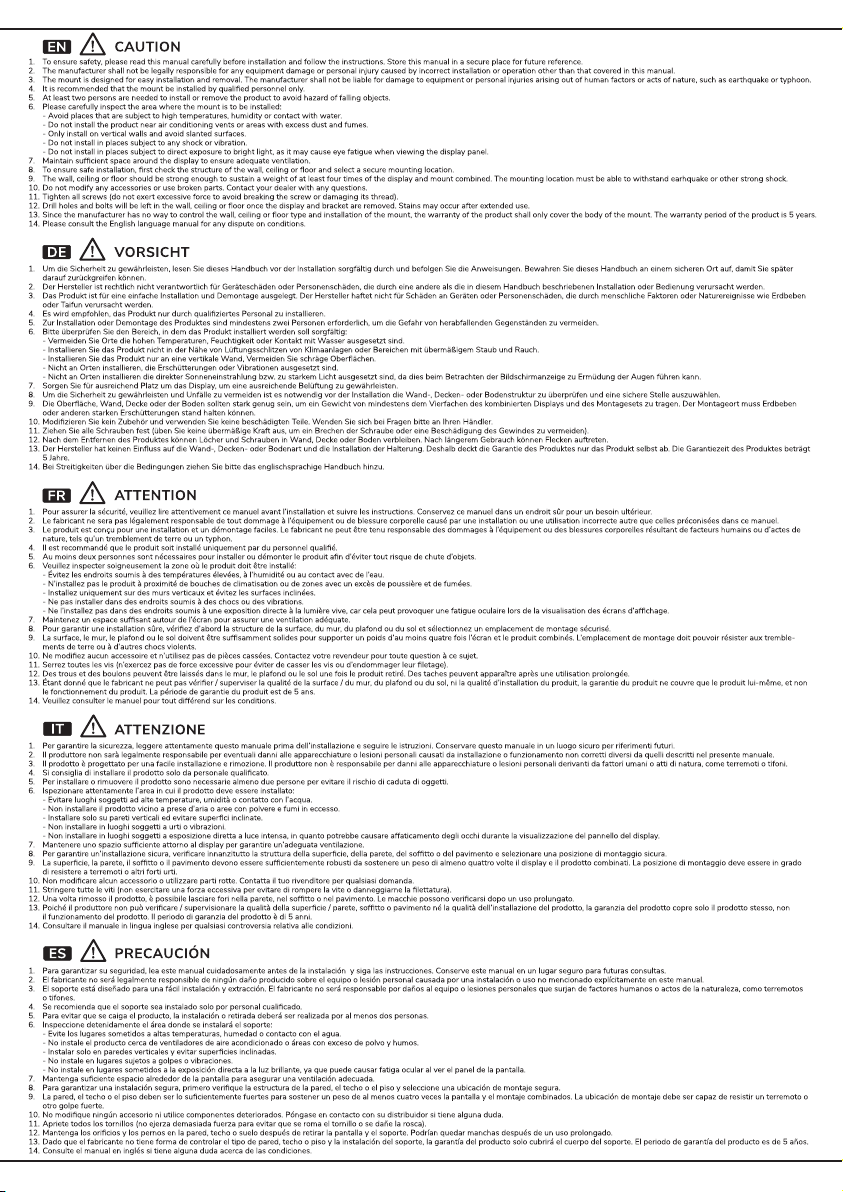

INSTRUCTION MANUAL

WWW.NEOMOUNTS.COM

FPMA-C100WHITE

Monitor ceiling mount

Monitor plafondsteun

Flachbildschirm-Deckenhalterung

Support de plafond pour écran

Supporto monitor a softto

Soporte de techo de monitores

Suporte de teto para monitores

Loftbeslag skærm

Takfeste til skjerm

Takfäste för bildskärm

Näytön kattokiinnike

Uchwyt sutowy do monitora

Stropní držák monitoru

Stropný držiak na monitor

Suport de tavan pentru monitor

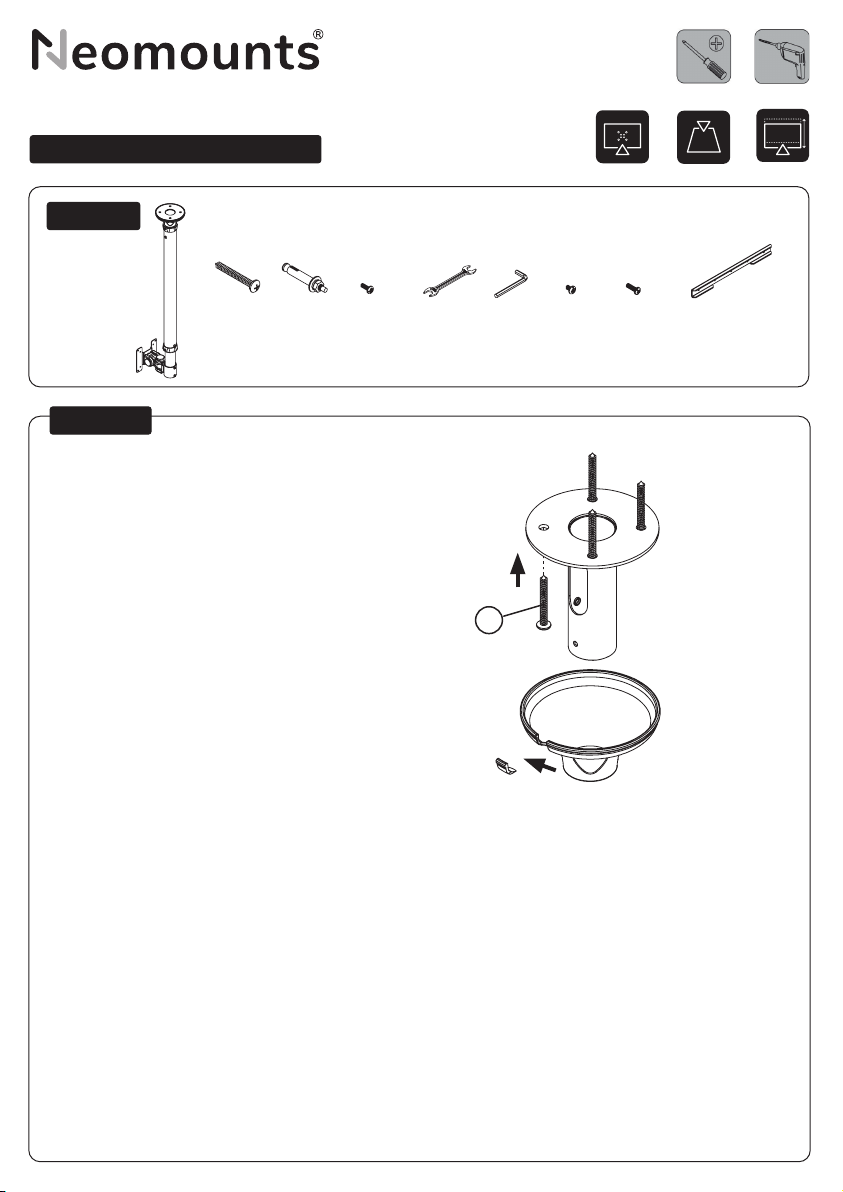

Install the ceiling plate

Installeer de plafondplaat

Montieren Sie die Deckenplatte

Installer la plaque de plafond

Installare la piastra a softto

Instalar la placa de techo

Instalar a placa de teto

Montaż płyty sutowej

PARTS

FPMA-C100WHITE

Tool Drill

STEP 1

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Depth

Gas spring

Curved screen compatible

Quick-release VESA

Top-x clamp

180° lock system

Handlebar

Crossbar

Cable management

0-12 kg

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Distance to wall

Gas spring

Quick-release VESA

Pull & release brackets

Media player space

Level adjustment

Cable management

Padlock

Push out / Pop out

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Distance to wall

Gas spring

Quick-release VESA

Pull & release brackets

Media player space

Level adjustment

Cable management

Padlock

Push out / Pop out

79-129 cm

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Distance to wall

Gas spring

Quick-release VESA

Pull & release brackets

Media player space

Level adjustment

Cable management

Padlock

Push out / Pop out

Screen size

VESA

Weight capacity

Tilt

Swivel

Rotate

Height

Distance to wall

Gas spring

Quick-release VESA

Pull & release brackets

Media player space

Level adjustment

Cable management

Padlock

Push out / Pop out

75x75 |

200x100 cm

A. (x1) B. 14x2″

(x4)

B. 1/4″x2″

(x4)

C. M4x10

(x4)

D. (x1) E. M4

(x1)

F. M4x5

(x4)

G. M4x12

(x6)

H. (x2)

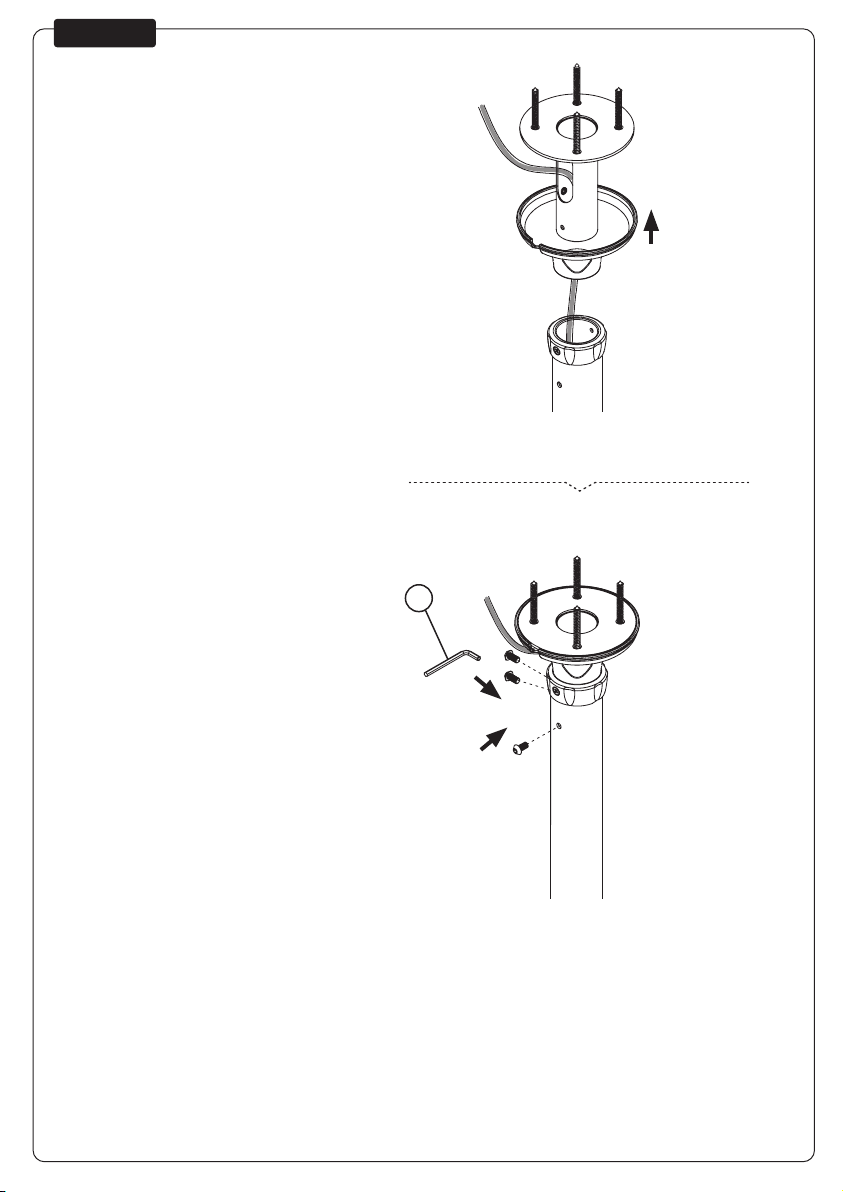

Attach the rod to the ceiling plate

Bevestig de stang aan de plafondplaat

Befestigen Sie die Stange an der Deckenplatte

Fixer la tige à la plaque de plafond

Fissare l’asta alla piastra del sof tto

F� e la varilla a la placa del techo

Fixar a haste à placa do teto

Przymocuj pręt do płyty su towej

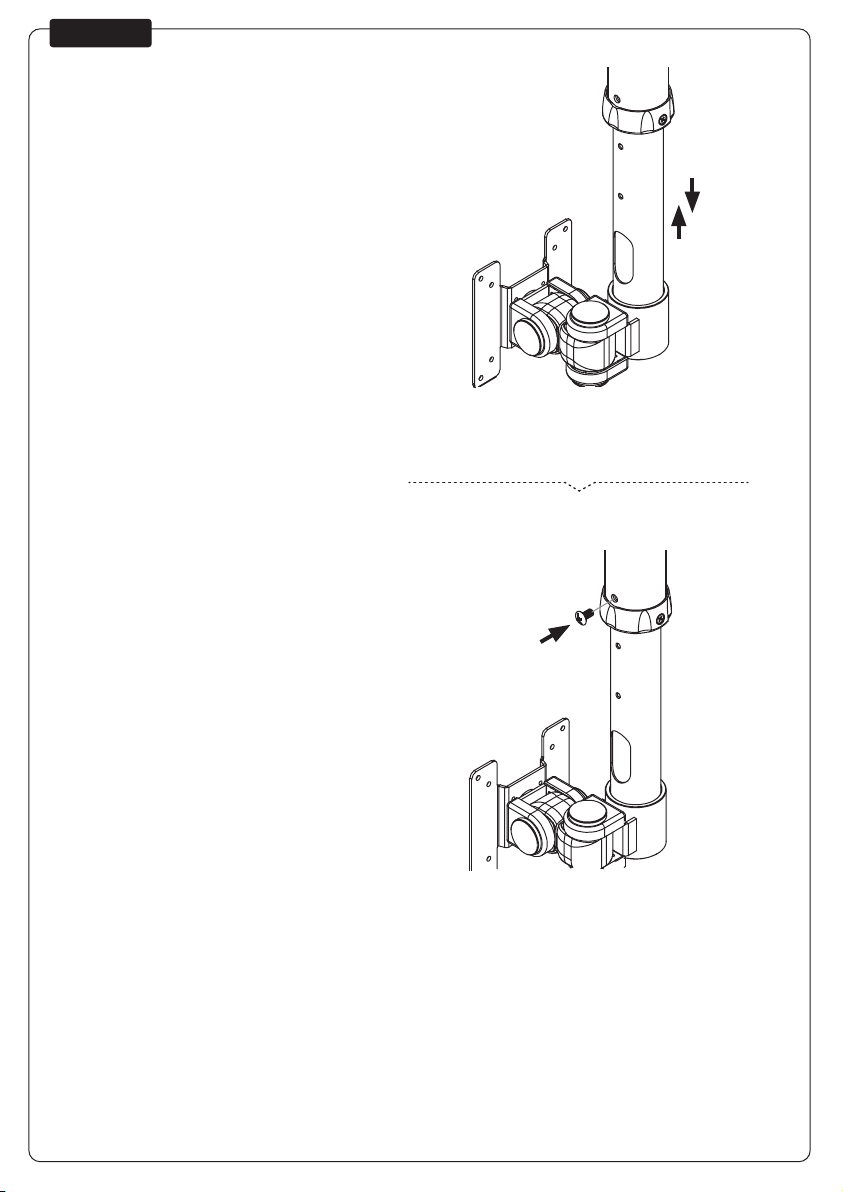

STEP 2

Determine the desired height and tighten the screw

Bepaal de gewenste hoogte en draai de schroef vast

Bestimmen Sie die gewünschte Höhe und ziehen Sie

die Schraube fest

Déterminer la hauteur souhaitée et serrer la vis

Determinare l’altezza desiderata e stringere la vite

Determine la altura deseada y apriete el tornillo

Determinar a altura desejada e apertar o parafuso

Określ żądaną wysokość i dokręć śrubę

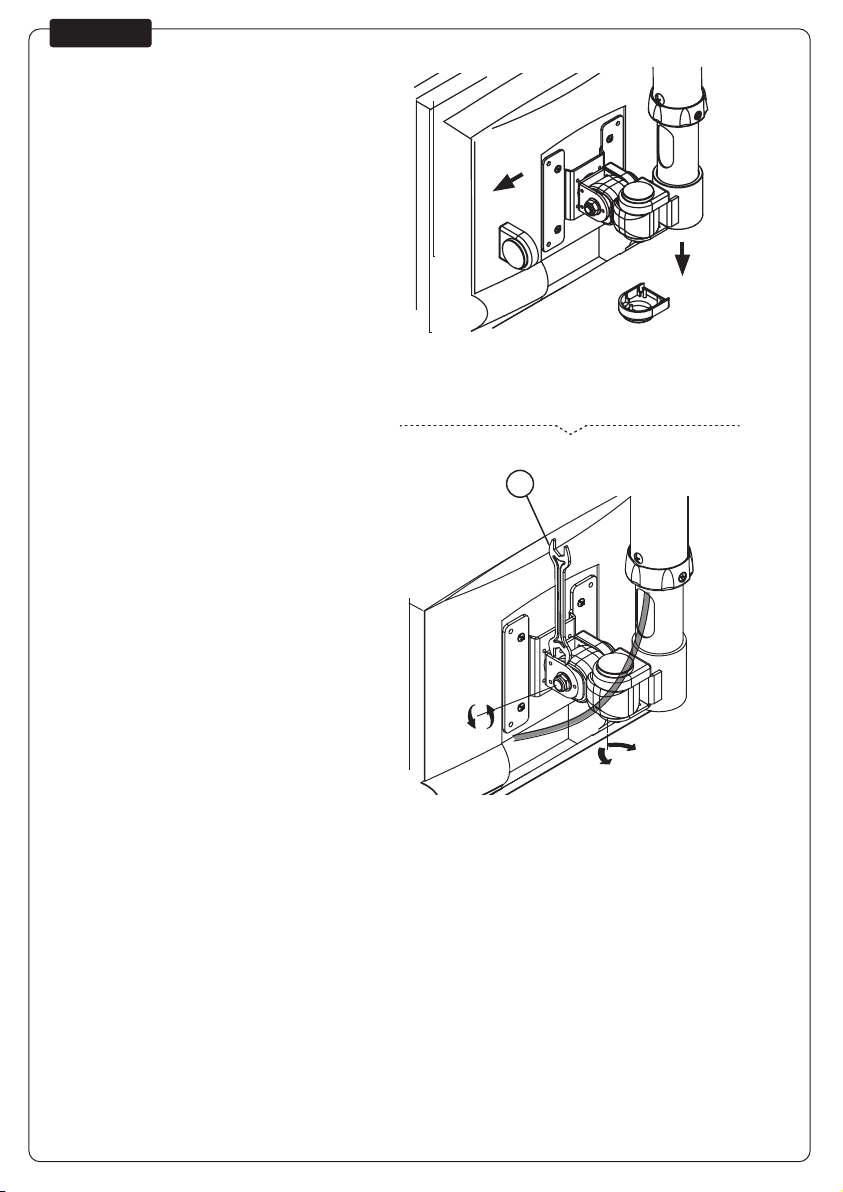

STEP 3

Attach the screen to the bracket and secure it

Bevestig het scherm op de beugel en zet vast

Befestigen Sie den Bildschirm an der Halterung

und sichern Sie ihn

Attachez l’écran au support et xez-le

Fissare lo schermo alla staffa e ssarlo

Coloque la pantalla en el soporte y fela

Fixar o ecrã ao suporte e xá-lo

Przymocuj ekran do uchwytu i zabezpiecz go

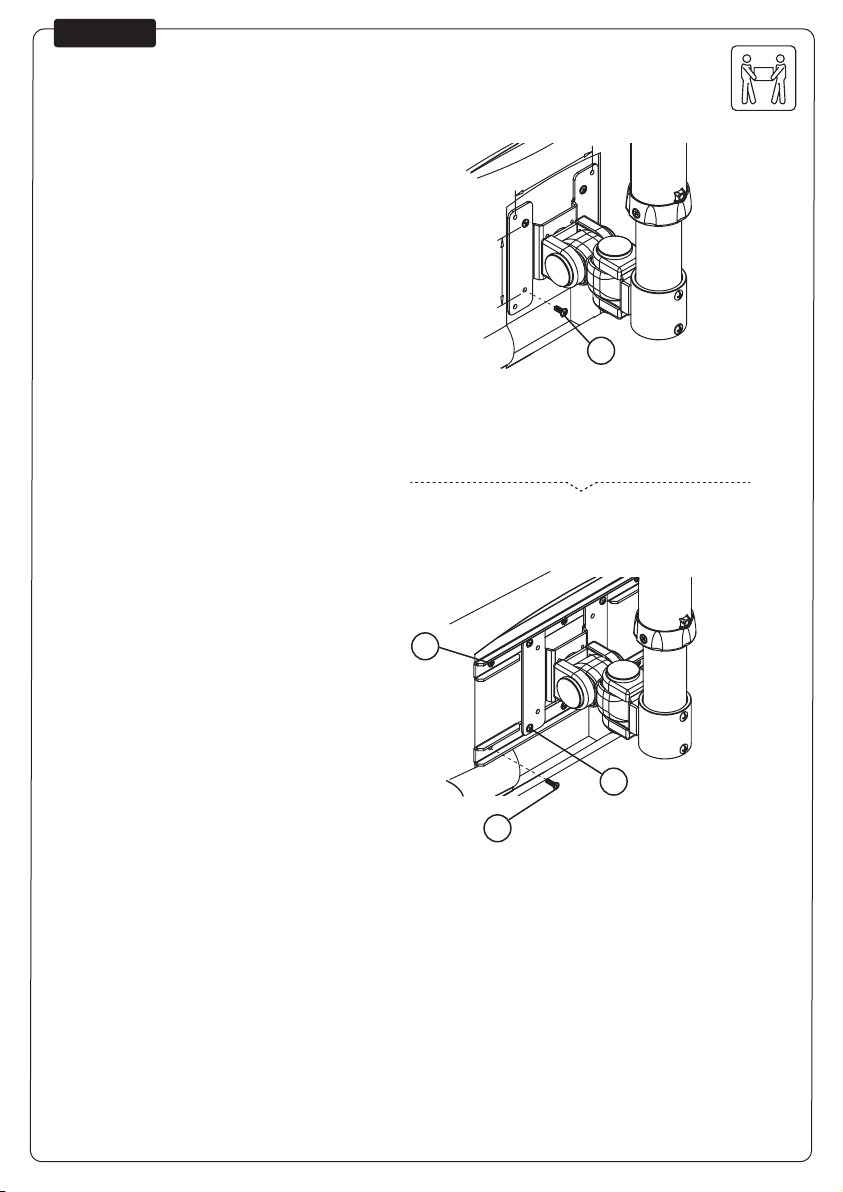

STEP 4

VESA 200x100

VESA 75x75 / 100x100

100

200

100

Adjust the torque

Stel het koppel in

Einstellen des Drehmoments

Réglagez les couples

Regolazione della coppia

Ajuste el tornillo

Ajustar os parafusos

Regulacja momentu obrotowego

STEP 5

23.11
