External Speaker
This kit provides an External Speaker for NCR CX7 All-in-One POS (7772).
Kit Contents
Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
6
Installation Procedure
Warning
Disconnect the AC power cord from the AC outlet and wait 30 seconds before
servicing the terminal.
1. Lay the Display face down on a flat surface.
Note
Always use a soft material (cloth, foam) to protect the display screen when
placing the terminal face down.
2. Remove the Cable Cover.
a. Remove the two (2) screws that secure the Cable Cover to the Back Cover.
b. Rotate and unhook the Cable Cover from the Back Cover.
Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
7
3. Disconnect the Cables.
a. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the
Cable.
b. Remove the Ethernet Cable from the Cable Management Hook then
disconnect the Cable.
4. Loosen the two (2) captive screws that secure the Back Cover to the Display.
Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
8
5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.
Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
9
6. Insert a flat screw driver in the slot of Port C to unsnap the Plate from the display
housing.
7. Disconnect the Internal Speaker Cable from the Motherboard and remove the
Internal Speaker (2 screws).
Confidential and proprietary information of NCRCorporation.
Unauthorized use, reproduction and/or distribution is strictly prohibited.
10

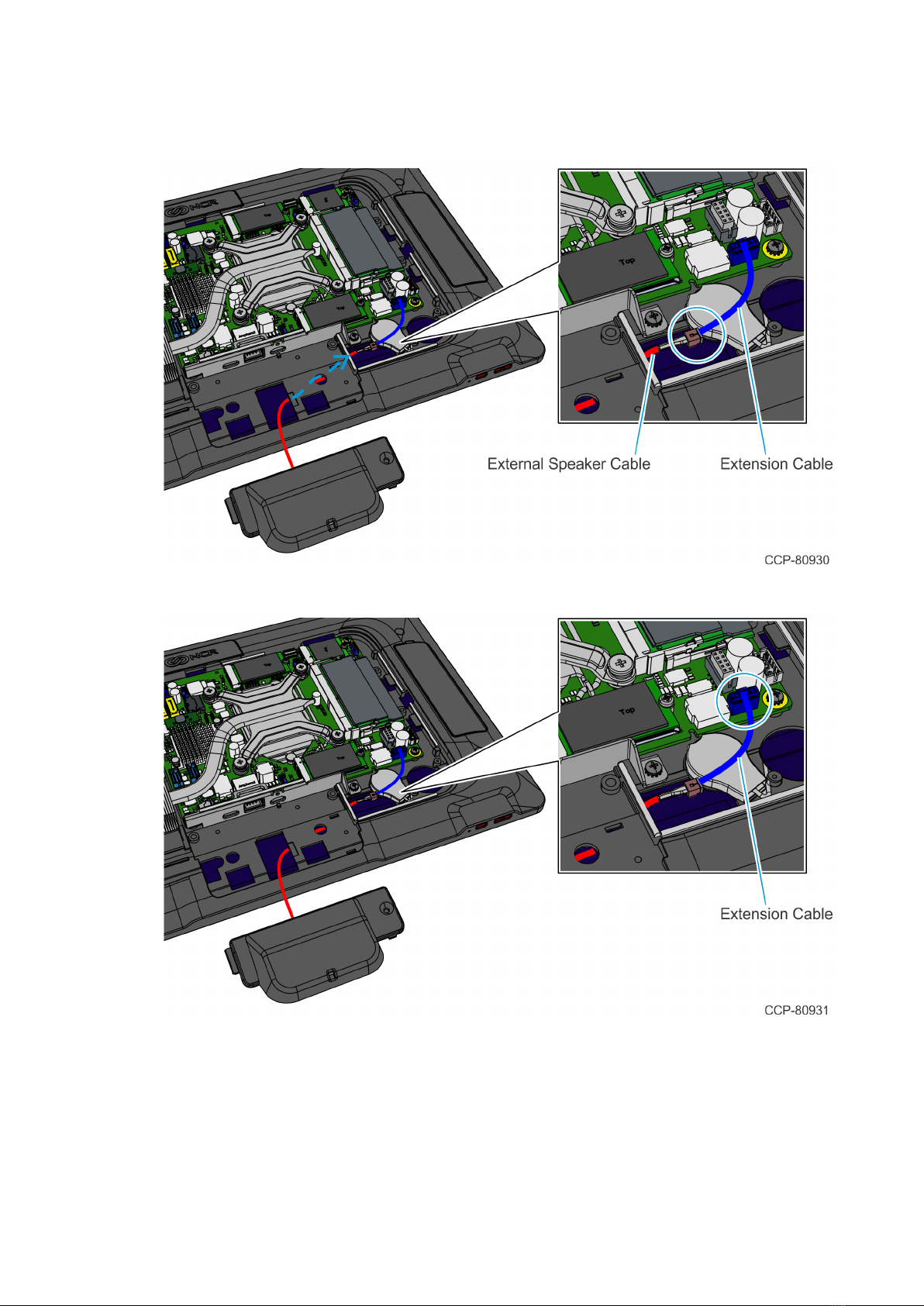

8. Route the External Speaker Cable through the port opening as shown and connect
the External Speaker Cable to the Extension Cable.
9. Connect the Extension Cable to the Motherboard.
