Nauticam WACP-1B User manual
N120/N100 0.36x Wide Angle Conversion Port Compact
with Intergrated Float Collar and Interchangable Port Mounting Ring
WACP-1B
Introduction 2
2
3
4
6
5
Package Contents
Important Instructions
Part Names
WACP-1B to Adaptor/Extension Ring
Interchangeable Port Mounting Ring
User Manual
Underwater Optics
7
8
Specications
Care/Storage
9Warranty
PN 85206
June, 2023
22
INTRODUCTION
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
PACKAGE CONTENTS
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
Padded Travel CaseLubricant
N100 Mounting RingWACP-1B
(with N120 Mounting Ring)
(1 x Front Hard Lens Cap, 1 x Rear Lens Cap)
Manual Instruction Card
Rope Bag
Clean Cloth 90140 N120 Spare O-ring
90141 N100 Spare O-ring
33
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) along with WACP-1B be-
fore usage is recommended.
Do not point of the lens directly towards
the sun.
Defective products should be shipped to
our distributors for service. Do not attempt
to disassemble and /or modify any part of
the lens.
The housing setup should be positioned
on the a stable and safe surface on land.
This product is not intened for use by children,
or persons with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they are supervised and/
or given instruction by a responsible person
concerning use of the product to ensure that
they can use it safely.
Do not use any kind of abrasive solution to
clean the glass surfaces.
Do not expose the housing in direct
sunlight for a prolonged period.
Do not sealed the housing system when
travelling by air.
1
3
5
7
9
11
4
6
8
10
2
Do not open the housing system in wet or
sandy environment. Protect the housing
and lenses from moisture and debris in
order to prevent malfunction or leakage.
Prevent any sand or dust or water
penetration inside the housing and in
between lenses. Be extra careful when
changing lens and inserting or removing
the camera.
Do not jump in water carrying the housing
setup. Always have the setup handed to
you when you are in water.
44

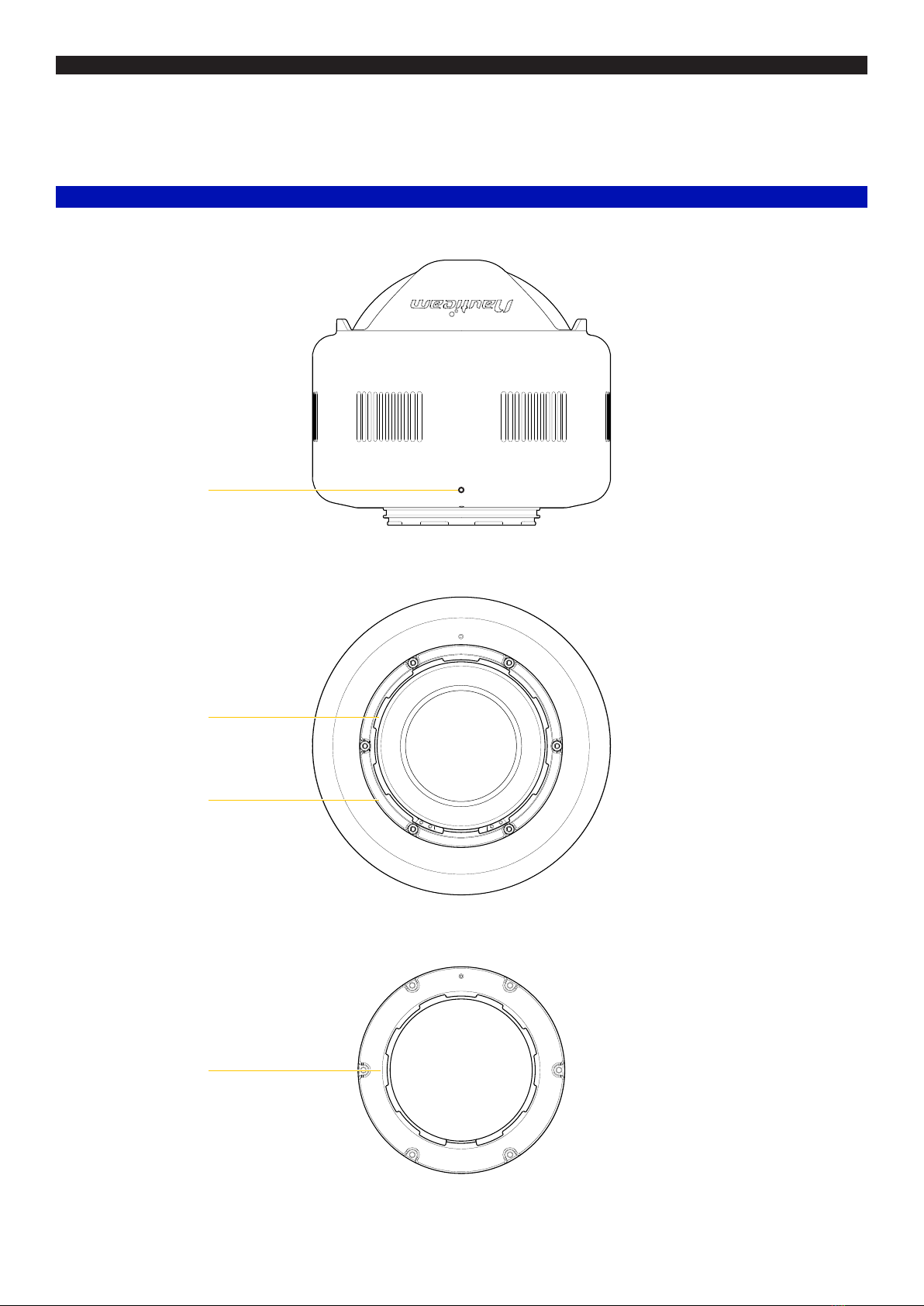

PART NAMES
Lens mount
index mark
Bayonet Mount
N120 Mounting Ring
Top & Rear View
N100 Mounting Ring
55
* drawings as illustrations only
INTERCHANGEABLE PORT MOUNTING RING
3 4
take out the N120 mounting ring replace with the N100 mounting ring and screw
back the six screws onto WACP-1B body
2
remove the six screws from WACP-1B body
1
rst remove the o-ring from N120 mounting ring
N100 N120
66
WACP-1B TO ADAPTOR/EXTENSION RING
* drawings as illustrations only
Adaptor/Extension Rings
To Disassemble
To Assemble
Conrm that the adaptor or extension ring is unlocked.
(Please refer to the corresponding manual for adaptor or
extension ring installation.)
Align the ‘O’ index on the WACP-1B with the ‘I’ index on
the adaptor/extension ring, and gently push the adaptor/
extension ring towards the WACP-1B until it cannot go
any further
To un-mount the lens from adaptor/extension ring,
reverse the above steps.
Turn the adaptor/extension ring until the ‘O’ index on the
lens is aligned with ‘O’ index on the adaptor / extension
ring.
77
SPECIFICATIONS
CINEMA SYSTEM
CANON EF-MOUNT
NIKON F-MOUNT
NIKON Z-MOUNT
SONY E-MOUNT
MICRO FOUR THIRDS
CANON RF-MOUNT
FUJIFILM G-MOUNT
PANASONIC L-MOUNT
Focal range
Pre-installed
Lens coating
Depth rating
85206 WACP-1B
Compatability
Outer diameter x Length
N120
N120
N120
N120
N100
N85
N120
N120
N120
DIA 194mm×174mm
Canon EF-S 18-55mm f/3.5-5.6 IS STM
Canon EF-S 18-55mm f/3.5-5.6 IS STM
Sigma 18-35mm F1.8 DC HSM|A
Sigma 18-35mm F1.8 DC HSM | A
3.7 kg
Canon EF 28-70mm f/3.5-4.5 II
Canon EF 28mm f/1.8 USM
Negative 0.01 kg
Canon EF 28-80mm f/3.5-5.6 V USM
Canon EF 28mm f/2.8 USM
Canon EF 35mm f/2 IS USM
Hard-anodized aluminum alloy
Canon RF 15-30mm f/4.5-6.3 IS STM
Canon EF 28-70mm f/3.5-4.5 II
Canon EF 16-35mm f/2.8 III USM
6 elements in 5 groups
Canon EF 16-35mm f/2.8 III USM
Canon EF 28-80mm f/3.5-5.6 II
Canon EF 16-35mm f/4 IS USM
Anti-reection coating on both sides
Canon EF 16-35mm f/4L IS USM
Canon EF 28-80mm f/3.5-5.6 V USM
Canon EF 17-40mm f/4L USM
From front element of lens to innity
Nikon AF-S DX Micro NIKKOR 18-55mm
f/3.5-5.6G VR II
Sony SEL2870 FE 28-70mm F3.5-5.6 OSS with
Megadap ETZ 21 Adaptor
Nikkor Z 24-70mm f/4 S Lens
Sony FE PZ 16-35mm f/4 G
Olympus M.ZUIKO DIGITAL ED 12-40mm f/2.8 PRO
Canon RF 15-30mm f/4.5-6.3 IS STM
Fujilm GF 35-70mm f/4.5-5.6 WR
Canon EF 28-70mm f/3.5-4.5 II with Sigma
Mount Converter MC-21
Panasonic LUMIX G X Vario 12-35mm F2.8 I/ II
ASPH. POWER O.I.S.
Canon EF 28-70mm f/3.5-4.5 II with Metabones
EF-GFX mount Smart Expander 1.26x
Panasonic Lumix S 24-105mm f/4
Fujilm GF 45mm f/2.8 R WR
130° (Ref. 28mm equivalent)
Nikon AF-S Nikkor 28mm f/1.8 G
Nikkor Z 28-75mm f/2.8 Lens
Sony SEL2860 FE 28-60mm F4-5.6
Olympus M.ZUIKO DIGITAL ED 12-45mm f/4 PRO
Sigma 24-70mm f/2.8 DG DN Art
Interchangable N120 or N100 Port Mount
Nikon AF Nikkor 28mm f/2.8D
Nikkor Z 35mm f1.8 S
Sony SEL2870 FE 28-70mm F3.5-5.6 OSS
Tamron 28-75mm f/2.8 Di III RXD
150m
Nikon AF Nikkor 28-70mm f/3.5-4.5D
Nikon AF-S 17-35mm f/2.8D IF-ED
Aluminum oat collar integrated
Nikon AF-S NIKKOR 16-35mm f/4G ED VR
Nikon AF-S 18-35mm f/3.5-4.5G ED
Weight in air
Lens construction
Mount system
Buoyancy in water
Body construction
Maximum FOV Underwater
88
CARE/STORAGE
Soak the housing system along with the
WACP-C in fresh water after salt water
usage.; wipe the housing with a towel
before opening.
Remove dust and other foreign matter
from the dome port cover/cap before
attaching them.
After each day of diving, it is advisable to
have both the housing main O-ring and
port O-ring removed from their grooves
with the O-ring remover and inspected for
damage.Also checkthatthe O-ring retains
its original circular shape; never stretch
the O-ring excessively or remove it with a
sharp object. The O-ring groove should be
cleaned to ensure it is free from any salt
deposit or foreign material; lightly coat the
O-ring with the provided lubricant before
reinstalling it in the groove. A damaged
O-ring should be discarded immediately
andreplacedonly with onethatisprovided
by NAUTICAM.
Blow off dust with an air blower or clean
antistatic brushes from optical surfaces.
Use clean, lint free, and soft single-use
paper based optics cleaning tissues/pads
and avoid abrasive particle contamination
of your cleaning supplies and cloths
(e.g.bysand)(Dryand clean thedomesur-
face with a microber cloth. / Do not use
any kind of abrasive solutions to clean the
dome surface.)
After rinsing the housing, be careful not to
drip salt water on the dome port or
housing if you are still wet from diving.
Always store your optical product in the
provided pouches or containers when not
in use.
When you’ve nished washing your optical
product, wipe it gently with a microber
cloth and allow to dry in the shade or a
cool room.
Store the optical product in a dry and
clean place.
1
3
5
9
7
6
8
4
2
99
WARRANTY
All NAUTICAM Housing Products and Viewnders are
warranted against any material and manufacturing
defects for two years from the date of purchase for
consumer use. NAUTICAM Optical Accessories are
warranted against material and manufacturing defects
for a period of one year, and HDMI cables carry a year
warranty.
This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend
beyond the original retail purchaser.
To return your product for service, please contact your
regional authorized service center(s). Please note that
this warranty only applies when the product is
purchased in the territory where the service center is
located.
NAUTICAM accepts no liability for any damage to and
defects in the housing caused by improper use and/
or poor maintenance; it is the responsibility of the
ownertocarefullyfollowtheinstructionsinourmanuals.
NAUTICAM does not hold responsibility for damage, of
any nature, to any equipment used with and/or placed
within our products.
NAUTICAM accepts no liability for any loss of captured
images or the inability to capture images even if it is
due to the malfunctioning of our products.
Unauthorized modications and/or repairs of our
products will automatically invalidate the warranty.
Nauticam Internationl Ltd.
Rm 2203, CCT Telecom Bldg,
11 Wo Shing St,
Fo Tan,
Hong Kong
Tel. +852 - 26902711
Fax. +852 - 26909778
URL. www.nauticam.com
Gallery. www.nauticam.smugmug.com
