Nauticam M67 User manual

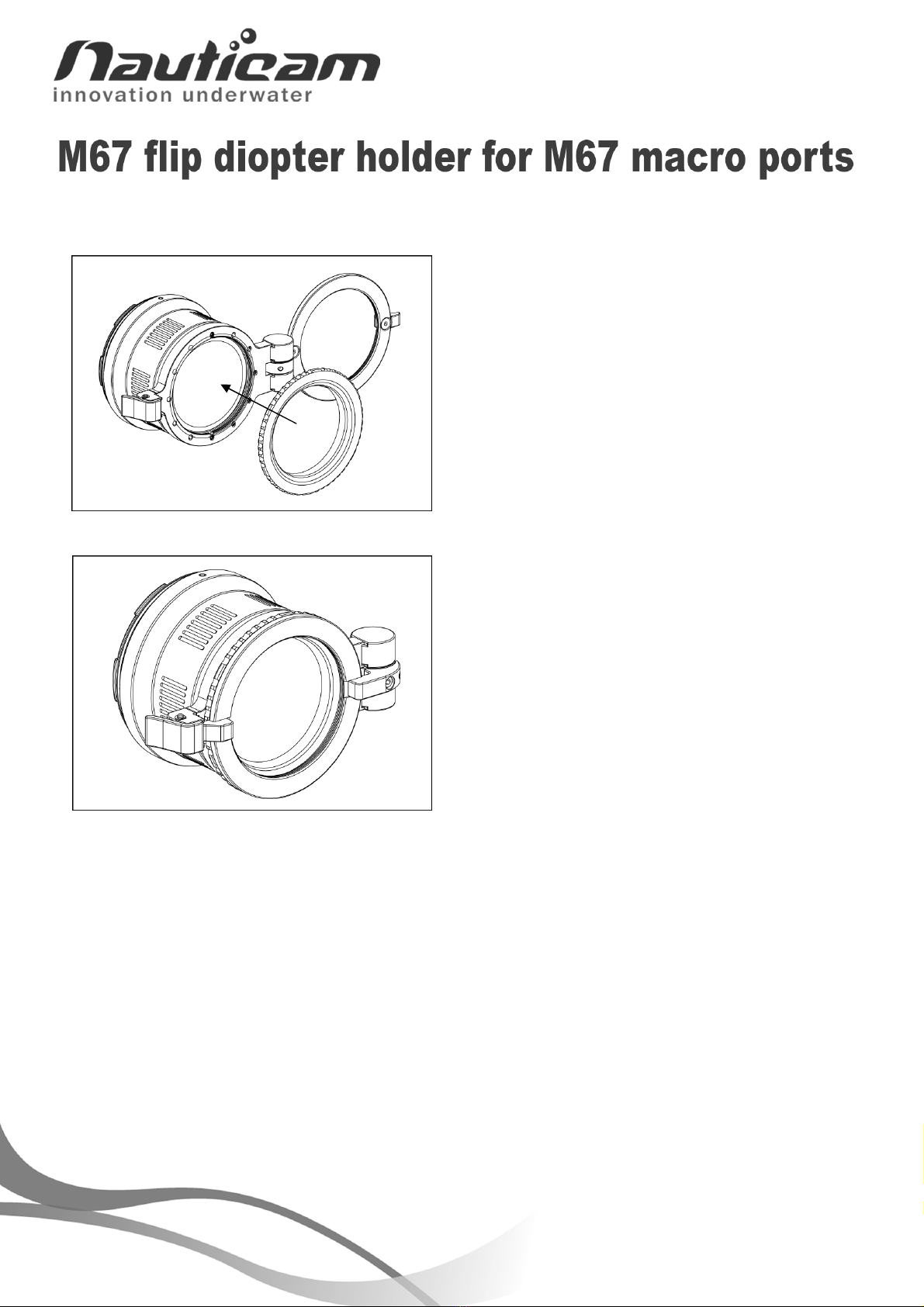

Please follow the instructions below to mount the flip diopter holder on Nauticam

6

7mm threaded ports.

1.

Press the lever

and flip the

diopter holder

to the

side then remove the locking ring from the flip

diopter holder.

2.

Align the two positioning

screw

s on the back of

the holder with the slots on the front of the port.

3.

The

position

of the flip diopter holder can be

changed by relocating the two screws in the

threaded holes around holder.

1

Press

4.

Fasten the holder by

screwing the locking ring

into the thread on the front of the port.

2

5.

To un

-

mount the flip diopter holder from the

port, reverse the above steps.
