Nauticam NA-FX3 User manual

NA - FX3

For Sony FX3 Full-Frame Cinema Camera

PN 17431

User Manual

Housing

Digital Cinema

Introduction 2

Package Contents

Important Instructions

Part Names and Functions

Opening the Housing

Closing the Housing

Preparation for Use

Recommended Accessory

Care/Storage

Warranty

Speciﬁcations

INTRODUCTION

PACKAGE CONTENTS

Thank you for purchasing this Nauticam product.

Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the

product as well as ensuring that you will use the product correctly.

Make sure that you have all the included items listed below before using this product.

If some items are missing or damaged, contact your local Nauticam dealer.

After purchase, we suggest that

you reuse all packaging materials

for future travelling.

NA-FX3

(2 x Handles with Mounting Balls, 1 x Housing Cap,

2 x Optical Fiber Mount Caps, 2 x Stainless Steel Handle Brackets)

Panasonic CR2032 Battery

(pre-installed for Moisture Alarm)

Spare Main O-ring

Padded Travel Case

Lubricant

Allen key set

O-ring Remover Manual Instruction Card

IMPORTANT INSTRUCTIONS

Water-tight test of the housing (without

camera inside) before usage is recom-

mended as well as any O-ring renewal

and port change.

Use only Nauticam lubricant on silicone

rubber O-ring.

Discontinue use immediately when there is

a sign of leakage.

Do not expose the housing in direct

sunlight for a prolonged period.

Prevent any sand or dust or water

penetration inside the housing. Be

extra careful when changing lens and

inserting or removing the camera.

This product is not intened for use by

children, or persons with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they

are supervised and/or given instruction by

a responsible person concerning use of

the product to ensure that they can use it

safely.

Do not seal the housing when travelling by

air as this may lead to a pressure difference

between the atmosphere and inside the

housing.

Only the accesories speciﬁed by

Nauticam must be used. Third-party

accessories may result in malfunctions

or damage to the product.

Do not stretch any O-rings excessively.

Only remove it using Nauticam O-ring

remover.

Do not open the housing in wet or sandy

environment. Protect the housing from

moisture and debris in order to prevent

malfunction or leakage.

11 12

Do not attempt to remove parts of the

housing yourself. Repairs must be done

at authorized service centers only.

The housing should be positioned on the a

stable and safe surface on land.

PART NAMES AND FUNCTIONS

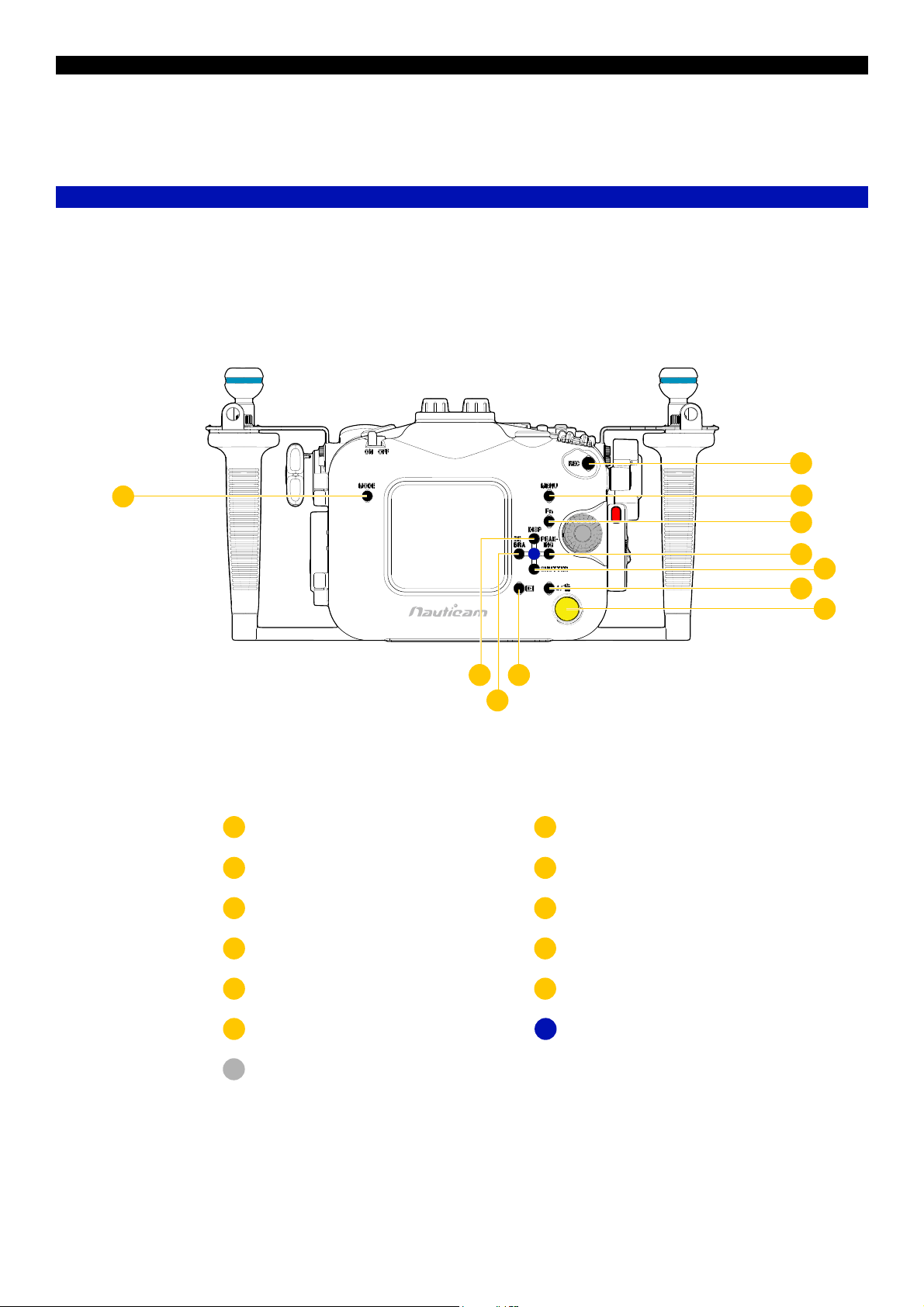

Rear View

Mode button REC button

Menu button Fn button

PEAKING button

Custom 4 button / Delete button

Display setting button

Playback button

Shutter button

Moisture alarm window

ZEBRA button

1 2

3 4

Control wheel

Control wheel - center

PART NAMES AND FUNCTIONS

Top + Front Views

M24 Accessory port

M14 Accessory port

IRIS button / Custom 1 button

Multi-selector - Left

M16 Accessory port Main Switch

Rear dial Accessory mounting ball

WB button / Custom 2 button ISO button / Custom 3 button

1/4” -20 mounting threads M10 Accessory port

Optical ﬁber cable connection

Port index mark

Multi-selector - Up

AF illuminator W/T lever

Lens release button Multi-selector - Center

Multi-selector - Right Multi-selector - Down

2 3

17 18

8 9

14 15

5 6

11 12

1514 1716

12 11

PART NAMES AND FUNCTIONS

Back + Side Views

Zoom/Focus dial

Shutter release lever

1/4” Threaded tripod holes

Port lock safety button

Housing unlock button

Port locking lever

Sacriﬁcial zinc anodes

Custom 5 button / FOCUS MAG button

OPENING THE HOUSING

depress housing unlock button

turn housing lock latch

anti-clockwise to open the

housing

ﬂip open the back housing

when lock latch is aligned to

‘open’ position

drawings as illustrations onl

CLOSING THE HOUSING

before closing the housing, clean

and lubricate the main O-ring

make sure nothing is caught

between front and back housing

and that they are fully aligned

before locking

main O-ring

insert the housing shaft into the

shaft hole and then rotate the lock

latch clockwise until you hear and

feel it click into place

housing locked in place securely

drawings as illustrations onl

PREPARATION FOR USE

Installing the Camera

unlock camera tray lever and

remove the tray from the housing

lock camera tray

attach the camera tray by tightening

the tray screw into the tripod socket

of the camera

slide the camera tray back into the

housing along the tray rail

PREPARATION FOR USE

Port Mounting

depress port lock safety button

and rotate anti-clockwise

lubricant the port O-ring before

mounting

align index mark

push port assembly straight in

rotate locking lever clockwise to

lock

drawings as illustrations onl
