Nauticam C65-F User manual

Identification of parts:

1

Locking ring

Externally threaded half

rings

Connector half rings

Focus gear ring

Stabilizing ring

Screws

x6

Inner grooves

x4

Alignment

indices

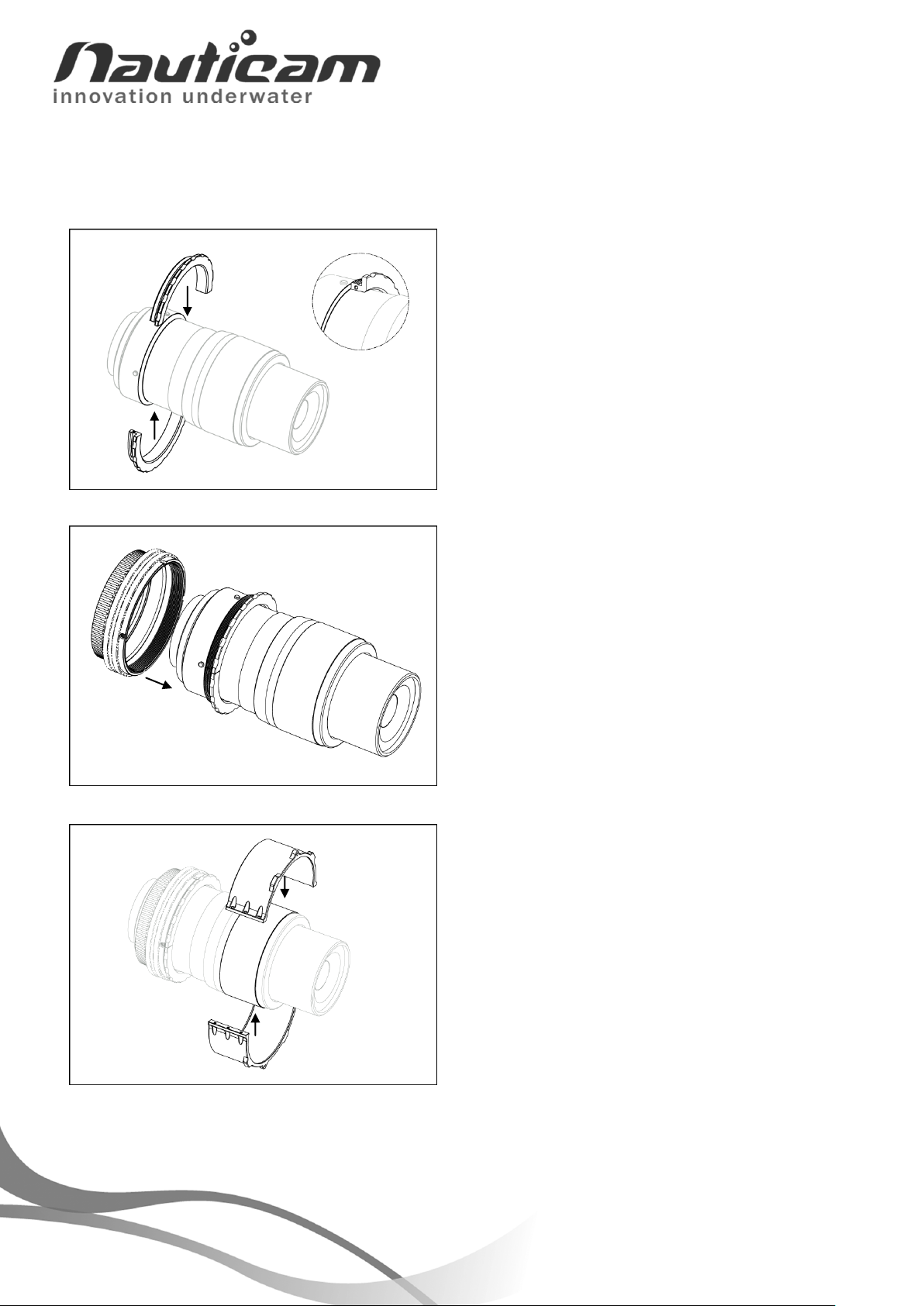

Please follow the instructions below to mount the dedicated focus gear on the lens.

1. Extend the lens to the 3x magnification position.

2. Mount the externally threaded half rings on the

lens as indicated in the diagram.

3. While holding the half rings firmly, insert the

locking ring from the rear of the lens. Fasten the

locking ring onto the half rings until it cannot go

any further.

4. Mount the connector half rings on the lens’s

focus ring as indicated in the diagram.

2

5. Fasten the connector half rings by tightening the

six screws.

6. Insert the focus gear ring from the rear of the

lens while making sure the inner grooves are

lined up with the alignment indices of the

connector half rings.

7. Fasten the focus gear ring by tightening the four

grub screws.

8. To un-mount, reverse the above steps.

3

1. Insert the stabilizing ring into the compact

port/extension ring as shown, until the flange of

the stabilizing ring sits on the bottom of the

threaded part of the compact port/extension

ring.

The stabilizing ring should be mounted to the respective compact port or compact extension ring

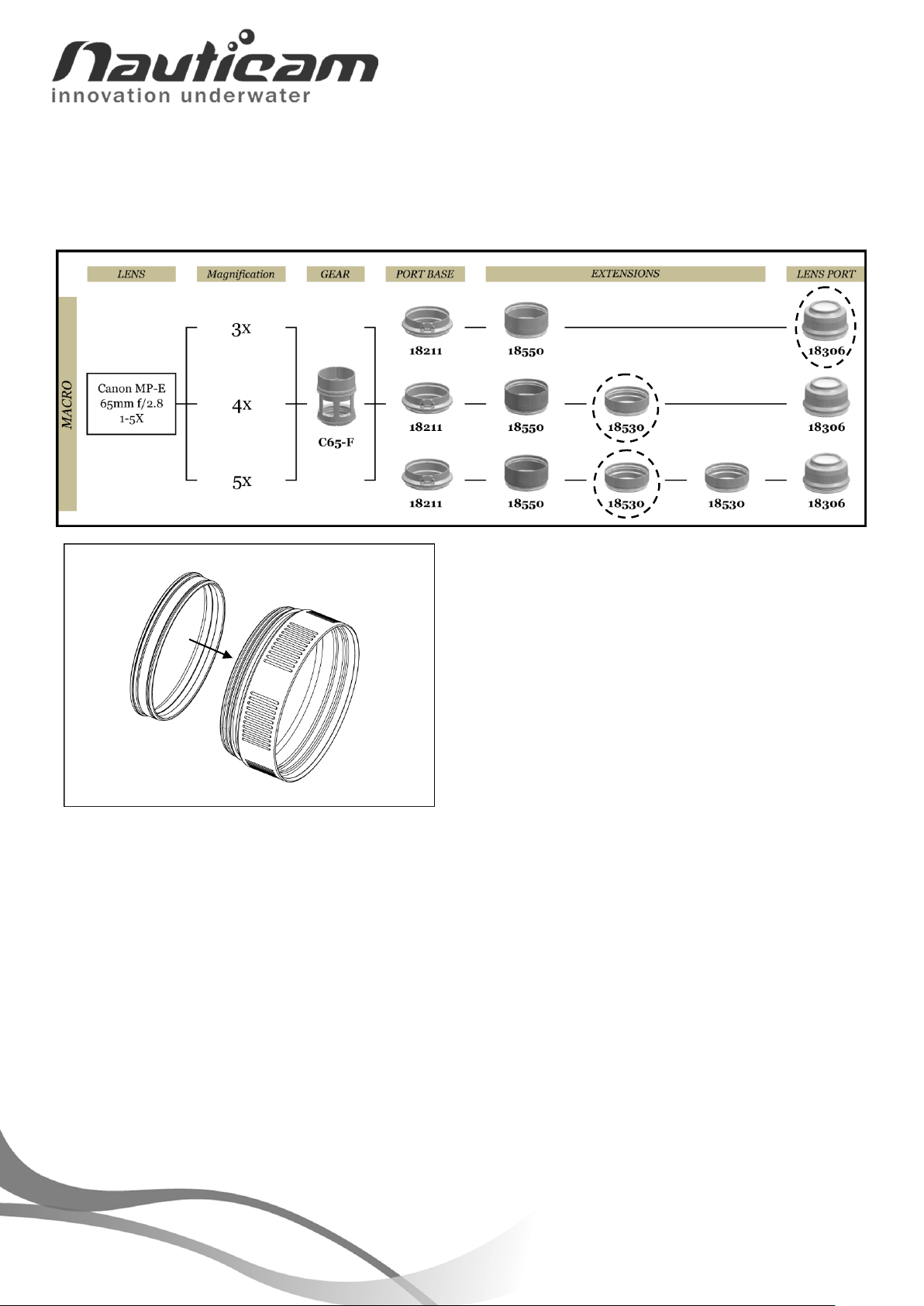

depending on the magnification of your choice, please refer to the circled part in the following chart:

4

Shooting tips:

Please plan and decide which magnification you wish to use before setting up the camera housing,

as this focus gear will only allow a fine adjustment of the focus distance but not the magnification. Once

the camera and lens have been set up, it is recommended to extend the lens all the way until it touches

the front glass of the port. Then retract the lens for about 2~3mm to allow fine focus adjustments.

**For details of working distance on different magnification scales, please refer to the lens manual.
