National Instruments NI PXIe-8133 User manual

INSTALLATION GUIDE

NI PXIe-8133

This document contains information about installing your NI PXIe-8133

controller in a PXI Express chassis. For complete configuration and

troubleshooting information (including information about BIOS setup,

adding RAM, and so on), see the NI PXIe-8133 User Manual. The manual

is in PDF format on the documentation CD included with your controller

and on the National Instruments Web site, ni.com/manuals.

Installing the NI PXIe-8133

This section contains general installation instructions for the

NI PXIe-8133. Consult your PXI Express chassis user manual for specific

instructions and warnings.

1. Plug in your chassis before installing the NI PXIe-8133. The power

cord grounds the chassis and protects it from electrical damage while

you install the module.

Caution To protect both yourself and the chassis from electrical hazards, leave the chassis

powered off until you finish installing the NI PXIe-8133 module.

2. Remove any panels blocking access to the system controller slot

(Slot 1) in the chassis.

3. Touch the metal part of the chassis case to discharge any static

electricity that might be on your clothes or body.

4. Remove the protective plastic covers from the four bracket-retaining

screws as shown in Figure 1.

5. Make sure the injector/ejector handle is in its downward position.

Align the NI PXIe-8133 with the card guides on the top and bottom

of the system controller slot.

NI PXIe-8133 Installation Guide 2 ni.com

Figure 1. Removing Protective Screw Caps

Caution Do not raise the injector/ejector handle as you insert the NI PXIe-8133. The

module will not insert properly unless the handle is in its downward position so that it

does not interfere with the injector rail on the chassis.

6. Hold the handle as you slowly slide the module into the chassis until

the handle catches on the injector/ejector rail.

7. Raise the injector/ejector handle until the module firmly seats into the

backplane receptacle connectors. The front panel of the NI PXIe-8133

should be even with the front panel of the chassis.

8. Tighten the four bracket-retaining screws on the top and bottom of the

front panel to secure the NI PXIe-8133 to the chassis.

9. Check the installation.

10. Connect the keyboard and mouse to the USB connectors. If you are

using a PS/2 keyboard and a PS/2 mouse, a Y-splitter adapter is

available to connect both to a single USB connector. National

Instruments offers a Y-splitter adapter cable, part number 778713-02,

available through the online catalog at ni.com/products.

11. Connect the DVI monitor video cable to the DVI connector, or use the

DVI-to-VGA adapter included with your controller to connect a VGA

monitor to the DVI connector.

12. Connect devices to ports as required by your system configuration.

13. Power on the chassis.

14. Verify that the controller boots. If it does not boot, refer to the What If

the NI PXIe-8133 Does Not Boot? section later in this guide.

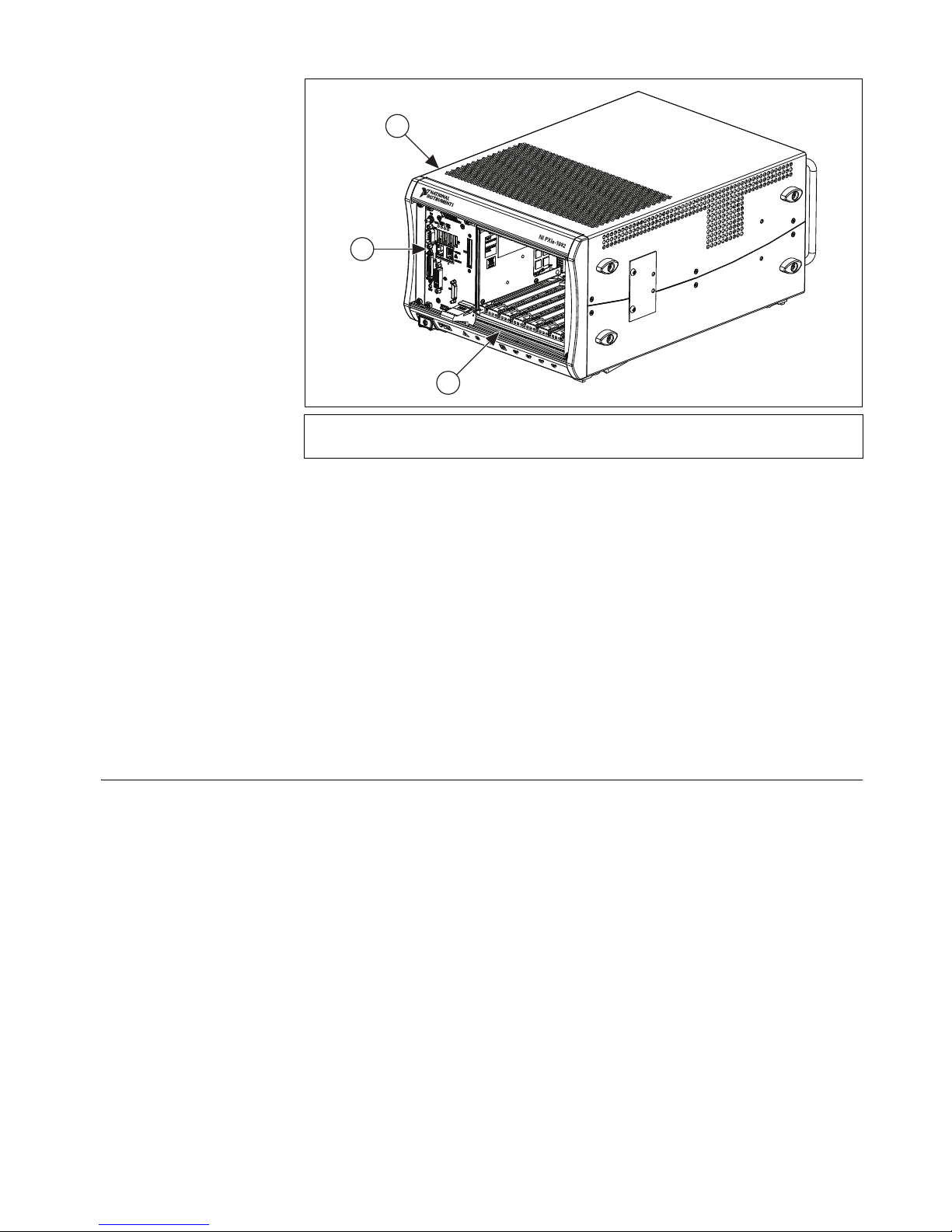

Figure 2 shows an NI PXIe-8133 installed in the system controller slot of a

National Instruments NI PXIe-1082 chassis.

1 Protective Screw Cap (4X)

©National Instruments Corporation 3 NI PXIe-8133 Installation Guide

Figure 2. NI PXIe-8133 Controller Installed in a PXI Express Chassis

How to Remove the Controller from the PXI Express Chassis

The NI PXIe-8133 controller is designed for easy handling. To remove

the unit from the PXI Express chassis, complete the following steps.

1. Power off the chassis.

2. Unscrew the 4 bracket-retaining screws in the front panel.

3. Press the injector/ejector handle down.

4. Slide the unit out of the chassis.

What If the NI PXIe-8133 Does Not Boot?

Several problems can cause a controller not to boot. Here are some things

to look for and possible solutions.

Things to Notice

• Which LEDs come on? The PWROK/FAULT LED should stay lit

green. The Drive LED should blink during boot as the disk is

accessed.

• What appears on the display? Does it hang at some particular point

(BIOS, Operating System, and so on)? If nothing appears on the

screen, try a different monitor. Does your monitor work with a

different PC? If it hangs, note the last screen output that you saw for

reference when consulting National Instruments technical support.

1 NI PXIe-1082 Chassis

2 NI PXIe-8133 Controller

3 Injector/Ejector Rail

LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle

logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at

ni.com/trademarks for other National Instruments trademarks. Other product and company

names mentioned herein are trademarks or trade names of their respective companies. For patents

covering National Instruments products/technology, refer to the appropriate location: Help»Patents

in your software, the patents.txt file on your media, or the National Instruments Patent Notice

at ni.com/patents.

• What has changed about the system? Did you recently move the

system? Was there electrical storm activity? Did you recently add

a new module, memory chip, or piece of software?

• Refer to your chassis user manual for additional troubleshooting steps.

Things to Try

• Make sure the chassis is plugged in to a working power source.

• Check any fuses or circuit breakers in the chassis or other power

supply (possibly a UPS).

• Make sure the controller module is firmly seated in the chassis.

• Remove all other modules from the chassis.

• Remove any nonessential cables or devices.

• Try the controller in a different chassis.

• Try a similar controller in this same chassis.

• Clear the CMOS. (Refer to the System CMOS section of the

NI PXIe-8133 User Manual.)

• Recover the hard drive on the controller. (Refer to the Hard Drive

Recovery section of the NI PXIe-8133 User Manual.)

• Make sure the RAM is properly seated.

For more troubleshooting information, refer to the NI PXIe-8133 User

Manual. The manual is in PDF format on the recovery CD included with

your controller and on the National Instruments Web site, ni.com/

manuals.

What If I Can’t See The Video?

This problem usually results from having the video card output set past the

limits of the monitor. You will need to boot Windows in Safe Mode. To do

this, reboot the controller. As Windows begins to boot, hold down <F8>.

You should now be able to reset the video driver to lower settings. Try

setting the resolution to 800 × 600 and the refresh rate to 60 Hz. Once you

reboot, you can raise these values again, using the test option in Windows.

These settings are accessible through the Advanced tab of the Display item

in the Control Panel. Alternately, you can try a different monitor,

preferably a newer and larger one.
