SYSTEMDESCRIPTION 3
musikelectronic geithain GmbH TS 52 / TS 52K
3 System description
The coaxial two-way sound reinforcement systems TS52 and TS52K feature a compact cabinet,
neutral sound colour, strong vertical focusing and high dynamics. These passive systems are
engineeredforhighclassspeech and musicreproductioninsmall and middlesizedauditoria.In
additiontheyremainopticallydiscretebecauseoftheirsmalldimensions.Theabandonmentofhorn
speakersresultsinaneutralityyouonlyknowfromrstclassstudiomonitors.
The components include one 6.5-inch cone woofer and four 1-inch dome tweeters. Both are
effectivelysecuredfromdestructionbyaninternalprotectivecircuit.Thecoaxialarrangementensures
a homogeneous coverage and this also reduces the size of these powerful sound reinforcement
systems.TheTS52Kemploysourreliablecardioidtechnology.Becauseofthestrongverticalfocusing,
distractionsbyceilingandoorreectionsareeffectivelyreduced.Thankstobothofthesetechnical
featurestheoperationofthesespeakersystemsinacousticallydifcultenvironmentsissimplied.
Avarietyofavailablemountingsprovideeasyassemblyforalmosteveryapplication.Specialadapters
enableaverticalcolumnofuptofourTS52orTS52Ktoexiblyadjusttheacousticreachtothe
actualcaseofapplication.
SPECIFICATIONS 4
musikelectronic geithain GmbH TS 52 / TS 52K
4 Specications
4.1 Technicalspecications
Cabinettype
TS52
TS52K
ventedcabinet
cardioiddirectivityinlowfrequencies
MaximumSPL 116dBpeak/r=1m(3′3″)
Frequencyresponse
TS52
TS52K
100Hz…20kHz−6dB
150Hz…20kHz−6dB
Coverageanglef>2 kHz 90°×25°(H×V)
Transducers
LF
HF
1× 6.5″cone
4× 1″dome
Sensitivity
measuredat1W 92dB/r=1m(3′3″)
Maximuminputpower 240W
Nominalinputpower 120W
Nominalimpedance 16Ω
optional100V(100/200/400Ωswitchable)
Electroniccrossoverfrequency 2.2kHz
Directivityindex seediagram
Inputconnector 2×SpeakonNL4(parallel)
optional2×XLR4(at100V)
Overloadprotection self-resetting
Dimensions(h×w×d) 250×210×250mm(9.9″×8.3″× 9.9″)
Weight
without100Vtransformer(standard)
with100Vtransformer(optional)
5.5kg(12.2lbs)
6.3kg(13.9lbs)
Environmentalspecications
Operatingtemperature
Storagetemperature
Relativehumidity
+15°C…+35°C(+59°F...+95°F)
−25°C…+45°C(−13°F...+113°F)
45%…75%
Designofthecabinet lumbercoreplywoodwithscratchproofstructure
coating
blackRAL9005,othercoloursonrequest
Additionalaccessories(optional) securitylug
stand,wallandceilingmountelements
SPECIFICATIONS 5
musikelectronic geithain GmbH TS 52 / TS 52K
4.2 Acoustical diagramms
25 50 100 200 500 1k 2k 5k 10k 20k
95
90
85
80
75
70
[dB]
[Hz]
0° (TS52) 0° (TS52K) 45°h 180°h (TS52K)
20 50 100 200 500 1k 2k 5k 10k 20k
[dB]
[Hz]
20
15
10
5
0
FREE FIELD FREQUENCY RESPONSE
DIRECTIVITY INDEX
SPECIFICATIONS 6
musikelectronic geithain GmbH TS 52 / TS 52K

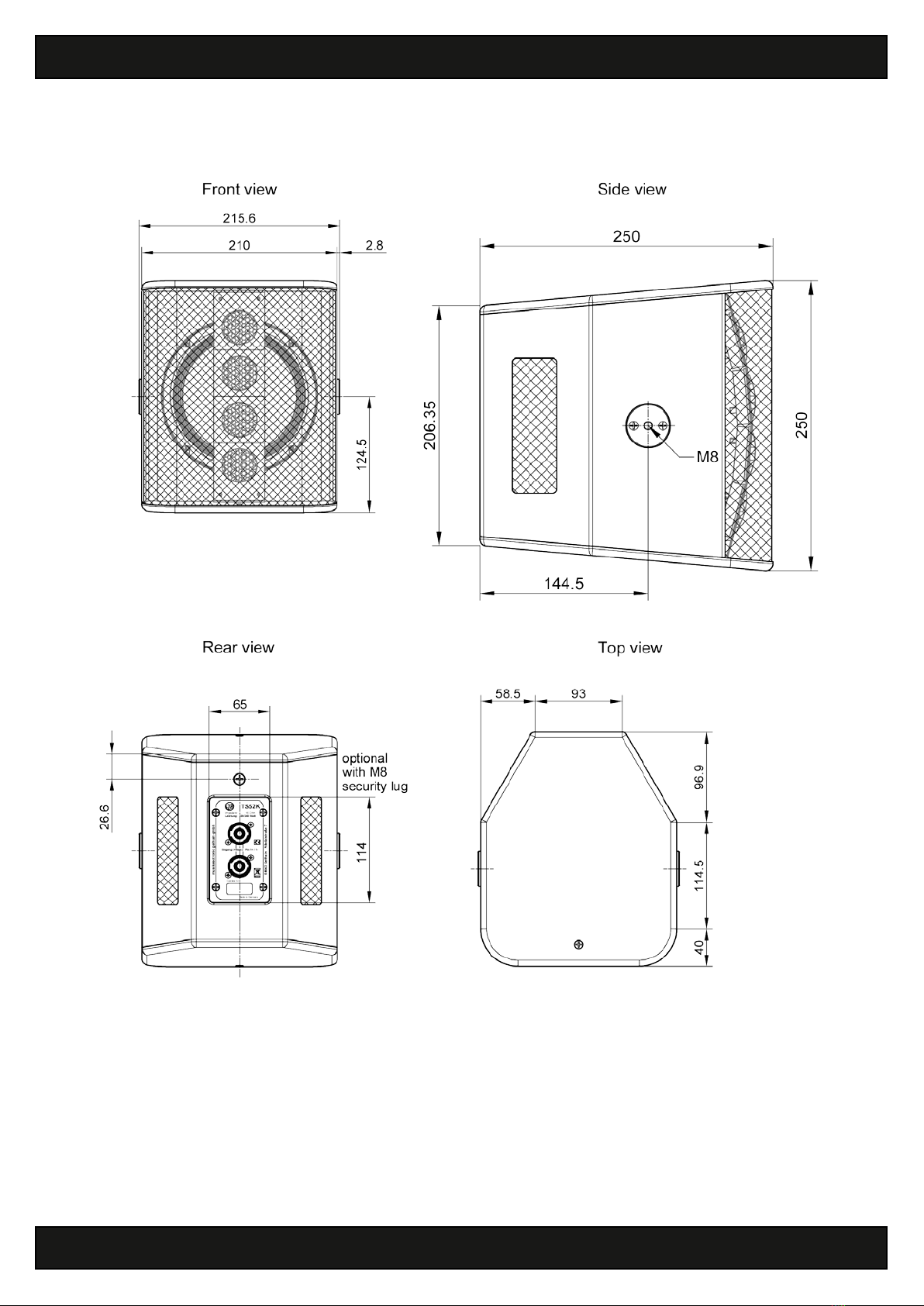

4.3 Technical drawings
4.3.1 TS 52
SPECIFICATIONS 7
musikelectronic geithain GmbH TS 52 / TS 52K
4.3.2 TS 52K
BASICINFORMATION 8
musikelectronic geithain GmbH TS 52 / TS 52K
5 Basic information
5.1 Guidelines
ThisproductcompliestorequirementsofcurrentEuropeanandnationalguidelines.Theconformity
isascertained,correspondingdeclarationsandrecordsaredepositedwiththemanufacturer.
EC Declaration of Conformity in accordance to EC Directives
;ElectromagneticCompatibility(2004/108/EG)
;LowVoltageDirective(2006/95/EG)
This product conforms to the following standards:
;EN55103-1 Emission
;EN55103-2 Immunity
5.2 Disposal
ProductsbuiltbyusbelongtoB2C-classoftheWEEEguidelinesandmustnotbe
disposedwithdomesticwaste.
5.2.1 Germany
Itisnotallowedtodisposeofusedelectricalequipmentasdomesticwaste.
Non-reusable parts of the mounting accessories have to be disposed according to national
environmentalregulations.
Ensuredisposalofdamagedmountingaccessoriesbeforetheycouldbereused.
Butdonotdisposetheseproductsandaccessoriesatofcialcollectingpointsforrecyclingeither!
DisposalofMusikelectronicGeithainGmbHproductslabelledwithawastebinsignhavethustobe
disposedofbyMusikelectronicGeithainGmbHalone.PleasecallMusikelectronicGeithainGmbHat
thenumberstatedbelowifyouhaveaMusikelectronicGeithainGmbHproducttobedisposed.We
willofferyouastraightforwardandprofessionaldisposalnotaffectingcost.
IfthereisnowastebinsignononeofyourMusikelectronicGeithainGmbHproducts,becausethey
havebeensoldbeforeMarch2006thenbylawtheownerisinchargeofthedisposal.Forthesewe
willbehappytoassistandofferyouproperwaysofdisposal.
Declaration:WiththeElektroG(lawrelatingtoelectricalandelectronicequipmentandappliances)we
havecompliedwiththeEU-directiveonwasteelectricalandelectronicequipment(WEEE,2002/96/
EC).
