Muratec MFX-1430 User manual

Step 1 : Pick an installation spot .............................................1

Step 2 : Unpack the machine ..................................................2

Step 3 : Setup the machine ....................................................3

Step 4 : Install the consumables .............................................5

Step 5 : Load paper into the cassette .....................................7

Step 6 : Connect the cables ....................................................9

Step 7 : Turn the power on ....................................................11

Step 8 : Turn off the transport mode .....................................12

Step 9 : Initial setup ..............................................................13

Step 10 : Set the paper size .................................................15

Step 11 : Assigning an IP Address .......................................16

Step 12: Browser-based setup .............................................20

Step 13: Setup e-mail server ................................................21

Step 14 : Driver installation for network printing ...................22

Step 15 : Driver installation for local printing and scanning ..23

Installation Manual

The steps to setup the machine

1Installation Manual

Step 1 : Pick an installation spot

Space requirement:

853 mm (337 inches)

753 mm (297 inches) 50 mm

(20 inches)

50 mm

(20 inches)

772 mm

(304 inches)

872 mm

(344 inches)

100 mm

(40 inches)

713 mm

(181 inches)

813 mm

(221 inches)

100 mm

(40 inches)

The location should be:

• Clean / Dust free — Dust build-up can damage your machine. (However, do not

use a dust cover!)

• In the open — Allow for adequate space around your machine. Be sure that you

never cover the machine. Its vents must be able to “breathe.”

• Away from direct sunlight — This helps avoid overheating.

• Dry — Avoid any location where splatters or sprays (such as from a water foun-

tain) could reach your machine.

• Level, and vibration free

• Near a phone jack — Your machine uses a standard (modular) telephone jack.

• Near an AC power outlet — The AC power cord is about 6.5 feet (2.0 m) long

when stretched to its limit. The power cord should never be stretched to its limit.

2Installation Manual

Step 2 : Unpack the machine

Remove all items from the box.

Check that all the following items have been included.

Main unit with 500-sheet paper cassette

AC power cord

Documentations & label

User's guide

Network guide

Quick reference guide

Installation guide (this book)

Paper size label

Printer & scanner

drivers CD

Document tray

Telephone line cable

Ferrite core

Drum cartridge Toner cartridge

NOTE: The inclusion of the AC power cord and telephone line cable vary accord-

ing to countries.

Save the carton and packing material in case there’s a need for reshipment.

3Installation Manual

Step 3 : Setup the machine

Remove all the shipping materials

MFX-2030 and MFX-1430:

Open the ADF cover,

then remove the protective sheet

from the ADF.

Remove the protective sheet

between the platen cover and

document glass.

(MFX-2030, MFX-1430 only)

Remove the protective sheet

covering the touch panel.

Open the cassette and remove

the spacer in the paper cassette.

F-560 and F-520:

Open the ADF cover,

then remove the protective sheet

from the ADF.

Remove the protective sheet

covering the touch panel.

Open the cassette and remove

the spacer in the paper cassette.

4Installation Manual

Attach the document tray

Attach the document tray by inserting it into the appropriate holes, as shown

below.

Unlock the scanner (For MFX-2030, MFX-1430 only)

IMPORTANT: In order to avoid damaging the unit, the machines scanner is locked prior

to shipping.

If you need to relocate the machine, lock the scanner prior to moving it.

To lock the scanner, please use the reverse process of the instructions

below.

1 Slide the scanner locking knob to the back until it clicks in the unlocking

position.

2 Turn off the transport mode (see Step 8 “Turn off the transport mode,” page

12).

5Installation Manual

Step 4 : Install the consumables

1 Pull the release lever to open the side cover.

2 Open the front cover.

3 Turn the toner cartridge locking lever to the left (unlock position).

4 Unpack the drum cartridge from its carton and slide it into the machine

ﬁrmly until it locks into place.

NOTE: DO NOT touch the drum surface.

6Installation Manual

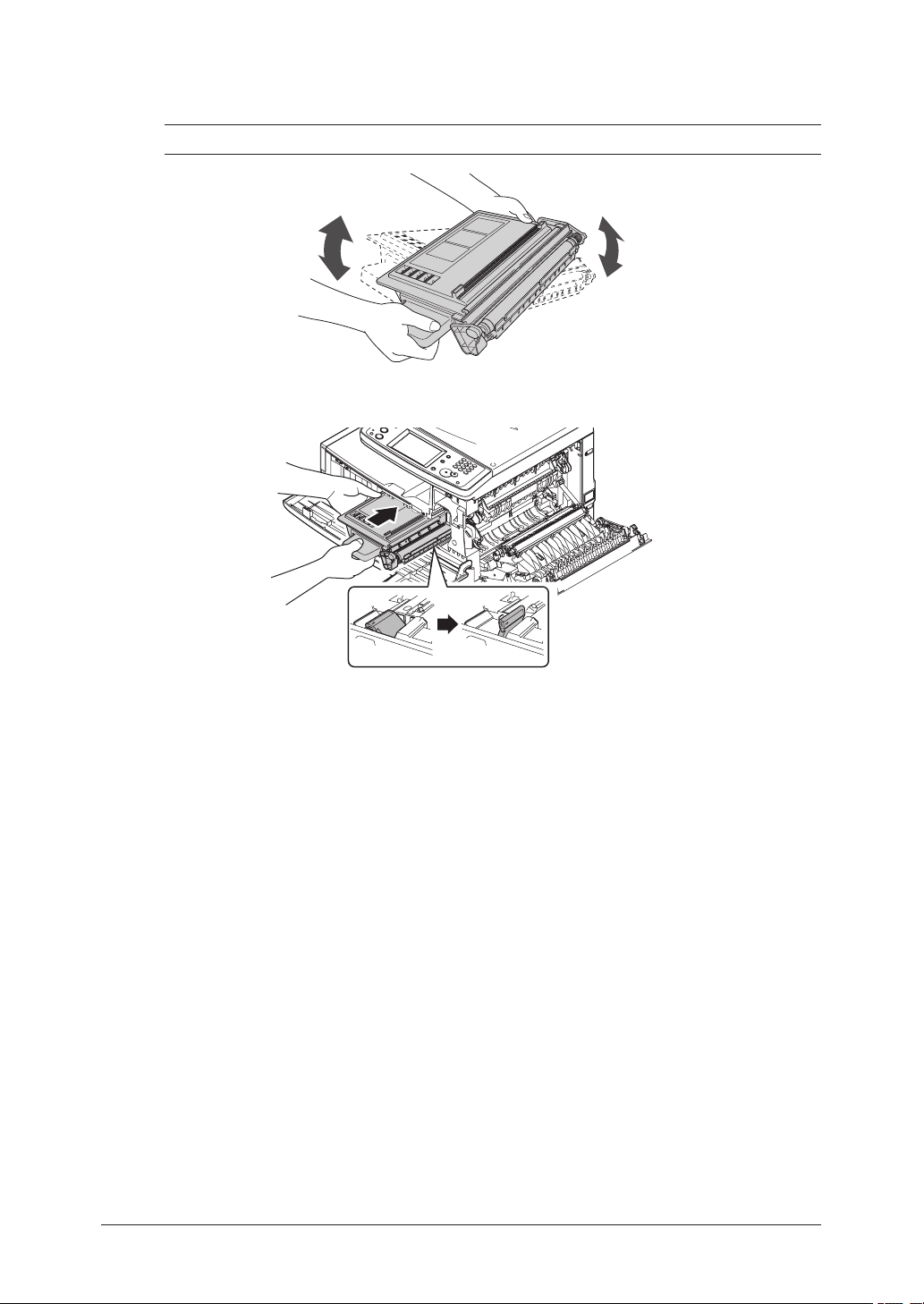

5 Unpack the starter toner cartridge, hold it with both hands and gently

shake it to distribute the toner evenly inside the cartridge.

NOTE: Do not touch the roller of the toner cartridge.

6 Slide the toner cartridge into the machine ﬁrmly until it locks into place.

Then turn the cartridge locking lever to the right until it locks into place.

7 Close the front and side covers.

7Installation Manual

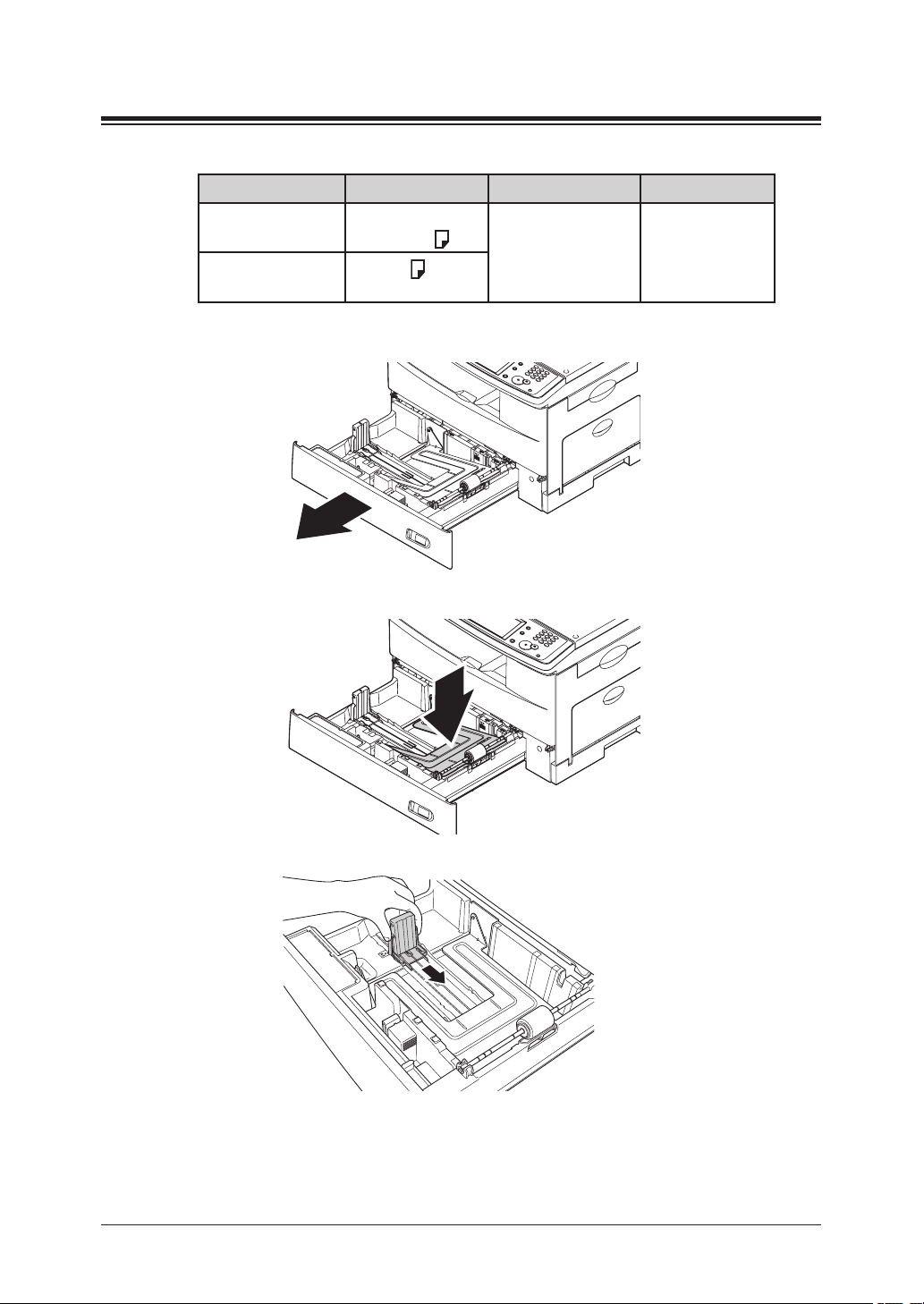

Step 5 : Load paper into the cassette

Acceptable paper sizes for the cassette:

Region Paper size Paper type Quantity

U.S. Letter, Legal,

Half-letter Plain paper

(Weight: 20–24 lbs.

60–90g/m2)

500 sheets

(Weight: 20 lbs.

60g/m2)

European and

Asian countries

A4, A5 , F4

1 Pull the handle toward you to open the paper cassette.

2 Press the paper lifting plate down until it locks into position.

3 Adjust the rear paper guide to the desired paper length.

8Installation Manual

4 Load the paper into the cassette.

• Make sure you properly stack the paper prior to setting it in the cassette.

The leading edge and sides should be even.

• Do not stack the paper over the limit mark inside the cassette.

5 Pinch the side paper guide and adjust it to the width of the paper.

6 Close the paper cassette.

7 Attach the appropriate paper size sticker to the front of the cassette.

8 If the optional second cassette has been installed, please follow these

steps.

9 You need to set the paper size. See “Set the paper size” on page 15.
