Multitech MultiModem MT5600DSDV2 User manual

MT5600DSVD and

MT5600DSVD2

Data/Fax/Voice Modem

Quick Start

MT5600DSVD Quick Start Guide

P/N 82081203 Revision D

out prior expressed written permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect

to the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech

Systems, Inc. reserves the right to revise this publication and to make changes

in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes.

Record of Revisions

Revision Date Description

A5/18/98 Manual released.

B3/28/01 Manual reorganized and updated.

C7/25/03 Manual updated.

D 1/16/04 Manual revised to include MT5600DSVD2.

Trademarks

MultiModemDSVD, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech

Systems, Inc. Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

Windows 98, Windows Me, Windows NT, and Windows 2000 are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other

countries.

Technical Support

Country By Email By Phone

France: [email protected] +(33) 1-64 61 09 81

U.K.: [email protected] +(44) 118 959 7774

U.S and Canada: [email protected] (800) 972-2439

Rest of the World: [email protected]

Notice

Though this modem is capable of 56K bps download performance, line impairments,

public telephone infrastructure and other external technological factors currently

prevent maximum 56K bps connections.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A

(763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Technical Support (800) 972-2439

Internet

http://www.multitech.com

MultiModemDSVD Quick Start Guide

Introduction

The purpose of this

Quick Start Guide

is to help you to quickly

set up your modem. A

User Guide,

which includes a command

reference, a troubleshooting chapter, and an index, can be

found on the MT5600DSVD System disk in the modem

package. The

User Guide

, which is in Adobe Acrobat format,

can be viewed on your monitor or printed out for easy

reference.

What Is in Your Modem Package?

Your modem package has several components. Make sure

you have them all before trying to operate your modem. Your

package should include:

••

•An MT5600DSVD modem

••

•A DC power supply

••

•A set of four plastic feet

••

•A modular telephone cable

••

•A headset (MT5600DSVD only)

••

•This

Quick Start Guide

••

•A system CD containing modem drivers, the User Guide,

PhoneTools (a data communications program), and

Acrobat Reader.

If any of these items are missing, please contact Multi-Tech

Systems or your dealer/distributor.

MultiModemDSVD Quick Start Guide

What You Will Need

In addition to the contents of the MultiModemDSVD package,

you will need the following items:

••

•A computer with an available serial port

••

•A shielded RS-232 serial cable with a male DB-25

connector on one end and a connector to match your

computer’s serial port on the other end

••

•A nearby AC power outlet

••

•A nearby telephone line jack

••

•An optional PC stereo microphone

••

•An optional amplified speaker or sound card with speakers

••

•For connecting to a sound card, an optional male-to-male

stereo patch cord with 1/8-inch mini plugs

Safety Warnings

••

•Use this product only with UL- and CUL-listed computers.

••

•To reduce the risk of fire, use only 26 AWG or larger

telephone wiring.

••

•Never install telephone wiring during a lightning storm.

••

•Never install a telephone jack in a wet location unless the

jack is specifically designed for wet locations.

••

•Never touch uninsulated telephone wires or terminals unless

the telephone line has been disconnected at the network

interface.

••

•Use caution when installing or modifying telephone lines.

••

•Avoid using a telephone during an electrical storm; there is

a risk of electrical shock from lightning.

••

•Do not use a telephone in the vicinity of a gas leak.

MultiModemDSVD Quick Start Guide

Step 1: Mount the Feet

The modem comes with a strip of self-adhesive plastic feet,

which you can optionally mount on the bottom of the modem.

To install the feet, simply peel them from their paper strip and

press them into the recesses on the bottom of the modem.

Step 2: Change the Speaker Jumper

To change the speaker jumper, see your User Guide.

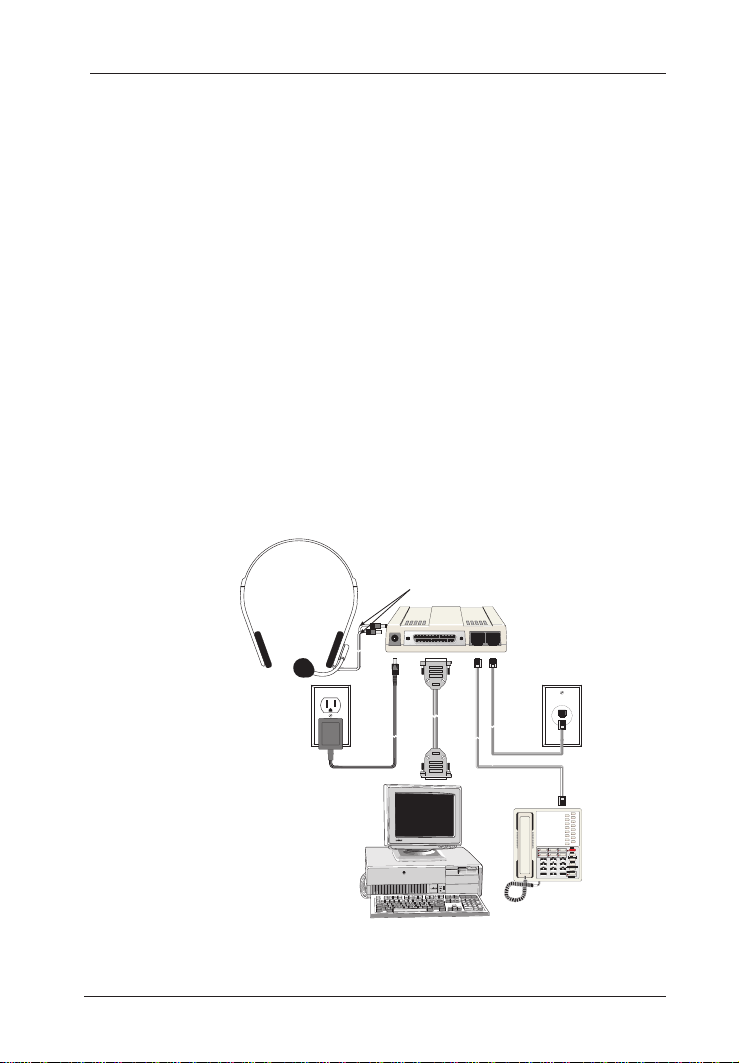

Step 3: Connect the Modem to Your System

Placing the modem in a convenient location, connect it to

your computer’s serial port, to the telephone line, to AC

power, and, optionally, to your telephone. For voice

operations, connect it to the supplied headset or, optionally, to

a microphone and a speaker or sound card.

PWR RS232 PHONE LINE

MT5600DSDV only

MultiModemDSVD Quick Start Guide

RS232 Connection

Plug one end of the serial cable into the RS232 connector on the

modem and the other end into a serial port connector on your

computer, such as COM1 or COM2.

Line Connection

Plug one end of the phone cable into the modem’s LINE jack and

the other end into a phone line wall jack.

Note: The LINE jack is not interchangeable with the PHONE jack.

Do not plug the phone into the LINE jack or the line cable into the

PHONE jack.

Phone Connection

For voice-only calls, you can optionally plug a telephone into the

modem’s PHONE jack.

Speaker Connection (MT5600DSVD only)

Plug the speaker plug of the supplied headset into the SPKR jack

on the side of the modem. Optionally, use a 1/8-inch-plug male-to-

male stereo patch cord to connect the SPKR jack on the side of

the modem to the LINE IN jack on your sound card.

If you do not have a sound card, you can plug an amplified

speaker directly into the SPKR jack.

Microphone Connection (MT5600DSVD only)

Plug the microphone plug of the supplied headset into the MIC

jack on the side of the modem. Optionally, plug an unamplified

microphone into the MIC jack. The microphone should have a 1/8-

inch mini plug.

Power Connection

Plug the power supply module into an AC power outlet or surge

protector. Plug the power supply’s cable into the PWR jack on the

modem.

For protection against power surges and other transient voltages,

we recommend that you plug the modem into a surge protector

rather than directly into a wall outlet, preferably one that provides

protection against electrical spikes on the telephone line as well as

on the power line. Please note, however, that not even a surge

protector can guard against damage from a nearby lightning strike.

For maximum protection during an electrical storm, you should

unplug all your computer equipment.

MultiModemDSVD Quick Start Guide

Note: Use only the power supply supplied with the modem. Use of

any other power supply will void the warranty and could damage

the modem.

Power-On Test

Test the modem by turning it on (a power switch is located on the

right side). When you apply power, the modem performs a

diagnostic self-test, indicated by several indicators flashing for a

second or two, after which the 56 indicator should light. If this does

not happen, check that the power switch is on, the power supply is

solidly connected, and the AC outlet is live. If these measures do

not work, see Chapter 5 of the

User Guide

, “Solving Problems.”

Step 4: Install the Modem Driver

If you use Windows 98 or above, you must install the modem

driver, which is installed using the Windows Plug and Play feature.

Follow the four-step procedure below. If you use another operating

system, see the User Guide.

1. Make sure your modem is connected properly, and then turn on

your computer. Windows should detect your new modem and

open the Install New Modem wizard.

2. Insert the MT5600DSVD System CD into your CD-ROM drive,

and then click OK.

3. Windows installs and configures the modem.

4. Click Finish to exit.

For Windows NT, the Install New Modem wizard presents one

additional prompt before Step 2. At this prompt, select Don’t

detect my modem; I will select it from a list, and then click

Next. A dialog box with a list of manufacturers and a list of modem

models appears. Select your modem. Continue with Step 2 above.

Step 5: Install Data Communications Software

Data communications software is designed to send and receive

messages. Multi-Tech includes PhoneTools communications

software with your modem. However, the modem will work with most

data communications software. To install PhoneTools, insert the CD

into the CD-ROM drive; click the PhoneTools icon. You will be

asked to choose your language. The software automatically loads

onto your PC.

82081203

Patents

This device is covered by one or more of the following patents: 6,031,867; 6,012,113;

6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532;

5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594;

5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222;

5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986;

5,452,289; 5,450,425; D361,764; D355,658; D355,653; D353,598; D353,144; 5,355,365;

5,309,562; 5,301,274. Other patents pending.
