Multimo A 502 User manual

Assembly Instructions

VIDEO

link

40 min.

70 min.

Technical Service

End User

A 502- ROYAL BOOKCASE 100

Page 1 Page 2

MNG - 01

12 / piece

VDA - 01 ( 6,5x50 ) mm

16 / piece

VTB - 01 (4,8x16) mm

8 / piece

Accessories List

MNX 02

12 / piece

KVL 01

42 / piece

VD - 03 ( 3,5x18 ) mm

TS - 01

2 / piece

CT - 02 ( 6x30 ) mm

2 / piece

TAP - 01

12 / piece

F-R

F-L

18 / piece

AMR - 01 ( 120N )

2 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A11,18 89,76 39,37 118mm 2280 1000

B40,71 39,37 9,84 430mm 1000 250

C11,18 16,54 9,65 118mm 420 245

D11,18 23,62 9,65 118mm 600 245

E11,18 9,84 9,65 118mm 250 245

F21,18 24,02 15,35 218mm 610 390

G11,18 37,87 14,65 118mm 962 372

H11,18 24,02 37,87 118mm 610 962

L11,18 24,02 39,37 118mm 610 1000

M11,18 39,21 16,50 118mm 996 419

Track Title

(inch) (mm)

BRK- 01

2 / piece

Page 1 Page 2

MNG - 01

12 / piece

VDA - 01 ( 6,5x50 ) mm

16 / piece

VTB - 01 (4,8x16) mm

8 / piece

Accessories List

MNX 02

12 / piece

KVL 01

42 / piece

VD - 03 ( 3,5x18 ) mm

TS - 01

2 / piece

CT - 02 ( 6x30 ) mm

2 / piece

TAP - 01

12 / piece

F-R

F-L

18 / piece

AMR - 01 ( 120N )

2 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A11,18 89,76 39,37 118mm 2280 1000

B40,71 39,37 9,84 430mm 1000 250

C11,18 16,54 9,65 118mm 420 245

D11,18 23,62 9,65 118mm 600 245

E11,18 9,84 9,65 118mm 250 245

F21,18 24,02 15,35 218mm 610 390

G11,18 37,87 14,65 118mm 962 372

H11,18 24,02 37,87 118mm 610 962

L11,18 24,02 39,37 118mm 610 1000

M11,18 39,21 16,50 118mm 996 419

Track Title

(inch) (mm)

BRK- 01

2 / piece

Page 3 Page 4

STEP 1 STEP 2

VIDEO

link

VIDEO

link

STEP 1

MNX - 02

KVL 01

MNX - 02 X 4

KVL - 01 X 4

MNX - 02 X 4

KVL - 01 X 2

F LEFT / F RIGHT

KVL - 01 X 4 E

KVL - 01 X 4

C / D

KVL - 01 X 10

GKVL - 01 X 3

STEP 3

210°

MNG - 01 x 8

F-R

F-L G

MNG - 01

210°

MNG - 01 x 4

Page 3 Page 4

STEP 1 STEP 2

VIDEO

link

VIDEO

link

STEP 1

MNX - 02

KVL 01

MNX - 02 X 4

KVL - 01 X 4

MNX - 02 X 4

KVL - 01 X 2

F LEFT / F RIGHT

KVL - 01 X 4 E

KVL - 01 X 4

C / D

KVL - 01 X 10

GKVL - 01 X 3

STEP 3

210°

MNG - 01 x 8

F-R

F-L G

MNG - 01

210°

MNG - 01 x 4

Page 5 Page 6

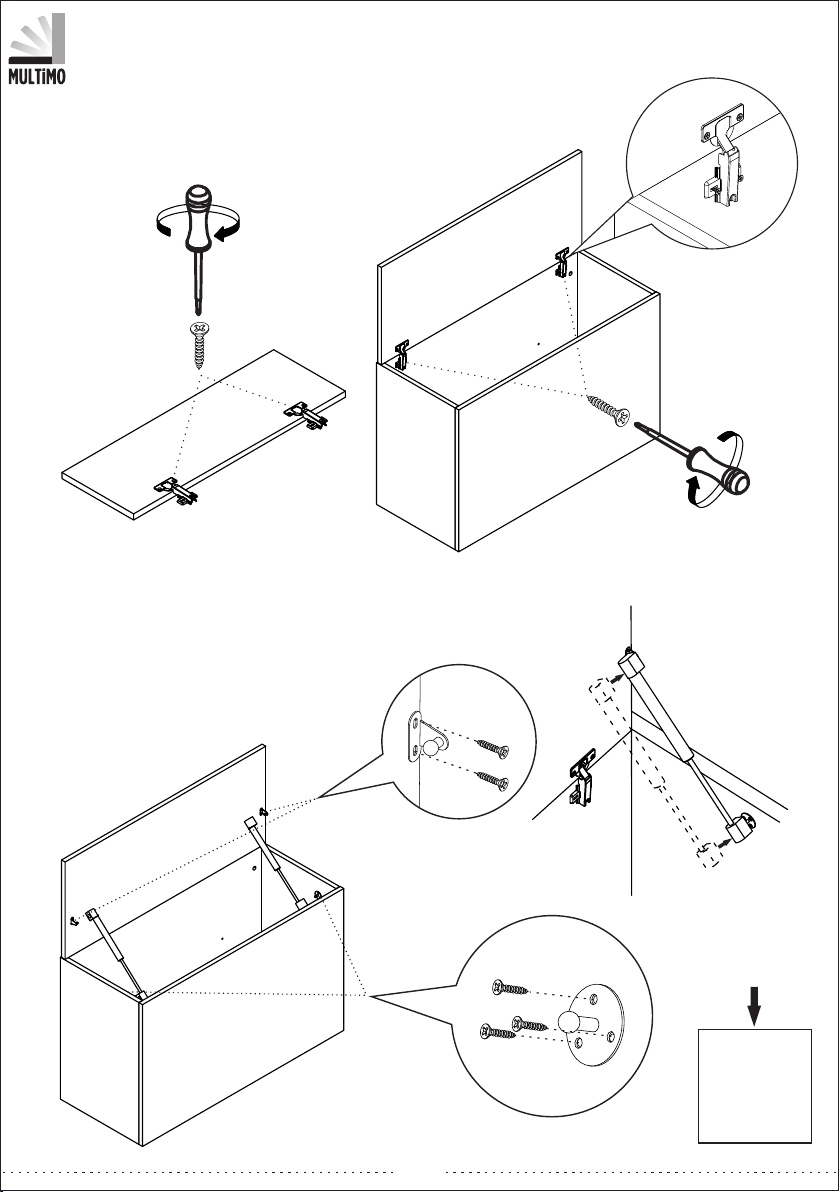

STEP 4 STEP 6

VIDEO

link

VIDEO

link

VDA - 01 X 4

AL - 01

STEP 5

VD - 03 X 4

CT - 02 X 2

AL - 01

VD - 03 X 4

STEP 7

TS- 01 x 2

VD - 03 X 2

VD - 03 X 3

AMR - 01 (120N)

Page 5 Page 6

STEP 4 STEP 6

VIDEO

link

VIDEO

link

VDA - 01 X 4

AL - 01

STEP 5

VD - 03 X 4

CT - 02 X 2

AL - 01

VD - 03 X 4

STEP 7

TS- 01 x 2

VD - 03 X 2

VD - 03 X 3

AMR - 01 (120N)

Page 7 Page 8

STEP 8 STEP 10

VIDEO

link

VIDEO

link

STEP 9

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

Page 7 Page 8

STEP 8 STEP 10

VIDEO

link

VIDEO

link

STEP 9

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

Page 9 Page 10

STEP 11

VIDEO

link

BRK - 01 X 2

VTB - 01X 8

ATTENTION / HOW TO / READ ME / OWNER'S GUIDE

1. Cabinets must be securely attached either to the wall and / or side of the

wall bed. Hardware is included

2. When mounting to drywall, use appropriate fasteners, such as toggle bolts

or attach to wooden or metal studs. Please choose appropriate fasteners for

the type of wall and / or studs the cabinet will be mounted on. Drywall

mounting fasteners are not included.

3. For safety and product longevity you must periodically inspect the integrity

and tightness of the mounting and mechanical connections. Confirm

hardware remains properly affixed and connections are snug.

4. Do not lean or rest heavy objects on sides or top of furniture. This may cause

balance issues and compromise the integrity of your mounting connections.

5. Please use cabinet shelves and clothes rails as intended. Do not place

extremely heavy items on shelves and / or drawers. Improper use may cause

personal injury and damage to property.

6. With seasonal humidity change please inspect the interior and exterior of the

furniture for deformation and/or discoloration.

7. Before any un-mounting or disassembly please contact Multimo Beds for

technical support and instructions. Failure to properly detach may result in

personal injury and damage to property.
