Moyerdiebel 201HTN Manual

InstallationManual withService ReplacementParts

Issue Date: 10.13.06

Manual P/N 0512240 rev.A

For machines beginning with S/N W11948 and above

Dishwasher serial no.

www.moyerdiebellimited.com

Undercounter

Dishwashers

(with pumped final rinse)

Models:

201HT High temperature w/booster

201HTN High temperature w/o booster

201LT Low temperature chemical sanitizing

401HT High temperature w/booster

401HTN High temperature w/o booster

501HT High temperature w/booster

501HTN High temperature w/o booster

501LT Low temperature chemical sanitizing

501HT

Printed in USA

201HT

401HT

2674 N. Service Road, Jordan Station

Ontario, Canada L0R 1S0

905/562-4195 Fax: 905/562-4618

Toll-free: 800.263.5798

P.O. Box 4149

Winston-Salem, NC 27115

336/661-1556 Fax: 336/661-1660

Toll-free: 800.858.4477

For future reference, record your dishwasher information in the box below.

Model Number__________________________ Serial Number_______________________

Voltage________________Hertz_____________ Phase__________________

Service Service Agent __________________________________ Tel:______________________

Moyer Diebel Parts Distributor _________________________________Tel:______________________

ATTENTION:

The dishwasher model no., serial no.,

voltage, Hz and phase are needed to

identify your machine and to answer

questions.

Please have this information on-hand

if you call for service assistance.

We support

Toll-free: 800/ 263-5798

Tel: 905/ 562-4195

Fax: 905/ 562-4618

email: service@moyerdiebellimited.com

Model 501 dishwasher data plate

is located on the left front corner

of the front access panel.

All other model data plates are

located on the lower right corner

Toll-free: 800/ 858-4477

Tel: 336/661-1556

Fax: 336/ 661-1660

email: [email protected]

National Service Department -USA

National Service Department - Canada

Revision Revised Serial Number Revision

Date Pages Effectivity Description

09.15.06 All w11948 Released first edition

Revisions to this manual

 ____________________ Revisions to this manual

This is where we record changes to the manual. Arevision might be a part number

change, new instructions, or information that was not available at print time.

We reserve the right to make changes to this manual without notice and without

incurring any liability by making the changes..

Dishwasher owners may request a revised manual, at no charge, by calling

(1-800) 263-5798 in Canada.

Model Descriptions ___________

201-HT, 401-HT, and 501-HT Models

Pumped final rinse high temperature sanitizing dishwasher

with built-in 40°F rise stainless steel electric booster.

201-HTN, 401-HTN, and 501-HTN Models

Pumped final rinse high temperature sanitizing dishwasher

without built-in 40°F rise stainless steel electric booster.

201-LT, 501-LT Model

Pumped final rinse low temperature chemical sanitizing dishwasher

with 3 built-in chemical dispensing pumps.

Optional Equipment

70°F rise built-in stainless steel electric booster

Three Phase Connection (501-HT only)

1-RDT rack stand

17" dishwasher stand

Model Descriptions

NOTE:

The customer is responsible for supplying the proper incoming

water temperature to the dishwasher.

The temperature must be measured at the dishwasher

iii

Undercounter Dishwashers

Series: 201, 401, and 501

Revisions to this manual_______________________________________________i

Limited Warranty __________________________________________________ iv

Installation Guide ________________________________________

Unpack and Place

Electrical Connection

Water Connection

Drain Connection

Chemical Dispensers

Initial Start-up ____________________________________________

Operation _______________________________________________

How to Operate your Dishwasher

How to Clean your Dishwasher

How to Maintain your Dishwasher

Troubleshooting _________________________________________

Service Replacement Parts _______________________________

Electrical Schematics ____________________________________

Timer Charts ____________________________________________

_____________ Table of Contents

Table of Contents

Limited Warranty

Unpack and Place

___________________________ Installation Guide

Unpack and Place

Unpacking of Dishwasher

NOTE:

The installation of your dishwasher must be performed by qualified service personnel.

Problems due to improper installation are not covered by the Warranty.

1. Inspect the outside of the dishwasher carton for signs of damage.

2. Remove the shipping box and inspect the dishwasher for damage.

3. Immediately contact the freight company and your equipment dealer to

report the damage.

4. Save all packing materials.

CAUTION:

Be careful when lifting and moving the dishwasher to prevent damage to the machine.

5. Check your packing list and identify the accessories shipped with your

dishwasher. Immediately report missing items to your dealer.

6. Turn to the front of this manual and complete the warranty card. Mail the card

at once.

7. Move the dishwasher near its permanent location.

8. Locate the Quick Check Installation Guide located on the dishwasher. Use

the card and the manual installation guide to properly install the dishwasher.

Placement of Dishwasher

CAUTION:

Be careful when lifting and moving the dishwasher to prevent damage to the machine.

NOTE:

The installation of the dishwasher must comply with local health codes.

1. Compare the utility connections with the dishwasher’s utility connections.

Contact your supervisor if problems are found.

Installation Guide_________________

Unpack and Place

Placement of Dishwasher (continued)

2. Your dishwasher may be installed as a free-standing unit or under a counter-top.

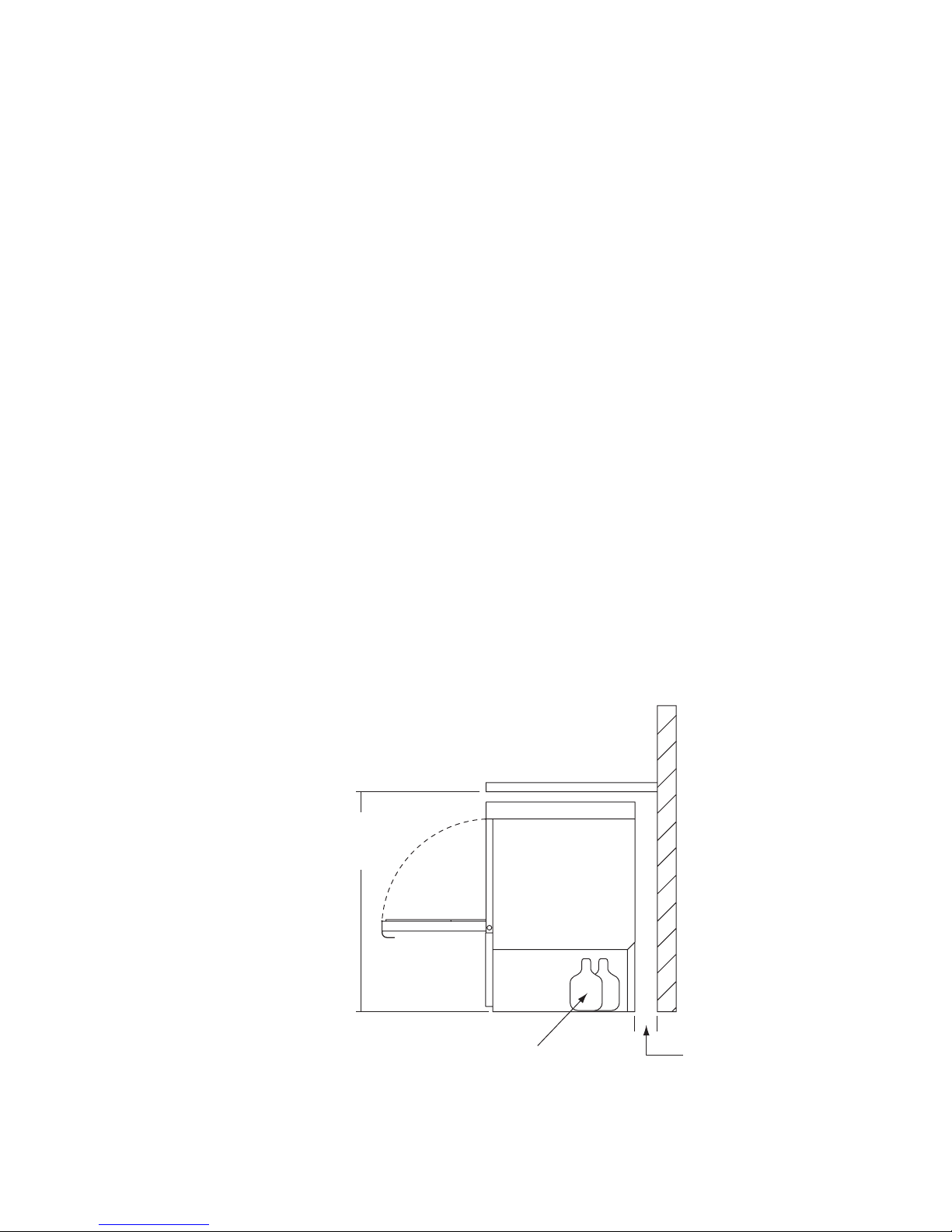

3. Typical counter-top height is 34". Refer to the illustration below.

4. Counter-top installations must provide storage space for the dishwasher’s

chemical supply containers. Container height must not exceed 10" above the

floor.

5. Chemical supply containers must be placed as close as possible to the side of the

dishwasher.

6. Check that the floor is level at the permanent location.

7. The dishwasher has adjustable feet for leveling.

8. Level the dishwasher front to back and side to side with a 24" bubble level to

match the permanent location.

9. Your dishwasher is ready for the utility connections.

Unpack and Place

Countertop

Wall

3" Minimum Wall

Clearance

34"

Minimum

Height

Floor

Chemical Supply

Containers

Electrical Connection

Front Panel Screw Location

______________ Installation Guide

Electrical Connection

NOTE:The electrical connection must be performed by a qualified electrician in accordance

with local codes and the National Electrical Code.

WARNING:

For models 201HT, 401HT, 501HT disconnect the incoming supply at the main

disconnect switch. Lockout and tag the switch to indicate that work

is being done on the circuit.

1. Refer to the connection diagrams below for proper dishwasher power connection at

the dishwasher main terminal block (MTB).

2. The single phase electrical supply must be a

3-wire plus ground circuit which includes

a current carrying neutral.

3. The 3-phase power connection is a 4-wire

plus ground which includes

a current carrying neutral.

4. The dishwasher MTB is located at the

front right-side of dishwasher. dishwasher’s

lower front access panel by removing the

two truss head screws.

Installation Guide ______________

Electrical Connection

5. Carefully bump the lower front access panel up as you pull forward.

6. Remove the main terminal block cover. The machine’s electrical schematic is located on the

inside of the front panel. Check the min/max data on the schematic.

7. Loosen the two screws securing the MTB. Then, pull the MTB up and forward.

8. Connect a flexible power cord conduit to the MTB.

The power cord must extend a minimum of 3 ft.

out the back of the dishwasher so the machine

can be pulled out for servicing.

9. Re-install the MTB and the lower

front access panel.

NOTE:

Models 201HTN, 401HTN, 501HTN, 501LT

and 201LT are equipped with a 4 foot

power cord and plug suitable for

120VAC-15A service.

Unpack and Place

Main Terminal Block (MTB)
