Moyerdiebel MD18 User manual

STANDARD FEATURES

• Three pump injection system

– Injector system allows the use of separate

sanitizer and rinse aid resulting in real savings.

– Precisely calibrated pumps inject just the

right amount of chemical each time – no

guesswork – no waste.

• Upper and lower wash and rinse arms produce

sparkling clean glasses every time.

• One or two door models available.

• Ultra high efficiency wash pump for

superior cleaning.

• Thermostatically controlled wash tank heater

maintains required wash water temperature.

• Heavy-duty stainless steel construction.

• 30 racks per hour.

• Pumped drain permits use of drain connections

above the floor.

• Two 16" [406mm] square racks provided.

• One year parts and labor warranty.

OPTIONS & ACCESSORIES

RS18-24: 18" [457] rack stand

w/24" [610] high drain board P/N 180368

RS18-30: 18" [457] rack stand

w/30" [762] high drain board P/N 180380

RS24-24: 24" [610] rack stand

w/24" [610] high drain board top

for rack and chemical storage P/N 180369

Cycle counter P/N 0709242

Remote cycle switch P/N 0709241

Peg rack P/N 110352

Flat rack P/N 110353

GR-1 glass rack P/N 112360

GR-2 glass rack P/N 112362

GR-3 glass rack P/N 112361

MD18-1

MD18-2

Automatic Glasswashing Machine

MD18-1/MD18-2 GLASSWASHER

MD002 Printed in U.S.A.

Moyer Diebel – USA

P.O. Box 4183, Winston-Salem, NC 27115 Tel: 336/661-1992 Fax: 336/661-1979 800/228-8350 www.moyerdiebel.com

Moyer Diebel Ltd. – Canada

2674 North Service Rd., Jordan Station, Ontario, Canada L0R 1S0 Tel: 800/263-5798 Fax: 905/562-4618

[email protected]

SPECIFIER STATEMENT

Specified unit will be Moyer Diebel MD18-1 or

MD18-2 glasswasher.

Features include 30 racks per hour, upper and

lower wash/rinse arms, maximum 10" door opening

clearance, sanitizer and rinse aid dispensing

pumps, pumped drain and wash tank heater.

Project

Item No.

Quantity

Dimensions shown in inches

SPECIFICATIONS

Capacity

Racks per hr. 30

Water consumption

Gal. per hr., US gal. (imp. gal.) 45 (34)

Gal. per rack, US gal. (imp. gal.) 1.5 (1.25)

*Temperature

Wash 140°F

Rinse 140°F

Heating

Tank heat, electric (kW) .75

* Supply water temperature 140°F

Utilities

1 Electrical*

115/60/1 - 15 amp, 9 amp draw

2 Hot Water Connection

1/2" NPT hot water. Flow pressure 25-95 psi

3 Drain Connection

5/8" flexible hose. Max flow rate 18 US gpm (15 imp.gpm)

Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.

MD18-1/MD18-2

Automatic Glasswashing

Machine

42-1/2"

10" Clear

24"

18"

26" Load

Height

4-1/4"

18-1/2" 1/2"

7-1/4"

38-3/4"

30-3/4"

1-1/2"

Wall

Clearance

10" Clear

24"

18" 18"

26" Load

Height

4-1/4"

18-1/2"

212

7-1/4"

38-3/4"

5-1/4" 7-1/2"

10" Clear

24"

18" 18"

26" Load

Height

4-1/4"

18-1/2"

212

7-1/4"

38-3/4"

5-1/4" 7-1/2"

1/2"

MD18-HH is available with 13" door

clearance overall height 41-3/4"

MD18-1

Plan View Plan View

Side View

MD18-2

Side – Side Door

Front View *NOTE: Models MD18-1 and MD18-2 are supplied

with 5 ft. cord and plug

STANDARD

Plan View

Warning: Plumbing and electrical connections should be made

by qualified workmen who will observe all the applicable

plumbing, sanitary and safety codes.

Side View Side ViewFront View

MD18-2

Front – Rear Door

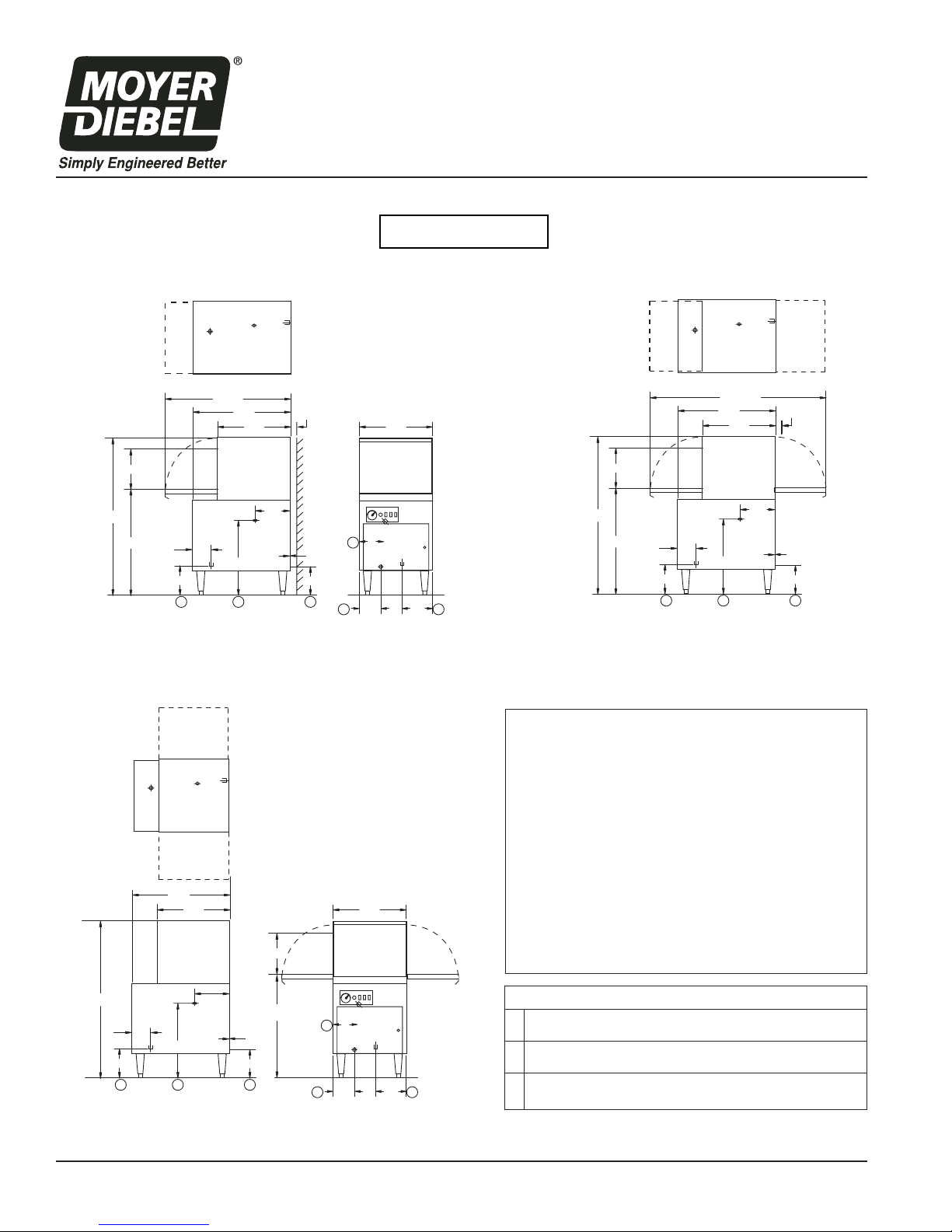

Dimensions shown in millimeters

SPECIFICATIONS

Capacity

Racks per hr. 30

Water consumption

Liters per hour 171

Liters per rack 5.7

*Temperature

Wash 60°C

Rinse 60°C

Heating

Tank heat, electric (kW) .75

* Supply water temperature 60°C

Utilities

1 Electrical*

115/60/1 - 15 amp, 9 amp draw

2 Hot Water Connection

1/2" NPT hot water. Flow pressure 25-95 psi

3 Drain Connection

5/8" flexible hose. Max flow rate 18 US gpm (15 imp.gpm)

MD18-1/MD18-2

Automatic Glasswashing

Machine

METRIC

Warning: Plumbing and electrical connections should be made

by qualified workmen who will observe all the applicable

plumbing, sanitary and safety codes.

1080

254 Clear

610

457

660 Load

Height

178

108

470 13

229

184

984

781

Wall

Clearance

254 Clear

610

457 457

660 Load

Height

178

108

470

229

212

184

984

13 3 191

152

254 Clear

610

457 457

660 Load

Height

178

108

470

229

212

184

984

133 191

13 152

MD18-HH is available with 330mm door

clearance overall height 1061mm

MD18-1

Plan View Plan View

Side View

Plan View

Front View

MD18-2

Front – Rear Door

*NOTE: Models MD18-1 and MD18-2 are supplied with

1524mm cord and plug

MD18-2

Side – Side Door

Side View Front View Side View

MD18-1/MD18-2

Automatic Glasswashing

Machine

24" [610]

18"

[457]

24" [610]

30"

[762]

24"

[610]

18"

[457]

24"

[610]

24" [610]

18" [457]

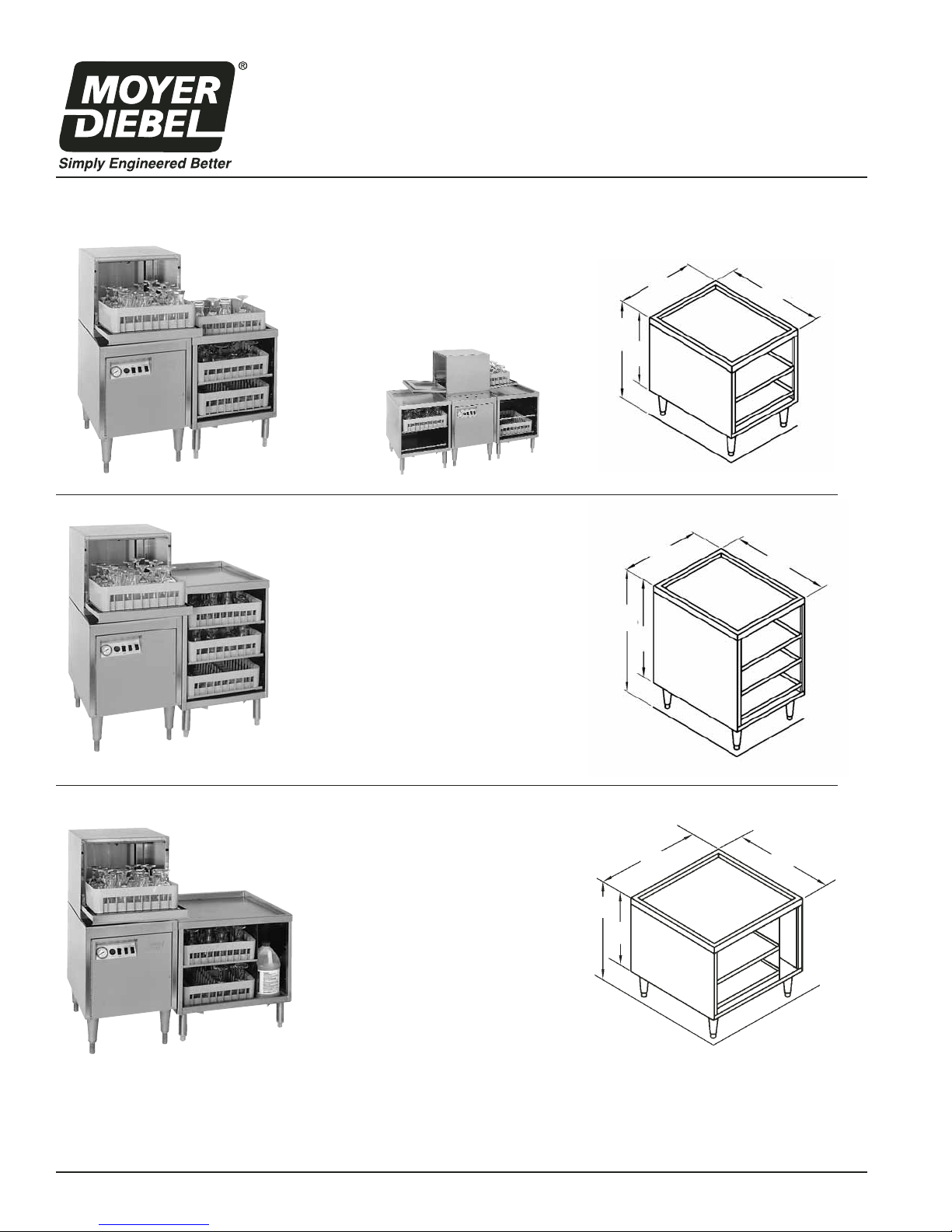

RS24-24

24" [610] rack stand with

24" [610] high drain board top

for rack and chemical storage

RS18-30

18" [457] rack stand with

30" [762] high drain board

top for rack storage

RS18-24

18" [457] rack stand with

24" [610] high drain board

top for rack storage

RS24-24

RS18-30

RS18-24

18" [457]

(2M) 6/04

Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.

Dimensions shown in inches and [millimeters]
