MOXEAY MY1111 User manual
PORTABLE AIR CONDITIONER
Instruction Manual
MODEL:MY1111
1
Content
I. Notes………………………………………………...…........................ 3
II. Features and Components....................................................................... 5
III. Control Setting........................................................................................ 7
IV. Protection function.......................................................................….........9
V. Installation and adjustment......................................................................10
VI. Drainage Instructions………………………..........………………........12
VII. Maintenance ....................................................................................…...13
VIII.Troubleshooting.…………….........…………………….….........…….14
2
Thank you for choosing the luxurious and elegant mobile air conditioning.
Please keep the manual for later review, and read the manual carefully before
use.
I. Notes
Notes:
*The air conditioning is only suitable for indoor use, and is not suitable for other applications.
*Follow local grid interconnection rules while installing the air conditioning and ensure that it is
properly grounded. If you have any question on electrical installation, follow the instructions of
the manufacturer, and if necessary, ask a professional electrician to install it.
*Place the machine in a flat and dry place and keep a distance of above 50cm between the
machine and the surrounding objects or walls.
*After the air conditioning is installed, ensure that the power plug is intact and firmly plugged
into the power outlet, and place the power cord orderly to prevent someone from being tripped or
pulling out the plug.
*Do not put any object into the air inlet and outlet of the air conditioning. Keep the air inlet and
outlet free from obstructions.
*When drainage pipes are installed, ensure that the drainage pipes are properly connected, and
are not distorted or bended.
* While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with hands
gently to avoid damaging wind-guide strips.
*When moving the machine, make sure that it is in an upright position.
*The machine should stay away from gasoline, flammable gas, stoves and other heat sources.
* Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a
machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine
failure occurs, ask the manufacturer or professionals to repair it.
3
*Do not install and use the air conditioning in the bathroom or other humid environments.
* Do not pull the plug to turn off the machine.
* Do not place cups or other objects on the body to prevent water or other liquids from spilling
into the air conditioning.
*Do not use insecticide sprays or other flammable substances near the air conditioning.
* Do not wipe or wash the air conditioning with chemical solvents such as gasoline and alcohol.
When you need to clean the air conditioning, you must disconnect the power supply, and clean it
with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.
*The appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and maintenance shall not be made by children
without supervision.
Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained
Service Personnel. Do Not Puncture Refrigerant Tubing.
Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used.
•
•
4
II. Features and Components
1. Features
New look, compact structure, streamlined machine, aristocratic atmosphere.
Air filtration capability.
Timing switch function.
Protection function of automatically restarting the compressor after three minutes, with a variety
of other protection
With cooling, heating (single cold without heating function), dehumidification and fan function,
Continuously Water Drainage Functions.
Automatic swing leaf in the outlet has automatic air swing function, and the outlet can be
covered when the machine is turned off to prevent dust from entering the body.
LCD displays the control panel. The machine is beautiful and elegant. High-quality LCD remote
control is equipped to facilitate operation.
Handles on both sides adopt dividing point design, so that it is easier to carry it and the body
design is more humane.
The structure of wrapping the power cord on the back facilitates users to hang the power cord
without hanging it down to the ground and staining and damaging the power cord.
Outdoor interface is set high to facility assembly and keep the smooth flow of the heat pipe.
functions.
5

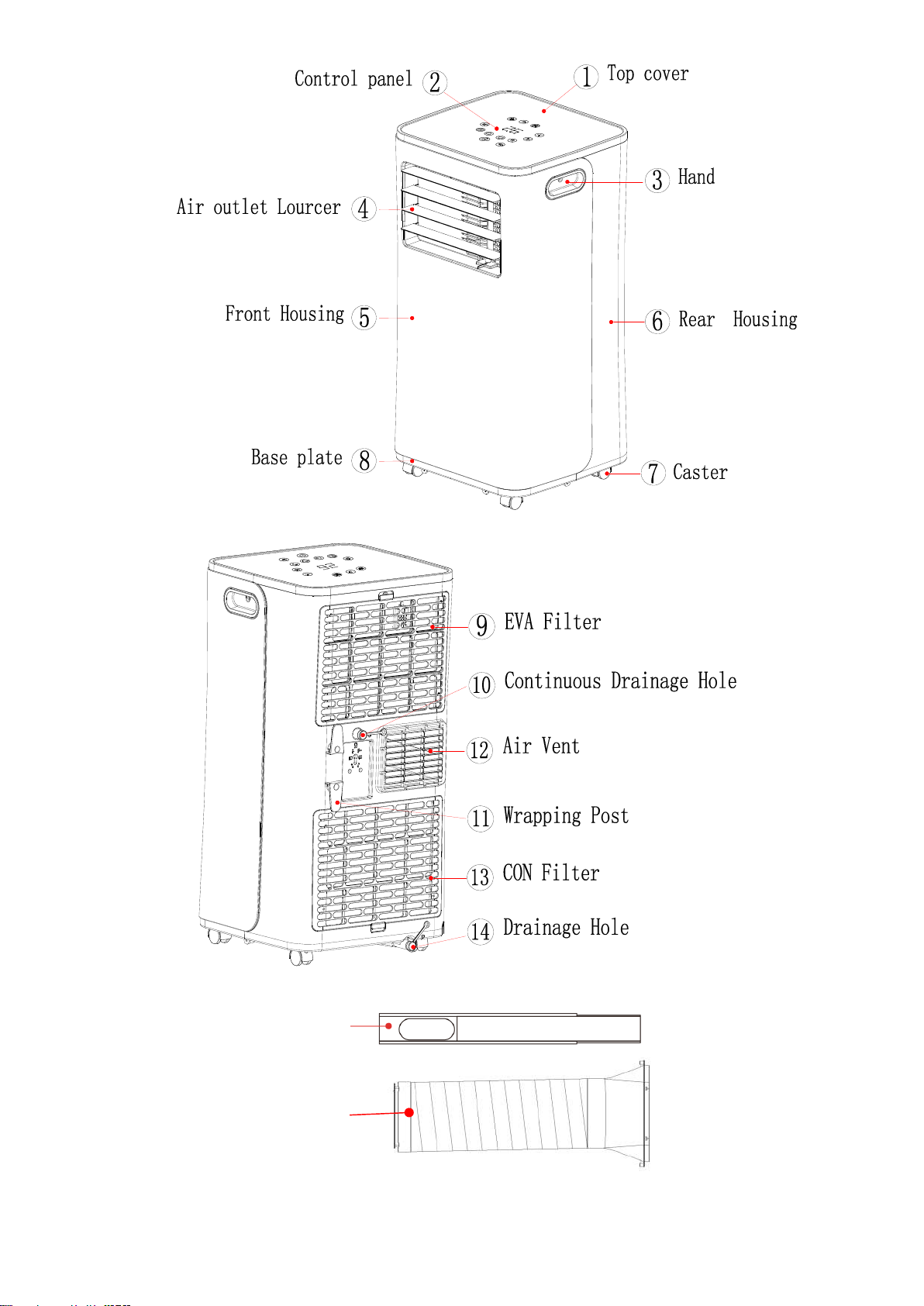

2.Components:
排热管组件
件
Exhaust Pipe Assembly
Window Sealing Plate Assembly
6
III. Control Setting
1.Control panel operation instructions
1）operation interface：
1.Power Key 2.Up Key 3.Timer Key 4. Water full light. 5.Display Window 6.Cooling Key
7. Dehumidifier Key 8.Fan Key 9.Low Fan Speed Key 10.High Fan Speed Key 11.Sleep Key
12.WIFI Key 13.Down Key
1.Power Key: press the key to turn on and turn off the machine. In the case of power on, press the
key to turn off the machine; in the case of power off, press the key to turn on the machine.
2.Mode Selection Key: In the case of power on, press the key to switch between cooling → fan →
dehumidifying mode.
3.Up Key and Down Key: press the two keys to change the setting temperature or setting time, operate as
follows:
While setting temperature, press up key or down key to select the required temperature (not available in fan
or dehumidifying mode).
While setting time, press up key or down key to select the required time.
4.Wind Speed Selection Key:
1）In cooling and fan mode, press the key to select high,low wind speed operation. But limited by
anti-cold conditions, under certain conditions, it may not run according to the set wind speed.
2）In dehumidifying mode, pressing the key is invalid, and the fan will forcibly choose low wind speed
operation.
5.Timing Key:
In the case of power on, press the key to close timing; in the case of power off, press the key to open
timing. Press the key, when the timing symbol flashes, press up and down key to select the required
timing value. Timing values can be set in 1-24 hours and the timing value is adjusted up or down by
one hour.
6.Sleep Mode:
In the cooling Mode,Press the UP and Fan Key to turn on the sleep mode,then the unit will work on
Energy-Saving and quiet type.
7
1 12
13
2
7 8
3
4
6
5
9
10
11
2.operation instructions of remote control
1)The remote controller is as follows:
1. Power: Press the Button to turn on or turn off the machine.
2. Timer: press the Button to set timing value.
3. Down: press the Button to reduce temperature and timing set value.
4. Mode: press the Button to switch between cooling, air supply, dehumidification mode.
5. Up: press the Button to increase temperature and timing set value.
6. Fan: press the Button to select high, low wind speed.
7. Sleep Mode: Press the Button to turn on the sleep mode.
*NOTE: AAA 1.5VDC battery ( not included )
8
IV. Protection function
4.1 Frost Protection Function:
In cooling, dehumidification or economic power saving mode, if the temperature
of the exhaust pipe is too low, the machine will automatically enter protection
status; if the temperature of the exhaust pipe rises to a certain temperature, it can
automatically revert to normal operation.
4.2 Overflow Protection Function:
When water in the water pan exceeds the warning level, the machine will
automatically sound an alarm, and the LDC temperature display area will show
"FL". At this point, you need to move the drainage pipe connecting the machine
or the water outlet to sewer or other drainage area to empty the water (details
see Drainage Instructions at the end of this chapter). After the water is emptied,
the machine will automatically return to the original state.
4.3 Automatic Defrosting (heating and cooling models have this function):
The machine has automatic defrosting function: during defrosting, heating symbol
on the display screen will flash.
4.4 Automatic Thermal Protection:
To protect the service life of the machine, the machine has automatic thermal
protection in heating mode. During the protection period, the compressor and the
lower motor will stop operation and will automatically return to normal heating state
after the temperature of the machine recovers.
4.5 Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay booting
protection function after the compressor is turned off.
9
V.Installation and adjustment
1.Installation：
Warning: before using the mobile air conditioning, keep it upright for at least two hours.
The air conditioning can be easily moved in the room. In the moving process, ensure that the
air conditioning is in the upright position and the air conditioning should be placed on a flat
surface. Do not install and use the air conditioning in the bathroom or other humid
environments.
1.1 Install the heat pipe assembly （as shown in Fig.1）
Figure 1
1）take out the outer connector assembly and the exhaust pipe assembly, and remove the plastic
bags;
2）insert the heat pipe assembly (the end of the exhaust joint) into the back panel vent slot
(push to the left) and complete the assembly (as shown in figure 1).
1.2 Installation of window sealing plate components
1)Half open the window，and mount the window sealing plate assembly to the window (as
shown in Fig.2 and Fig.3).Components can be placed in horizontal and vertical direction.
2)Pull various components of the window sealing plate assembly open, adjust their opening
distance to bring both ends of the assembly into contact with the window frame, and fix various
components of the assembly.
1.2 Install the window sealing plate assembly.
Notes: 1)the flat end of the exhaust pipe joints must be snapped into place.
2)the pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the
ventilation of the exhaust pipe not blocked.
10
