SDS-3016 Series

Quick Installation Guide

Moxa’s Industrial Smart Ethernet Switch

Version 1.1, February 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The SDS-3016 industrial smart Ethernet switch is the ideal device for IA

engineers and automation machine builders to make their networks

compatible with the vision of Industry 4.0. By breathing life into machines

and control cabinets, the smart switch simplifies daily tasks with its easy

configuration and easy installation. In addition, it is monitorable and easy

to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP,

PROFINET, and Modbus/TCP—are embedded in the SDS-3016 to provide

enhanced operational performance and flexibility by making it

controllable and visible from automation HMIs. It also supports a range of

useful management functions, including IEEE 802.1Q VLAN, port

mirroring, SNMP, and warning by relay.

Package Checklist

The SDS-3016 is shipped with the following items. If any of these items

are missing or damaged, please contact your customer service

representative for assistance.

•1 SDS-3016 industrial smart Ethernet switch

•Protective caps for unused ports

•Quick installation guide (printed)

•Warranty card

Features

•14 10/100BaseT(X), and 2 10/100/1000BaseT(X) or

100/1000BaseSFP

•Web-based graphical user interface for quick configuration and

management

•Web-based graphical user interface for port diagnostics, with

statistics to prevent issues

•Supports EtherNet/IP, PROFINET, and Modbus/TCP industrial

protocol profiles for easy device integration and monitoring in

HMI/SCADA systems

•Supports the MRP Client redundancy function to ensure high network

availability

•Supports DSCP precedence for Ethernet/IP profiles to ensure traffic

prioritization

•Rotary DIP switch can perform profile-based settings without using a

web browser

•IP port binding to ensure critical devices can be replaced quickly

without reassigning the IP Address

•Supports IEEE 802.1D-2004 and IEEE 802.1w STP/RSTP for rapid

network redundancy

•IEEE 802.1Q VLAN to ease network planning

•Static port lock, SNMPv3 and HTTPS to enhance network security

•Role-based account management for self-defined administration

and/or user accounts

•ABC-02 automatic backup configurator for quick event log and

configuration backup. Can also enable quick device change over and

firmware upgrade

•Automatic warning by exception through relay output

•Local log and the ability to export inventory files simplify inventory

management

- 3 -

Default Settings

•Default IP address: 192.168.127.253

•Default Subnet Mask: 255.255.255.0

•Default Usernames: admin, user

•Default Password: moxa

SDS-3016 Panel Layout

1. 2 10/100/1000BaseT(X) or 100/1000BaseSFP uplink port

1 to 14 10/100BaseT(X) ports (bottom to top)

2. System status LEDs (top to bottom)

STATE LED indicator (Green), FAULT LED indicator (Red),

PWR1 LED indicator (Amber), PWR2 LED indicator (Amber)

3. G1, G2 port status LEDs

•LED lights in Green: 1000 Mbps

•LED lights in Amber: 100 Mbps (SDS-3016-2GSFP Series )

•LED lights in Amber: 10/100 Mbps (SDS-3016-2GTX Series)

1 to 14 port status LEDs (bottom to top)

•LED lights in Green: 100 Mbps

•LED lights in Amber: 10 Mbps

4. Model side label (Multiple production information included)

•Default IP: 192.168.127.253

- 4 -

5. Model name

6. Latch of the DIN-rail mounting kit

7. Grounding screw (chassis ground)

8. Two 4-pin terminals for power inputs (P1/P2), relay output (R) and

digital input (DI)

9. Reset button

10. USB storage port (type A connector)

11. DIN-rail mounting kit

12. Screw hole (reserved for other DIN-rail mounting methods; for more

information please see the DIN-Rail Mounting section)

13. Rotary DIP switch for EIP, PI, Modbus/TCP, and DHCP Client

configurations

Mounting Dimensions; unit = mm (inches)

- 5 -

DIN-Rail Mounting

There are 2 options for DIN-rail mounting that can be adopted on a

SDS-3016. Option 1 is the default type when shipped.

Option 1 (Default):

When shipped, the metal DIN-rail mounting kit is fixed to the back panel

of the SDS-3016. Mount the SDS-3016 on the corrosion-free mounting

rail that adheres to the EN 60715 standard.

Suggested Installation Method

STEP 1

—

Insert the upper lip of

the DIN

-rail kit into the

mounting rail.

STEP 2

—Press the SDS-3016

towards the mounting rail until it

snaps into place.

Suggested Removal Method

STEP 1—Pull down the latch on

the DIN

-rail kit with a

screwdriver.

STEP

S 2 & 3—Slightly pull the

SDS

-3016

forward and lift up to

remove it from the mounting

rail.

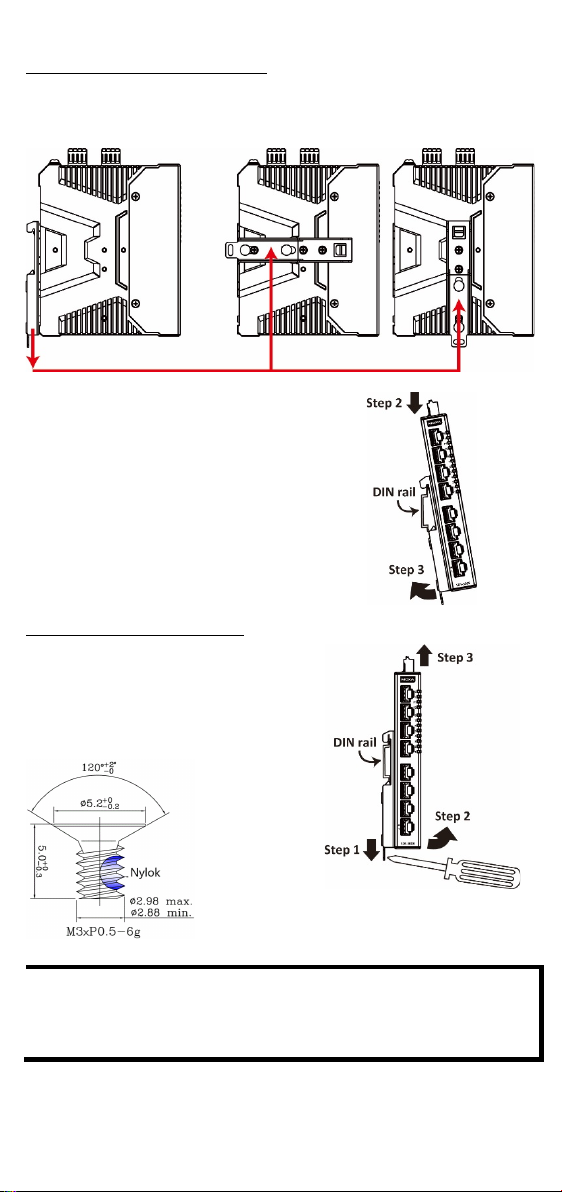

Option 2 (when side cabling is needed):

The metal DIN-rail mounting kit can be fixed to the side panel (mold side)

of the SDS-3016 (horizontal or vertical). Mount the SDS-3016 on the

corrosion-free mounting rail that adheres to the EN 60715 standard.

- 6 -

Suggested Installation Method

STEP 1—Detach the metal DIN-rail mounting kit from the back panel and

attach it to the side panel (mold side) in either the horizontal or vertical

direction as indicated in the figure below.

STEP 2—Insert the upper lip of the

DIN

-rail kit into the mounting rail.

STEP 3

—Press the SDS-3016 towards

the mounting rail until it snaps into

place.

Suggested Removal Method

STEP 1—Pull down the latch on the

DIN

-rail kit with a screwdriver.

STEP

S 2 & 3—Slightly pull the

SDS

-3016 forward and lift up to

remove it from the mounting rail.

NOTE

Screws that are used to fix the DIN-rail kit on the SDS-3016

should be

securely fastened before mounting on the mounting

rail. Please make sure

that if you remove the DIN-rail

, it must be

securely fastened when it is reattached.

- 7 -

ATTENTION

In order to

ensure reliable operations, please make sure the

operating temp. of the environment

does not exceed the spec.

When

mounting a SDS-3016 with other operating units in a

cabinet without forced ventilation,

minimum spacing of 3cm on

both sides and above/below the switch is recommended.

Wiring Requirements

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa

Industrial Smart Ethernet Switch.

Calculate the

maximum possible current in each power wire and common wire.

Observe all electrical codes dictating the maximum current

allowable

for each wire size. If the current goes above the

maximum ratings, the wiring could overheat, causing serious

damage to your equipment.

Be sure to read and follow these important guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal or communications wiring and power wiring

through the same

wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•You should separate input wiring from output wiring.

•We advise that you label the wiring to all devices in the system.

Grounding the Industrial Smart Ethernet Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw (chassis ground) to the grounding surface prior to

connecting devices.

ATTENTION

This product is intended to be mounted onto a well

-grounded

mounting surface, such as a metal panel.

- 8 -

Suggested Wire Type for Wiring Relay Contact (R),

Digital Input (DI) and Power Inputs (P1/P2)

The switch includes two 4-pins 3.5 mm pin-pitch terminal blocks. When

wiring the relay contact (R), digital input (DI) and power inputs (P1/P2)

for the SDS-3016.

ATTENTION

We suggest using a copper conductor with the cable type

AWG

(American Wire Gauge) 18

-24 and the corresponding pin type

cable terminals. In addition, the wire must be able to withstand at

least 105°C.

NOTE

The wire must be able to withstand at least 105℃and the torque

value should be 4.5 lb-in (0.51 N-m).

NOTE

The devices are designed for operation with a Safety Extra-Low

Voltage. Thus, they may only be connected to the supply

voltage connections and to the signal contact with the Safety

Extra-Low Voltages (SELV).

NOTE

We suggest the length of the pin type cable terminal is 8 mm.

n order to tighten the wire properly, ①use a small flathead

screwdriver to press the push

-in button beside

each terminal of

the terminal block connector before and during

②

inserting the

wire.

③Release the screwdriver after the wire has been fully

inserted

. Please refer to the diagram below.

Wiring the Relay Contact

The SDS-3016 has one relay output for identifying when a specific event

has occurred (i.e., fault; see below). This relay output uses the first two

contacts out of the first 4-pin terminal on the SDS-3016's top panel.

Refer to the instructions and diagram below on how to connect the wires

to the terminal block connector, and how to attach the terminal block

connector to the terminal block receptor.

- 9 -

STEP 1—Insert two wires into the relay position (see the diagram below

showing the top view) on the terminal to form an open circuit.

STEP 2—To keep the relay wires from coming loose, use a small flathead

screwdriver to press the button beside each terminal of the plastic

terminal block connector in order to insert the wire tightly. Release the

screwdriver after the wire has been inserted properly.

STEP 3—Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the SDS-3016's top panel.

FAULT:

The two relay contacts of the 4-pin terminal block connector can be used

to indicate that a user-configured event has occurred. The two wires

attached to the relay contacts will form an open circuit when a

user-configured event is triggered. If a user-configured event does not

occur, the circuit remains closed as the relay itself is closed. Examples of

user-configured events include port link-down and power input ON/OFF.

For more details about user-configured events, please refer to the

SDS-3016 user manual.

NOTE

The relay output of the

SDS-3016 reflects a potential-free,

normally opened solid

-state relay. Therefore, not only when

user

-configured events are triggered but also when there is no

power supply to the switch

it will open. To indicate a fault has

occurred

one

can integrate the relay contact on the smart switch

with an external alarming s

ystem circuit so that the status of

user

-configured events or no power supply can be monitored.

example is given in the diagram below w

here the buzzer will

sound when

user-configured events happen.

- 10 -

Wiring the Digital Input

The SDS-3016 has one set of digital inputs (DI). The DI consist of two

contacts of the second 4-pin terminal block on the SDS-3016’s top panel,

and the other 2 contacts are used for the power 2 (P2) DC inputs.

Refer to the instructions and diagram (top view) below on how to connect

the wires to the terminal block connector, and how to attach the terminal

block connector to the terminal block receptor.

STEP 1: Insert the negative (ground)/positive DI wires into the

respective ┴/I terminals.

STEP 2: To prevent the DI wires from coming loose, use a small flathead

screwdriver to press the button beside each terminal of the plastic

terminal block connector in order to insert the wire tightly. Release the

screwdriver after the wire has been properly inserted.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the top panel of the

SDS-3016.

Wiring the Redundant Power Inputs (12/24/48 VDC)

The SDS-3016 has two sets of power inputs–power input 1 (PWR 1/P1)

and power input 2 (PWR 2/P2). The top view of the terminal block

connector and the positions of the power inputs are shown below.

Take the following steps to wire the redundant power inputs:

STEP 1: Insert the Positive/Negative DC wires into the V1+/V1- terminal

for PWR 1 and/or V2+/V2- terminal for PWR 2.

STEP 2: To prevent the DC wires from coming loose, use a small flathead

screwdriver to press the button beside each terminal of the plastic

terminal block connector in order to insert the wire tightly. Release the

screwdriver after the wire has been properly inserted.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the top panel of the

SDS-3016.

ATTENTION

Before connecting the

SDS-3016

to the DC power inputs, ensure

the DC power supply voltage is stable and of a correct level and

polarity.

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PT-510 Series Manual

Moxa Technologies

Moxa Technologies IKS-6728-8PoE Manual

Moxa Technologies

Moxa Technologies EDS-G308 Manual

Moxa Technologies

Moxa Technologies EDS-600 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE-1GSFP Manual

Moxa Technologies

Moxa Technologies IKS-6324 Series Manual

Moxa Technologies

Moxa Technologies UPort 400A Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manual

Moxa Technologies

Moxa Technologies NSwitch Outdoors User manual

Moxa Technologies

Moxa Technologies EDS-510E Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205 User manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7528-24TX-WV User manual

Moxa Technologies

Moxa Technologies EDS-316 Series User manual

Moxa Technologies

Moxa Technologies TN-5516A Series Manual

Moxa Technologies

Moxa Technologies EDS-G512E-8PoE Manual

Moxa Technologies

Moxa Technologies MDS-G4000-4XGS Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series User manual

Moxa Technologies

Moxa Technologies IESH-MB205G-C2E-R Series User manual

Moxa Technologies

Moxa Technologies PT-7728 Series User manual

Moxa Technologies

Moxa Technologies EDS-508A Series User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5816A Series User manual

Moxa Technologies

Moxa Technologies NPort 1220 User manual

Moxa Technologies

Moxa Technologies PT-508 Series Manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
