Moxa Technologies TN-5308-LV-T User manual

P/N: 1802053080016

*1802053080016*

TN-5308 Series

Quick Installation Guide

Moxa ToughNet Switch

Version 6.1, January 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The ToughNet TN-5308 series M12 unmanaged Ethernet switches are

designed for industrial applications in harsh environments. The TN series

switches use M12 connectors to ensure tight, robust connections, and

guarantee reliable operation against environmental disturbances, such as

vibration and shock. The TN-5308 series Ethernet switches provide 8 Fast

Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M,

full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical

solution for your industrial Ethernet network. Models with an extended

operating temperature range of -40 to 75°C are also available. The

TN-5308 series Ethernet switches comply with those EN 50155

requirements that make products more suitable for rolling stock

applications, including operating temperature, power input voltage, surge,

ESD, and vibration, making the switches suitable for a variety of industrial

applications.

Package Checklist

Your TN-5308 is shipped with the following items. If any of these items is

missing or damaged, please contact your customer service

representative for assistance.

•Moxa ToughNet Switch

•Panel Mounting Kit

•Quick installation guide (printed)

•Warranty card

Features

High Performance Network Switching Technology

•8 10/100BaseT(X) ports

•Store and Forward switching process type

•IEEE 802.3/802.3u/802.3x

•10/100M, Full/Half-Duplex, MDI/MDIX auto-sensing

Industrial-Specific Applications

•Support 12/24/36/48 VDC (8.4 to 60 VDC) power input for “-LV”

models

•Support 72/96/110 VDC (50.4 to 137.5 VDC) power input for “-MV”

models

•Active circuit protection

Rugged Design

•M12 / M23 circular connectors for vibration-resistant robust

connections

•Operating temperature range of -25 to 60°C, or extended operating

temperature range of -40 to 75°C for “-T” models

•IP40, rugged metal housing

•Panel mounting or DIN-rail mounting installation capability

- 3 -

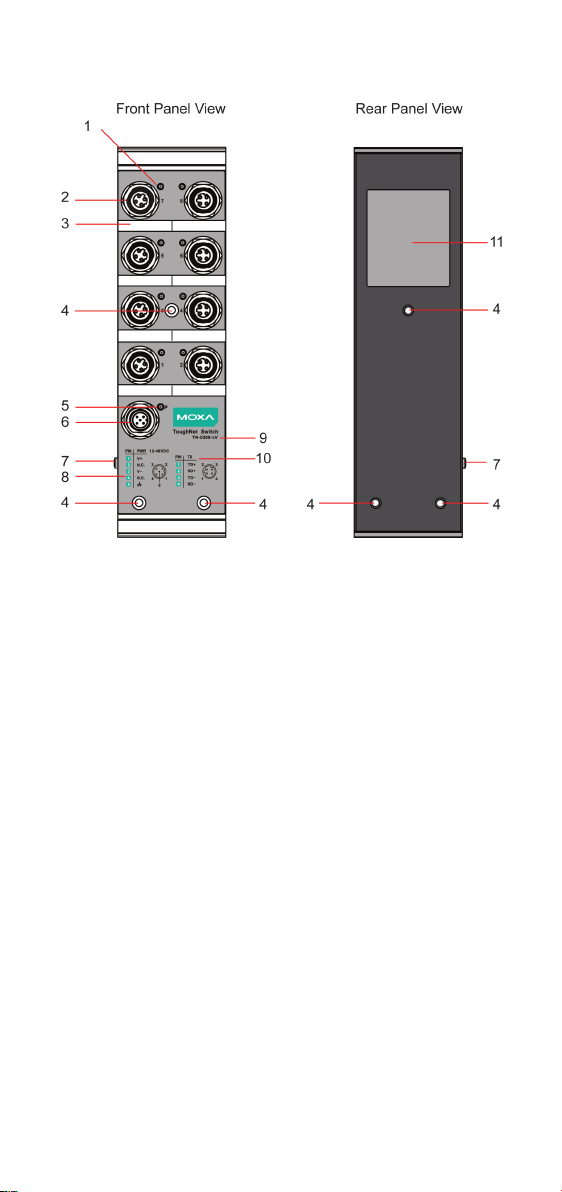

TN-5308-LV Panel Layouts

1. TP port’s 10/100 Mbps LED

2. 10/100BaseT(X) port

(female 4-pin shielded M12 connector with D coding)

3. Port label

4. Screw holes for panel mounting kit or DIN rail mounting kit

(there are 3 holes: top middle, bottom left, and bottom right)

5. Power input LED

6. Power input port

(male 5-pin shielded M12 connector with A coding)

7. Grounding screw

8. Power input port pin assignment

9. Model name

10.

TP port pin assignment

11. Model label

- 4 -

TN-5308-MV Panel Layouts

1. TP port’s 10/100 Mbps LED

2. 10/100BaseT(X) port

(female 4-pin shielded M12 connector with D coding)

3. Port label

4. Screw holes for panel mounting kit or DIN rail mounting kit

(there are 3 holes: top middle, bottom left, and bottom right)

5. Power input LED

6. Power input port

(male 6-pin shielded M23 connector with A coding)

7. Grounding screw

8. Power input port pin assignment

9. Model name

10.

TP port pin assignment

11. Model label

- 5 -

Mounting Dimensions (unit = mm)

TN-5308-LV

TN-5308-MV

- 6 -

Panel/Wall Mounting

Mounting the TN-5308-LV/MV on the wall requires 3 screws. Please use

the 3 screws packed in the panel mounting kit.

STEP 1: Prepare the 3 screw holes on the wall according to the positions

of the 3 screw holes on the switch shown on the mounting dimension

diagram.

STEP 2: Use one screw to go through the top-middle screw hole on the

switch and screw it into the wall.

STEP 3: Screw in the remaining 2 screws through the bottom-left and

bottom-right holes on the switch to the wall.

NOTE

The screw lengths of TN

-5308-LV and TN-5308-

MV are different.

-5308-LV uses M3 x 30 mm screws. TN-5308-MV uses M3 x

mm screws. Please use the screws packed in the panel mounting

kit.

DIN-Rail Mounting (optional)

With the optional DIN-Rail mounting kit DK-TN-5308 (must be purchased

separately), you can mount the TN-5308-LV/MV on a 35 mm DIN-Rail.

STEP 1:

Fix the DIN

-Rail attachment plate onto

the

rear panel of the switch as shown in the

figure at the right.

STEP 2:

Position the TN

-5308-LV/MV on

the DIN

-Rail, tilting to hook

clamps over the top edge of the

rail.

STEP 3:

Swing the switch down fully onto the

DIN

-Rail until both clamps

completely latch.

To remove the Moxa ToughNet Switch from the DIN-Rail, simply reverse

Steps 2 and 3 above.

- 7 -

Wiring Requirements

WARNING

Turn the power off before disconnecting modules or wires. The

correct power supply

voltage is listed on the product label. Check

the voltage of your power source to make sure you are using

the

correct voltage. Do NOT use a voltage greater than what is

specified on the product label.

These devices must be supplied by a SELV source as def

ined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa switch.

This device has UL508 approval. Use copper

conductors only,

60/75°C

, and tighten to 4.5 pound-inches. For use in pollution

degree 2 environments.

ATTENTION

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all

electrical codes dictating the

maximum current allowable for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring for all devices in the system

when necessary.

Grounding the TN-5308

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

grounding screw to the grounding surface prior to connecting devices.

- 8 -

ATTENTION

This product is intended to be mounted to a

well-grounded

mounting surface such as a metal panel.

Connecting the Power Supply

The M12 A coded 5 pin and M23 6 pin male connector on the

TN-5308-LV/MV front panel is used for the DC power input. You have to

prepare a power cord with M12/M23 A-coded 5-pin female connector to

connect the switch to the DC power input.

Pinouts for the power input port on the TN-5308-LV

Pinouts for the power input port on the TN-5308-MV

STEP 1: Plug your power cord connector to the power input port of the

TN-5308 switch.

STEP 2: Screw the nut on your power cord connector to the power input

connector on the switch to ensure a tight connection.

ATTENTION

Before

connecting the TN-

5308 to the DC power input, make sure

the DC power source voltage is stable.

- 9 -

Connecting the Data Lines

10/100BaseT(X) Ethernet Port Connection

All TN-5308 models have 8 10/100BaseT(X) Ethernet ports (4-pin

shielded M12 connectors with D coding). The 10/100TX ports located on

the TN-5308’s front panel are used to connect to Ethernet-enabled

devices. Most users configure these ports for Auto MDI/MDI-X mode, in

which case the port’s pinouts are adjusted automatically depending on

the type of Ethernet cable used (straight-through or cross-over), and the

type of device (NIC-type or HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

Pinouts for the 10/100BaseT(X) Ports on the TN-5308

Pinouts for the RJ45 (8-pin) Port

RJ45 (8-Pin)

MDI Port Pinouts

MDI-X Port Pinouts

Signal

Tx +

Tx -

Rx +

Rx -

Signal

Rx +

Rx -

Tx +

Tx -

M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring

M12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable Wiring

- 10 -

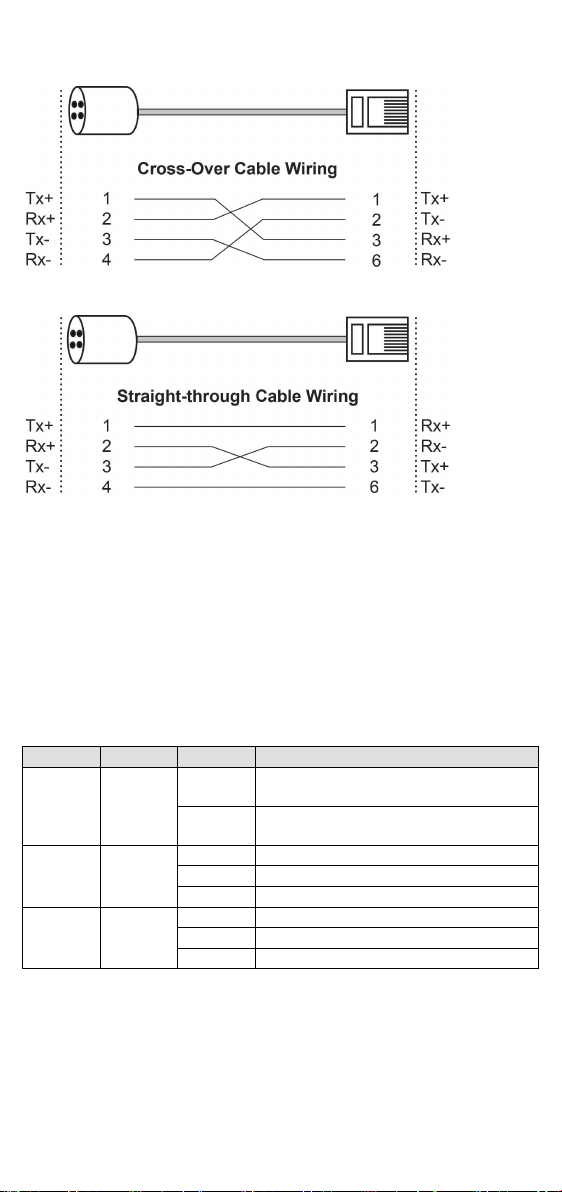

M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring

M12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable Wiring

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect TN-5308’s

10/100BaseTX ports to any kind of Ethernet device, without needing to

pay attention to the type of Ethernet cable being used for the connection.

This means that you can use either a straight-through cable or cross-over

cable to connect the TN-5308 to Ethernet devices.

LED Indicators

Several LED indicators are located on the TN-5308’s front panel. The

function of each LED is described in the table below.

LED

Color

State

Description

PWR AMBER

Power is being supplied to the power

input.

Off

Power is not being supplied to the

power input.

(10M) AMBER

TP port’s 10 Mbps link is active.

Blinking

Data is being transmitted at 10 Mbps

Off

TP port’s 10 Mbps link is inactive.

(100M) GREEN

TP port’s 100 Mbps link is active

Blinking

Data is being transmitted at 100 Mbps.

Off

TP port’s 100 Mbps link is inactive.

Auto-Negotiation and Speed Sensing

All of the TN-5308’s Ethernet ports independently support

auto-negotiation for speeds in the 10BaseT and 100BaseTX modes, with

operation according to the IEEE 802.3u standard. This means that some

nodes could be operating at 10 Mbps, while at the same time, other nodes

are operating at 100 Mbps.

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series User manual

Moxa Technologies

Moxa Technologies PT-7710 Series User manual

Moxa Technologies

Moxa Technologies TRC-190 User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4012 Series User manual

Moxa Technologies

Moxa Technologies PT-7728 Series User manual

Moxa Technologies

Moxa Technologies ICS-G7 Series User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5510A-2GLSX-ODC Manual

Moxa Technologies

Moxa Technologies IKS-6728 Series Manual

Moxa Technologies

Moxa Technologies MDS-G4000-L3-4XGS Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-505A Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series User manual

Moxa Technologies

Moxa Technologies EDS-508 Series User manual

Moxa Technologies

Moxa Technologies EDS-316 Series User manual

Moxa Technologies

Moxa Technologies EDS-G4014 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series User manual

Moxa Technologies

Moxa Technologies EDS-G308 Manual

Moxa Technologies

Moxa Technologies TN-5516A Series Manual

Moxa Technologies

Moxa Technologies TN-5508A Series Manual

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-305 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series User manual

Moxa Technologies

Moxa Technologies ICS-G7748A Series User manual

Moxa Technologies

Moxa Technologies TN-5308 User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
