Moxa Technologies IKS-6700A series Manual

P/N: 1802067000010

IKS-6700A and

IKS-6728A-8PoE Series

Hardware Installation Guide

First Edition, September 2014

- 2 -

Package Checklist

The Moxa IKS-6700A/IKS-6728A-8PoE industrial rackmount switch is

shipped with the following items. If any of these items are missing or

damaged, please contact your customer service representative for

assistance.

•IKS-6700A/IKS-6728A-8PoE switch

•USB cable (Type A male to Type B male)

•Protective caps for unused ports

•2 rackmount ears

•Documentation and software CD

•Hardware installation guide

•CD-ROM with user's manual and SNMP MIB file

•Moxa product warranty statement

Panel Layouts

1. System status LEDs

2. Model name

3. Reset button

4. Terminal block for relay output

5. USB serial console port

6. USB storage port (ABC-02-USB-T)

7. 10/100/1000BaseT(X) or 100/1000Base SFP combo ports

8. 100/1000Base SFP port status LEDs

9. PoE+ status LEDs (IKS-6728A-8PoE series only)

10. 10/100BaseT(X) port status LEDs

11. Fast Ethernet or PoE+ interface ports

12. Fast Ethernet or PoE+ interface modules

13. Terminal blocks for DC power inputs

- 3 -

14. Grounding screw

15. Power sockets for AC power inputs or terminal blocks for DC power

inputs

Dimensions

Unit = mm (inch)

Fast Ethernet Interface Modules (IM-6700A

Series)

- 4 -

Grounding the Moxa Industrial Rackmount Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

NOTE

Using a shielded cable achieves better electromagnetic

compatibility.

Connecting the Power Inputs

The IKS-6728A-8PoE switches support 4 types of power supply.

•IKS-6728A-8PoE-4GTXSFP-HV-HV-T: Two isolated 110/220 VAC (85

to 264 VAC) power supplies for switch and two isolated 48 VDC power

inputs for PoE+ ports

•IKS-6728A-8PoE-4GTXSFP-HV-T: One isolated 110/220 VAC (85 to

264 VAC) power supply for the switch and one isolated 48 VDC power

input for the PoE+ ports

•IKS-6728A-8PoE-4GTXSFP-48-48-T: Two isolated 48 VDC power

supplies for switch and PoE+ ports

•IKS-6728A-8PoE-4GTXSFP-48-T: One isolated 48 VDC power supply

for switch and PoE+ ports

For the HV models, the 110/220 VAC power supplies provide power for

switch operation. Separate 48 VDC power supplies are required to provide

power to all PoE+ ports (50 to 57 VDC is recommended for IEEE 802.3at

devices).

For the 48 VDC models, the 48 VDC power supplies provide power for

switch operation and to all PoE+ ports (50 to 57 VDC is recommended for

IEEE 802.3at devices).

The IKS-6700A switches support 3 types of power supply:

•IKS-6726A/6728A HV series: Two isolated 110/220VAC (85 to 264

VAC) power supplies for switch

•IKS-6726A/6728A 24/48VDC series: Two isolated 24 or 48VDC power

supplies for switch

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the

area is known to be non-hazardous. The

device may only be connected to the supply voltage shown on the

type plate. The device is designed for operation with a Safety

Extra

-Low Voltage (SELV) or an isolated power supply, which

means that they may only be co

nnected to the supply voltage

connections and to the signal contact with a SELV or an isolated

power supply in compliance with IEC 60950

-1/EN 60950-

1 or UL

508.

AC Power Inlets

The connection for PWR1 (power supply 1) and PWR2 (power supply 2)

are located on the rear panel (shown below). Be sure to use a standard

- 5 -

power cord with an IEC C13 connector, which is compatible with the AC

power inlet.

DC Power Terminal Blocks

The connection for EPS1 (external power supply 1) / PWR1 (power supply

1) and EPS2 (external power supply 2) / PWR2 (power supply 2) are

located on the rear panel (shown below).

STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals,

respectively.

STEP 2: To keep the DC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws.

Wiring the Relay Contact

Each switch has one relay output.

FAULT:

The relay contact of the 2-pin terminal block connector is used to detect

user-configured events. The two wires attached to the fault contacts form

an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the fault circuit remains closed.

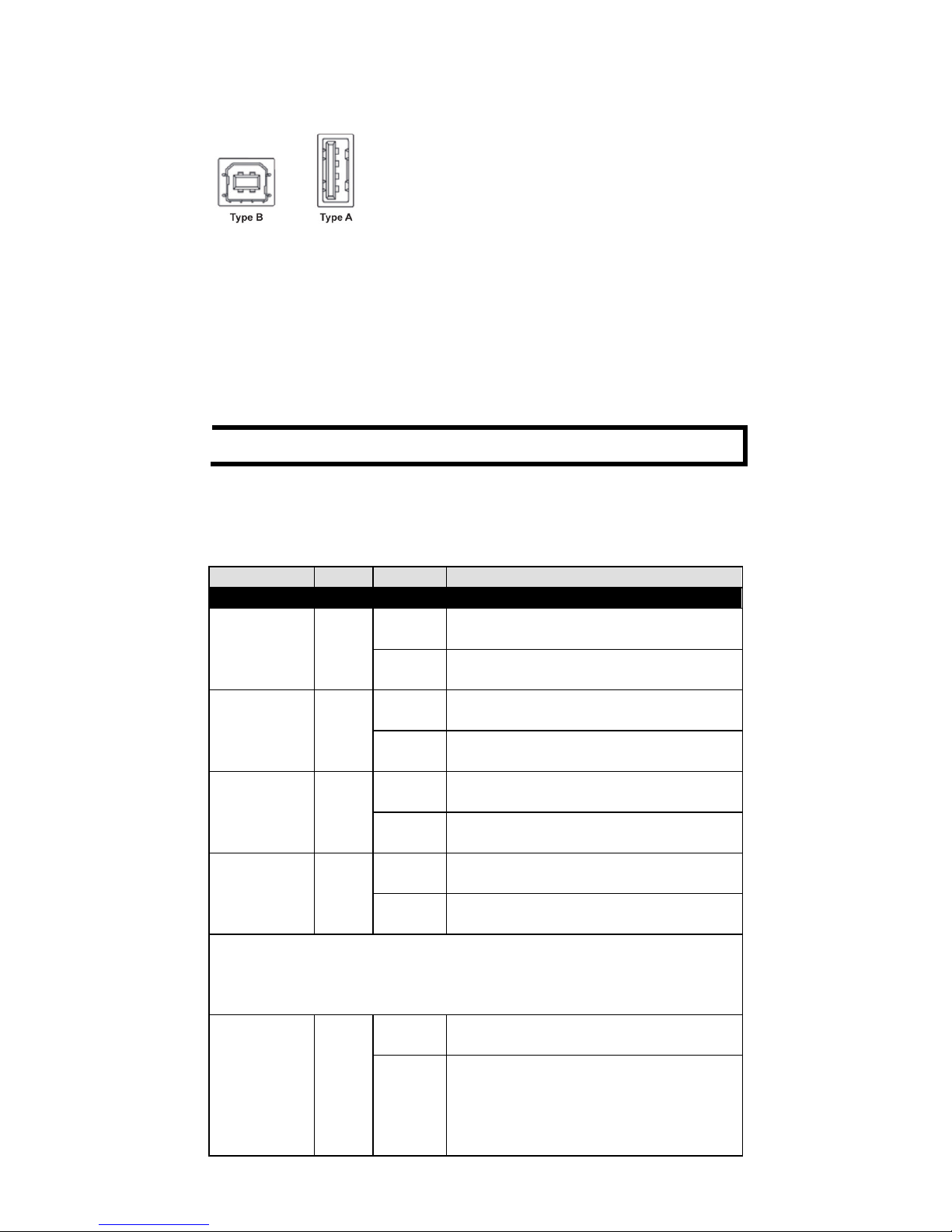

USB Connection

The switch has two USB ports, one type B USB-serial console port and one

type A USB host port, located on the front panel. Use a USB cable (type A

male to type B male) to connect the USB-serial console port to your PC's

COM port, and install the USB driver (available in the software CD) on the

PC. You may then use a console terminal program, such as Moxa’s

PComm Terminal Emulator, to access the console configuration utility of

the switch.

- 6 -

Use Moxa’s USB Automatic Backup Configurator ABC-02-USB to connect

to the USB host port to backup and restore configuration files, auto-load

configuration files, upgrade firmware, and backup system log files.

The Reset Button

Depress the Reset button for five continuous seconds to load the factory

default settings. Use a pointed object, such as a straightened paper clip or

toothpick, to depress the Reset button. When you do so, the STATE LED

will start to blink about once per second. Continue to depress the STATE

LED until it begins blinking more rapidly; this indicates that the button has

been depressed for five seconds and you can release the Reset button to

load factory default settings.

NOTE

DO NOT power off the switch when loading default settings

LED Indicators

The front panel of the IKS switch contains several LED indicators. The

function of each LED is described in the table below.

LED

Color

State

Description

System LEDs

PWR1* AMBER

Power is being supplied to the main

module’s power input PWR1

Off

Power is not being supplied to the main

module’s power input PWR1

PWR2* AMBER

Power is being supplied to the main

module’s power input PWR2

Off

Power is not being supplied to the main

module’s power input PWR2

EPS1 AMBER

On Power is being supplied to the PoE+

power input EPS1

Off

Power is not being supplied to the PoE+

power input EPS1

EPS2 AMBER

Power is being supplied to the PoE+

power input EPS2

Off Power is not being supplied to the PoE+

power input EPS2

*: On the IKS-6700A/IKS-6728A-8PoE-4GTXSFP-48-48-T model, both

PWR1 and PWR2 LED will be “On” with a single power input. This is

because both internal power units are operating as redundant secondary

power with the single input.

STATE GREEN

System has passed self-diagnosis test

on boot-up and is ready to run

Blinking

1. System is undergoing the

self-diagnosis test

2. Blink continuously when pressing the

reset button 5 seconds to reset to

factory default

- 7 -

LED

Color

State

Description

3. Blink slowly when an ABC-02

automatic backup device is detected

RED

System failed self-diagnosis on boot-up

FAULT RED On

System is in the event of failure, or is

under quick inspection

Off

System is in normal operation

MSTR/

HEAD GREEN

When the IKS-6700A/IKS-6728A-8PoE

is set as the Master of the Turbo Ring, or

as the Head of the Turbo Chain

Blinking

The IKS-6700A/IKS-6728A-8PoE has

become the Ring Master of the Turbo

Ring, or the Head of the Turbo Chain,

after the Turbo Ring or the Turbo Chain

is down

Off

The IKS-6700A/IKS-6728A-8PoE is not

the Master of this Turbo Ring or is set as

a Member of the Turbo Chain

CPLR/

TAIL GREEN

When the IKS-6700A/IKS-6728A-8PoE

coupling function is enabled to form a

back-

up path, or when it’s set as the Tail

of the Turbo Chain

Blinking

When the Turbo Chain is down

Off

When this IKS-6700A/IKS-6728A-8PoE

switch disables the coupling function

When the system is importing/exporting data from or to an ABC-02-USB

automatic backup device, the FAULT, MSTR/HEAD, and CPLR/TAIL LEDs

will blink in sequence.

Port Status LEDs

G1 to G4

(1000M TP

ports, left

LED on the

connector)

GREEN

The corresponding port’s 1000 Mbps link

is active

Blinking

Data is being transmitted at 1000 Mbps

Off

The corresponding port’s 1000 Mbps link

is inactive

G1 to G4

(10/100M TP

ports, right

LED on the

connector)

GREEN

On The corresponding port’s 10/100 Mbps

link is active

Blinking

Data is being transmitted at 10/100

Mbps

Off

The corresponding port’s 10/100 Mbps

link is inactive

G1 to G4

(100/1000M

Fiber Optic

ports)

GREEN

On Fiber optic port's 1000 Mbps link is

active

Blinking

Data is being transmitted at 1000 Mbps

Off

Fiber Optic port’s 1000 Mbps link is

inactive

AMBER

Fiber optic port's 100 Mbps link is active

Blinking

Data is being transmitted at 100 Mbps

Off

Fiber Optic port’s 100 Mbps link is

inactive

P1 to P8

(10/100M TP

ports)

GREEN

The corresponding port’s 100 Mbps link

is active

Blinking

Data is being transmitted at 100 Mbps

Off

The corresponding port’s 100 Mbps link

- 8 -

is inactive

AMBER

The corresponding port’s 10 Mbps link is

active

Blinking

Data is being transmitted at 10 Mbps

Off

The corresponding port’s 10 Mbps link is

inactive

P1 to P8

(PoE+ ports)

GREEN

The corresponding port is connected to

an IEEE 802.3at power device

Blinking

Over current or short circuit on the

power device with IEEE 802.3at

standard

Off

The corresponding port is not connected

to a power device with IEEE 802.3at

standard

AMBER

The corresponding port is connected to a

power device with IEEE 802.3af

standard

Blinking

Once per second:

Detecting error on the power device

Twice per second:

Over current or short circuit on the

power device with IEEE 802.3af

standard

Off

The corresponding port is not connected

to a power device with IEEE 802.3af

standard

Specifications

Technology

Standards IEEE 802.3af/at for Power-over-Ethernet

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseX

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid STP

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMP v1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP

Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON,

HTTP, H

TTPS, Telnet, SSH, Syslog, DHCP Option 66/67/82,

EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTP V2, IPv6,

NTP Server/Client

MIB

MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet

8-port 10/100Base T(X) or PoE+ 10/100BaseT(X)

2 modular slots for any 8-, or 6-port Interface Modules

with 10/100BaseT(X), 100BaseFX (SC/ST connector),

- 9 -

100Base SFP, or PoE+ 10/100BaseT(X)

Gigabit

Ethernet

4-port 10/100/1000BaseT(X) or 100/1000Base SFP

Console Port

USB-serial console (Type B connector)

LED

Indicators

PWR1, PWR2, EPS1, EPS2, STATE, FAULT, MSTR/HEAD,

CPLR/TAIL

Alarm

Contact

1 relay output with current carrying capacity of 2 A @ 30

VDC

Power Requirements

Input Voltage

IKS-6726A-2GTXSFP-24(-24)-T: 24 VDC

IKS-6726A-2GTXSFP-48(-48)-T: 48 VDC

IKS-6726A-2GTXSFP-HV(-HV)-T: 110/230 VAC

IKS-6728A-4GTXSFP-24(-24)-T: 24 VDC

IKS-6728A-4GTXSFP-48(-48)-T: 48 VDC

IKS-6728A-4GTXSFP-HV(-HV)-T: 110/230 VAC

IKS-6728A-8PoE-4GTXSFP-48(-48)-T: 48 VDC (46-57

VDC)

IKS-6728A-8PoE-4GTXSFP-HV(-HV)-T:

Power input: 110 VAC/230 VAC

EPS input: 48 VDC (46-57 VDC)

Input Current

(without

IM-6700

modules

consumption)

IKS-6726A-2GTXSFP-24(-24)-T: 24 VDC; 0.40A

IKS-6726A-2GTXSFP-48(-48)-T: 48 VDC; 0.21A

IKS-6726A-2GTXSFP-HV(-HV)-T: 110 VAC,0.33A;

230VAC, 0.24A

IKS-6728A-4GTXSFP-24(-24)-T: 24VDC;0.44A

IKS-6728A-4GTXSFP-48(-48)-T: 48VDC;0.23A

IKS-6728A-4GTXSFP-HV(-HV)-T: 110VAC,0.33A;

230VAC, 0.24A

IKS-6728A-8PoE-4GTXSFP-48(-48)-T:

48VDC, 0.53A (Power consumption of PoE devices is not

included.)

IKS-6728A-8PoE-4GTXSFP-HV(-HV)-T:

110VAC,0.33A; 230VAC, 0.24A

48VDC, 0.29A

(Power consumption of PoE devices is not included.)

Overload

Current

Protection

Present

Reverse

Polarity

Protection

Present

Physical Characteristics

Housing

IP30 protection

Dimensions

440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

Weight

IKS-6700A/IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 4250 g

IKS-6700A/IKS-6728A-8PoE-4GTXSFP-HV-T: 4150 g

IKS-6700A/IKS-6728A-8PoE-4GTXSFP-48-48-T: 4250 g

IKS-6700A/IKS-6728A-8PoE-4GTXSFP-48-T: 4150 g

IKS-6726A/6728A series: 4100 g

Installation

19’’ rack mounting

Environmental Limits

Operating

Temp.

-40 to 75°C (-40 to 167°F)

- 10 -

Storage

Temp.

-40 to 85°C (-40 to 185°F)

Ambient

Relative

Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,

EN 61000-4-4 (EFT) Level 3, EN 61000-4-

5 (Surge) Level

3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN

61000-4-11

Note: For better conductive radiation immunity,

STP cable

is recommended.

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Warranty

Period

5 years

Details

See www.moxa.com/warranty

Rack Mounting Instructions

1. Elevated Operating Ambient: If installed in a closed or multi-unit

rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the maximum ambient temperature

(Tma) specified by the manufacturer.

2. Reduced Air Flow: Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of the

equipment is not compromised.

3. Mechanical Loading: Mounting of the equipment in the rack

should be such that a hazardous condition is not achieved due to

uneven mechanical loading.

4. Circuit Overloading: Consideration should be given to the

connection of the equipment to the supply circuit and the effect that

overloading of the circuits might have on overcurrent protection and

supply wiring. Appropriate consideration of equipment nameplate

ratings should be used when addressing this concern.

5. Reliable Grounding: Reliable grounding of rack-mounted

equipment should be maintained. Particular attention should be

given to supply connections other than direct connections to the

branch circuit (e.g. use of power strips).

NOTE

The rackmount ears can be equipped on the front or rear of Moxa

IKS-6700A/IKS-6728-8PoE switch.

Restricted Access Locations

•This equipment is intended to be used in Restricted

Access Locations, such as a computer room, with

access limited to SERVICE PERSONAL or USERS

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-508 Series User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manual

Moxa Technologies

Moxa Technologies NPort 1220 User manual

Moxa Technologies

Moxa Technologies TN-G6512 Serie User manual

Moxa Technologies

Moxa Technologies PT-508 Series Manual

Moxa Technologies

Moxa Technologies OnCell G3111 User manual

Moxa Technologies

Moxa Technologies EDS-508 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series User manual

Moxa Technologies

Moxa Technologies EDS-726 Series Manual

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series User manual

Moxa Technologies

Moxa Technologies EDS-405A User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5816A Series User manual

Moxa Technologies

Moxa Technologies TN-5308 User manual

Moxa Technologies

Moxa Technologies UPORT 1200 series User manual

Moxa Technologies

Moxa Technologies PT-7710 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Assembly instructions

Moxa Technologies

Moxa Technologies TN-5500A Series User manual

Moxa Technologies

Moxa Technologies MDS-G4000 Series User manual

Moxa Technologies

Moxa Technologies PowerTrans PT-508-MM-ST-48 User manual

Moxa Technologies

Moxa Technologies EDS-208 series User manual

Moxa Technologies

Moxa Technologies IKS-6324 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
