Moxa Technologies EDS-510E Series Manual

P/N: 1802005100040

EDS-510E Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

First Edition, July 2013

- 2 -

Package Checklist

The EDS-510E is shipped with the following items. If any of these items

are missing or damaged, please contact your customer service

representative for assistance.

•1 EDS-510E Ethernet switch

•Hardware installation guide

•Documentation and software CD

•Moxa product warranty statement

•USB cable

•Protective caps for unused ports

Features

•2 Gigabit Ethernet ports for redundant ring and 1 Gigabit Ethernet

port for uplink solution

•Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),

RSTP/STP, and MSTP for network redundancy

•RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, and SSH to

enhance network security

•EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for

device management and monitoring

- 3 -

Panel Views of EDS-510E

Front Panel

Top Panel

Rear Panel

Front Panel

1 to 7 port status LED

1 to 7: 10/100BaseT(X) port

System status LED:

•STATE LED indicator

•PWR1 LED indicator

•PWR2 LED indicator

•FAULT LED indicator

•MSTR/HEAD LED indicator

•CPLR/TAIL LED indicator

USB storage port

G1 to G3 port status LED

G1 to G3:

10/100/1000BaseT(X) or

100/1000BaseSFP combo port

Model Name

Top Panel

Reset button

USB console port

DIP switches for Turbo Ring,

Ring Master, and Ring Coupler

Grounding screw

4-pin terminal block for digital

input and power input 2

4-pin terminal block for relay

output and power input 1

Rear Panel

Screw holes for wall mounting

kit

DIN-Rail mounting kit

- 4 -

Mounting Dimensions

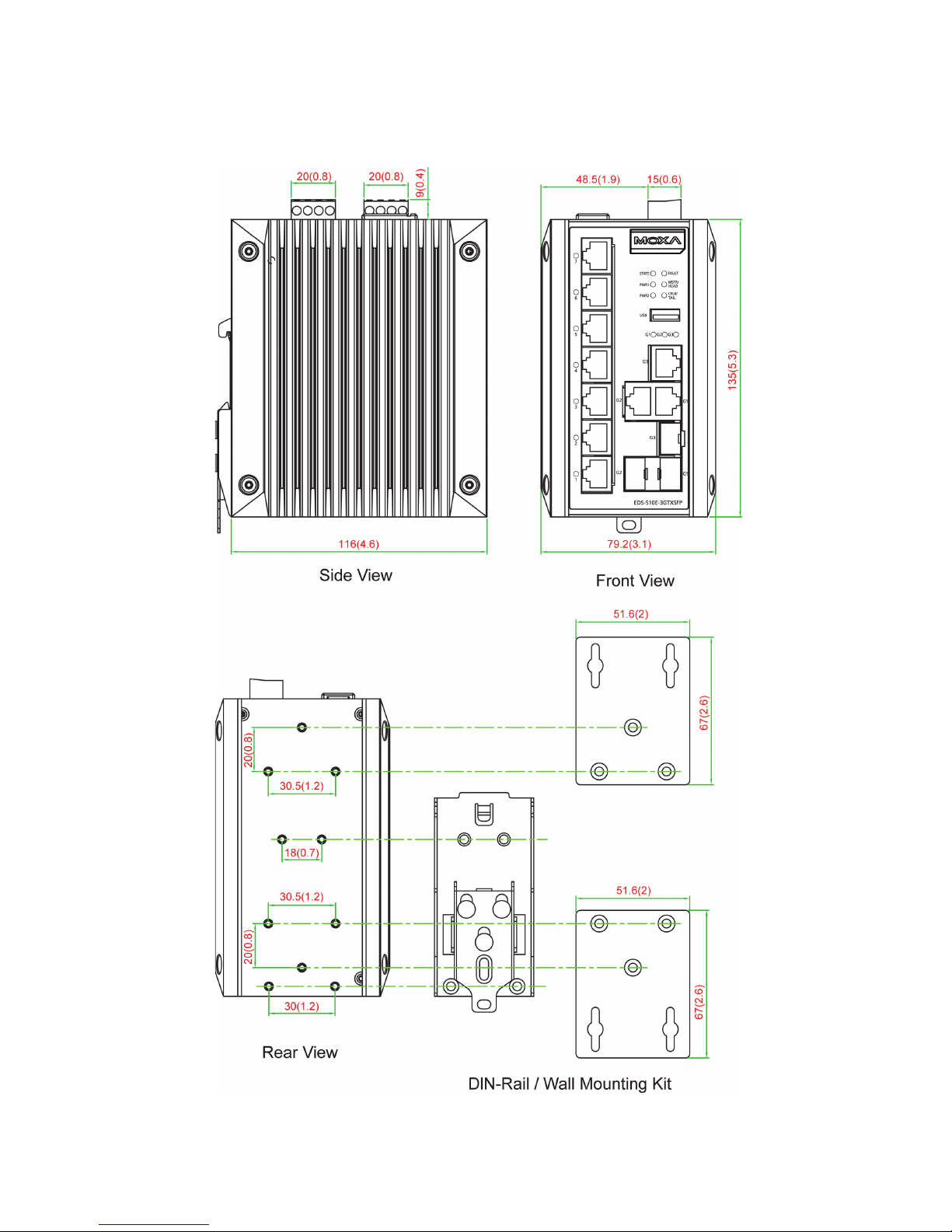

Unit = mm (inch)

- 5 -

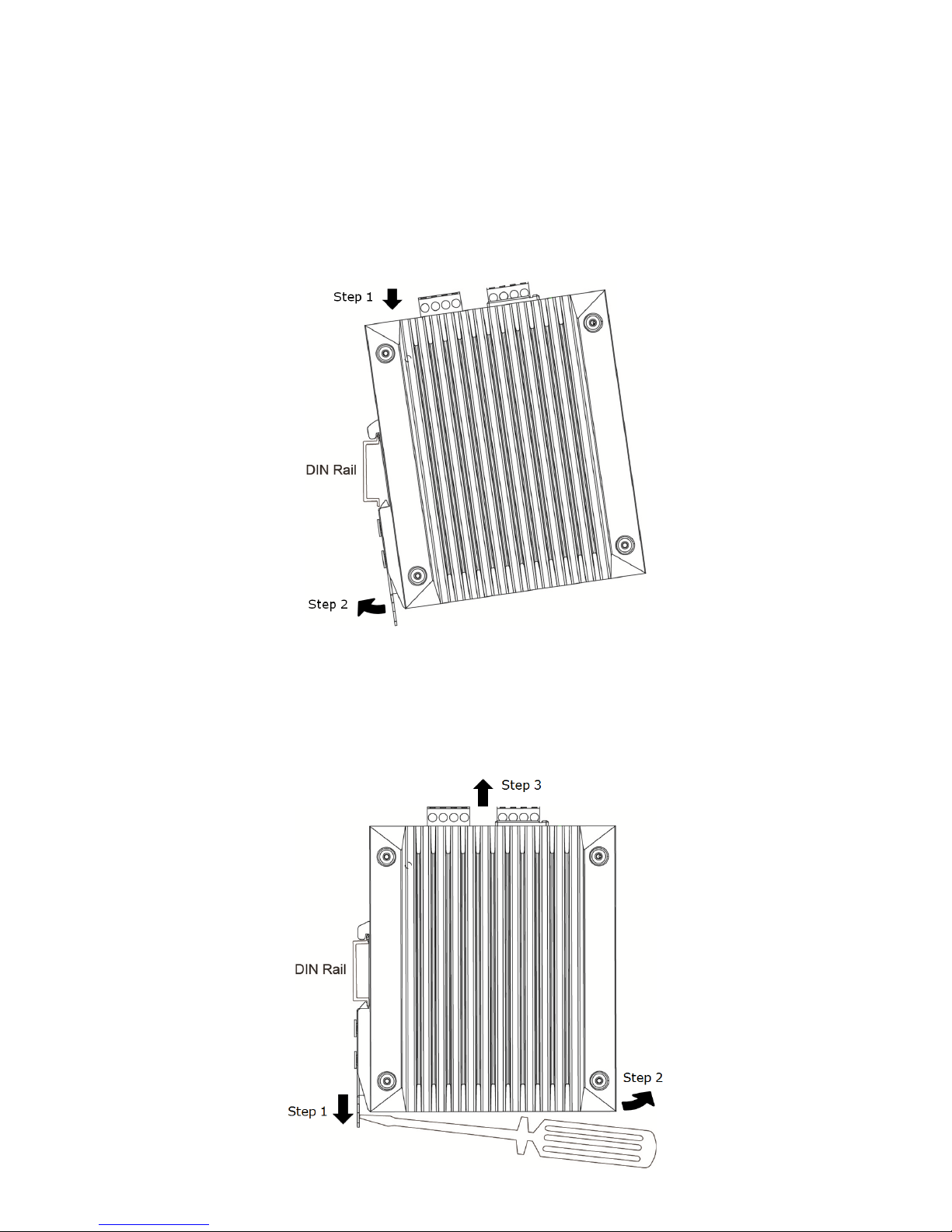

DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-510E when

you take it out of the box. Mount the EDS-510E on corrosion-free

mounting rails that meet the EN 60715 standard.

Installation

STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2—Press the EDS-510E t towards the DIN rail until it snaps into

place.

Removal

STEP 1—Pull down the latch on the mounting kit with a screwdriver.

STEP 2 & 3—Slightly pull the EDS-510E forward and lift up to remove it

from the DIN rail.

- 6 -

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa

EDS-510E on the wall, as shown in the following illustrations:

STEP 1—Remove the

aluminum DIN rail attachment

plate from the rear panel

the EDS

-510E, and then

attach the wall mount plates

with M3 screws

, as shown in

the figure

at the right.

STEP 2—

Mounting the EDS-510E

on the wall requires

4 screws. Use the

EDS-510E, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the shafts should be less

than 3.5

mm in diameter, as shown in the figure on a

right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

STEP 3—

Once the screws are fixed

the wall, insert the four screw

heads through the wide parts of the

keyhole

shaped apertures, and then

slide

the EDS-510E downwards, as

ind

icated in the figure at the right.

Tighten the four screws for

stability

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

afety Extra-Low V

oltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

afety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

- 7 -

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply

with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together

•You should separate input wiring from output wiring

•We advise that you label the wiring to all devices in the system.

Grounding the Moxa EDS-510E

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

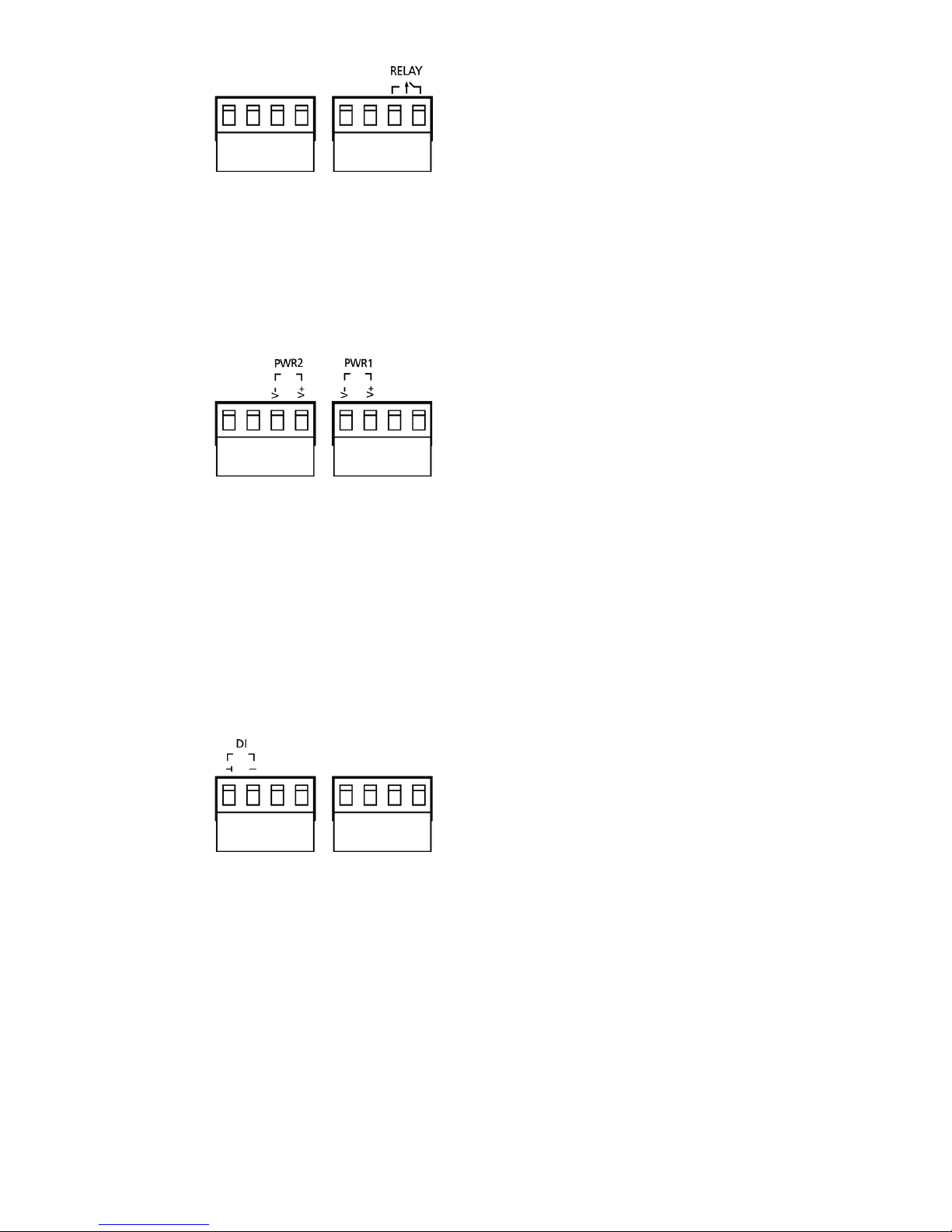

Wiring the Relay Contact

The EDS-510E has one set of relay output. This relay contact uses two

contacts of the terminal block on the EDS-510E’s top panel. Refer to the

next section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector

to the terminal block receptor. In this section, we illustrate the use of two

contacts used to connect the relay.

- 8 -

FAULT:

The two contacts of the 6

-pin terminal

block connector are used to detect

user

-configured events. The two wires

attached to the

fault contacts form an

open circuit when a user

-configured

event is triggered. If a user

-configured

event does not occur, the

fault circuit

remains closed.

Wiring the Redundant Power Inputs

The EDS-510E has two sets of power inputs—power input 1 and power

input 2. The top and front views of one of the terminal block connectors

are shown here.

STEP 1: Insert the negative/positive DC

wires into the V

-/V+ terminals,

respectively.

STEP 2:

To keep the DC wires from

pulling loose, use a small flat

-blade

screwdriver to tighten

the wire-clamp

screws on the front of the terminal block

connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on

the

EDS-510E’s top panel.

Wiring the Digital Inputs

The EDS-510E has one set of digital input (DI). The DI consists of two

contacts of the 4-pin terminal block connector on the EDS-510E's top

panel, which are used for the two DC inputs. The top and front views of

one of the terminal block connectors are shown here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

┴

terminals

, respectively.

STEP 2:

To keep the DI wires from

pulling loose, use a small flat

-blade

screwdriver to tighten the wire

-clamp

screws on the front of the terminal block

connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on

the

EDS-510E’s top panel.

Communication Connections

Each EDS-510E switch has 4 types of communication ports:

•1 USB console port (type B connector)

•1 USB storage port (type A connector)

•7 10/100BaseTX Ethernet ports

•3 Gigabit Ethernet ports:

3 10/100/1000BaseTX and 3 100/1000BaseSFP ports

- 9 -

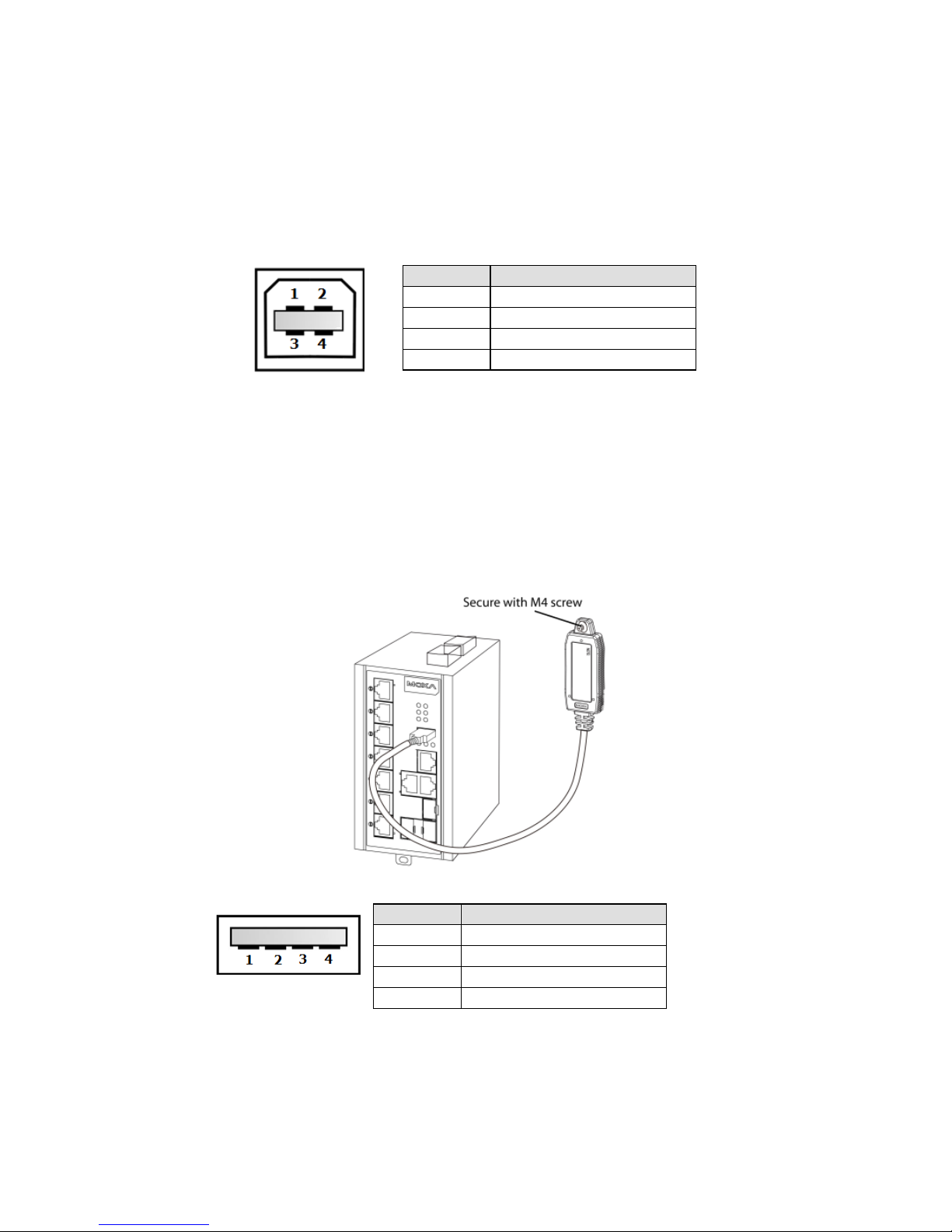

USB Console Connection

The EDS-510E has one USB console port (type B connector), located on

the top panel. Use the USB cable (provided in the product package) to

connect the EDS-510E's console port to your PC's USB port and install the

USB driver (available in the software CD) on the PC. You may then use a

console terminal program, such as Moxa PComm Terminal Emulator, to

access the EDS-510E’s console configuration utility.

USB Console Port (Type B Connector) Pinouts

Description

D– (Data -)

VCC (+5V)

D+ (Data+)

GND (Ground)

USB Storage Connection

The EDS-510E has one USB storage port (type A connector) on the front

panel. Use Moxa ABC-02-USB-T automatic backup configurator to

connect the EDS-510E's USB storage port for configuration backup,

firmware upgrade or system log file backup.

ABC-02-USB Installation

Plug the ABC-02-USB into the USB storage port of the Moxa EDS-510E.

Securing the ABC-02-USB on the wall with an M4 screw is suggested.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS-510E’s front panel are

used to connect to Ethernet-enabled devices. Most users configure these

ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are

adjusted automatically depending on the type of Ethernet cable used

- 10 -

(straight-through or cross-over), and the type of device (NIC-type or

HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

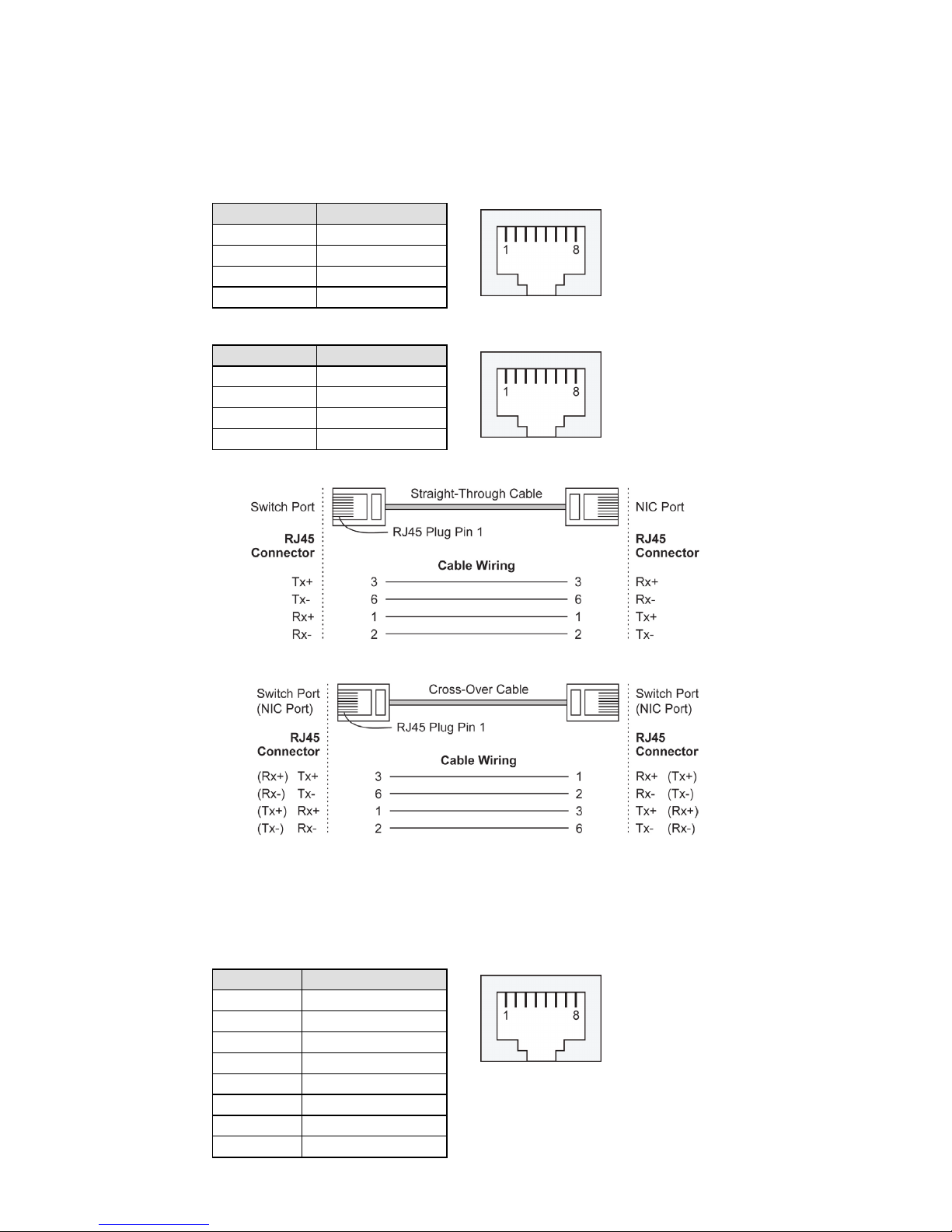

RJ45 (8-pin, MDI) Port Pinouts

Signal

Tx+

Tx-

Rx+

Rx-

RJ45 (8-pin, MDI-X) Port Pinouts

Signal

Rx+

Rx-

Tx+

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over

copper wires.

MDI/MDI-X Port Pinouts

Signal

TRD(0)+

TRD(0)-

TRD(1)+

TRD(2)+

TRD(2)-

TRD(1)-

TRD(3)+

TRD(3)-

Other manuals for EDS-510E Series

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies PT-508 Series Manual

Moxa Technologies

Moxa Technologies PT-7828 Series User manual

Moxa Technologies

Moxa Technologies EDS-516A Series Manual

Moxa Technologies

Moxa Technologies EDS-316 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-208A series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE User manual

Moxa Technologies

Moxa Technologies EDS-G509 Series User manual

Moxa Technologies

Moxa Technologies TN-5305 Series Manual

Moxa Technologies

Moxa Technologies EDS-405A Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manual

Moxa Technologies

Moxa Technologies ToughNet TN-G4500 Series User manual

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T User manual

Moxa Technologies

Moxa Technologies TN-5500A Series User manual

Moxa Technologies

Moxa Technologies ToughNet Switch TN-5500 series User manual

Moxa Technologies

Moxa Technologies IKS-6700A series Manual

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-305-T Manual

Moxa Technologies

Moxa Technologies TN-5508A Series Manual

Moxa Technologies

Moxa Technologies UPort 404 User manual

Moxa Technologies

Moxa Technologies EOM-104 Series User manual

Moxa Technologies

Moxa Technologies IEX-408E-2VDSL2 series User manual

Moxa Technologies

Moxa Technologies ioLogik E1200 Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
