Moxa Technologies TN-5508A Series Manual

P/N: 1802055080021

*1802055080021*

TN-5508A/5510A Series

Hardware Installation Guide

Moxa ToughNet Switch

Second Edition, March 2015

- 2 -

Overview

The ToughNet TN-5508A/5510A series M12 managed Ethernet switches

are designed for industrial applications in harsh environments. The TN

series switches use M12 connectors to ensure tight, robust connections,

and guarantee reliable operation against environmental disturbances,

such as vibration and shock. The wide 24 to 110 VDC with dual power

input (non-PoE series) increases the reliability of your communications.

The TN-5508A series includes PoE and non-PoE switches.

•TN-5508A series: 8 Fast Ethernet M12 ports.

•TN-5508A-8PoE series: 8 PoE Fast Ethernet M12 ports.

The TN-5510A series also includes PoE and non-PoE switches.

•TN-5510A series: 8 Fast Ethernet M12 ports, supports additional 2

Gigabit ports located on the bottom of the unit, with or without

bypass function.

•TN-5510A-8PoE series: 8 PoE Fast Ethernet M12 ports, supports

additional 2 Gigabit ports located on the bottom of the unit, with or

without bypass function.

The -40 to 75°C operating temperature and IP54 rated waterproof

enclosure allow deployment in harsh environments. The

TN-5508A/5510A series Ethernet switches are compliant with

EN50155/50121-3-2/50121-4 (railway applications) requirements,

covering operating temperature, power input voltage, surge, ESD and

vibration, making the switches suitable for a variety of industrial

applications

Package Checklist

Your ToughNet TN-5508A/5510A switch is shipped with the following

items. If any of these items is missing or damaged, please contact your

customer service representative for assistance.

•1 Moxa ToughNet switch.

•Hardware installation guide.

•CD-ROM with user’s manual.

•Moxa product warranty statement.

•M12 to DB9 console port cable.

•2 protective caps for console and relay output ports

•Panel mounting screws.

Features

Anti-Vibration Circular Connectors for Robust Links

•M12 D-coding 4-pin female connectors for Fast Ethernet

10/100BaseT(X) ports.

•M12 X-coded 8-pin female connectors for Gigabit Ethernet

10/100/1000BaseT(X) ports

•M12 A-coding 5-pin male connectors for console and relay output.

•M23 6-pin male connectors for power input.

Isolated Power Inputs

•Supports 24-110 VDC (16.8 to 137.5 VDC).

- 3 -

High Performance Network Switching Technology

•IPv6 ready, certified by the IPv6 Logo Committee.

•IEEE 1588 PTP (Precision Time Protocol) for the precise time

synchronization of networks.

•DHCP Option 82 for IP address assignment with different policies.

•EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported.

•Turbo Ring and Turbo Chain (recovery time <20 ms @250

switches),and STP/RSTP/MSTP for network redundancy

•IGMP Snooping and GMRP for filtering multicast traffic from industrial

Ethernet protocols.

•Port-based VLAN, IEEE802.1Q VLAN, and GVRP protocol to ease

network planning.

•QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic

classification and prioritization.

•802.3ad, LACP for optimum bandwidth utilization.

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•SNMP v1/v2c/v3 for different levels of network management.

•RMON for efficient network monitoring and proactive capability.

•Bandwidth management prevents unpredictable network status.

•Lock port allows access by only authorized MAC addresses.

•Port mirroring for online debugging.

•Automatic warning by exception through email, relay output.

•Automatic recovery of connected devices’ IP addresses.

•Line-swap fast recovery.

•LLDP for automatic topology discovery through network management

software.

•Loop protection prevents network loops

•Configurable through Web browser, Telnet/Serial console, CLI, and

Windows utility.

Designed for Industry-specific Applications

•Two Gigabit Ethernet ports to meet high bandwidth requirements.

•Bypass relay option on the 2 Gigabit Ethernet ports ensure non-stop

data communication in the event a switch stops working due to a

power failure.

•EN 50155/50121-3-2/50121-4 compliant.

•-40 to 75°C operating temperature range.

•IP54 rugged high-strength case.

•Panel mounting or DIN-Rail mounting installation capability.

Recommended Optional Accessories

•CBL-M23(FF6P)Open-BK-100-IP67: 1-meter M23 to 6-pin power

cable with IP67-rated female 6-pin M23 connector.

•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E UTP

Ethernet cable with IP67-rated male 4-pin M12 D-coded connector.

•CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable

with IP67-rated female 5-pin M12 A-coded connector.

•M12D-4P-IP68: Field-installable M12 D-coded screw-in connector,

male 4-pin, IP68-rated.

•M12A-5P-IP68: Field-installable M12 A-coded screw-in connector,

female 5-pin, IP68-rated.

•CAP-M12F-M: Metal cap for M12 female connector

•DK-DC50131: DIN-Rail mounting kit, 50 x 131 mm.

- 4 -

TN-5508A/5510A Panel Layouts

1. Model name.

2. Screw holes for panel mounting kit.

3. Console port.

4. Grounding screw.

5. Relay output port.

6. Power input voltage range indication.

7. Power input port (male 5-pin shielded M23 connector).

8. PWR1 LED: for power input 1.

9. PWR2 LED: for power input 2.

10. FAULT LED.

11. MSTR/HEAD LED: for ring master or chain head.

12. CPLR/TAIL LED: for ring coupler or chain tail.

13. TP port’s 10/100 Mbps LED.

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

15. Waterproof vent.

16. Product label.

17. 12 Screw holes for DIN-Rail mounting kit.

18. E2 LED: Not used by the TN-5508A series.

19. E1 LED: Not used by the TN-5508A series.

20. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A

User's Manual).

21. Gigabit Ethernet port E2 (corresponding to port 10 in the TN-5510A

User's Manual).

- 5 -

TN-5508A-8PoE/5510A-8PoE Panel Layouts

1. Model name

2. Screw holes for panel mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage range indication

7. Power input port (male 5-pin shielded M23 connector)

8. PWR1 LED: for power input 1

9. PWR2 LED: for power input 2

10. FAULT LED

11. MSTR/HEAD LED: for ring master or chain head

12. CPLR/TAIL LED: for ring coupler or chain tail

13. TP port’s 10/100 Mbps LED

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

15. Waterproof vent

16. Product label

17. 12 Screw holes for DIN-Rail mounting kit

18. E2 LED: Down-side E2 Gigabit port's 10/100/1000 Mbps LED

19. E1 LED: Down-side E1 Gigabit port's 10/100/1000 Mbps LED

20. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A

User's Manual)

21. Gigabit Ethernet port E2 (corresponding to port 10 in the TN-5510A

User's Manual)

- 6 -

ATTENTION

DO NOT open or remove the vent (#15). Once the seal has been

removed, the warranty becomes invalid.

Exposed connectors (including 3, 5, and 14) when not in use

must be tightly covered with protective caps (an optional

accessory) to ensure IP54-rated protection.

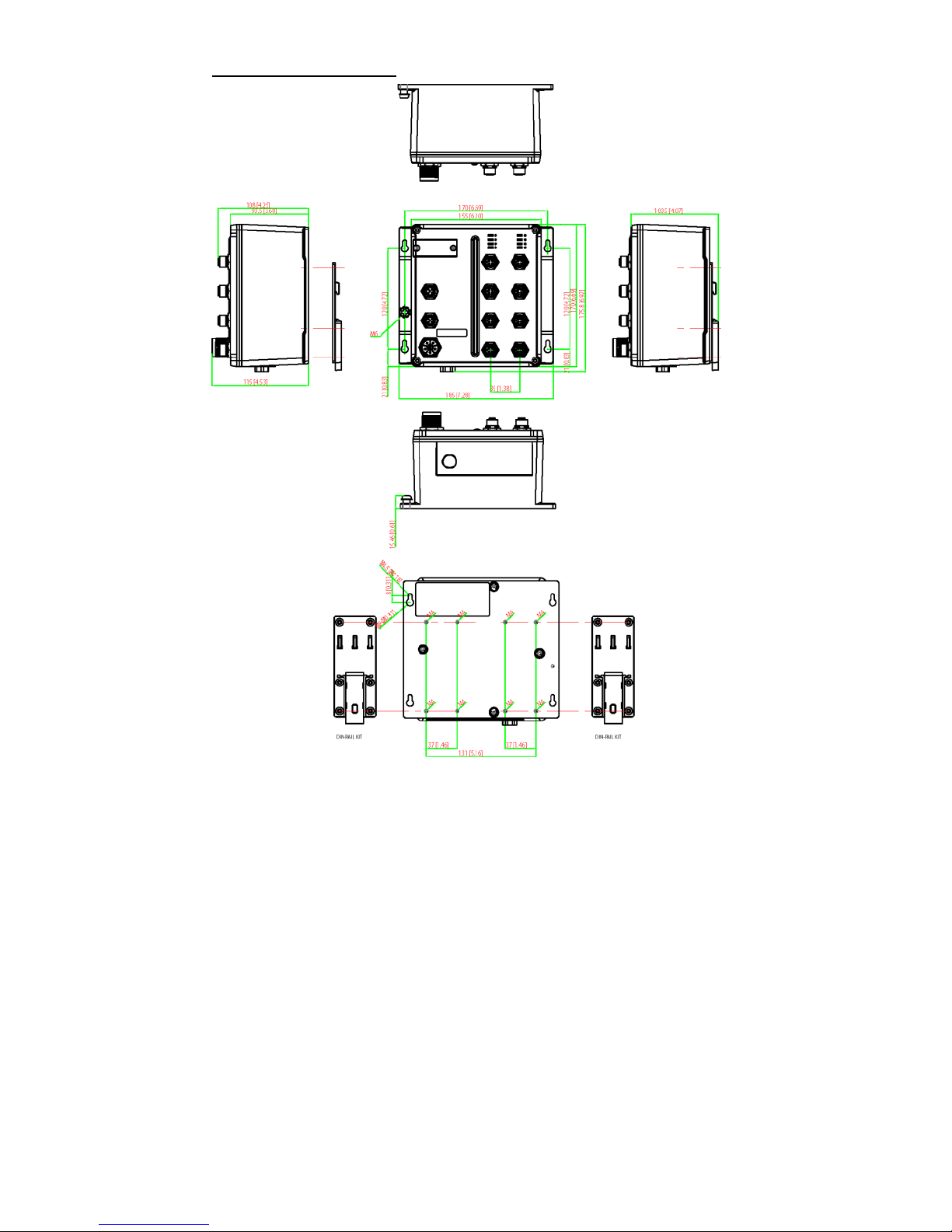

Mounting Dimensions (unit = mm)

TN-5508A Series

- 7 -

TN-5508A-8PoE Series

- 8 -

TN-5510A Series

- 9 -

TN-5510A-8PoE Series

Panel/Wall Mounting

STEP 1:

Mounting the TN-5508A/5510A to a wall requires 4 screws. Use the

ToughNet switch as a guide to mark the correct positions of the 4 screws.

STEP 2:

Use the 4 screws in the panel

mounting kit. If you would like to use

your own screws, make sure the

screw head is between 6.0 mm

and 7.0 mm in diameter and the

shaft is less than 4.0 mm in

diameter, as shown at the right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the ToughNet switch between the wall and the

screws.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shaft size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the ToughNet switch.

- 10 -

STEP 3:

Once the screws are fixed in the wall, hang the ToughNet switch on the 4

screws through the large opening of the keyhole-shaped apertures, and

then slide the switch downwards. Tighten the four screws for added

stability.

NOTE

To provide greater protection from vibrations and shocks, use

screws with shaft diameter between 6.0 mm and 7.0 mm, and fix

the ToughNet switch onto the wall directly through the large

opening of the keyhole-shaped apertures.

DIN-Rail Mounting (optional)

With the optional DIN-Rail

mounting kit DK-DC50131 (must

be purchased separately), you can

mount the TN-5508A/5510A on a

35mm DIN-Rail.

STEP 1:

Use 12 screws (6 screws per plate)

to attach the two DIN-Rail

attachment plates to the rear panel

of the switch.

STEP 2:

If the spring-loaded bracket is locked in place, push the recessed button

to release it. Once released, you should feel some resistance from the

spring as you slide the bracket up and down a few millimeters in each

direction.

STEP 3:

Position the ToughNet switch onthe

DIN-Rail, tilting to hook clamps over

the top edge of the rail.

STEP 4:

Swing the switch down fully onto

the DIN-Rail, until both clamps

completely latch.
