Moxa Technologies NPort W2250A-EU User manual

P/N: 1802021503016

*1802021503016*

NPort W2150A/W2250A Series

Quick Installation Guide

Version 6.3, April 2019

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The NPort W2150A/W2250A wireless device servers are an ideal choice

for connecting serial devices or Ethernet devices, including PLCs,

meters, and sensors, to an IP-based wireless LAN or Ethernet LAN.

Features

•Link any serial device to an IEEE 802.11a/b/g/n network

•1 and 2-port RS-232/422/485 models, up to 921.6 kbps

•Web-based configuration over Ethernet or wireless LAN

•Enhanced security for remote configuration with HTTPS, SSH

•Secure data access with WEP, WPA, WPA2

•Fast roaming when signal strength is weak

•Wireless Client: data can be seamlessly transferred between serial

line, LAN, and WLAN

•Per-port offline port buffering and serial data log

•Dual power inputs via a power jack and terminal block

Package Checklist

Before installing the NPort W2150A/W2250A device server, verify that

the package contains the following items:

•1 NPort W2150A or NPort W2250A wireless device server

•1 antenna 2.4/5GHz: ANT-WDB-ARM-02

•100 to 240 VAC power adapter (excluding T models)*

•1 Ethernet cable: CBL-RJ458P-100

•Quick installation guide (printed)

•Warranty card

NOTE

The power adapter is suitable for your region.

Optional Accessories

•DK35A (35 mm DIN-rail mounting kit)

•CBL-PJ21NOPEN-BK-30: Locking barrel plug to bare-wires cable

•Mini DB9F-to-TB: DB9-female-to-terminal-block adapter for RS-

422/485 applications

NOTE

Notify your sales representative if any of the above items are

missing or damaged.

- 3 -

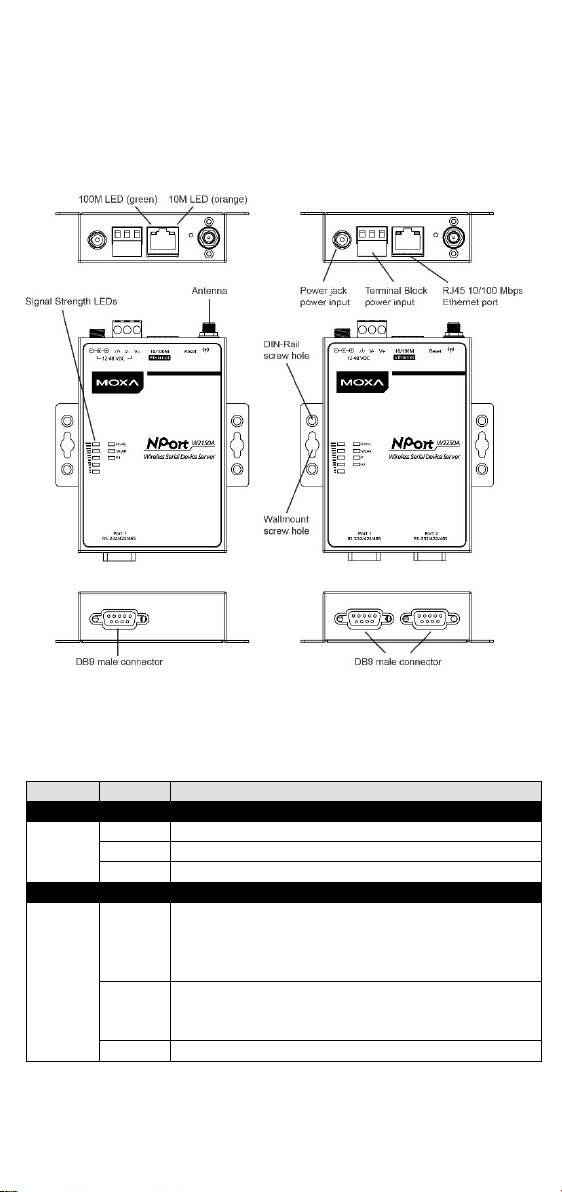

Hardware Introduction

The NPort W2150A models have one serial port; the NPort W2250A

models have two serial ports. Both models support RS-232/422/485

operation with DB9 connectors and include one 10/100M Ethernet port.

NPort W2150A/W2150A-T

NPort W2250A/W2250A-T

Reset Button: The reset button is used to load the factory default

settings. Use a pointed object to hold the reset button down for five

seconds to load the factory defaults.

Name

Color

Function

End Panel LED Indicators

Ethernet

Orange

10 Mbps Ethernet connection

Green

100 Mbps Ethernet connection

Off

Ethernet cable is disconnected

Top Panel LED Indicators

Ready

Red

Steady on:

Power is on and the NPort is booting up

Blinking:

An IP conflict exists or the

DHCP/BOOTP server did not respond

properly

Green

Steady on:

The NPort is functioning normally

Blinking:

The NPort is responding to Locate

function

Off

Power is off or a power error condition exists

- 4 -

Name

Color

Function

WLAN Green

Steady on:

Wireless enabled

Blinking:

The NPort can’t establish a WLAN

connection with AP (Infrastructure) or

station (Ad-Hoc)

Off

Wireless not enabled

Serial 1

Serial 2

Orange

The serial port is receiving data

Green

The serial port is transmitting data

Off

No data is flowing to or from the serial port

Signal

Strength

Red

1 Red - The signal strength (RSSI) is lower

than -88 dBm

2 Red -

The signal strength (RSSI) is between

- 87 to -79 dBm

Green

3 Green -

The signal strength (RSSI) is between

-78 to -68 dBm

4 Green -

The signal strength (RSSI) is between

-67 to -60 dBm

5 Green -

the signal strength (RSSI) is between

-59 to -45 dBm

Pull-High/Low Resistors and Terminal Resistor

for RS-422/485

You may need to set the pull

high/low resistors when

termination

resistors are used in

certain RS

-422 or RS-485

environments.

S2(Serial 1)

S3(Serial 2)

DIP 1

DIP 2

DIP 3

DIP 4

Pull-high

Resistor

Pull-low

Resistor

Terminal

Resistor

Reserved

1 kΩ

120 Ω

–

OFF (Default)

150 kΩ

N/A

–

S3 is for the NPort W2250A only.

- 5 -

NOTE

Do not use the 1 kΩ setting while in RS-232 mode. Doing so

will degrade the RS

-232 signals and reduce the effective

communication distance.

First-Time Hardware Installation

STEP 1:

After removing the NPort W2150A/W2250A from the box,

use a crossover Ethernet cable to connect the NPort’s RJ45

Ethernet port directly to your computer’s Ethernet port.

STEP 2:

Attach the power adapter to the NPort and then plug the

adapter into an electrical outlet.

STEP 3:

Configure the NPort W2150A/W2250A through the Ethernet

port. See the next section on how to install software.

NOTE

You must connect the Ethernet cable first before powering up

your NPort.

NOTE

The operating temperature of the power adapter in the box is

from 0 to

40°C. If your application is out of this range, please

use a power adapter supplied by UL Listed External Power

Supply (The power output meets SELV and LPS and rated 12

48 VDC, minimum current 0.73 A). Moxa has power adapters

with wide temperature range

(-40 to 75°C, -40 to 167°F), the

PWR-12150-(plug type)-SA-T series, for your reference.

Software Installation Information

For the NPort’s configuration, the default IP address of the NPort is:

LAN: Static; IP = 192.168.126.254; netmask = 255.255.255.0

WLAN: Static; IP = 192.168.127.254; netmask = 255.255.255.0

If the NPort is configured for DHCP, but the DHCP server cannot be

found, then the NPort will use the factory default IP settings.

NOTE

If you have forgotten the NPort's IP address, use the Device

Search Utility

(DSU) from your PC to locate the NPort. After

searching the LAN for NPort units, the DSU will display the IP

address of each unit.

NOTE

Ethernet Bridge Disabled (default): Only one network

interface can be active

at a time. If the Ethernet link is active,

the WLAN will be inactive. If the WLAN is active, the Ethernet

link will be inactive.

Ethernet Bridge Enabled:

The LAN and WLAN will both be

active. Go to the web console, find the network settings page,

and set Ethernet Bridge to Enabled.

You may log in with the account name admin and password moxa to

change any settings to meet your network topology (e.g., IP address)

or serial device (e.g., serial parameters). For first-time use, click the

- 6 -

Wizard in the left navigation panel. The wizard will prompt you to

configure the IP address, SSID, and security mode. For other settings,

use the factory defaults or modify the settings for your application.

For software installation, download the relative utilities from Moxa's

website:

https://www.moxa.com/support/support_home.aspx?isSearchShow=1

• Download the NPort Windows Driver Manager and install it as the

driver to run with Real COM mode of the NPort Series.

• Execute NPort Windows Driver Manager; then map the virtual COM

ports on your Windows platform.

• You may refer to the DB9 Male pin assignment section to loop back

pin 2 and pin 3 for the RS-232 interface to carry out a self test on the

device.

• Use HyperTerminal or a similar program (you may download Moxa's

program, called PComm Lite) to test whether the device is good or not.

Pin Assignments and Cable Wiring

Pin RS-232

RS-422,

4w RS-485

2w RS-485

DCD

TxD-(A)

–

RXD

TxD+(B)

–

TXD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

Specifications

Power Requirements

Power Input

12 to 48 VDC

Power Consumption

NPort W2150A: 179 mA @ 12 VDC

NPort W2250A: 200 mA @ 12 VDC

Power Connector Screw-type power jack or terminal block

(only one connection at a time)

Physical Characteristics

Material

Aluminum sheet metal (1 mm)

Dimensions

77 × 111 × 26 mm (no ears, no antenna)

100 × 111 × 26 mm (with ears, no antenna)

Antenna Length

109 mm

Magnetic Isolation

1.5 kV magnetic isolation built in

Environmental Limits

Operating Temperature

Standard Models:

Wide Temp. Models:

0 to 55°C (32 to 131°F), 5 to 95%RH

-40 to 75°C (-40 to 167°F), 5 to 95%RH

Storage Temperature

-40 to 85°C (-40 to 185°F), 5 to 95%RH

Regulatory Approvals

- 7 -

EMC

CE: EN 55032 Class A/EN 55035

ETSI EN 301 489-17,

ETSI EN 301 489-1

FCC: FCC Part 17 Subpart B, Class A

FCC Part 15 Subpart B, Class A

Safety UL: UL 60950-1

LVD: EN 60950-1

DSPR: ARIB-STD 33, ARIB-STD 66
