Moxa Technologies EDS-G308 Manual

Moxa EtherDevice Switch

EDS-G308

Hardware Installation Guide

Second Edition, April 2009

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan,

R.O.C.

TEL: +886-2-8919-1230

P/N: 1802003082011

- 2 -

Overview

The EDS-G308 series is equipped with 8 Gigabit Ethernet ports and up to 2

fiber optic ports, making it ideal for applications that demand high bandwidth.

The EDS-G308 series provides an economical solution for your industrial

Gigabit Ethernet connection, and the built-in relay warning function alerts

maintainers when power failures or port breaks occur. The EDS-G308 series

includes 2 models: one with an operating temperature range of 0 to 60°C, and

the other one with an extended operating temperature range of -40 to 75°C.

These 2 models have passed a 100% burn-in test to ensure that they fulfill the

special needs of industrial automation control. The EDS-G308 series can be

easily installed with DIN-Rail mounting as well as distribution boxes.

NOTE Throughout this Hardware Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

Package Checklist

Your EDS is shipped with the following items. If any of these items is missing

or damaged, please contact your customer service representative for assistance.

yMoxa EtherDevice™ Switch

yHardware Installation Guide

yMoxa Product Warranty booklet

yProtective caps for unused ports

Features

High Performance Network Switching Technology

y10/100/1000BaseT(X) (RJ45), auto negotiation speed, F/H duplex mode,

and auto MDI/MDI-X connection, 100/1000 BaseSFP slot.

yIEEE 802.3/802.3u/802.3ab/802.3z/802.3x.

yStore and Forward switching process type, 8K MAC address entries.

Industrial Grade Reliablity

yPower failure, port break alarm by relay output

yRedundant dual AC/DC power inputs

Rugged Design

yOperating temperature range of 0 to 60°C, or extended operating

temperature of -40 to 75°C for (-T) models

yIP30, rugged high-strength case

yDIN-Rail or panel mounting ability

yRedundant dual 12/24/48VDC or 18 to 30 VAC at 47 to 63Hz Power

inputs

- 3 -

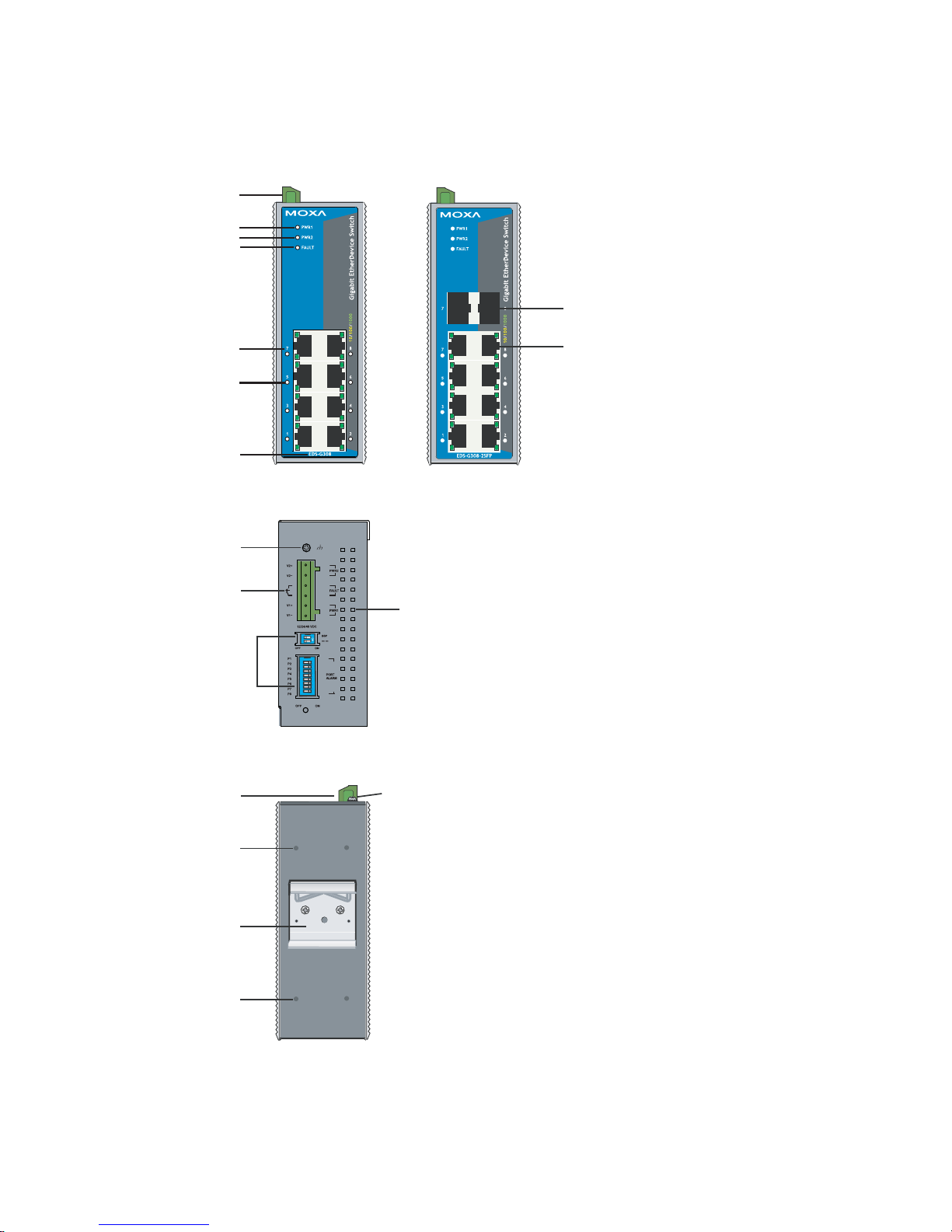

Panel Layout of

EDS-G308/EDS-G308-2SFP

EDS-G308

Front Panel View EDS-G308-2SFP

Front Panel View

Top Panel View

Rear Panel View

ON DIP

12345678

1. Grounding screw

2. Terminal block for power input

(PWR1, PWR2) and relay output

3. Power input PWR1 LED

4. Power input PWR2 LED

5. Fault LED

6. TP port’s 10/10/1000 Mbps LED

7. Port number

8. 10/100/1000BaseT(X) Port

9. 100/1000Base SFP slot

10. Model Name

11. DIP switches

12. Heat dissipation orifices

13. Screw hole for wall mounting kit

14. DIN-Rail Kit

- 4 -

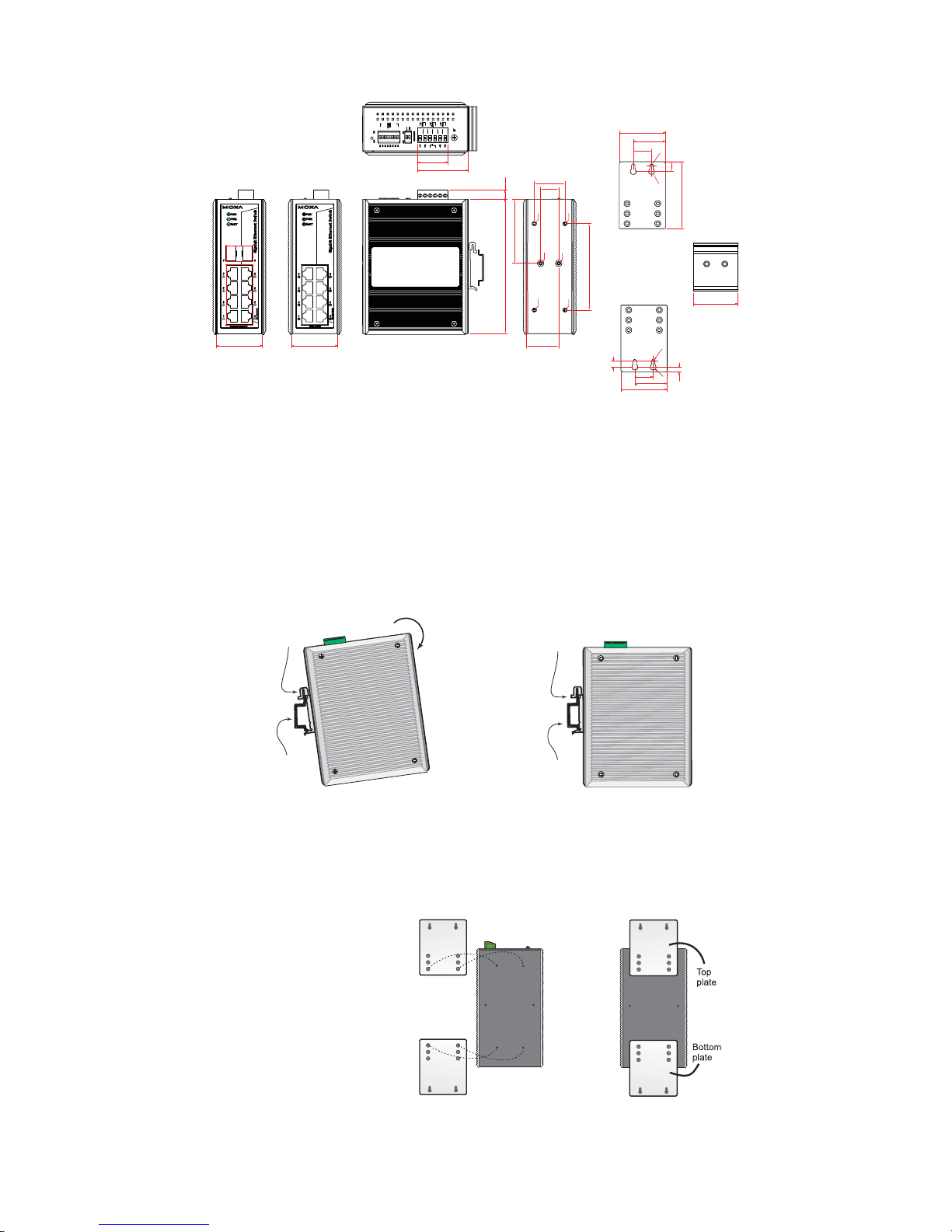

Mounting Dimensions (unit = mm)

45.8 45.8

50.4 30.5

31.9

32.1

18.2

32.1

18.2

Din-Rail

Panel Mount Kit

134

63.83

86.14

9.75

66.8

3.5

M3 M3

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the back

panel of the EDS when you take it out of the box. If you need to reattach the

DIN-rail attachment plate, make sure the stiff metal spring is situated towards

the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN-rail into the

slot just below the stiff metal spring.

STEP 2:

The DIN-rail attachment unit will

snap into place as shown below.

metal

spring

DIN-Rail

metal

spring

DIN-Rail

To remove the DIN-rail from the EDS, simply reverse Steps 1 and 2.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the EDS on the

wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN-rail attachment plate

from the EDS’s rear panel,

and then attach the wall

mount plates, as shown in

the figure.

⇒

- 5 -

STEP 2:

Mounting the EDS on the wall requires 4 screws. Use the switch,

with wall mount plates attached, as a guide to mark the correct

locations of the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the shafts should be less than 3.5

mm in diameter, as shown in the figure at the right.

6.0 mm

3.5 mm

NOTE Before tightening screws into the wall, make sure the screw head

and shank size are suitable by inserting the screw into one of the

keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room for

sliding the wall mount panel between the wall and the screws.

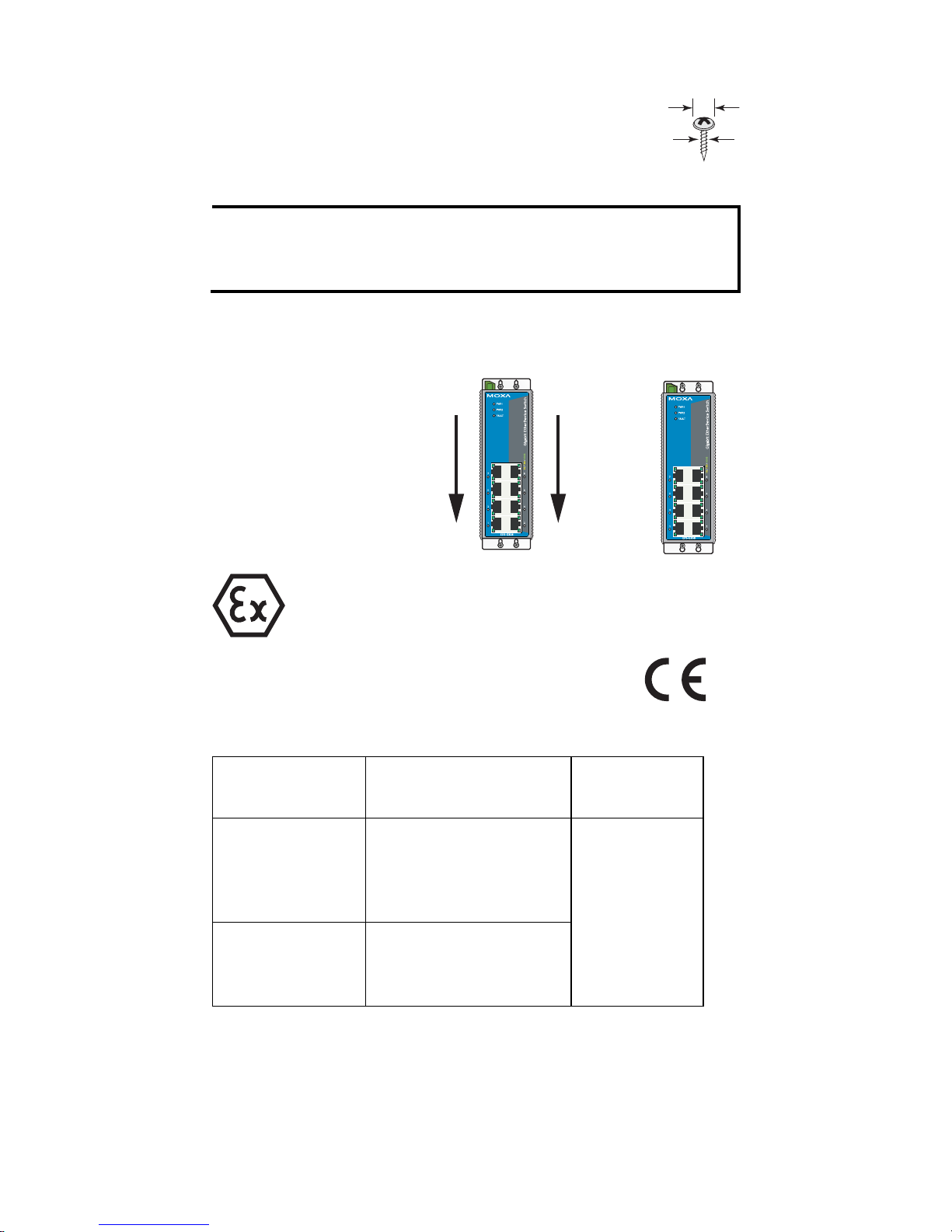

STEP 3:

Once the screws are fixed in the

wall, insert the four screw

heads through the large parts of

the keyhole-shaped apertures,

and then slide the EDS

downwards, as indicated.

Tighten the four screws for

added stability.

⇒

II 3G

ATEX Information

1. Certificate number DEMKO 10 ATEX 0917324X

2. Ambient range (-40°C ≤Tamb ≤75°C)

3. Certification string (Ex nC nL IIC T4)

4. Standards covered ( EN60079-0:2006, EN60079-15:2005)

5. Electric data

Model No. Rated Supply Voltage and

Current

Relay Contact

Rating

EDS-G308,

EDS-G308-T

12-48 V dc, Class 2,

Maximum 0.65 A;

18-30 V ac, Class 2, 50/60

Hz, Maximum 0.5 A

EDS-G308-2SFP,

EDS-G308-2SFP-T

12-48 V dc, Class 2,

Maximum 0.71 A;

18-30 V ac, Class 2, 50/60

Hz, Maximum 0.55 A

24 V dc, 1 A,

resistive load

6. The conditions of safe usage:

zThese products must be mounted in an IP54 enclosure.

zInstall in an area of pollution degree 2 or less.

zUse power supply terminal conductors suitable for use in an ambient

temperature of 90°C

For ambient temperatures below –10°C and above +60°C use field wiring

suitable for both minimum and maximum ambient temperatures.

- 6 -

Wiring Requirements

WARNING

Safety First!

Turn the power off before disconnecting modules or wires. The

proper power supply voltage is listed on the product label. Check

the voltage of your power source to make sure you are using the

correct voltage. Do NOT use a voltage greater than what is

specified on the product label.

These devices must be supplied by an AELV source as defined in

the Low Voltage Directive 2006/95/EC and 2004/108/EC.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring with

similar electrical characteristics can be bundled together.

yKeep input wiring and output wiring separated.

yIt is strongly advised that you label wiring for all devices in the system

when necessary.

Grounding Moxa EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel.

- 7 -

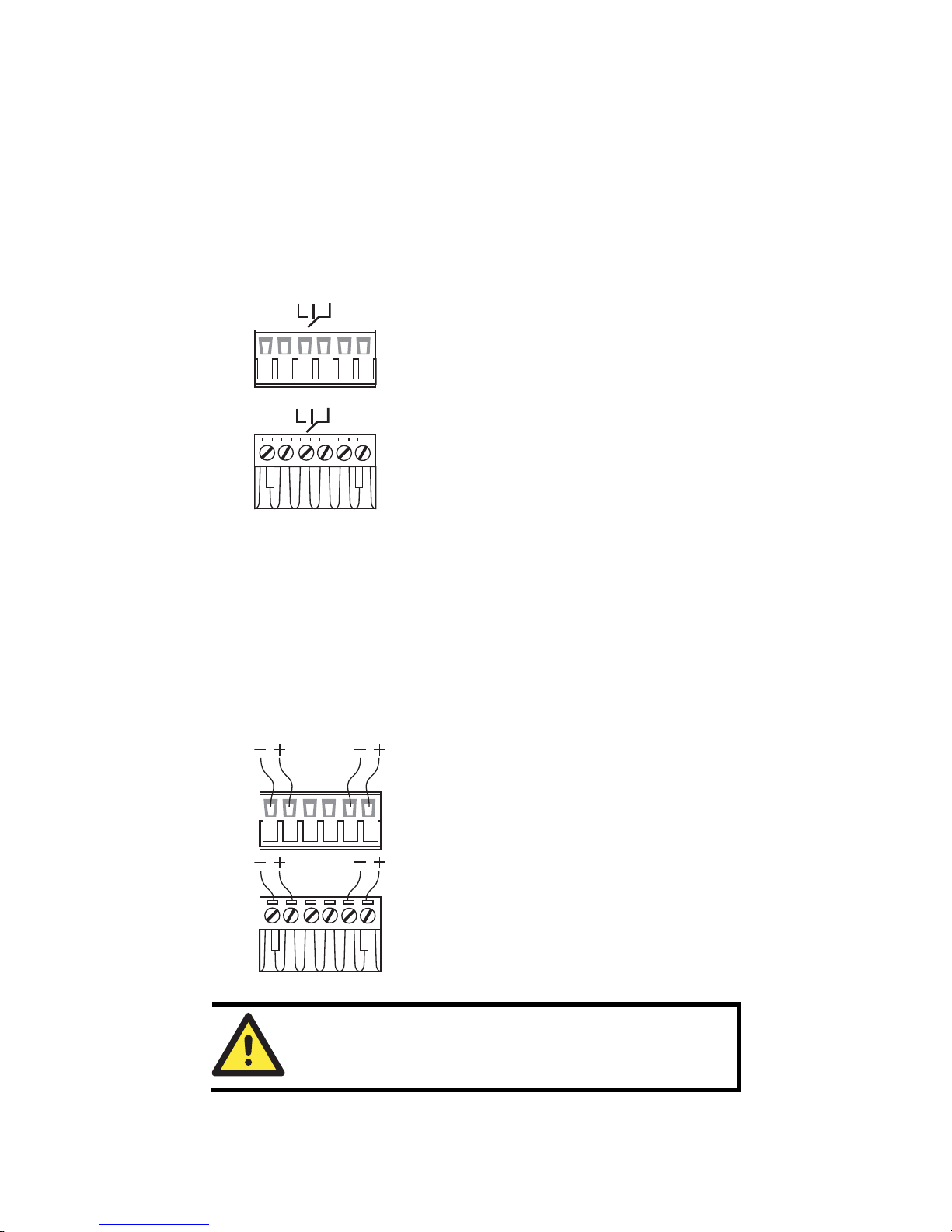

Wiring the Alarm Contact

The Alarm Contact consists of the two middle contacts of the terminal block on

the EDS’s top panel. You may refer to the next section for detailed instructions

on how to connect the wires to the terminal block connector, and how to attach

the terminal block connector to the terminal block receptor.

In this section, we explain the meaning of the two contacts used to connect the

Alarm Contact.

FAULT

Top View

Front View

FAULT: The two middle contacts of the

6-contact terminal block connector are used to

detect both power faults and port faults. The

two wires attached to the Fault contacts form

an open circuit when:

1. EDS has lost power from one of the AC/

DC power inputs.

2. The PORT ALARM DIP switch for one of

the ports is set to ON, but the port is not

connected properly.

If neither of these two conditions is satisfied,

the Fault circuit will be closed.

Wiring the Redundant Power Inputs

The top two contacts and the bottom two contacts of the 6-contact terminal

block connector on the EDS’s top panel are used for the EDS’s two AC/ DC

inputs. Top and front views of one of the terminal block connectors are shown

here.

Top View

Front View

STEP 1: Insert the negative/positive AC/

DC wires into the V-/V+ terminals.

STEP 2: To keep the AC/ DC wires from

pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp

screws on the front of the terminal block

connector.

STEP 3: Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on EDS’s top

panel.

ATTENTION

Before connecting the EDS to the AC/DC power inputs, make

sure the AC/DC power source voltage is stable.

- 8 -

Communication Connections

EDS-G308 models have 8 10/100/1000BaseT(X) Ethernet ports, or 6

10/100/1000BaseT(X) and 2 combination ports—10/100/1000T(X) and

100/1000BaseSFP.

10/100/1000BaseT(X) Ethernet Port

Connection

The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s front

panel are used to connect to Ethernet-enabled devices. Most users will choose

to configure these ports for Auto MDI/MDI-X mode, in which case the port’s

pinouts are adjusted automatically depending on the type of Ethernet cable

used (straight-through or cross-over), and the type of device (NIC-type or

HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10 /100Base T(x) RJ45 Pinouts

MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45

Pin Signal Pin Signal

1 Tx+ 1 Rx+

2 Tx- 2 Rx-

3 Rx+ 3 Tx+

6 Rx- 6 Tx-

1000BaseT RJ45 Pinouts

Pin MDI MDI-X

1 BI_DA+ BI_DB+

2 BI_DA- BI_DB-

3 BI_DB+ BI_DA+

4 BI_DC+ BI_DD+

5 BI_DC- BI_DD-

6 BI_DB- BI_DA-

7 BI_DD+ BI_DC+

8 BI_DD- BI_DC-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

Straight-Through Cable

RJ45 Plug Pin 1

Switch Port

RJ45

Connector RJ45

Connecto

Tx+

Tx-

Rx+

Rx-

DD+

DD-

DC+

DC-

NIC Port

Cable Wiring Rx+

Rx-

Tx+

Tx-

DC+

DC-

DD+

DD-

- 9 -

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

Cross-Over Cable

RJ45 Plug Pin 1

Switch Port

(NIC Port)

RJ45

Connector RJ45

Connector

Tx+

Tx-

Rx+

Rx-

(Rx+)

(Rx-)

(Tx+)

(Tx-) DC+

DC-

DD+

DD-

(DD+)

(DD-)

(DC+)

(DC-)

(Tx+)

(Tx-)

(Rx+)

(Rx-)

Switch Port

(NIC Port)

Cable Wiring

Rx+

Rx-

Tx+

Tx- (DC+)

(DC-)

(DD+)

(DD-)

DD+

DD-

DC+

DC-

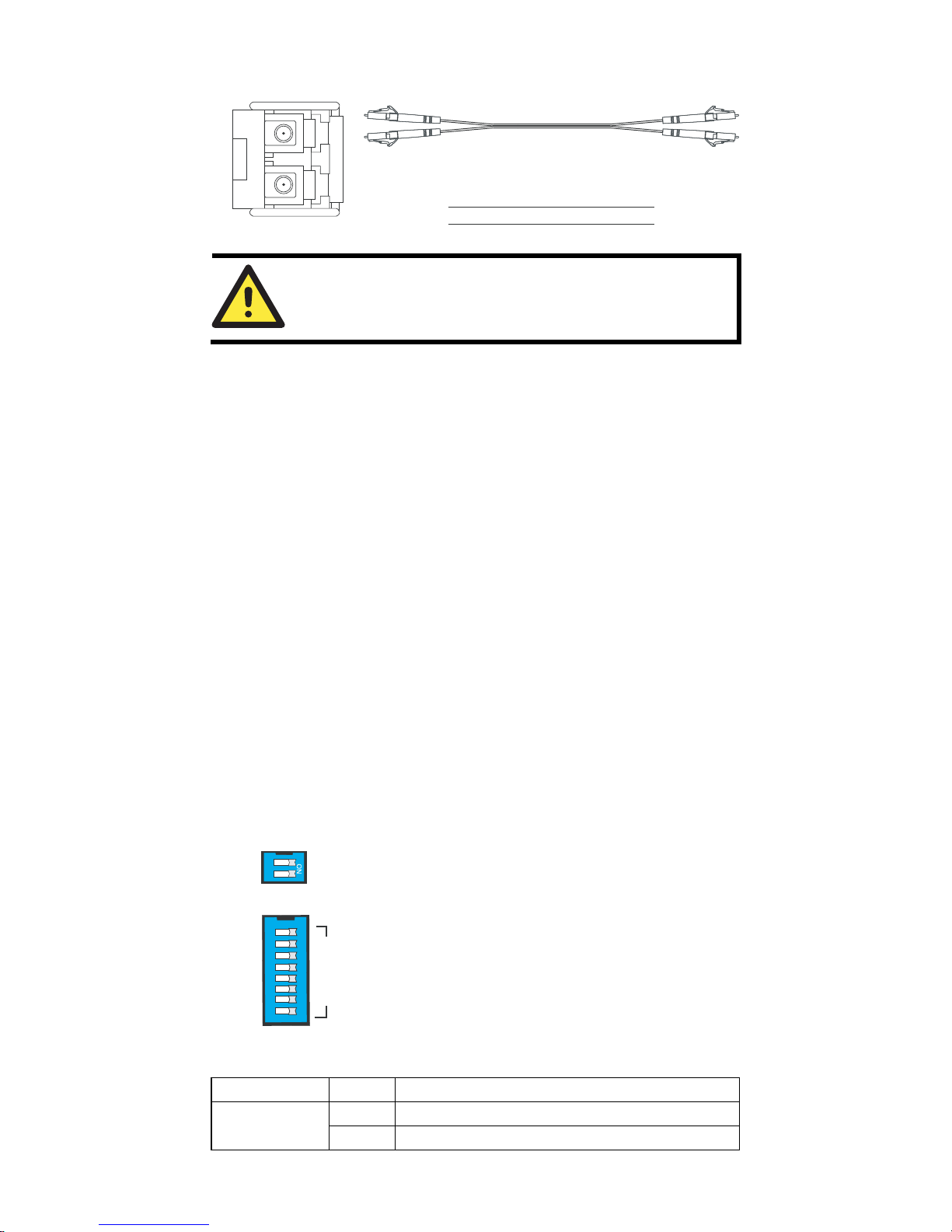

100Base-FX or 1000Base-X Fiber Port

The Fiber ports on the EDS-G308 series are SFP type slots, which support both

100Base-FX and 1000Base-X speed fiber transceiver to work properly. Moxa

provides complete transceiver models for various distance requirements.

Multi-mode:

1000BaseSX 0 to 550 m, 850 nm (50/125μm, 400MHz*km)

0 to 275 m, 850 nm (62.5/125μm, 200MHz*km)

1000BaseLX 0 to 1100 m, 1310 nm (50/125μm, 800MHz*km)

0 to 550 m, 1310 nm (62.5/125μm, 500MHz*km)

Single-mode:

1000BaseLX 0 to 10 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

1000BaseLHX 0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

1000BaseZX 0 to 80 km, 1550 nm (9/125μm, 19 PS/(nm*km))

Multi-mode:

100BaseFx 0 to 5 km, 1300 nm (50/125μm, 800MHz*km)

0 to 4 m, 1300 nm (62.5/125μm, 500MHz*km)

Single-mode:

100BaseFx 0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

The concept behind the LC port and cable is quite straightforward. Suppose

you are connecting devices I and II. Unlike electrical signals, optical signals do

not require a circuit in order to transmit data. Consequently, one of the optical

lines is used to transmit data from device I to device II, and the other optical

line is used to transmit data from device II to device I, for full-duplex

transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive) port

of device II, and the Rx (receive) port of device I to the Tx (transmit) port of

device II. If you make your own cable, we suggest labeling the two sides of the

same line with the same letter (A-to-A and B-to-B, as shown below, or

A1-to-A2 and B1-to-B2).

- 10 -

LC-Port Pinouts LC-Port to LC-Port Cable Wiring

Cable Wiring

A A

B B

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious

damage to your eyes, do not stare directly into the Laser Beam.

Redundant Power Inputs

Both power inputs can be connected simultaneously to live AC/DC power

sources. If one power source fails, the other live source acts as a backup, and

automatically supplies all of the EDS’s power needs.

Alarm Contact

The Moxa EtherDevice Switch has one Alarm Contact located on the top panel.

For detailed instructions on how to connect the Alarm Contact power wires to

the two middle contacts of the 6-contact terminal block connector, see the

Wiring the Alarm Contact section on page 6. A typical scenario would be to

connect the Fault circuit to a warning light located in the control room. The

light can be set up to switch on when a fault is detected.

The Alarm Contact has two terminals that form a Fault circuit for connecting to

an alarm system. The two wires attached to the Fault contacts form an open

circuit when (1) EDS has lost power from one of the AC/DC power inputs, or

(2) one of the ports, for which the corresponding PORT ALARM DIP switch is

set to ON, is not properly connected.

If neither of these two conditions occurs, the Fault circuit will be closed.

DIP Switch Settings

ON DIP

12345678

----

BSP

PORT

ALARM

12/24/48 VDC

ONOFF

OFF ON

The default setting for each DIP switch is OFF. The

following table explains the effect of setting the DIP

switches to the ON positions.

DIP Switch Setting Description

ON Enables broadcast storm protection

BSP OFF Disables broadcast storm protection

Other manuals for EDS-G308

Table of contents

Other Moxa Technologies Network Router manuals

Moxa Technologies

Moxa Technologies ToughNet User manual

Moxa Technologies

Moxa Technologies EDS-505A Series User manual

Moxa Technologies

Moxa Technologies EDR-G9010 Series User manual

Moxa Technologies

Moxa Technologies MAR-2000 User manual

Moxa Technologies

Moxa Technologies NPort 5000 Series User manual

Moxa Technologies

Moxa Technologies PT-7528 User manual

Moxa Technologies

Moxa Technologies EtherDevice Switch EDS-G205 Manual

Moxa Technologies

Moxa Technologies EDS-210A-1GTX-1GSFP-4SFP User manual

Moxa Technologies

Moxa Technologies EDR-8010 Series User manual

Moxa Technologies

Moxa Technologies EDR-G9010 Series User manual

Moxa Technologies

Moxa Technologies OnCell G4302-LTE4 Series User manual

Moxa Technologies

Moxa Technologies ioLogik E1210 User manual

Moxa Technologies

Moxa Technologies EDS-408A Manual

Moxa Technologies

Moxa Technologies TSN-G5000 Series User manual

Moxa Technologies

Moxa Technologies EDS-518E User manual

Moxa Technologies

Moxa Technologies TN-5916 Series User manual

Moxa Technologies

Moxa Technologies UC-8112-LX-STK User manual

Moxa Technologies

Moxa Technologies OnCell 5004-HSPA User manual

Moxa Technologies

Moxa Technologies ioLogik E1200 Series User manual

Moxa Technologies

Moxa Technologies AWK-4121 User manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7728 Manual

Moxa Technologies

Moxa Technologies NSwitch User manual

Moxa Technologies

Moxa Technologies Managed Ethernet Switch/Extender User manual

Moxa Technologies

Moxa Technologies ioLogik E1242 User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
