Mounting Dream MD5425 User manual

MD5425 INSTALLATION INSTRUCTION

(C3)

Before You Begin. Please check the following items:

□ The weight of your sound bar DO NOT EXCEED 20LBS (9 KG).

□ You must verify that the total weight of your TV, sound bar, sound bar

mount and any accessories must be lower than the maximum

weight rating of your TV mount.

□ You read through the user manuals of your TV, sound bar and TV

mount for additional guidance.

□ You have the tools needed for installation.

Please read this instruction carefully before installation.

● For wall mounted cases, the wall must be capable of supporting five times the weight of the TV, mount

and sound bar combined.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no

responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

Safety Caution:

Band Tape

2m Screwdriver

2M2M

Bubble Level Socket Wrench

1/2"(13mm)

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

M5x8mm Bolt

Allen Key

Connection plate

Wall plate

Wall plate unit

Assemble Wall plate

No!

Parts and Hardware

M6x10mm

M6 Washer

Bracket

(Left)

Bracket

(Right)

x1 x1

"L" Shaped

Bracket

M8x25mm

x4x4

M6x16mm

M8x45mm

x4x4

M6x25mm

M8x10mm 2.5mm

x4 x6

TV Screws

Spacers

Washers

Install on TV Wall Mount

2A-1 Attach Brackets to Wall Plate

Horizontal distance

of TV mounting holes

Tips: Check the horizontal distance of TV mounting

holes before connecting the wall plate unit to the

brackets.

No!

M4x16mm

M6x16mm M6

Ax2

M5x16mm

Bx2

Cx2 Dx2

Soundbar Screws

Concrete Wall Anchor 2pcs Lag Bolt M7x55mm 2pcs

2A-2 Disassemble Your TV from the Mount

Ⅰ Remove all cables Ⅱ Take off the TV

from the mount

Ⅲ Remove the TV

brackets from your TV

1 2

2A-3 Attach the Assembled Brackets Unit to Your TV

Tips: No need to use washer (g)

when using M8 screw (c/d).

No!

2A-4 Hang the Whole Assembled Unit to the Mount

1 2

2A-5 Hang and Secure the 'L" Shaped Brackets

2A-6 Put the Soundbar on the "L" Shaped Brackets

Back hole

Bottom hole

ABC

For wood stud installation, follow Option 1

For concrete installation, follow Option2 on PAGE 7

<16mm

(5/8") Max.

16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installation

Centre line

Mount on the wall

16"(406.4mm)

18"(457.2mm)

24"(609.6mm)

32"(812.8mm)

Centre

line

Wall plate

unit

5/32"

(4mm)

2.36"(60mm)

CAUTION: To avoid potential personal injury or property damage:

All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

No!

Lag Bolt

Go to Step 2A-5 2A-6 on PAGE 5.

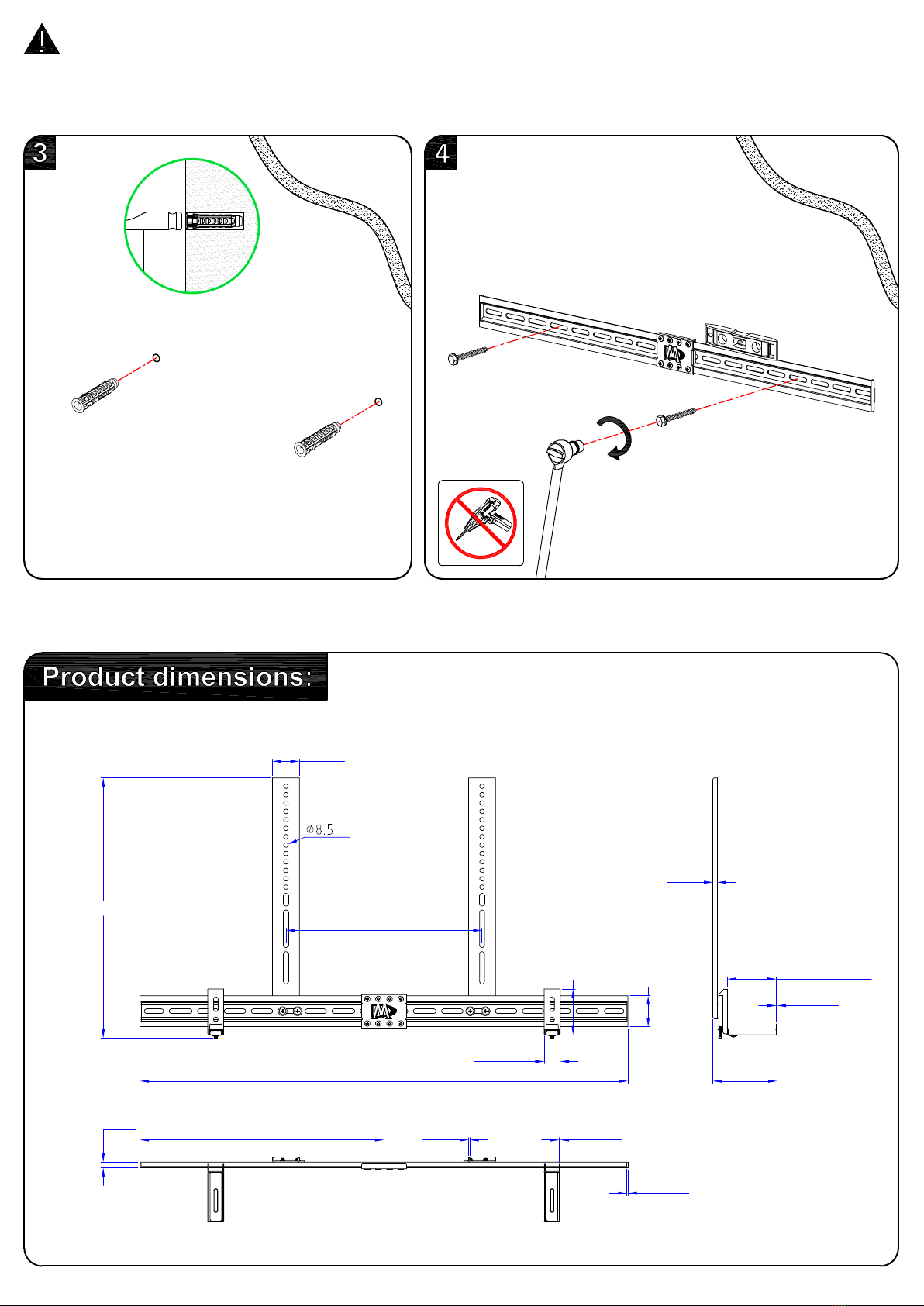

Solid Conrete Wall Installation

2.36"

(60mm)

Min.

8"(203mm)

3/8"

(10mm)

3/8"

(10mm)

DANGER

Wall plate

unit

Concrete Wall

Anchor

CAUTION: To avoid potential personal injury or property damage:

All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Lag Bolt

Wall plate

unit

No!

Go to Step 2A-5 2A-6 on PAGE 5.

MAX:800mm

MIN:200mm

48mm

465mm

55mm

81.5mm

28.6mm

871mm

87.5~154mm

1.5mm

8mm

115mm

435mm

10mm 2mm 1.5mm

1.8mm
