Mounting Dream MD2463-02 User manual
MD2463-02 INSTALLATION INSTRUCTION
(UK-C1)
10"~26" Max:100x100mm/4x4"
Min:50x50mm/2x2"
Für die Installationsanweisungen auf Deutsch, siehe Seite 10-11.
Pour l'instruction en Français, veuillez vous reporter à la page 12-13.
Para las instrucciones de la instalación en Español, favor vea la página 14-15.
Per le Istruzioni in Italiano, vedi pagina 16-17.
x3 x1
TV
1 2
If you have any questions, please contact our customer service.
Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
50x50mm/2x2",
75x75mm/3x3",
100x100mm/4x4"?
2 Does your TV
(including accessories)
weigh less than
33 LBS (15 kg)?
4 Installation Tools
(Not Included)
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:100mm/4"
MAX:
100mm/4"
Yes --- Perfect!
No --- This mount is NOT compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2M2M
5 Safety Caution
Solid concrete
wall?
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
Stud Finder Awl 1/8"(3mm)
Wood Drill Bit
5/16"(8mm)
Masonry Drill Bit Hammer
1
3 What is your wall
made of?
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please contact customer service.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Mounting Dream.
● Incorrect installation may result in product damage or body injury. Mounting
Dream shall bear no responsibility for any damage or injury resulted from incorrect
installation, incorrect assembly or misuse.
Parts and Hardware
Wall Plate Unit
2
TV Screws
x1
1-1 Disassemble Wall Plate Unit into Two Pieces
8mm Open-End Wrench
x1
TV plate
Wall plate
M4x12mm
M6x12mm
M4x30mm
M6x35mm
x4 x4
x4
x4
M5x12mm M5x30mm
x4
x4
M6x17mm
M4/M5 M6
2.5mm
Washers
Spacers
x4 x4
x4
x4
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact customer service.
NOTE: Not all hardware included will be used.
3
1-2 Choose Configuration
① 50mm x 50mm
② 75mm x 75mm
③ 100mm x 100mm
M6
M5
M4
1-3 Select TV Screws
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 4 for detailed combination.
Yes, go to PAGE 4 for detailed combination.
TV back
1-4 Need Spacer?
Short Screw
Washer
①①
① ①
②②
② ②
③ ③
③③
4

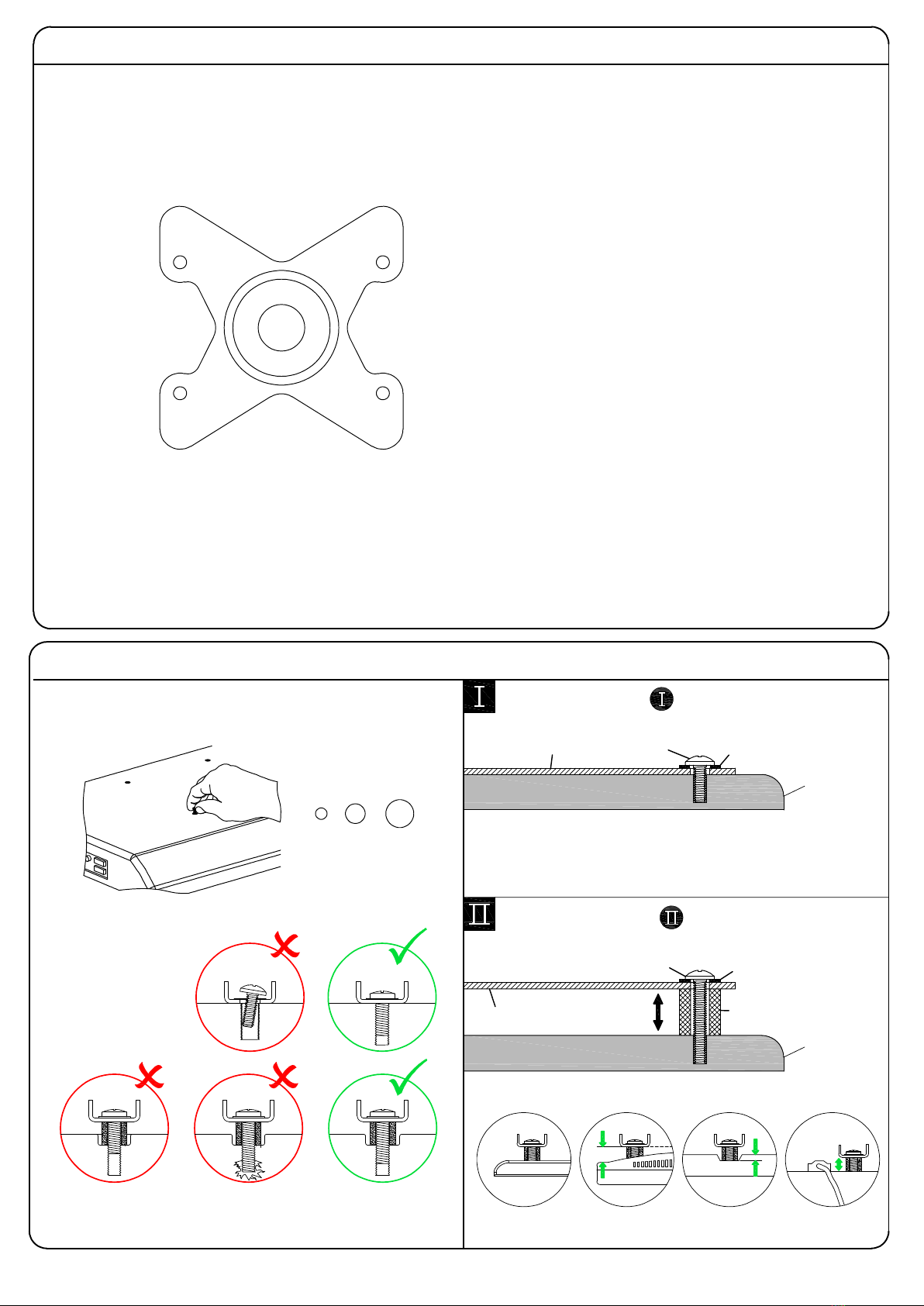

1-5 Attach TV Plate to TV Back
No!
Screw and washer
Spacer(s), screw and washer
Tips: If you need to combine M6(f) screw with 2.5mm spacer(h), you have to remove the
inner circle.
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 7
<16mm
(5/8")
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Parts and Hardware
Wood Stud Installation
5
Wall Plate
Lag Bolt M6x60mm
x3
Mounting Template
Concrete Wall Anchor 3pcs
CAUTION:Do not use in drywall or wood
Fischer UX8x50 R
1/8"
(3mm)
Go to Step 3 on PAGE 8
.
6
O
Centre line
2.5"(65mm)
CAUTION: To avoid potential personal injury or property damage:
All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
Mounting Template
Level
Wall plate
UP
Solid Concrete Wall Installation
7
2.5"
(65mm)
5/16"
(8mm)
Concrete Wall
Anchor
DANGER
Min.
8"(203mm)
CAUTION: To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
Mounting Template
Wall plate
LevelUP
8
33 LBS (15 kg)
Before hanging TV, please conduct "wall plate installation integrity test" first.
TV
1 2
9
345mm
75mm
100mm
196.5mm
+90°/-90°
190mm 100mm
+15°
-15°
66mm
Adjust TV leveling and tilting angle by using open-end wrench to loosen
and tighten the nut.
360°
-15°
+15°
190mm
55mm
