Mounting Dream MD2163-K User manual
MD2163-K INSTALLATION INSTRUCTION
If you have any questions, please contact us via customerservice@mountingdream.com
or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
For more information,please visit our website:www.mountingdreamonline.com
(B1)
42"~70" Max:600x400mm/24x16"
Min:200x100mm/8x4"
x2 x1
TV
1 2
Für die Installationsanweisungen auf deutsch, Siehe Seite 9~10.
Pour l'instruction en français, veuillez vous reporter à la page 11~12.
Para las instrucciones de la instalación en español, favor vea la página 13~14.
Per le Istruzioni in italiano, vedi pagina 15~16.

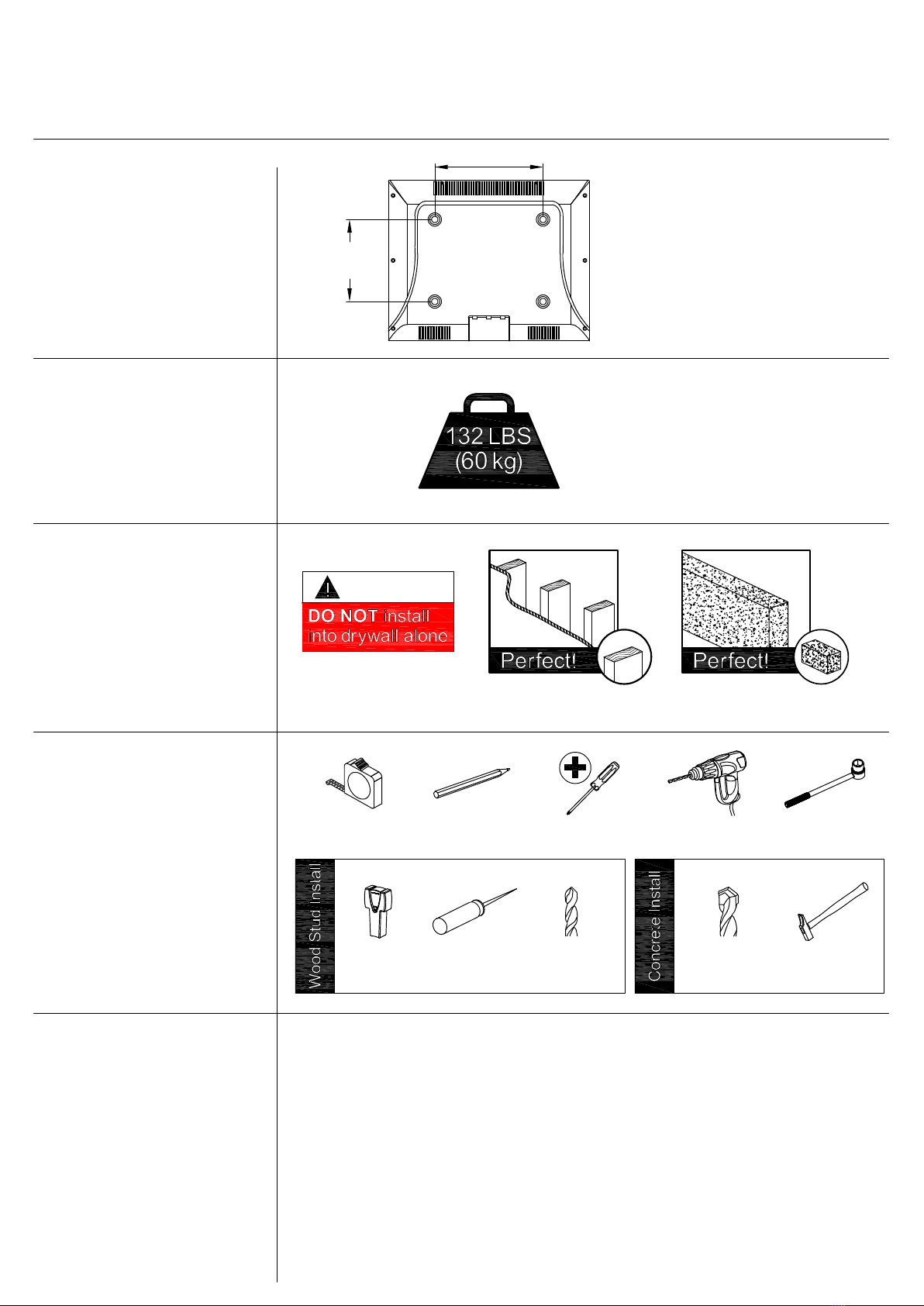

Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
equal to/greater than
200x100mm/8x4" and
equal to/less than
600x400mm/24x16"?
2 Does your TV
(including accessories)
weigh less than
132 LBS (60 kg)?
4 Installation Tools
(Not Included)
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:600mm/24"
MAX:
400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2M2M
5 Safety Caution
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, contact Customer Service via
customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon
- Fri 10am - 6pm (Pacific time).
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Mounting Dream.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Solid concrete
wall?
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
Stud Finder Awl 7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
1
3 What is your wall
made of?

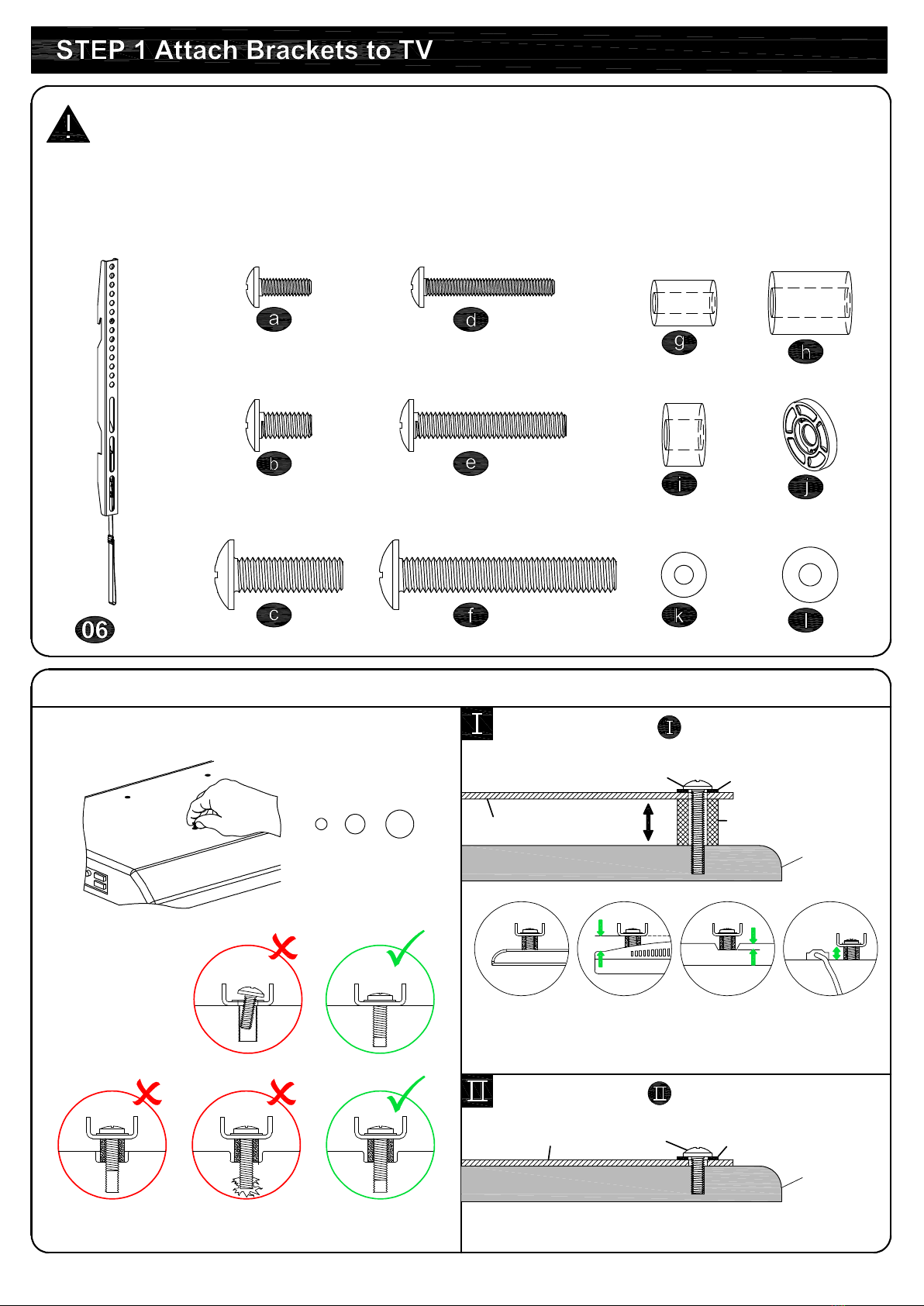

Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact us via customerservice@mountingdream.com.
NOTE: Not all hardware included will be used.
TV Brackets
x2
M8
M6
M4
1-1 Select TV Screws
TV back
Bracket
Long Screw
Spacer
Yes, go to PAGE 3 for detailed combination.
2
1-2 Need Spacer?
Washer
Highly recommended to add spacers for more
spacing between wall mount and wall.
M4x12mm
M6x12mm
M4x30mm
M6x35mm
M8x25mm
M8x45mm
M6x17mm M8x22mm
M4 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4 x4
x4 x4
x4 x4
x4
x4 x4
x4 x8
x4
Bracket Washer
No, go to PAGE 3 for detailed combination.
TV back
Short Screw
3

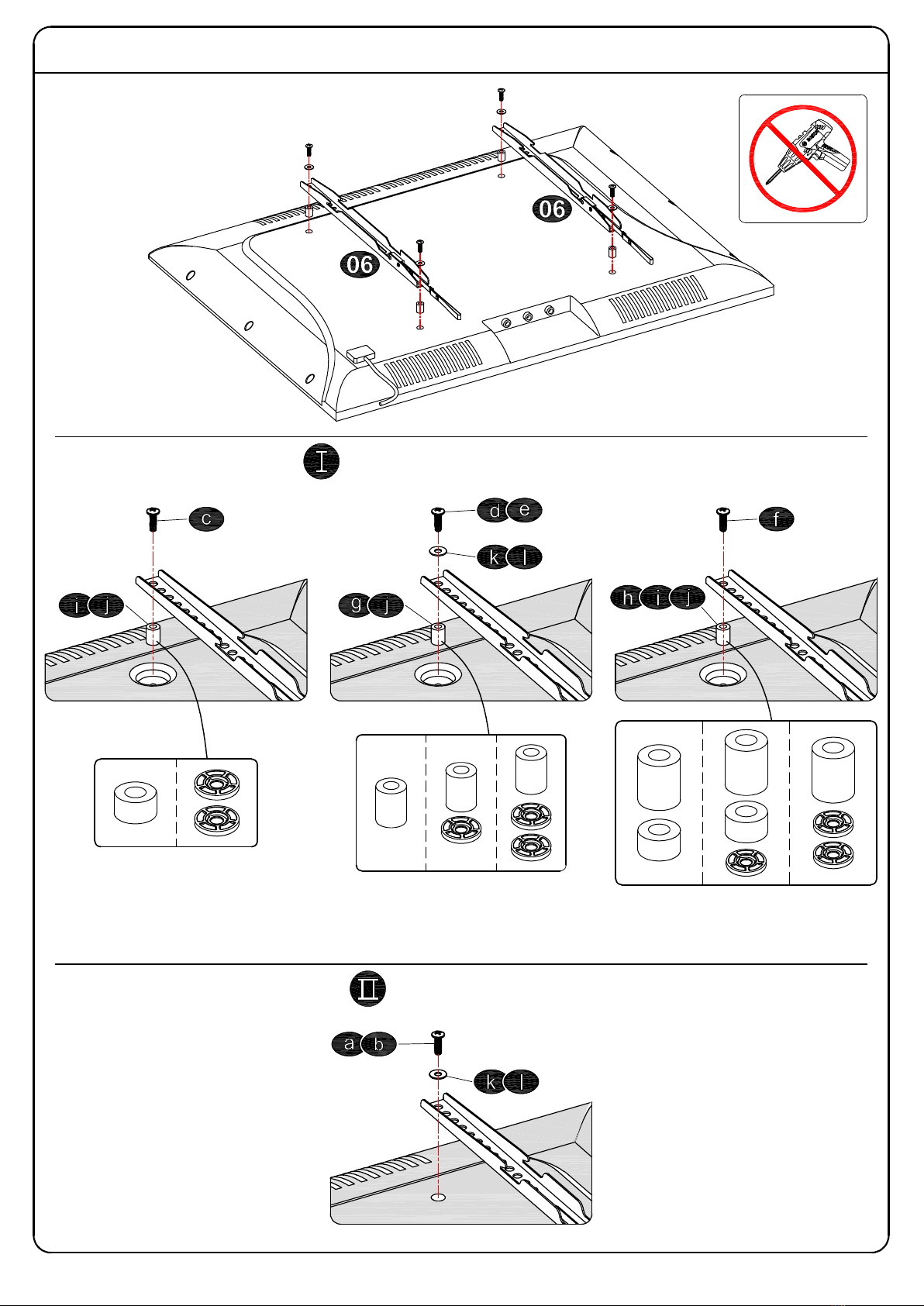

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to
remove the inner circle.
1-3 Attach the TV Brackets
Spacer(s), screw and washer
No!
Screw and washer
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 6
<16mm
(5/8") 24"(609.6mm)
/16"(406mm)
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Wood Stud Installations
4
Lag Bolt M8x60mm
M8 Washer
x4x4
Parts and Hardware
x4
M5x8mm Bolt
Assemble Wall plate
Contact us at telephone (626) 604-9048 (USA)
Mon - Fri 10am - 6pm (Pacific time) or email us
by customerservice@mountingdream.com to
have these additional pieces shipped directly to
you.
Concrete Wall Anchor
4pcs
Wall plate(Left)
x1
Wall plate(Right)
x1
Wall plate unit
Mounting
Template
O
Centre line
16"(406mm)
7/32"
(5.5mm)
2.5"(64mm)
Go to Step 3 on PAGE 7.
5
Centre line
Again, find another wood stud
No!
Level
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on
to the next step.
Mounting
Template

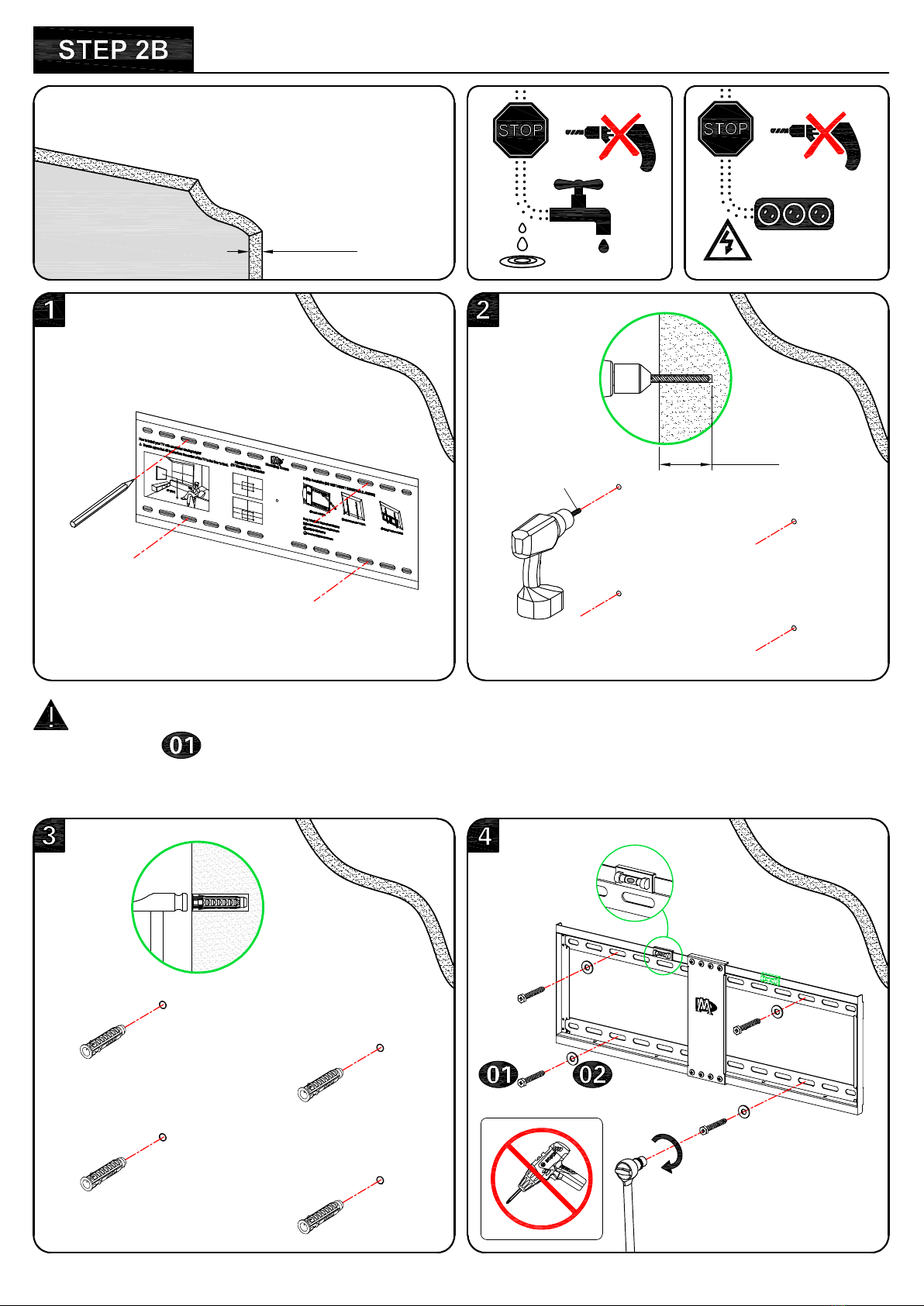

Solid Concrete Wall Installation
6
2.5"
(64mm)
Concrete Wall
Anchor
Min.
8"(203mm)
3/8"
(10mm)
3/8"
(10mm)
DANGER
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on
to the next step.
Level
No!
Mounting
Template
7
132 LBS (60 kg)
Before hanging TV, please conduct "wall plate installation integrity test" first.
Pull down
TV
1 2
8
Pull down
the straps
MAX:600mm
651mm
222mm MAX:
400mm
430mm
30mm

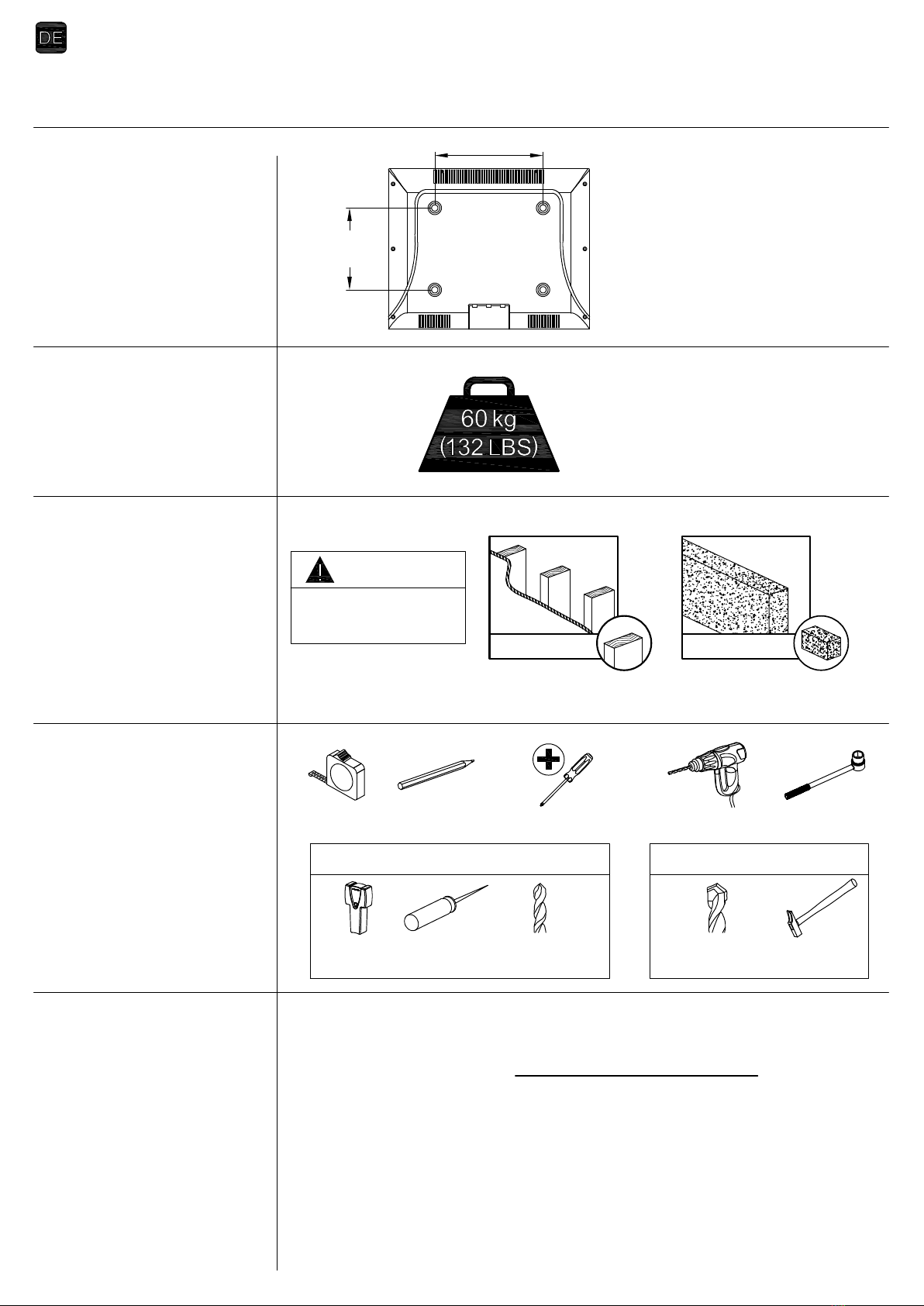

Vor der Installation bestätigen Sie bitte zuerst, ob diese Halterung für Ihr Fernsehapparat geeignet ist!
1 Ist der Abstand der
Montagelöcher von Ihrem
Fernsehapparat zwischen
200x100mm/8x4" und
600x400mm/24x16"?
2 Wiegt Ihr
Fernsehapparat (inkl.
Zubehör) weniger als
60 kg (132 LBS)?
4 Werkzeuge für
Installation
(Nicht enthalten)
Ja - Perfekt!
Nein - Diese Halterung ist nicht geeignet!
MAX:600mm/24"
MAX:
400mm/16"
Ja - Perfekt!
Nein - Diese Halterung ist nicht geeignet!
Vorsicht:
Gipskartonwand
mit Holzbalken?
Bandmaß
2M2M
5 Sicherheitshinweise
Bitte lesen Sie die Anweisungen sorgfältig vor der Installation durch.
Falls Sie diese Anweisungen nicht verstehen oder Zweifel bezüglich der Sicherheit der
Installation, des Zusammenbaus oder der Verwendung des Produkts haben, kontaktieren Sie
bitte den Kundendienst per E-Mail: customerservice@mountingdream.com. Oder rufen Sie
(626) -604-9048 (USA) an. Bürozeiten: Montag bis Freitag, 10:00 - 18:00 Uhr (Pazifikzeit)
● Dieses Produkt ist für die Installation an Wänden mit Holzträgern und Massivbetonwand -
NICHT an einer reinen Gipskartonwand montieren.
● Die Wand muss das Fünffache des Gesamtgewichts des Fernsehapparats und der Halterung
tragen können.
● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting
Dream angegeben.
● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen
an Ihrem Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch
unsachgemäße Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung
verursacht wurden.
Bleistift Kreuzschlitzschraubendreher Elektrobohrer Steckschlüssel
(13mm, 1/2”)
Balkensucher Ahle 5.5mm (7/32”)
Bohreinsatz für Holz
10mm (3/8”)
Bohreinsatz für Stein Hammer
3 Woraus besteht
Ihre Wand?
NICHT an einer reinen
Gipskartonwand
anbringen.
Perfekt! Perfekt!
Massivbetonwand?
Montage von Holzbalkenwand Montage von Betonwand
9
